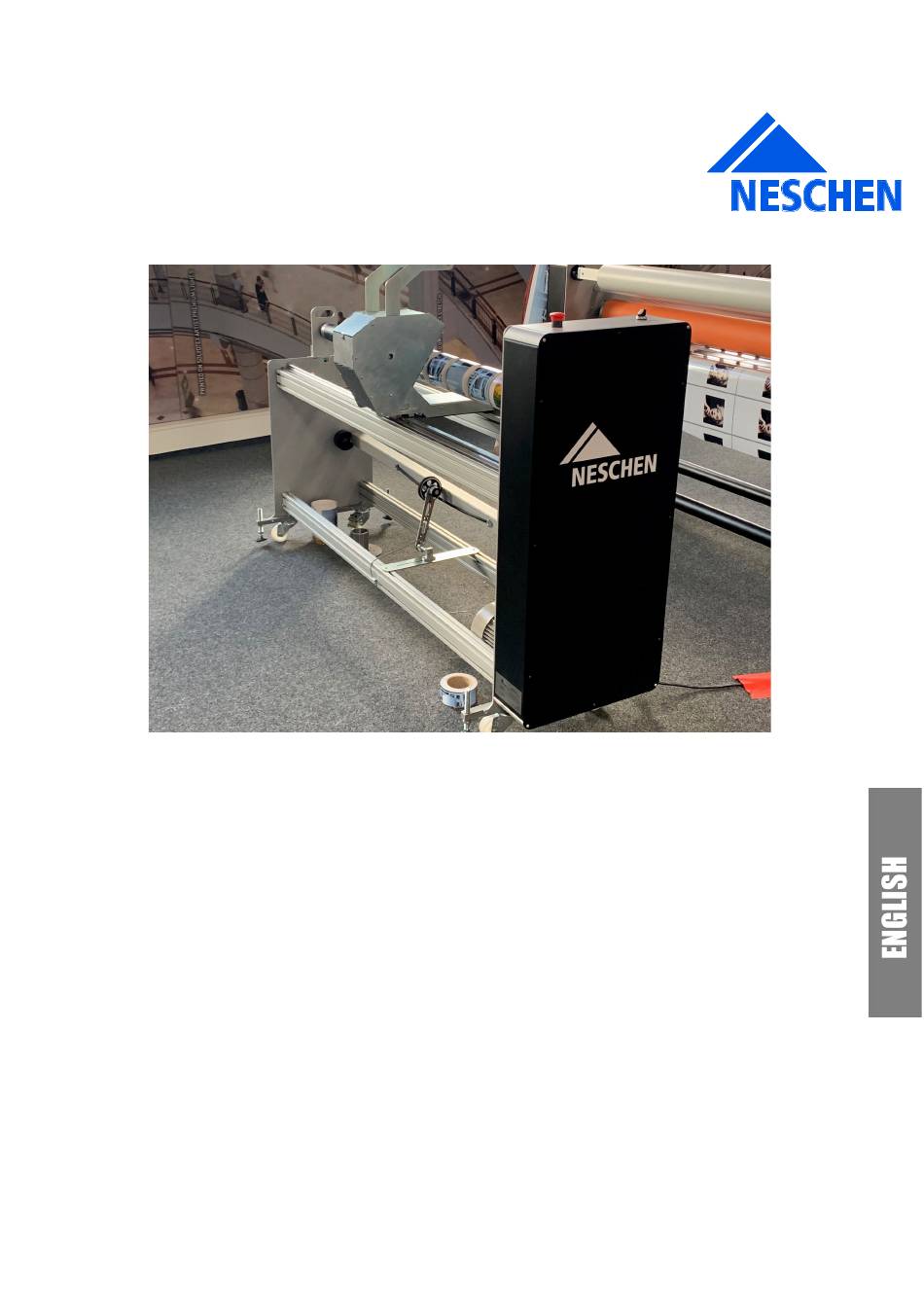

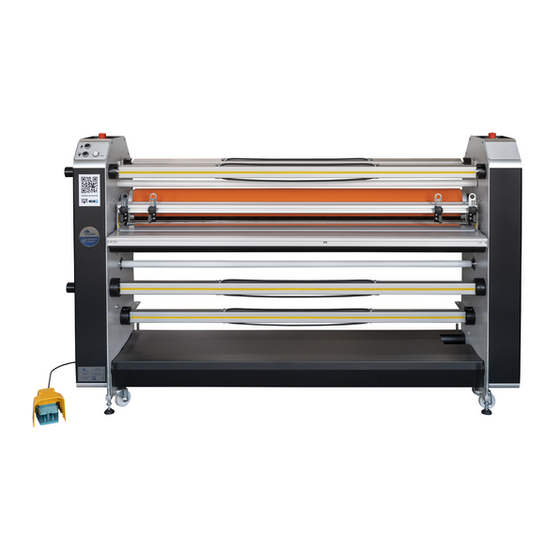

- Page 1 NESCHEN ROLL CUTTER 1650 OPERATING INSTRUCTIONS Vers. 02-2022...
-
Page 2: Table Of Contents
Summary Introduction .................................. 1 Application ..................................2 Description of the main parts of the Neschen roll cutter ..............3 Knife trolley ................................... 4 Main switch - position .............................5 Display functions ..............................6 Material axis- cutting to length .......................... 7 Applying a roll of material to the shaft ......................8 Occupational safety .............................. -
Page 3: Introduction
1. INTRODUCTION Dear customers, We are pleased that you have chosen a roll cutter from Neschen and hope that you will increase your productivity with this machine. This electrically driven device is equipped with rotating axes and moving components, so occupational safety principles must be observed. -
Page 4: Application
2. APPLICATIONS The Neschen roll cutter for large formats is suitable for cutting roll material with a max. width of 1650mm and a diameter of 200mm. The Neschen roll cutter for large formats is suitable for cutting roll material with a max. -
Page 5: Description Of The Main Parts Of The Neschen Roll Cutter
3. DESCRIPTION OF THE MAIN PARTS OF THE NESCHEN ROLL CUTTER Emergency stop switch Knife carriage Main switch Drive axle Winding axis Emergency STOP switch - if the emergency STOP switch is actuated, the machine switches off completely. Depending on the circumstance, you can turn the machine on again. -
Page 6: Display Functions
7. Material axis- cutting to length Laminating and printing materials are rolled on a paper core with an inner diameter of 76.2 mm. The shafts of the Neschen roll cutter are designed for these cores. If the material is unrolled too loosely or too tightly, the braking force can be adjusted by tightening or loosening the brake on the right side of the machine. -
Page 7: Applying A Roll Of Material To The Shaft
8. APPLYING A ROLL OF MATERIAL TO THE SHAFT Unlock the shaft on the right side. Insert the roll of material into the shaft. Heavy rolls should be inserted by two people. Lock the shaft back into the machine. Tighten the cap nut, thus tensioning the expanders so that the core is held in place. Union nut Expander... -
Page 8: Occupational Safety
Two hand circuit • THE FOLLOWING POINTS MUST BE OBSERVED WHEN USING THE NESCHEN ROLL CUTTER: Do not use the roll cutter if there is a design or mechanical fault; • Do not use the roll cutter under alcohol. Being under the influence of drugs •... -
Page 9: Safety Instructions For The Neschen Roll Cutter
If someone recognizes that the operator of the roll cutter is in danger, they can press the emergency STOP switch. 11. SAFETY INSTRUCTIONS ON THE NESCHEN ROLL CUTTER The pictograms must be clearly legible on the CUTTER at all times. -
Page 10: Fire Protection
• 14. MAINTENANCE Neschen roll cutters are stable and durable and require little maintenance. For trouble-free use and a long service life, the following must be observed: Disconnect the roll cutter from the power supply before any cleaning or maintenance. -
Page 11: Technical Specifications
16. TECHNICAL SPECIFICATIONS Neschen roll cutter 1650 Maximum processing width 1650 mm Maximum cutting 200 mm diameter Maximum diameter 300 mm unwinding axis Wide 2220 mm Height 1220 mm Depth 700 mm Net weight 115 kg Transport weight 185 kg...
