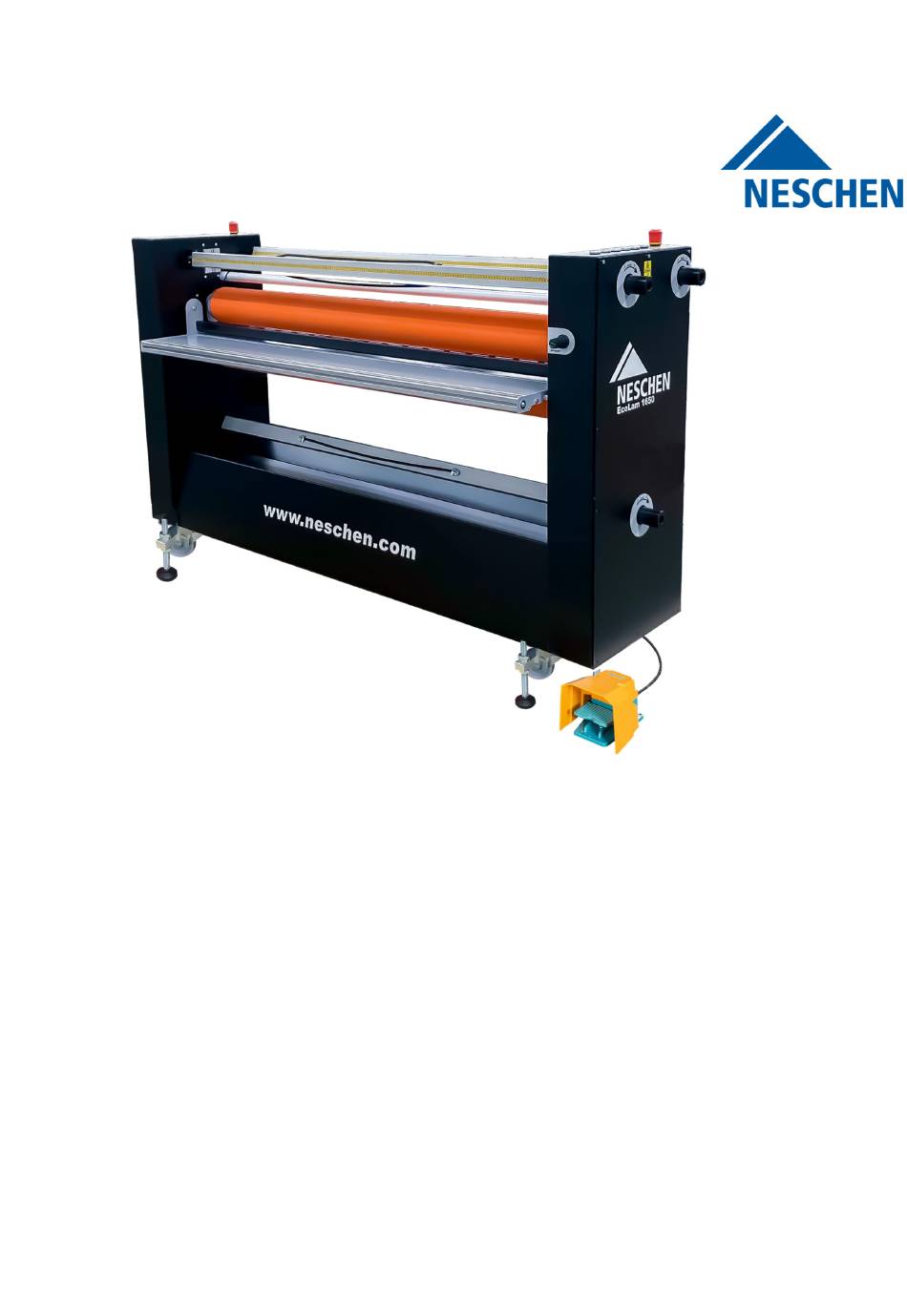

NESCHEN ECOLAM 1650
LAMINATOR FOR LARGE FORMATS
OPERATING INSTRUCTIONS
Rev. 06-2023
REV. 06-2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECOLAM 1650 and is the answer not in the manual?

Questions and answers

Related Manuals for Neschen ECOLAM 1650

Summary of Contents for Neschen ECOLAM 1650

  • Page 1 NESCHEN ECOLAM 1650 LAMINATOR FOR LARGE FORMATS OPERATING INSTRUCTIONS Rev. 06-2023 REV. 06-2023...

  • Page 2: Table Of Contents

    CONTENTS 1. INTRODUCTION _______________________________________________________________________ 3 2. APPLICATION _________________________________________________________________________ 4 3. DESCRIPTION OF THE MAIN PARTS OF THE NESCHEN LAMINATOR __________________________________ 5 4. CONTROL PANEL – LEFT __________________________________________________________________ 5 5. MAIN SWITCH – POSITIONS ______________________________________________________________ 6 6. CONTROL PANEL - RIGHT ________________________________________________________________ 6 7.

  • Page 3: Introduction

    1. INTRODUCTION Dear customers, We are pleased that you have chosen a laminator from Neschen and hope that you will increase your productivity with this machine. This electrically driven device is equipped with rotating rollers and moving components, so it is essential to comply with occupational safety principles.

  • Page 4: Application

    • The flexible use and easy handling of the Neschen Laminator allows working with sheets and rolls. The user selects the appropriate laminating technique, for example sheet lamination or lamination from roll or roll to roll •...

  • Page 5: Description Of The Main Parts Of The Neschen Laminator

    3. DESCRIPTION OF THE MAIN PARTS OF THE NESCHEN LAMINATOR Right control panel Left control panel Main roller Foot switch connection Feeding table 4. CONTROL PANEL – LEFT Emergency stop 2023_07_NESCHEN HOTLAM AND COLDLAM_EN...

  • Page 6: Main Switch - Positions

    5. MAIN SWITCH – POSITIONS Light OFF - the laminator is switched off Light ON - the laminator is switched on 6. CONTROL PANEL - RIGHT Emergency stop Temperature setting Pneumatic Roller height adjustment Roller rotation Speed setting Pressure setting The upper roller can move up and down, with distances from 0 to 40 mm.

  • Page 7: Silicone Paper And Laminated Prints

    - roller rotation in forward direction - the rotation direction is indicated by the corresponding key light. The Neschen laminators have a modern, intelligent start function, which allows the laminator to start slowly and evenly until the speed set by the rotary knob is reached. The speed is not based on the load.

  • Page 8: Applying A Roll Of Material To The Shaft

    • Light barriers WHEN USING THE NESCHEN LAMINATOR, IT IS ESSENTIAL TO OBSERVE THE FOLLOWING: • Do not use the laminator if there is a design or mechanical fault • Do not use the laminator under the influence of alcohol, drugs or medication, as your responsiveness and attention may be impaired •...

  • Page 9: Safety Instructions

    • Do not touch moving parts • Always remain at the control panel while the laminator is in operation • Do not remove safety devices from the laminator and do not interfere with their operation • Do not carry out any maintenance or cleaning work while the machine is running •...

  • Page 10: Safety Instructions On The Neschen Laminator

    After finishing work on the laminator, lift the upper roller, switch off the laminator and disconnect the power supply 13. SAFETY INSTRUCTIONS ON THE NESCHEN LAMINATOR The pictograms must be clearly legible on the laminator at all times. Damaged pictograms must be replaced.

  • Page 11: Fire Protection

    16. MAINTENANCE AND REPAIR MAINTENANCE • Neschen laminators are stable and durable and require little maintenance. For trouble-free use and a long service life, the following should be observed: • Use isopropyl alcohol to clean the roller surfaces. Clean other surfaces with a diluted cleaning solution and a damp cloth.

  • Page 12: Warranty Conditions

    • Fuse T500mAL250V, 2 units 17. WARRANTY CONDITIONS • The manufacturer grants a warranty period of 12 months from the date of sale for Neschen products • The completed Installation Acceptance document must be sent to Neschen • Contact your seller for detailed information on warranty conditions •...
