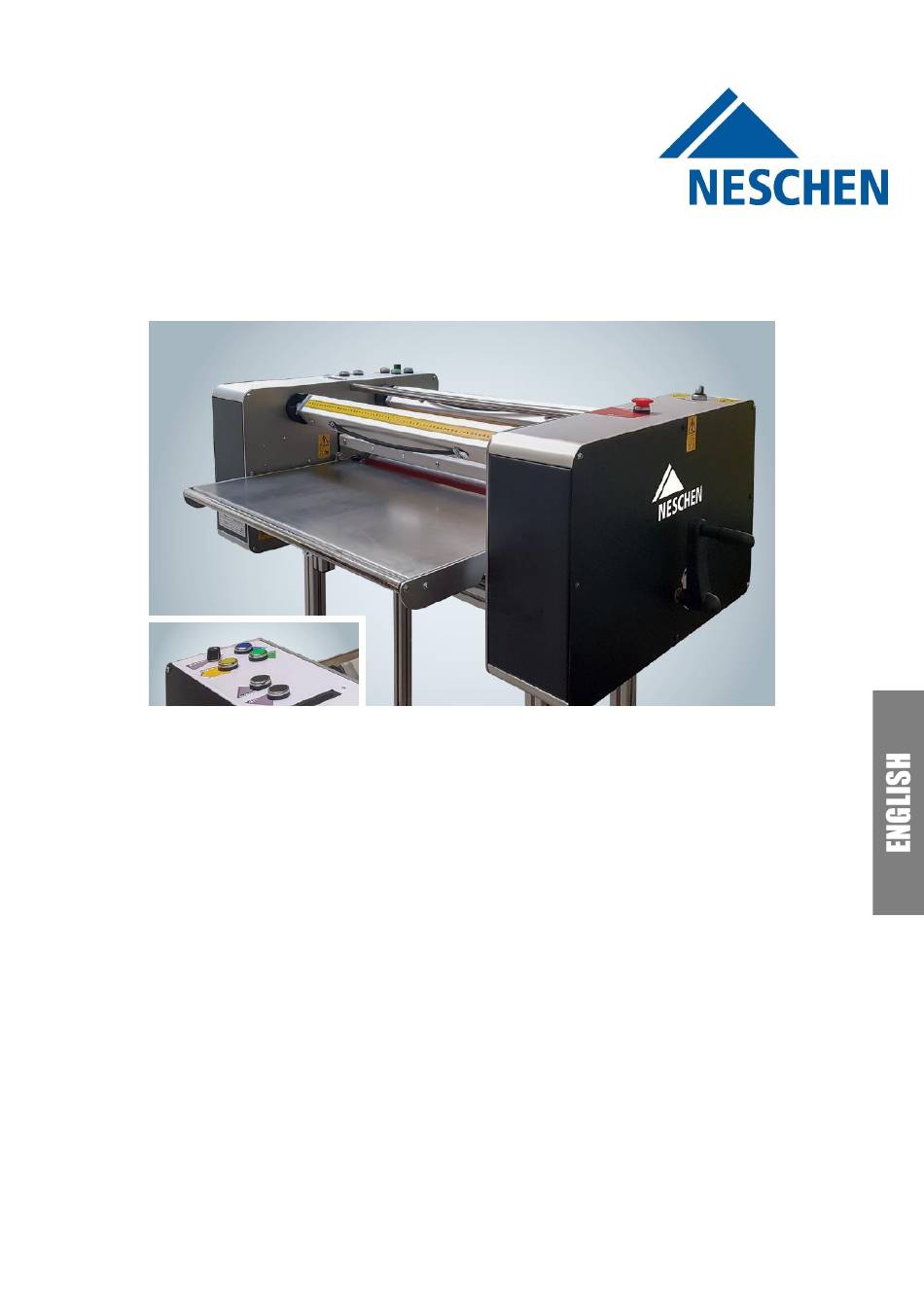

- Page 1 NESCHEN PHOTOLAM 650 LAMINATOR FOR PHOTO FORMATS USER INSTRUCTIONS Vers. 07-2018...
-
Page 2: Table Of Contents
CONTENTS 1. Introduction………………………………………………………………………………............. 3 2. Applications…………………………………………………………………………..............4 3. Description of the main parts of Neschen Laminator…………………….......... 5 4. Control panel left……………………………………………………………………………………………………………………………5 5. Main switch – positions………………………………………………………………………………………………………………. 5 6. Control panel – right /settings………………………………………………………………………………………………….6 7. Height adjustment ………………………………………………………………………………………………………………………….7 8. Silicone paper and laminated prints………………………………………………... …………………………………….7 9. -
Page 3: Introduction
Before the Neschen laminator can be used, the user (the firm) must make sure that all the device operators, maintenance workers and their supervisors have acquainted themselves with these User Instructions. -
Page 4: Applications
The design of the laminator allows unlimited length of laminated prints. 3. The flexible use and easy handling of the Neschen Laminator allows working with blanks and rolls. The user selects the appropriate lamination technique, for example sheet lamination or lamination directly from the roll. -
Page 5: Description Of The Main Parts Of Neschen Laminator
3. DESCRIPTION OF MAIN PARTS OF THE NESCHEN LAMINATOR Emergency-STOP Control panel right Main switch Main roller Infeed table 4. CONTROL PANEL – LEFT Emergency-STOP Main switch Emergency-STOP-button – If the emergency STOP button is actuated, the machine switches off completely. -
Page 6: Control Panel - Right /Settings
– Roller rotation in forward direction - the direction of rotation is indicated by the corresponding button light. The Neschen laminators have a modern, intelligent start function that allows the laminator to start up slowly and evenly until the speed set by the rotary knob is reached. -
Page 7: Height Adjustment
stop/settings – stops the rotation and the running direction. Please note: If the operator changes the direction of rotation while the machine is running, he must first press the Stop button and then select the desired direction of rotation. If the user presses the stop/settings button for three seconds, it moves to the temperature setting. Press the UP/DOWN buttons to set the desired temperature in steps of five degrees Celsius. -
Page 8: Roll Carrier/Shaft
Laminating and printing materials are rolled up on a paper tube with an inner diameter of 76.2 mm. The shafts of the Neschen laminator are designed for these tubes. If the material is unrolled too loosely or too firmly, the braking force can be regulated by applying or releasing the brake on the right side of the machine. -
Page 9: Safety Guidelines
12. SAFETY GUIDELINES Any rotating or moving parts of the laminator and parts under electrical power may cause severe or even fatal injuries. Installation, wiring, putting into service as well as maintenance and repairs may be performed by qualified and trained personnel only. ... -
Page 10: Safety Pictograms At The Neschen Laminator
13. SAFETY PICTOGRAMS AT THE NESCHEN LAMINATOR The pictograms must always be clearly legibly attached to the laminator. Damaged pictograms must be replaced. Pictograms and their meaning. Safety pictograms on the laminator indicate risks, as do the warnings in this manual. -
Page 11: Maintenance And Repair
Do not unnecessarily press the rollers against each other to avoid pressure points. 17. WARRANTY TERMS AND CONDITIONS The manufacturer grants Neschen products a 12 months warranty from the date of sale. Contact your seller for detailed warranty terms and conditions.
