Owner's Manual
Truck camera
Model: CM-R1000P
Specifications:
Image Device:
1/3" Color CMOS PC1089
TV System:
NTSC
Effective Pixels:
728 x 488 pixels
Sensing Area:
0.18 inch x 0.14 inch
Scanning System:
2:1 Interlace
Sync. System:
Internal
Resolution:
500 TV Lines
Minimum Illumination:
0.1 Lux (day), 0 Lux (with IR)
Microphone:
Built in microphone
Horizontal Sync. Freq.:
15.734KHz
Video Output:
1.0 vp-p,75 Ohm
Gamma Consumption:
0.45
AGC:
Auto
S/N Ratio:
+48 dB
White Balance:
Auto
Electronic Shutter:
1/60 -1/100,000 second
BLC:
Auto
Current Consumption:
Day: 12V / 55mA; Night: 12V / 120mA
Power Supply:
DC 9 - 16V
Operating Temperature:
-22℉ ~ 158℉, RH 95% max.
Lens:
f=2.8mm, F=2.0
Lens Angle:
120°
Product features:
1. Waterproof: IP69K approved
2. Nightvision distance: approx. 39ft (18 IR lights)
3. Day / Night sensor for automatic adjustment
4. Wider viewing angle up to 120 degrees
Precautious:
1. Be cautious when mounting camera and wiring near fuel tank.
2. The device is designed to work with +12 volt DC power supply.
Assembly:
■ CAMERA
①
③
① Camera (undetachable)
② Sunshield for camera
③ U-bracket for camera
④ Assembly parts for U-bracket
● Washer (nylon)
● Washer (stainless steel)
● Hex head screw (stainless steel)
②
④
x1
x1
x1
x4
x4
x4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rydeen CM-R1000P
Summary of Contents for Rydeen CM-R1000P

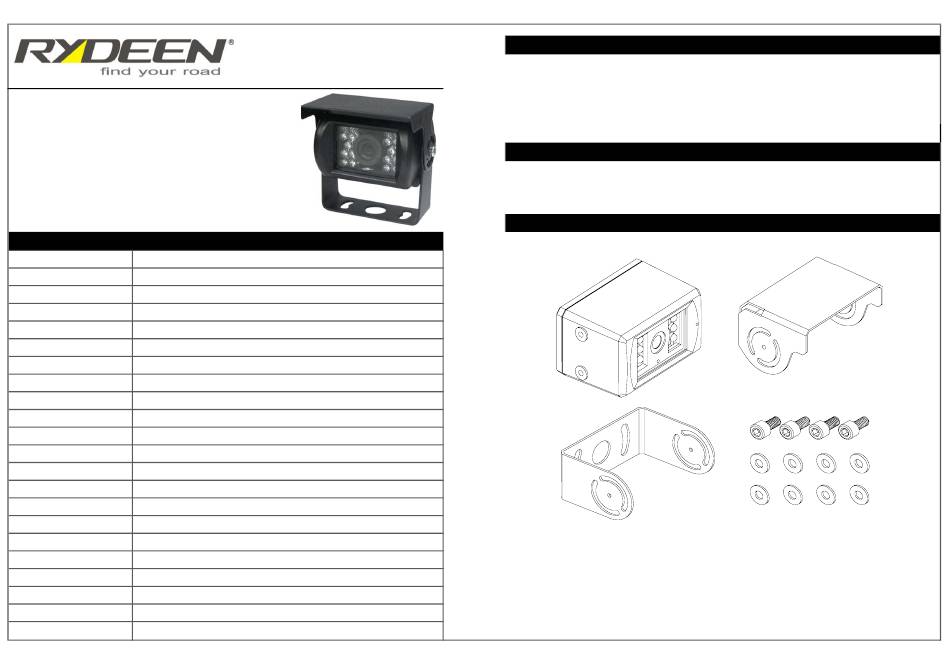

- Page 1 Owner's Manual Precautious: 1. Be cautious when mounting camera and wiring near fuel tank. Truck camera 2. The device is designed to work with +12 volt DC power supply. Model: CM-R1000P Assembly: Specifications: ■ CAMERA Image Device: 1/3” Color CMOS PC1089...
- Page 2 Installation: (1) Find an appropriate location for installation (Illustration 1). (5) Connect the camera tail and the extension cable inside the car (Illustration 5). (2) Drill holes according to the size of U-bracket as illustration 3 and fix the U-bracket as illustration 2.
