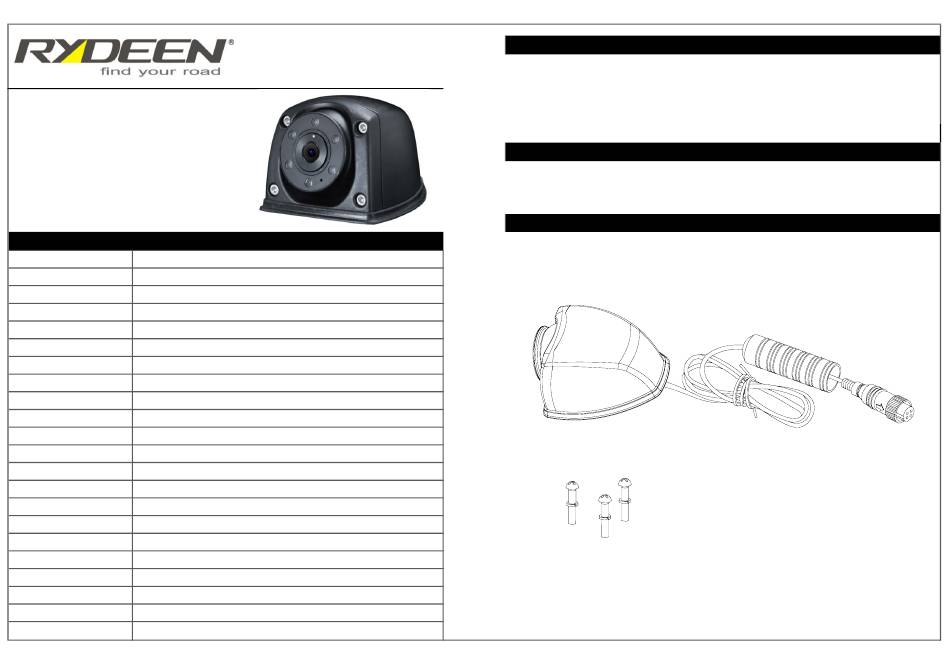

Owner's Manual
Side camera
Model: CM-S1000P
Specifications:
Image Device:
1/3" Color CMOS PC1089
TV System:
NTSC
Effective Pixels:
728 x 488 pixels
Sensing Area:
0.18 inch x 0.14 inch
Scanning System:
2:1 Interlace
Sync. System:
Internal
Resolution:
500 TV Lines
Minimum Illumination:
0.1 Lux (day), 0 Lux (with IR)
Microphone:
Built in microphone
Horizontal Sync. Freq.:
15.734KHz
Video Output:
1.0 vp-p,75 Ohm
Gamma Consumption:
0.45
AGC:
Auto
S/N Ratio:
+48 dB
White Balance:
Auto
Electronic Shutter:
1/60 -1/100,000 second
BLC:
Auto
Current Consumption:
Day: 12V / 55mA; Night: 12V / 120mA
Power Supply:
DC 9 - 16V
Operating Temperature:
-4℉ ~ 158℉, RH 95% max.
Lens:
f=1.7mm, F=2.0
Lens Angle:
140°
Product features:
1. Waterproof: IP69K approved
2. Nightvision distance: approx. 16.4ft (5 IR lights)
3. Day / Night sensor for automatic adjustment
4. Wider viewing angle up to 140 degrees
Precautious:
1. Be cautious when mounting camera and wiring near fuel tank.
2. The device is designed to work with +12 volt DC power supply.
Assembly:
■ CAMERA
①
① Camera (enclosure is detachable)
■ ACCESSORIES
②
② Assembly parts for fixing camera
●Spring washer M4*1 (stainless steel)
●Cross recessed pan head screws ST4*20
X1
X3
X3
