Lippert Components HYDRAULIC SLIDEOUT SYSTEM Operation And Service Manual page 9

MECHANICAL ROOM ADJUSTMENT-CONT.
Nylock Nut
Adjusting room so it seals in the IN position
1. Locate cylinder coming through the frame;
2. On the end of the cylinder there is a threaded shaft mounted to the
drive bracket with 3 nuts.
3. Loosen the Jam Nut-1 and set Jam Nut-2 to desired location.
4. Tighten down the Nylock Nut against bracket. Make sure Jam Nut-2
is adjusted for "FREE TRAVEL" (see above). Secure assembly by
tightening Jam Nut-1against Jam Nut-2. This will change the
location
Adjusting room so it seals in the OUT position
1. Locate actuator coming through the frame;
2. On the end of the cylinder there is a threaded shaft mounted to the
bracket with 3 nuts.
3. Adjust Jam Nuts 1 & 2 one way or the other– this will change the
location of your seal going to the "out position".
4. Make sure all nuts are tight.
SYNCHRONIZING ROOM TRAVEL
2" - 3"
FREE TRAVEL
of your seal going to the "in position".

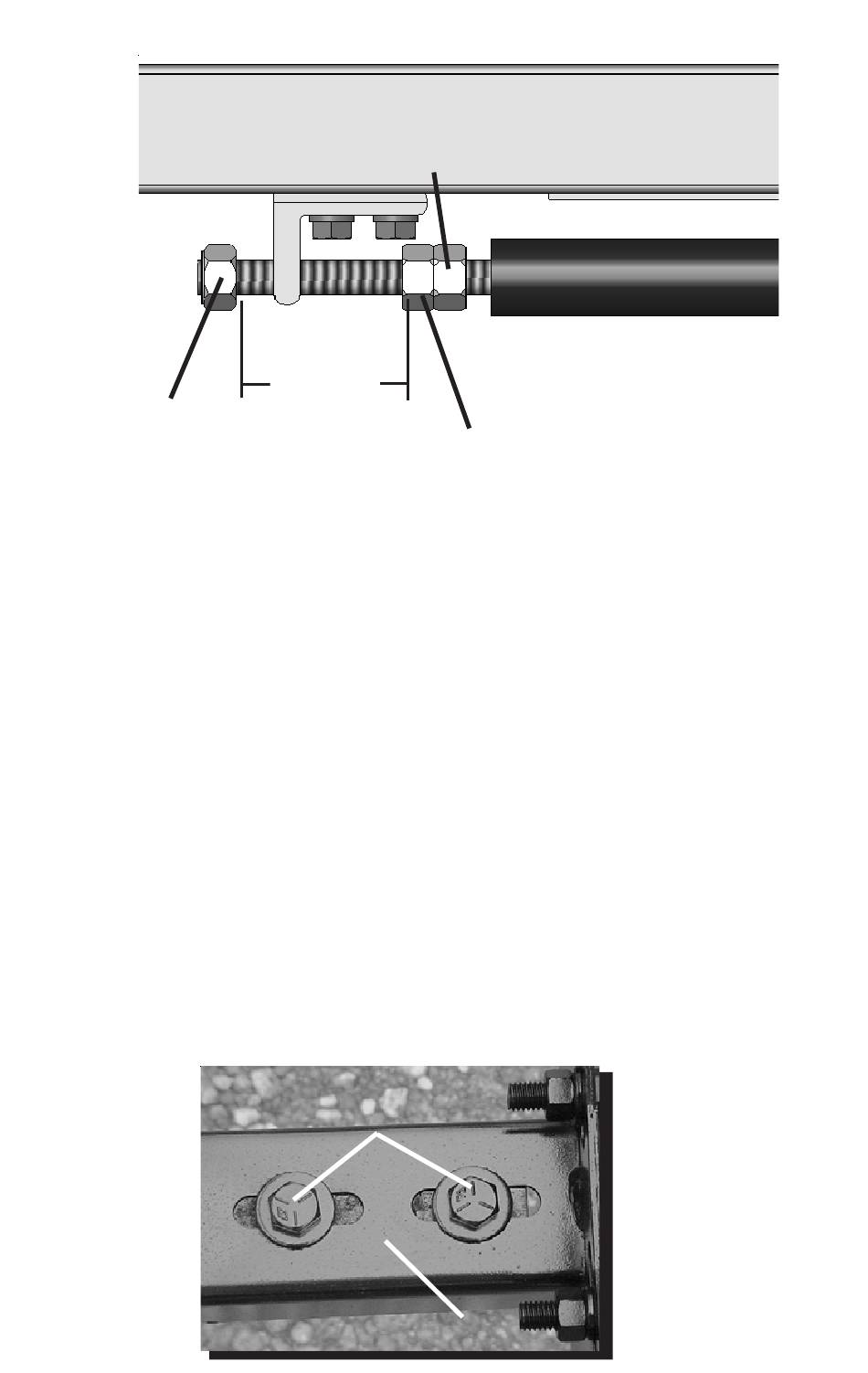

Fig. 9
A
Jam Nut-1
Jam Nut-2
B
