PV Electronics Halo Clock Assembly Instructions And User Manual

Nixie clock for z560m, z5600m, zm1020, zm1022, gn-4, in-4 type tubes
Hide thumbs

Advertisement

Quick Links

Download this manual
Assembly Instructions
And
User Guide
Nixie Clock Type
'Halo Clock'
For Z560M, Z5600M,
ZM1020, ZM1022,
GN-4, IN-4 Type Tubes
Parts Bags Serial No. 500 onwards
Nixie Tube Clock 'Halo'
- 1 -
Issue 3 (01 Nov 2018)
www.pvelectronics.co.uk

Advertisement

loading

Related Manuals for PV Electronics Halo Clock

Summary of Contents for PV Electronics Halo Clock

  • Page 1 Assembly Instructions User Guide Nixie Clock Type ‘Halo Clock’ For Z560M, Z5600M, ZM1020, ZM1022, GN-4, IN-4 Type Tubes Parts Bags Serial No. 500 onwards Nixie Tube Clock ‘Halo’ - 1 - Issue 3 (01 Nov 2018) www.pvelectronics.co.uk...

  • Page 2: Revision History

    REVISION HISTORY Issue Date Reason for Issue Number 01 Nov 2018 New code with DST changing (parameter 17) 15 March 2013 Added IN-4 board 01 March 2013 New document Nixie Tube Clock ‘Halo’ - 2 - Issue 3 (01 Nov 2018) www.pvelectronics.co.uk...

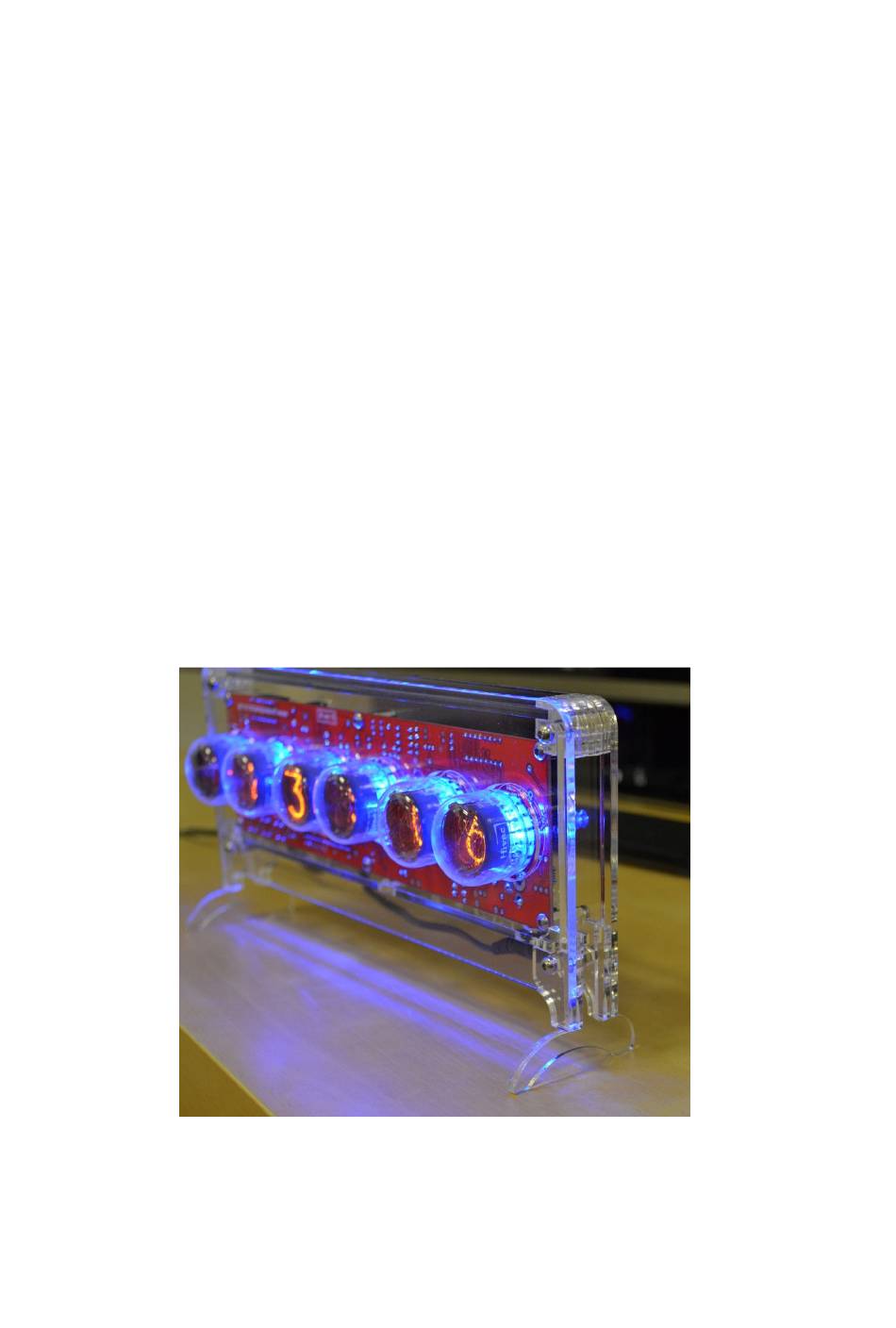

  • Page 3 1. INTRODUCTION About the clock Nixie clock type ‘Halo’ is a compact design with all components and tubes mounted on a single PCB. The efficient use of board space is achieved by using a multiplex design to drive the display tubes. Two high-voltage binary-to-decimal decoder ICs (K155ID1) are required, driving the six tubes in groups of three.
  • Page 4 SAFETY DANGER: The clock pcb includes a switched-mode voltage booster circuit. This generates nominally 170 Volts DC, but is capable of generating up to 300 Volts before adjustment. Assembly may only be undertaken by individuals who are suitably qualified and experienced in electronics assembly, and are familiar with safe procedures for working with high voltages.

  • Page 5: Tools And Equipment Required

    2. TOOLS AND EQUIPMENT REQUIRED Tools required to assemble the PCB. The following tools will be required to assemble the PCB: Soldering iron with a small tip (1-2 mm) Wire cutters (TIP: A small pair of nail clippers works very well for this function) Wire strippers (TIP: A small pair of scissors is quite suitable) Multimeter for voltage tests and for identifying the resistors.

  • Page 6: List Of Components

    3. LIST OF COMPONENTS Table of components Circuit Designation Part Description Resistors R1, R2 560Ω, ¼ Watt 4.3KΩ, ¼ Watt 620KΩ, ¼ Watt 4.3KΩ, ¼ Watt R6, R7 560Ω, ¼ Watt R8, R9 4.3KΩ, ¼ Watt R10, R11 Not Installed R12 –...
  • Page 7 MC34063A PIC16F1936 8-bit Microcontroller IC4, IC5 74141 / K155ID1 Nixie driver Miscellaneous 100 µH Axial or radial inductor AM / PM 6mm Wire ended neon lamp SW1, SW2, SW3 Miniature push button 1K Potentiometer IC Sockets 8 Way DIP IC socket for IC2 28 Way DIP IC socket for IC3 2 X 16 Way DIP IC sockets for IC4, 2.1mm PCB Power socket...
  • Page 8 Parts list / Packing sheet Part Description Quantity Resistors 560Ω, ¼ Watt 4.3KΩ, ¼ Watt 2.7KΩ, ¼ Watt 390KΩ, ¼ Watt 620KΩ, ¼ Watt Capacitors 470µF, 16-25V, Electrolytic 1µF, 250V, Electrolytic 100nF, Ceramic 33pF, Ceramic 15pF, Ceramic 0.1F 330pF, Ceramic Transistors IRFD220 MOSFET BC639...
  • Page 9 Lighting Pack: The optional pack contains the extra components needed for the tube underlighting: 270Ω, ¼ Watt resistor 1206 SMD Resistors Blue, Yellow, Green or Pink 2N7000 MOSFET It is recommended that the kit is checked against the lists above, to ensure all parts are present before commencing assembly.
  • Page 10 ASSEMBLY OF THE PCB NOTE THAT THESE INSTRUCTIONS ARE SHARED BETWEEN SEVERAL VERY SIMILAR CLOCK TYPES. YOUR PCB MAY NOT LOOK EXACTLY LIKE THE ONE PICTURED. 1mm Sockets For Nixie Tubes (ZM1020 / Z560M / GN-4 PCB) There are 66 individual sockets that need to be placed. Note that there are 2 holes per tube with NO SOCKET.
  • Page 11 1mm Sockets For Nixie Tubes (IN-4 PCB) There are 66 individual sockets that need to be placed. Note that there are 3 holes per tube with NO SOCKET. Place each socket loosely as shown below: Be sure to insert the sockets FROM the tube side of the PCB – the side with the tube markings.
  • Page 12 Low Voltage Power components: J1, FUSE D1, D2 - 1N5819 IC1 - 7805 C1, C2 - 100nF Start by installing D1 and D2. Align the white band on the components with the band marked on the PCB. Proceed to mount the other components of this step. IC1 can be bent over to lower the profile of the board, but do not let it actually touch the PCB.
  • Page 13 Testing Stage 1 Power Components. Identify the test GND, 5V and 170V test points as shown below. Plug in the power supply, and then test using a DC voltmeter: Touch the black probe on the GND test point and the red probe on the 5V test point. The voltage should measure between 4.9 and 5.1 Volts.
  • Page 14 Q1 - BC639 Q2 - BC640 C3 - 330pF C4 - 100nF C6 - 33pF C7 - 100nF Q3 - IRFD220 D3 - UF4004 L1 - Inductor C5 - 470µF C8 - 1µF VR1 - 1K Pot Take care that the two pins that are joined go in the position marked. C5 and C8 are polarised.
  • Page 15 Sockets for IC3, IC4, IC5 Align the notch on the body of each socket with the corrsponding mark on the PCB R6, R7, R38, R39 (all 560Ω) R8, R9, R12, R13, R14, R27, R28 (all 4.3KΩ) R21 - R26 (all 2.7KΩ) R15, R16, R17, R29, R30 (all 390 KΩ) Q5, Q6, Q7, Q11, Q12, Q13 (all MPA42) Q8, Q9, Q10 (all MPSA92)
  • Page 16 4.10 X1 - 32.768 KHz Crystal C11 (33 pF) C12 (15 pF) These are the timekeeping components: 32.768KHz crystal and two load capacitors. The capacitors in your kit may be blue, brown, or possibly another colour. Look at the part markings, not the colour. 4.11 Tube Test At this stage, it is desirable and possible to test that the tube drivers and micro-controller are functioning correctly.
  • Page 17 4.12 GPS / RFT Connector LS1 - Piezo sounder Set, Adj, Alarm Buttons C9 - 0.1F Supercapacitor C10, C13 - 100nF D4 - Green GPS / RFT LED D5 - Yellow Alarm LED Note that if you won't be using a Radio Time Receiver Module, then you can omit the GPS / RFT Connector, D4 and C13.
  • Page 18 4.13 AM, PM Colon Neon Lamps The 2 neons' leads need to be bent as shown below. Use small lengths of the clear insulation supplied on the leads to prevent shorts. Note that the neons are mounted nearer to the bottom edge of the PCB, which is the edge where the switches and power socket are.
  • Page 19 4.14 Microcontroller Tube Selection The Microcontroller IC3 needs to be setup for your PCB type as the tube connections differ for the 2 types of PCB (ZM1020 / Z560M or IN-4). The controller is by default set to the ZM1020/ Z560M configuration. If you are using this PCB then omit this following step.

  • Page 20: Optional Components

    OPTIONAL COMPONENTS GPS Input Components If you will be using a GPS time receiver module, install the following components: GPS / RFT Connector (if you didn't already install it in step 4.12) C13 (100nF) D4 (Green LED) Tube Underlighting Pack Q14 - 2N7000 R31 –...
  • Page 21 Now identify the cathode mark on the LEDs. This is usually a green marking at one end of the LED, though it may be under the LED lens and harder to see, It may also be an arrow or a line pointing in one direction on the underside of the LED: With a fine soldering iron tip, melt a small amount of solder onto the three cathode pads of the PCB at a single tube location:...

  • Page 22: How To Operate The Clock

    HOW TO OPERATE THE CLOCK The four buttons have the following functions: SET: Exit tube test routine on cold power-up; Show date; Set time and date; Enter configuration menu; ADJ: Adjust: time, date, alarm time, configuration parameters; Call DCF / MSF; ALARM: Set alarm time;...
  • Page 23 Parameter Description Values Software revision 10 = version 1.0, 11 = version 1.1 etc 12 / 24 Hr mode 0 – 12 Hr (default) 1 – 24 Hr Date format 0 = MM.DD.YY (default) 1 = DD.MM.YY 2 = YY.MM.DD (from V1.1 onwards) Leading zero blanking 0 –...
  • Page 24 1 - Make clock faster Slots Mode 0 – Slots disabled 1 – Slots every minute 2 - Slots every 10 minutes (default) 3 - Slots every hour 4 – Slots at midnight RFT Sync Mode 0 – DCF / MSF Sync once per day only as per parameter 24 (default) 1 –...
  • Page 25 Time and Date: From time display mode, press and hold ‘SET’ button for 2 seconds until the seconds digits are highlighted. Press the ‘ADJ’ button to reset seconds to zero. Briefly Press ‘SET’ again and the hours will be highlighted Press the ‘ADJ’...
  • Page 26 Rapid DST Adjustment (if Config 17 = 0) Press ‘ALARM’ briefly to toggle between DST and standard time. The Indicator LED shows whether DST mode is active or not. If time has been synchronised from DCF or MSF sources, this light will be set or cleared automatically.
  • Page 27 CONFIGURING THE LED TUBE LIGHTS The clock features a separate and dedicated setup menu for the LED tube lights, accessed from the ‘ALARM’ button. All settings are stored to non- volatile memory. You can set a brightness of 0 to 9 for each hour of the day. Entering LED menu Press and hold the ‘ALARM’...
  • Page 28 8. USING A RADIO FREQUENCY TIME RECEIVER OR GPS RECEIVER The clock can automatically synchronise time from DCF (Europe) and MSF (UK) long wave time transmitters. The clock can also receive time from a GPS receiver that transmits information using NMEA-0183 protocol, using the $GPRMC sentence. Configuring for RFT or GPS Synchronisation.
  • Page 29 Connecting a Radio Time receiver The clock has been designed for, and tested with our Radio Frequency Time (RFT) Receiver Modules. (available separately from PV Electronics). DCF Module: For receiving time signals from transmitter at Frankfurt, Germany. Reception is possible within a 2000Km radius of Frankfurt.
  • Page 30 Setting Up for First Reception. 1. Ensure the correct setting has been applied to Config 12: 1 = DCF 3 = MSF 2. For the first tests, ensure Config 25 is set to value 1, to make the HV converter switch off for synchronisation. This stops any noise created by the HV converter.
  • Page 31 Connecting a GPS receiver The clock accepts input directly from our GPS Sync Time Receiver Module: Please see the separate data sheet for the GPS receiver to find out the baud rate of your module, as different baud rates are used depending upon the version number.
  • Page 32 Function of the GPS / RFT indicator LED (D4):  No Radio Synchronisation source installed (parameter (12) = 0) LED is permanently off  RFT or GPS Synchronisation enabled (parameter (12) = 1-4) The LED will be ON if the clock has synchronised in the last two hours; slowly flashing if the last synchronisation was between 2 hours and 24 hours ago;...

  • Page 33: Circuit Diagram

    9. CIRCUIT DIAGRAM Nixie Tube Clock ‘Halo’ - 33 - Issue 3 (01 Nov 2018) www.pvelectronics.co.uk...
  • Page 34 Nixie Tube Clock ‘Halo’ - 34 - Issue 3 (01 Nov 2018) www.pvelectronics.co.uk...
