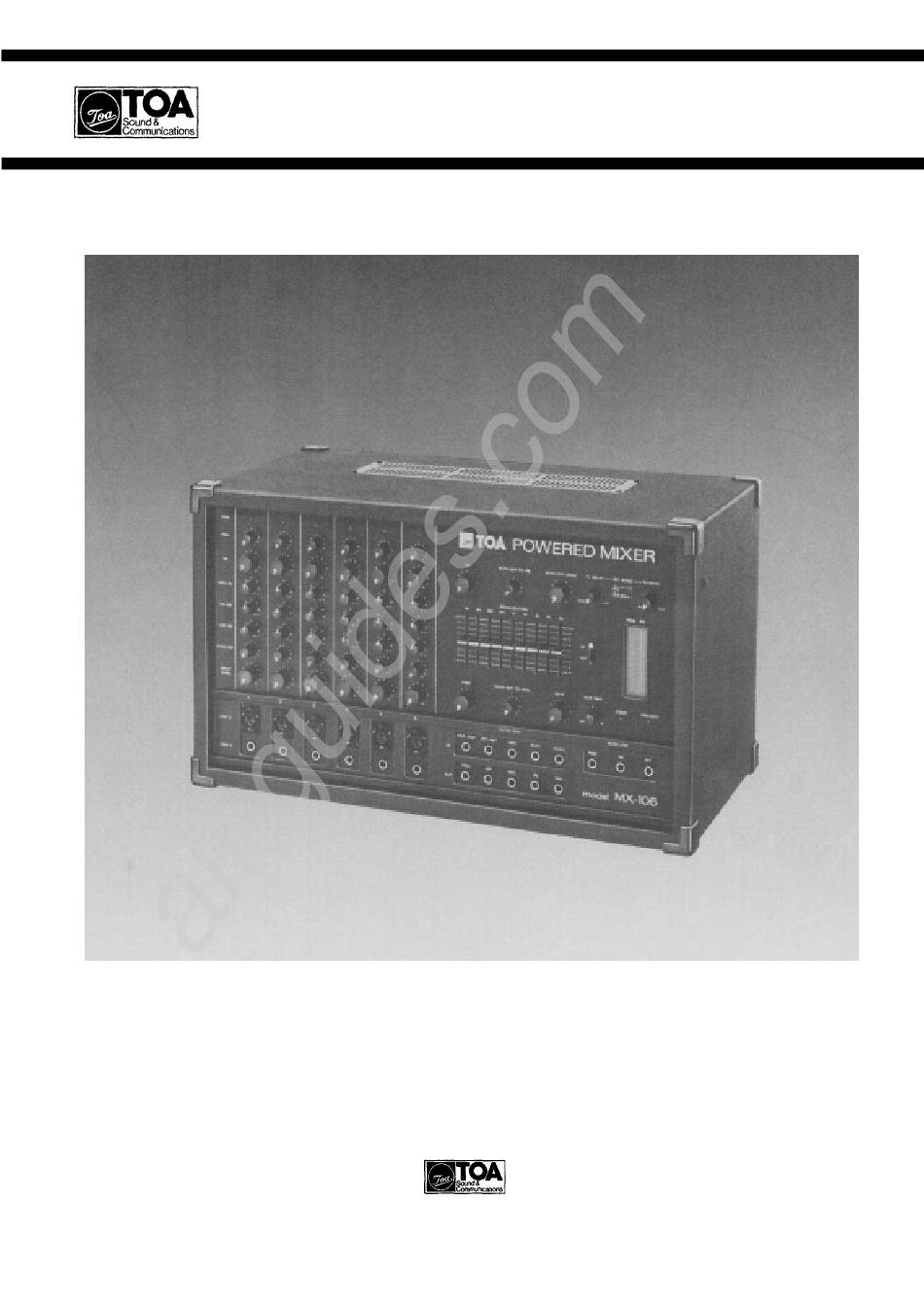

- Page 1 All manuals and user guides at all-guides.com Operating Instruction Manual TOA POWERED MIXER Model MX-106 TOA ELECTRIC CO., LTD. KOBE, JAPAN...
-
Page 2: Table Of Contents
The connectors are wired as follows. The pin 1 is ground (shield), the pin 2 cold (low, minus), the pin 3 hot (high, plus). 2. Description of components and functions on the MX-106. Various descriptions are applied, depending on each manufacturer. In our Operating and Instruction Manual explanation of components and functions is made according to our usage for them. -
Page 3: General Description
"on the road" applications. The MX-106 features 6 input channels; 1 program, 1 foldback, and 1 effects output. The internal power amplifier is rated at 120 watts into 8 ohms, 200 into 4, and 300 into a 2 ohm load. -
Page 4: Front Panel [Names Of Components & Their Usage]
The output conditions. Please refer to fault Aux Level Control (AUX) level of the MX-106 should be protection table on page 7 for This control sets the overall decreased until the LED only full explanation of this impor- level of the Aux input signal. -
Page 5: Rear Panel [Names Of Components & Their Usage]
The PWR Amp input jack allows connect an external effects de- The GEQ input jack allows the the internal power amplifier to vice to the MX-106. When a plug graphic equalizer to be used AUX 1, AUX 2 Input Jack be used with external equip-... -
Page 6: Connection Examples
All manuals and user guides at all-guides.com Connection Examples SUB MIXER (MX-106) Built in Power Low Z input should be connected Amplifier for with low impedance (50 ohm ~ 600 ohm) Foldback microphones From Speaker Jack on Rear Panel MAIN MIXER (MX-106) -
Page 7: Input Connections
As is described in the beginning of the Operating Instructions Manual, the connectors of the MX-106 are wired as follows: Pin 1 is ground (shield). Pin 2 is cold (low, minus). Pin 3 is hot (high, plus). -
Page 8: How To Get A Good Mix
If the impedances and levels do not match, mixing will be very difficult and the S/N ratio will also be adversely affected. Each input channel of the MX-106 is provided with a TRIM control. Thorough understanding of the function of a TRIM control will make mixing easier. -
Page 9: Block And Level Diagrams
All manuals and user guides at all-guides.com Block and Level Diagrams BLOCK DIAGRAMS LEVEL DIAGRAM - 8 -... -
Page 10: Specifications
All manuals and user guides at all-guides.com Specifications MIXER SECTION Total Harmonic Distortion Frequency Response 0.05% +4dBm at 1kHz. +0, -3dB 30Hz~20kHz (HIGH Zinput TRIM at "0" position.) Hum and Noise (Open) Equalization Equivalent Input Noise –130dBm (20Hz ~ 20kHz) 63Hz ±12dB Peaking 2kHz ±12dB Peaking Equivalent Input Noise... -
Page 11: Characteristics Diagrams
All manuals and user guides at all-guides.com Characteristics Diagrams HIGH Z IN. TRIM/MIN. & INPUT EQ POWER AMP TOTAL HARMONIC DISTORTION POWER AMP POWER BAND WIDTH POWER AMP COMPRESSOR Appearance - 10 -... - Page 12 All manuals and user guides at all-guides.com TOA ELECTRIC CO., LTD. KOBE, JAPAN Printed in Japan 133-02-575-80...
