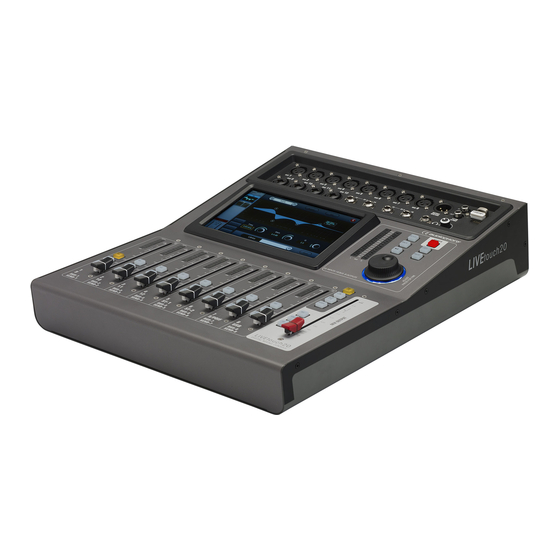

audiophony LIVEtouch20 User Manual

20 channel digital mixing console
Hide thumbs

Advertisement

Table of Contents

SEL
SEL
SEL
SOLO
SOLO
SOLO
M
M
M
SEL
SEL
SEL
SOLO
SOLO
SOLO
M
M
M
SETUP
BACK
COPY
PASTE
IN
1-8
IN
9-20
BUS
1-8
SENDS
SEL
SEL
SEL
SOLO
SOLO
SOLO
M
M
M

USER GUIDE

H10901 - Version 1 / 10-2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIVEtouch20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for audiophony LIVEtouch20

Summary of Contents for audiophony LIVEtouch20

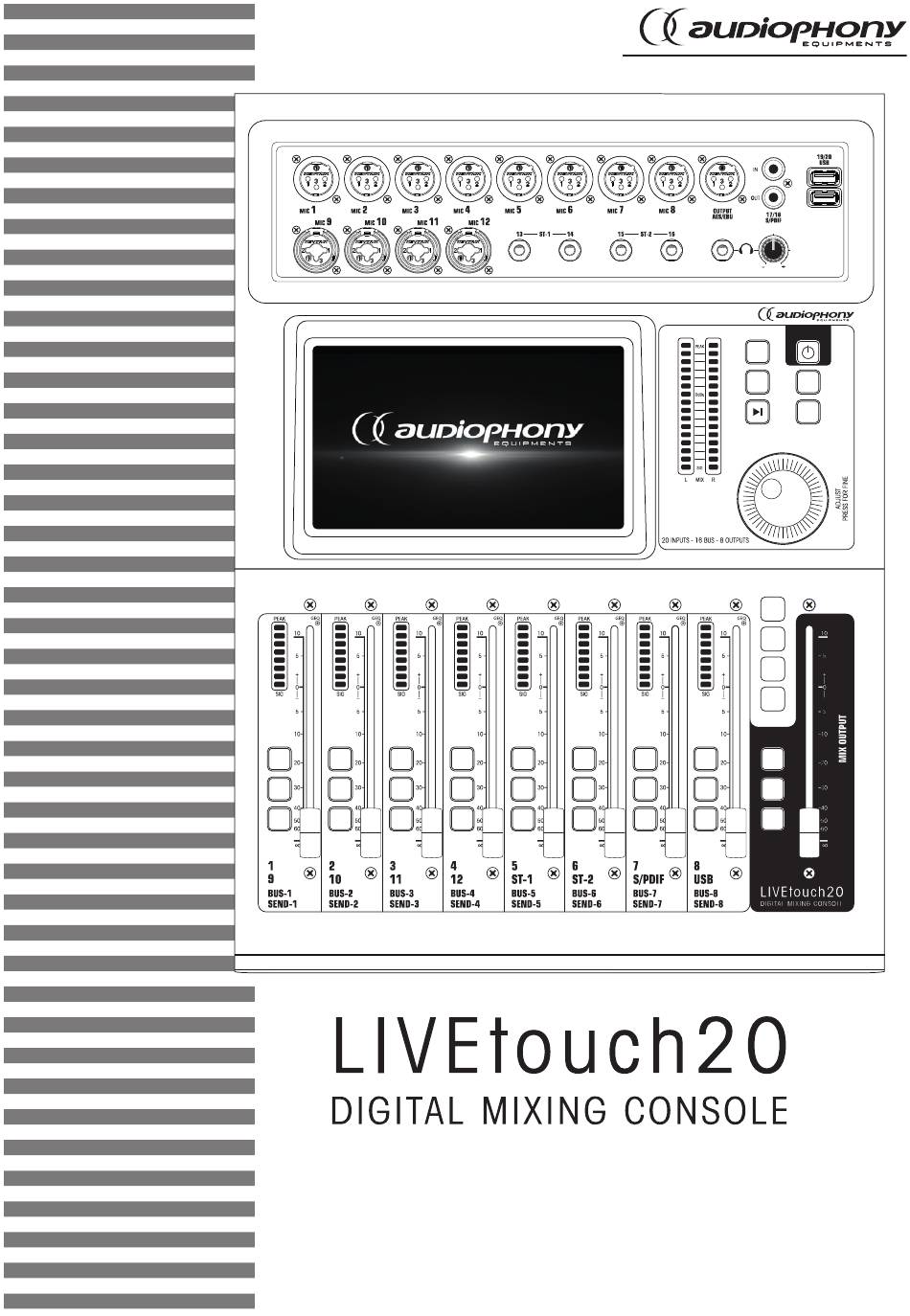

  • Page 1: User Guide

    SETUP BACK COPY PASTE 9-20 SENDS SOLO SOLO SOLO SOLO SOLO SOLO SOLO SOLO SOLO USER GUIDE H10901 - Version 1 / 10-2018...

  • Page 2: Important Safety Information

    English LIVEtouch20 - 20 Channel Digital Mixing Console 1 - Safety information Important safety information This product contains non-isolated electrical components. Do not undertake any maintenance operation when it is switched on as it may result in electric shock. WARNING : This unit contains no user-serviceable parts.

  • Page 3: Technical Data

    English LIVEtouch20 - 20 Channel Digital Mixing Console 2 - General and technical data Features 12 microphone input + 2 stereo inputs 1 S/PDIF input/output and 1 AES/EBU output 4 mono busses / 5 stereo busses / 1 monitor bus...

  • Page 4: Overview Of The Unit

    English LIVEtouch20 - 20 Channel Digital Mixing Console 3 - Overview of the unit 3-1 Front panel connection system 1 - 8 XLR mic inputs 2 - 4 combo mic inputs 3 - 2 jack stereo inputs 4 - S/PDIF input/output and AES/EBU output connectors...
  • Page 5 English LIVEtouch20 - 20 Channel Digital Mixing Console 1 - 7-inch touch screen 2 - 6 bands master vu-meter 3 - 5 control buttons - SETUP : Provides access to system settings - BACK : Lets you exit the system menu...

  • Page 6: Rear Pannel

    English LIVEtouch20 - 20 Channel Digital Mixing Console 3-4 Rear pannel 1 - Power supply input : DC12V - 4,17A 2 - Monitor output - 6.35 Jack stereo output. 3 - 1 to 8 outputs - Balanced outputs on XLR plugs.

  • Page 7: Advanced Features

    4 - Advanced Features 4-1 Inputs channels LIVEtouch20 console features 12 mono inputs, 2 analog stereo channels, 1 S/PDIF input and 1 USB input. 4-1-1 Mic inputs A MIC input channel contains five individual modules: Input stage, Equalizer, Dynamic, Send to bus and Output stage. A simple click on a module will bring up a subpage with other options.
  • Page 8 English LIVEtouch20 - 20 Channel Digital Mixing Console 4-1-2 Subpage of the mono channel input stage 1 - Alimentation fantôme 48V Active ou désactive l'alimentation fantôme sur le canal en cours. 2 - Channels selector Allows you to switch from one channel to another while remaining on the same page.
  • Page 9 English LIVEtouch20 - 20 Channel Digital Mixing Console 4-1-3 Parametric equalizer sub-page 1 - Channels selector Allows you to switch from one channel to another while remaining on the same page. 2 - Bypass Enables or disables the equalizer on the current channel. By default the equalizer is active.
  • Page 10 English LIVEtouch20 - 20 Channel Digital Mixing Console 4-1-4 Dynamics sub-page 1 - Channels selector Allows you to switch from one channel to another while remaining on the same page. 2 - Side chain This function allows you to use the signal from another channel to control the compression of the selected channel.
  • Page 11 English LIVEtouch20 - 20 Channel Digital Mixing Console 4 - Compressor IN : Activates the compressor. It is inactive by default. Courbe : The curve shows the gain relationship between the input and output signals. The curve is divided into two parts - below and above the threshold value.
  • Page 12 English LIVEtouch20 - 20 Channel Digital Mixing Console 4-1-5 Bus Send sub-page Each input channel can send signals to 4 mono buses (1-4), 2 stereo buses (5-8 including L/R master). 1 - Channels selector Allows you to switch from one channel to another while remaining on the same page.
  • Page 13 English LIVEtouch20 - 20 Channel Digital Mixing Console 4-1-6 Output stage sub-page Here you can set the pan and level of the Master as well as the Solo / Mute. 1 - Channels selector Allows you to switch from one channel to another while remaining on the same page.
  • Page 14 English LIVEtouch20 - 20 Channel Digital Mixing Console 4-1-7 Stereo inputs Like the MIC channels, the two stereo inputs also include five modules: Input, equalizer, dynamic, bus sending and output. A simple click on a module will bring up a subpage with other options. The subpages can be closed with the red "close"...
  • Page 15 English LIVEtouch20 - 20 Channel Digital Mixing Console 4-1-8 Stereo inputs sub-page 1 - Channels selector Allows you to switch from one channel to another while remaining on the same page. 2 - SUM Sum the left and right inputs, so that both sides of the stereo channel will contain the same signal (mono). This can also be used to copy the signal to both channels if only one side of the stereo signal is connected.
  • Page 16 English LIVEtouch20 - 20 Channel Digital Mixing Console 4-1-9 Parametric equalizer sub-page This page is the same as for MIC channels. All settings will be applied to both channels of the stereo signal. 4-1-10 Dynamics sub-page For ST1 and ST2, this page is the same as for MIC channels, with all settings applied to both channels of the stereo signal.

  • Page 17: Output Busses

    4-2 Output busses LIVEtouch20 allows mixing in a total of 8 output buses - 4 Mono (Bus 1~4), 2 Stereo (Bus 5~8 including Master L/R). In fact, there is another stereo bus for monitoring via SOLO, which can be switched to pre or post-fader listen (PFL/AFL).
  • Page 18 English LIVEtouch20 - 20 Channel Digital Mixing Console 1 - Input stage Displays the physical output assigned to each bus as well as the status of the effect inserts. 2 - EQ Displays a parametric equalizer graph representing the equalizer settings.
  • Page 19 English LIVEtouch20 - 20 Channel Digital Mixing Console 4 - Pan Controls the panoramic of the bus. The default value is 50|50 (middle). The PAN value can be changed by the encoder on the screen or by turning the control dial. Press the numerical control of the setting twice to reset the setting to its default value.
  • Page 20 English LIVEtouch20 - 20 Channel Digital Mixing Console 3 - Pan Controls the panning of the Master output. The default value is 50|50 (middle). The PAN value can be changed by the encoder on the screen or by turning the control dial. Press the numerical control of the setting twice to reset the setting to its default value.

  • Page 21: Setup Page

    English LIVEtouch20 - 20 Channel Digital Mixing Console 5 - Setup 5-1 Setup page 1 - Information System Version shows the version of APK, DSP, Fader and other software on this console. The IP address indi- cates the console's IP address.
  • Page 22 English LIVEtouch20 - 20 Channel Digital Mixing Console 5-1-1 Maintenance sub-page 1 - Update from USB By pressing the "Update from USB" button, a dialog box opens "After the update, the system restarts automati- cally. If you are sure you want to update the system, press "Install" and complete the installation by following the information.

  • Page 23: Patch Page

    English LIVEtouch20 - 20 Channel Digital Mixing Console 5-2 Patch page This page is mainly used to select the buses to assign to the 8 analog outputs, S/PDIF output and USB output. The console has 4 mono busses (Bus 1~Bus 4), 2 stereo busses (Bus 5L~Bus 8R including1 Master L, Master R output bus).

  • Page 24: Meter Page

    English LIVEtouch20 - 20 Channel Digital Mixing Console 5-3 Meter page The page contains two parts: the input signal level and the outputs. The signal level of the input channels has three modes IN, Pre Fader and Post Fader with Pre Fader by default. To select the signal mode to display, click the corresponding button.
  • Page 25 English LIVEtouch20 - 20 Channel Digital Mixing Console The effects consist of 8 modules, which are: 2 Modulations, 2 Delay, 2 Reverb and 2 15-band graphic equalizers. Each module can only be inserted once into an input processing channel or bus processing channel. You can insert up to two effects into a bus or channel.
  • Page 26 English LIVEtouch20 - 20 Channel Digital Mixing Console 4 - EQ LS Curve : Displays the LS curve Gain : ±18 dB, with a default value of 0 dB. Adjust the gain by turning the knob or on the touch screen (fine adjustment can be activated by holding the knob down).
  • Page 27 English LIVEtouch20 - 20 Channel Digital Mixing Console 1 - Modules selection Use the left and right arrows to select the module to be set. 2 - Type Click the drop-down menu, then choose a modulation type from the list: One Echo 1/4, Two Echo 1/8, Three Echo 1/16, Three Echo 1/16, Delayed Four Echo 1/16, One Echo 1/4 with 4 Reflect.
  • Page 28 English LIVEtouch20 - 20 Channel Digital Mixing Console 5-3-3 Reverb sub-page Click the "Reverb 1 or 2" button in the FX subpage to access the Reverbe settings subpage below. 1 - Modules selection Use the left and right arrows to select the module to be set.
  • Page 29 English LIVEtouch20 - 20 Channel Digital Mixing Console Type Min. Max. Default Hall Bright 0.8 s 12.0 s 1.6 s Hall Warm Room Bright 0.4 s 8.0 s 0.8 s Room Warm Plate Bright 0.4 s 6.0 s 0.6 s...
  • Page 30 English LIVEtouch20 - 20 Channel Digital Mixing Console 5 - Fader group selection buttons Each button corresponds to a group of eight faders, which corresponds to the eight physical faders on the console. 6 - RTA With the RTA measurement function, your device can detect the frequency response of the room and try to correct it automatically.
  • Page 31 English LIVEtouch20 - 20 Channel Digital Mixing Console Go to the Patch page in the SETUP dialog box. Choose one of the custom settings and change the routing from USB L and USB R to the stereo bus of your choice.
  • Page 32 English LIVEtouch20 - 20 Channel Digital Mixing Console Enter the effects section in the Setup dialog box and choose GEQ1 or GEQ2 and enable RTA. Note that there are two normal modes (below) and others that will show small changes more clearly.

  • Page 33: Scenes Page

    English LIVEtouch20 - 20 Channel Digital Mixing Console 5-5 Scenes Page This page contains the list of scenes and their possible manipulation. 1 - Liste des scènes The scene list contains the number(No), the selection(Sel), the name(Name) and the create/update(Time) time. To select a scene click on its name in the list.
  • Page 34 English LIVEtouch20 - 20 Channel Digital Mixing Console 5-6 Page Recorder 1 - Player The player displays the title of the selected song, playback progress and 8 functions: - Stop button : - Play/Pause button : - Back button to go to the previous track :...

  • Page 35: Monitor Page

    English LIVEtouch20 - 20 Channel Digital Mixing Console 5-7 Monitor Page The page mainly contains the settings for Oscillator, Monitor / Phones and Solo. 1 - Oscillator Console oscillator used for system testing and calibration. On/Off : Enables the oscillator to be switched on and off.
  • Page 36 English LIVEtouch20 - 20 Channel Digital Mixing Console 5-8 WIFI page Setting the Wifi connection in order to connect an iPad that will allow you to control the console remotely. First make sure that the Wifi dongle is connected to one of the console's two USB inputs.
  • Page 37 English LIVEtouch20 - 20 Channel Digital Mixing Console 3 - WiFi connection, console settings Compatible with all areas covered by WiFi, the detection distance depends on the power of your WiFi router. 3-1 Click the WiFi ON/OFF zone to enable detection then choose the desired access point name from the list below.
  • Page 38 5 - Installation and connection of the iPad application 5-1 - Via the iPad go to the App Store, search Audiophony or LIVEtouch20 then install the application. 5-2 - Click Settings then Wi-Fi and select the console name as shown below.
  • Page 39 English LIVEtouch20 - 20 Channel Digital Mixing Console 5-5 - The main page of the application is as follows : Page 39...
  • Page 40 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the AUDIOPHONY products on www.audiophony.com AUDIOPHONY ®...
