Summary of Contents for audiophony MX822
-

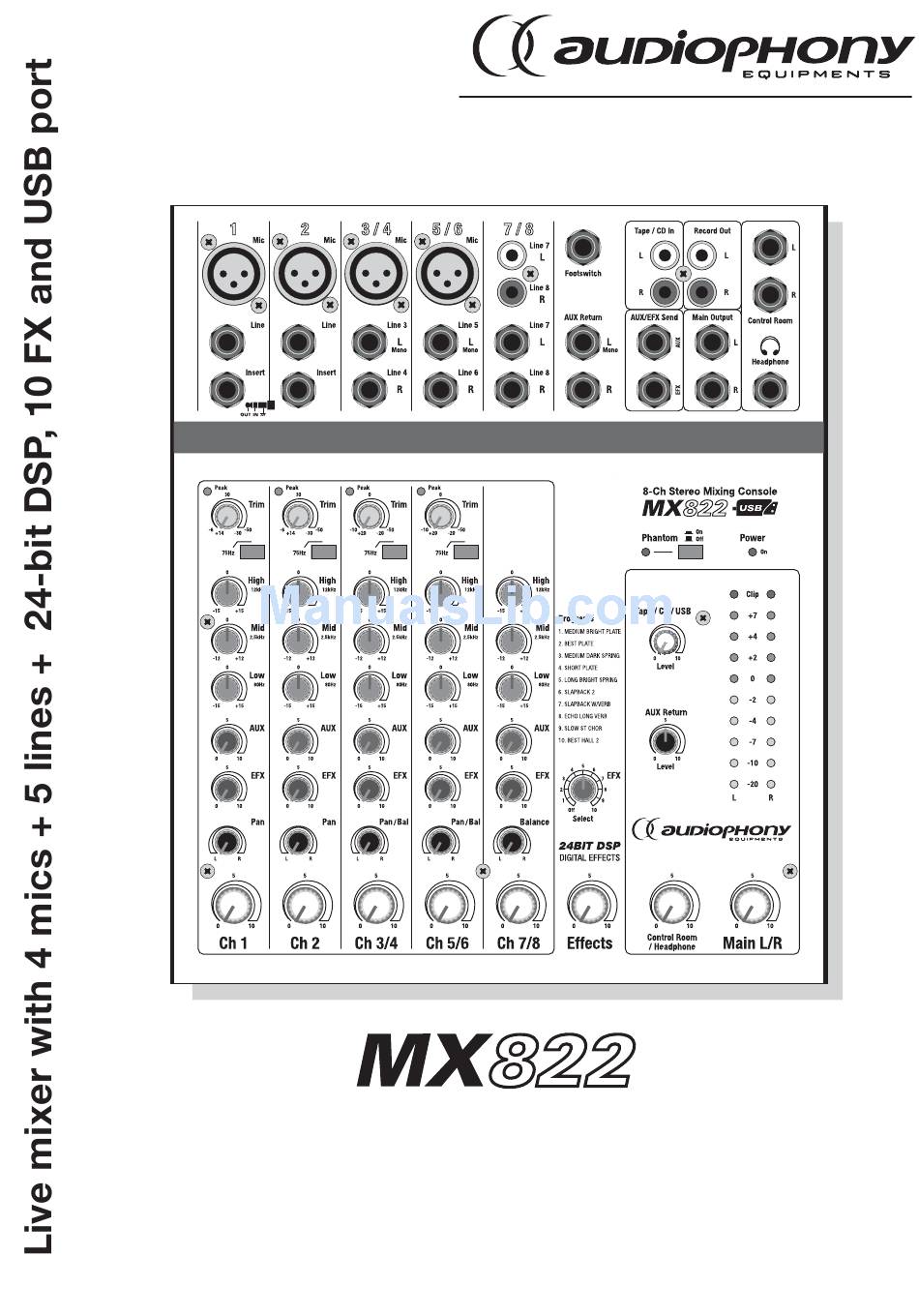

Page 1: User Guide
USER GUIDE 9558 - September 2009 Version 1.0... - Page 2 English MX822 - Live mixer with 4 mics + 5 lines + 24-bit DSP, 10 FX and USB port Page 2...
-
Page 3: Safety Information
MX822 - Live mixer with 4 mics + 5 lines + 24-bit DSP, 10 FX and USB port English 1 - Safety information 1.1 - Important safety information This unit is intended for indoor use only. Do not This product contains non-iso- Any maintenance procedure must be per- use it in a wet, or extremely cold/hot locations. -
Page 4: Introduction And Installation
It is easy to use, fast, and features many functions: it is super-efficient. The user guide you are currently reading will help you getting familiar with the many possibilites and functions offered by your MX822. Keep it within reach during the first uses. - Page 5 MX822 - Live mixer with 4 mics + 5 lines + 24-bit DSP, 10 FX and USB port English 3 - Getting started in 6 steps Mic inputs, line and music instruments Monitor Speakers Phone Gain adjustment Phantom power With peak indicators...
-
Page 6: Rear Panel
English MX822 - Live mixer with 4 mics + 5 lines + 24-bit DSP, 10 FX and USB port - Adjust the gain control settings so the peak LEDs -Set the MAIN L/R fader on "0". flash momentarily during sound level peaks:... - Page 7 MX822 - Live mixer with 4 mics + 5 lines + 24-bit DSP, 10 FX and USB port English 6 - Description per zone 1 - Mic inputs: 6.1 - Mono area Connect your microphones here. These microphone inputs are balanced and can be powered up by a phantom power supply when using condenser microphones.
- Page 8 English MX822 - Live mixer with 4 mics + 5 lines + 24-bit DSP, 10 FX and USB port 10 - Pan control knob: 12 - Line level inputs (L MONO) (channels 3 and 5) via This knob allows you to control the signal quantity sent to each ways Jack chassis: (L and R) of the Main bus.
- Page 9 MX822 - Live mixer with 4 mics + 5 lines + 24-bit DSP, 10 FX and USB port English 6.3 - Master area 1 - Footswitch connector: This Jack TS connector allows you to connect a footswitch in order to use the effects processor remotely.
- Page 10 English MX822 - Live mixer with 4 mics + 5 lines + 24-bit DSP, 10 FX and USB port 5 for more details about the USB port. 12 - Power LED: Lights up when your console is activated. 13 - Phantom switch: Activates the phantom power supply for XLR microphone inputs.
- Page 11 MX822 - Live mixer with 4 mics + 5 lines + 24-bit DSP, 10 FX and USB port English 7 - More about connectors 7.1 - Microphone inputs Microphone inputs feature XLR chassis able to Balanced Unbalanced receive both balanced and unbalanced signals.
- Page 12 English MX822 - Live mixer with 4 mics + 5 lines + 24-bit DSP, 10 FX and USB port 8 - Circuit principle: home studio CD Player Phone Powered monitor Dibox Keyboard Page 12...
- Page 13 MX822 - Live mixer with 4 mics + 5 lines + 24-bit DSP, 10 FX and USB port English 9 - Circuit principle: live installation Phone Dibox Bass Page 13...
-
Page 14: Technical Specifications
English MX822 - Live mixer with 4 mics + 5 lines + 24-bit DSP, 10 FX and USB port 10 - Technical specifications 0dB = 0,775mV / 0dBV = 1Vrms +20dB (Main L/R) +20dB (AUX/EFX Send, Control Room) Max. output levels +20dB (Insert) More than 100 mW (Headphone) @ 33 ... - Page 15 MX822 - Live mixer with 4 mics + 5 lines + 24-bit DSP, 10 FX and USB port English Input connectors: Types, Levels and Impedances Input connector Input impedance Nominal impedance Input level Type of connector Mic in mono areas 4k...
- Page 16 English MX822 - Live mixer with 4 mics + 5 lines + 24-bit DSP, 10 FX and USB port 11 - Synoptic Page 16...
-
Page 17: Configuration Sheets
MX822 - Live mixer with 4 mics + 5 lines + 24-bit DSP, 10 FX and USB port English 12 - Configuration sheets Please make several copies of this page and keep them to write down your configurations and settings. - Page 18 English MX822 - Live mixer with 4 mics + 5 lines + 24-bit DSP, 10 FX and USB port 13 - Dimensions 80,6 70,6 64,9 Page 18...
- Page 19 MX822 - Live mixer with 4 mics + 5 lines + 24-bit DSP, 10 FX and USB port English 14 - Notes Page 19...
- Page 20 Because AUDIOPHONY® takes the utmost care in its products to make sure you only get the best possible quality, our products are subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations.
