Tru-Turf GR11000D Manual page 27

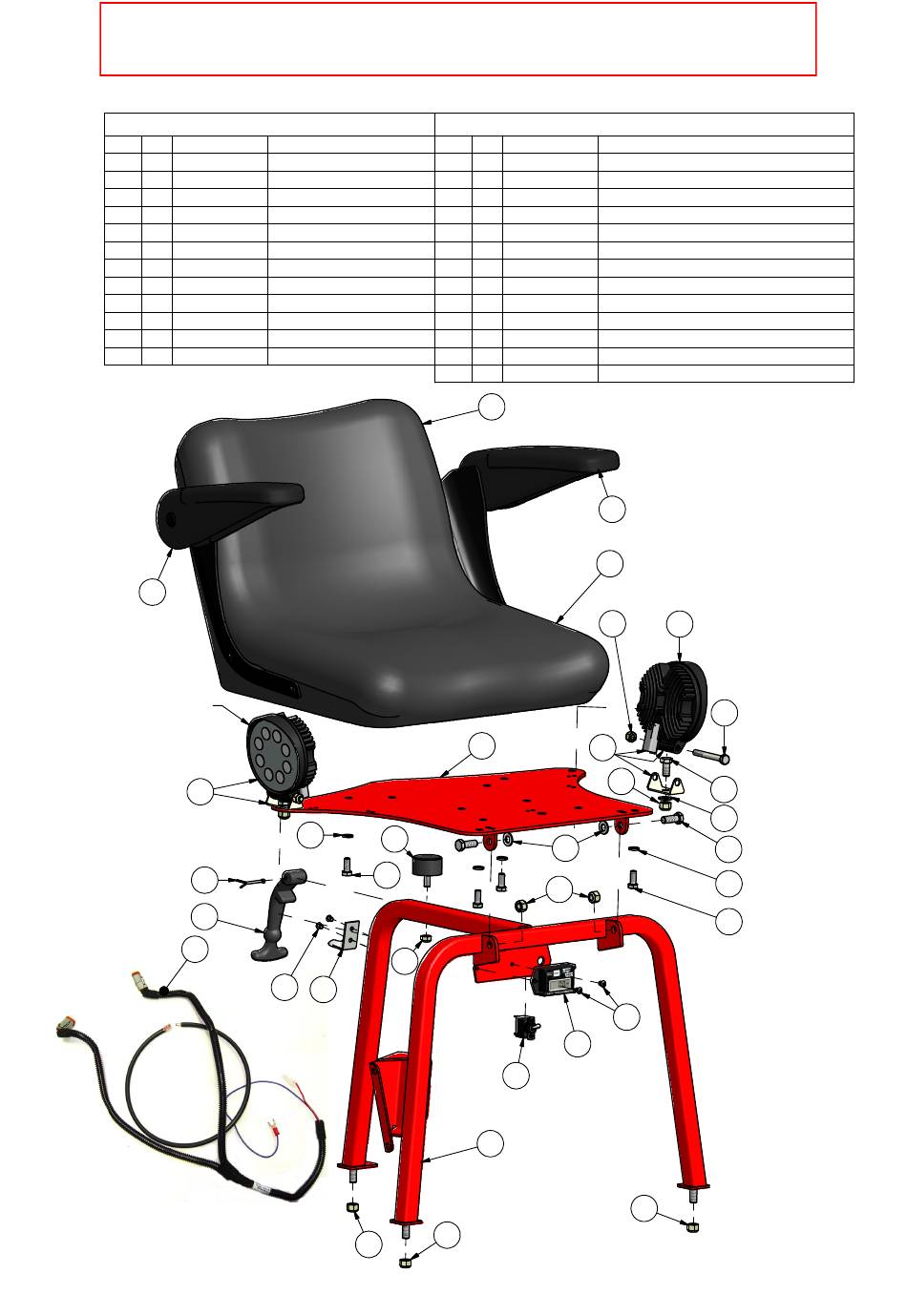

SEAT & FRAME WITH PARK BRAKE LEVER MOUNT
SEAT PARK BRAKE ASSY - PARTS LIST
ITEM QTY STOCK NUMBER
1 1 E7067
2 1 R5016
3 1 R5129
4 1 R5239
5 1 R6013
6 4 R8048
7 4 R8051
8 7 R8055
9 2 R8067
10 4 R8068
11 1 R8075
12 2 R8076
18
LED LIGHTS ARE
OPTIONAL, NOT FITTED
AS STANDARD.
20
11
2
25
TITLE ITEM
LIGHT SWITCH
BONNET CATCH RUBBER
METER HOUR TACHO
RUBBER LATCH HOOK
BUFFER STOP UNDER BODY
3/8 x 3/4 WASHER ZP
5/16 SPRING WASHER ZP
3/8 UNF NYLOC NUT P-TYPE
3/8 x 1 UNF HEX BOLT ZP
5/16 x 3/4 UNC BOLT ZP
M4 x 40 COTTER PIN ZP
RIVET ALUMINIUM 6-3
7
5
10
14
12
4
8
SEAT PARK BRAKE ASSY - PARTS LIST
QTY STOCK NUMBER
13 2 R8077 5-4 RIVET ALUMINIUM BLACK 4.1mm
14 1 R8256 M8 NYLOC NUT ZP
R8275
15 1 SEAT BASE
16 1 R8365 SEAT ALL PVC WITH ARMS MSC
17 1 R8362 SEAT ALL PVC PAN ONLY MSC
18 1 R8363 SEAT ARM REST NEW RH ASSY
19 1 R8364 SEAT ARM REST NEW LH ASSY
20 2 R8330 ROUND LED LIGHT C/W PLUG ASSY
2
21 R8054 5/16 UNF NYLOC NUT
22 2 R8066 3/8 x 3/4 UNF BOLT ZP
23 2 R8189
5/16 x 2-1/2 UNF HEX BOLT
24 1 R8347 SEAT FRAME WITH BRAKE MOUNT
25 1 R8270 WIRE LOOM FOR LIGHTS
16
19
17
21
15
20
6
8
3
1
24
8
TITLE
THE NEW STYLE SEAT PAN
ITEM 17
WILL FIT THE BASE PLATE
ITEM 15
AS THE HOLE PATTERN,
BOLT SIZE & THREAD TYPE
ARE THE SAME AS THE
OLD R8024 STYLE.
20
23
8
22
6
9
7
10
13
8
