Operation

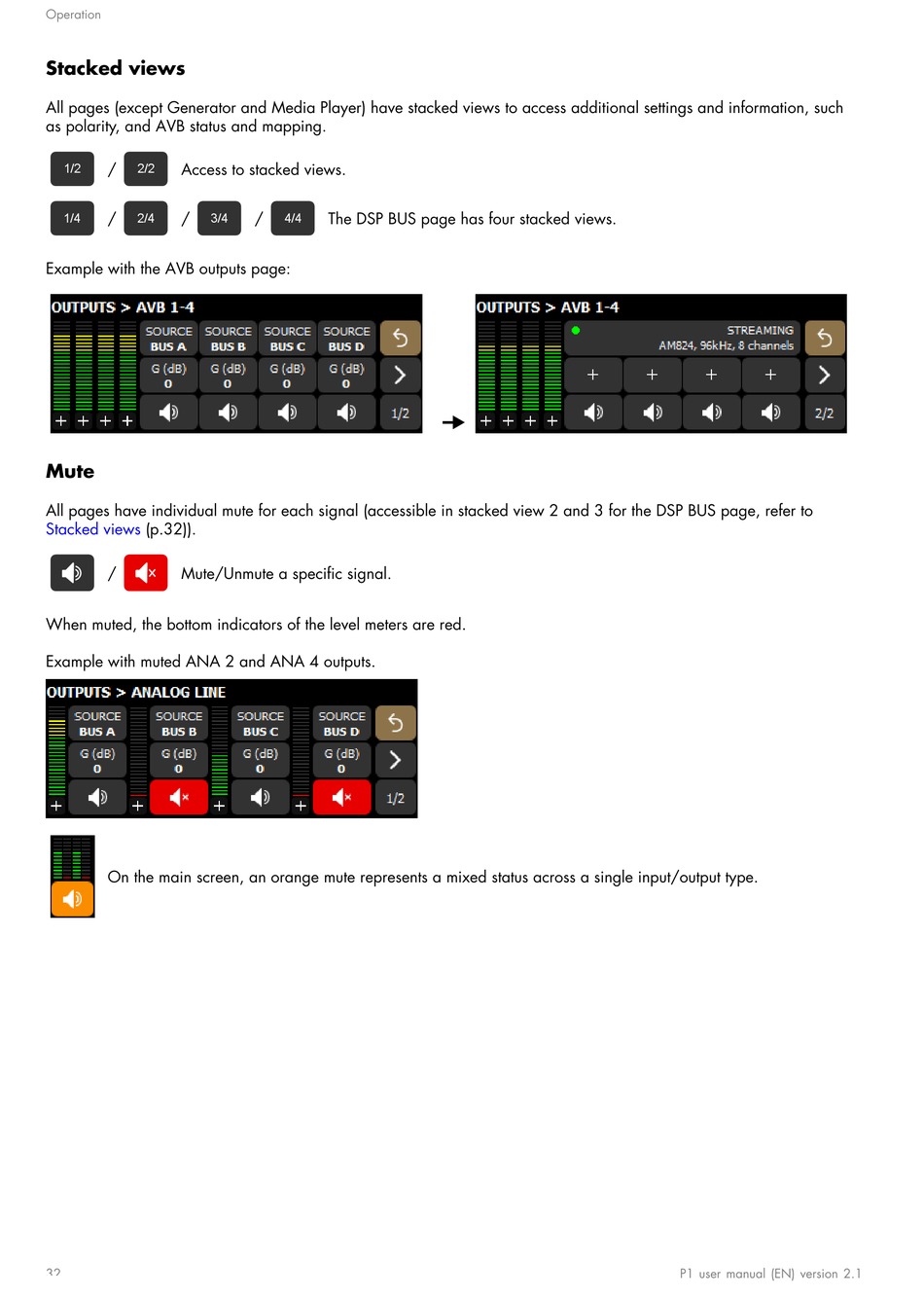

Stacked views

All pages (except Generator and Media Player) have stacked views to access additional settings and information, such
as polarity, and AVB status and mapping.
/ Access to stacked views.
1/2 2/2
/ /
1/4 2/4 3/4
Example with the AVB outputs page:

Mute

All pages have individual mute for each signal (accessible in stacked view 2 and 3 for the DSP BUS page, refer to
Stacked views (p.32)).
/ Mute/Unmute a specic signal.
When muted, the bottom indicators of the level meters are red.
Example with muted ANA 2 and ANA 4 outputs.
On the main screen, an orange mute represents a mixed status across a single input/output type.
32
/ The DSP BUS page has four stacked views.
4/4
