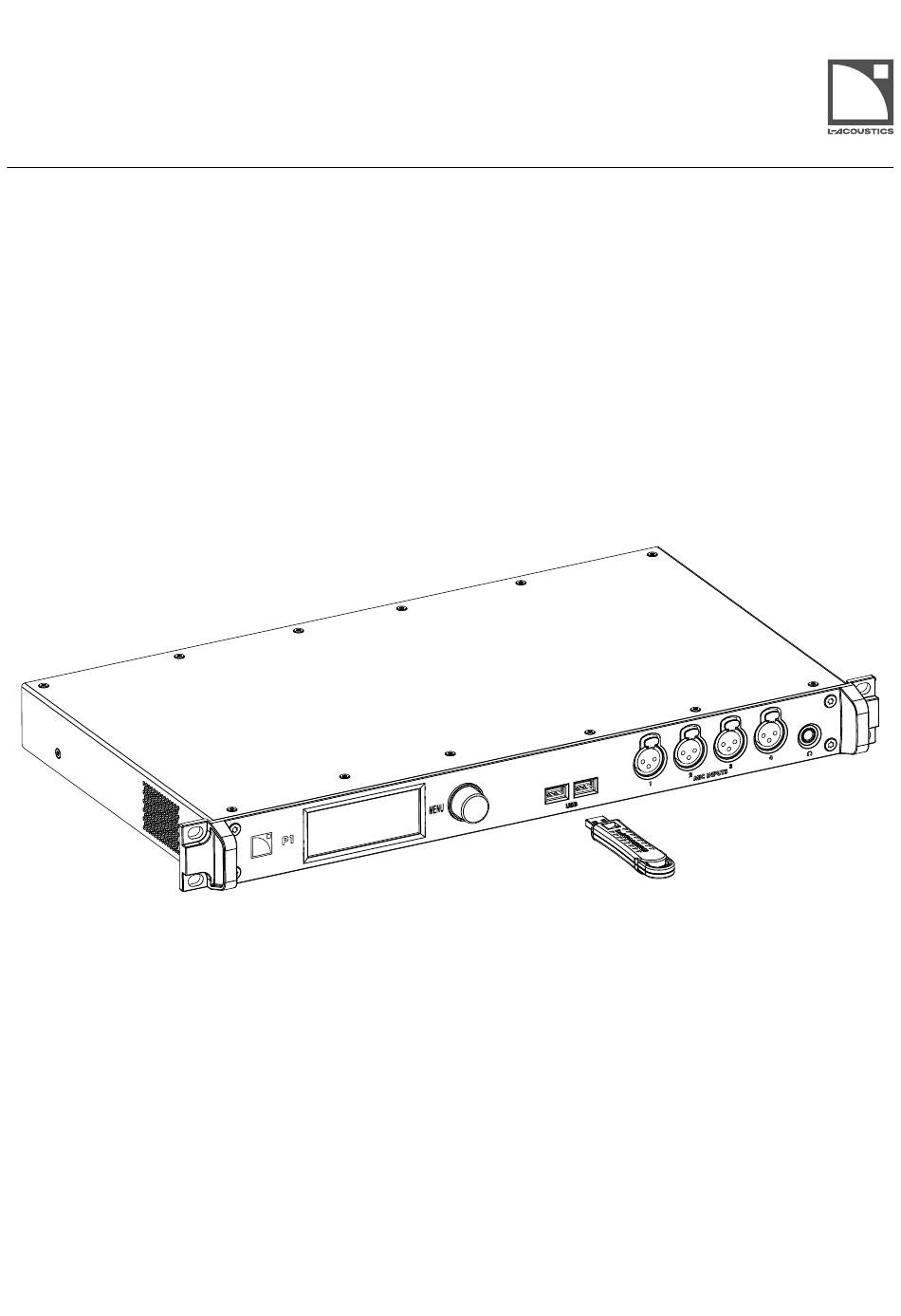

  • Page 1 owner's manual (EN)
  • Page 2 Document reference: P1 owner's manual (EN) version 7.0 Distribution date: March 10, 2025 © 2025 L-Acoustics. All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means without the express written consent of the publisher.

  • Page 3: Table Of Contents

    Contents Safety....................................6 Important safety instructions........................... 6 Introduction..................................8 How to use this manual............................8 P1 AVB processor and measurement platform...................... 9 Revision history..............................10 System components.................................11 Technical description................................13 Main features.................................13 Internal components........................... 13 Front and rear panels..........................13 Signal processing..............................14 Signal inputs...............................
  • Page 4 DSP (BUS and CUE)..........................50 Source selection............................55 Using the menu..............................56 Configurations............................. 58 Media Clock..............................64 Monitoring & Info............................66 Options................................69 IP Settings..............................74 Identifying P1.................................76 P1 embedded Web interface..........................77 Top bar............................... 77 Overview..............................78 Settings............................... 79 Additional actions............................79...
  • Page 5 Specifications..................................87 General.................................. 87 Interface and connectors............................87 Inputs and outputs..............................88 Signal processing..............................91 P1 Sensor................................91 Remote control..............................91 Physical data................................. 92 Appendix A - Glossary..............................93 Appendix B - List of AVB reservation (RSV) errors......................93 Appendix C - List of AVB connection (CON) errors......................95 Appendix D - Licenses and copyrights..........................

  • Page 6: Safety

    This system is intended for use by trained personnel for professional applications. As part of a continuous evolution of techniques and standards, L-Acoustics reserves the right to change the specifications of its products and the content of its documents without prior notice.

  • Page 7: Symbols On The Product

    To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling. P1 owner's manual (EN) version 7.0...

  • Page 8: Introduction

    Introduction How to use this manual The P1 owner's manual is intended for all actors involved in the system design, implementation, preventive and corrective maintenance of the P1 product. It must be used as follows: 1. Read the technical description for an overview of all product elements, their features, and their compatibilities.

  • Page 9: P1 Avb Processor And Measurement Platform

    AES/EBU or analog lines. P1 includes four microphone inputs and an advanced library of acoustic measurement functions for efficient system tuning. The workflow is twofold: the impulse responses of all parts of the system are acquired from multiple audience locations;...

  • Page 10: Revision History

    Added error message descriptions in Error messages (p.82). Aug. 2023 Removed CCC certification. Mar. 2025 • Added P1 embedded Web interface (p.77) section. • Added error messages in Interface issues (p.81). • Issue fixes and improvements. P1 owner's manual (EN) version 7.0...

  • Page 11: System Components

    Software applications LA Network Manager Software for remote control and monitoring of amplified controllers L-Acoustics Device Discovery and IP configuration utility for L-Acoustics devices (except L-ISA processors) on an Scanner Ethernet network Refer to the LA Network Manager help. Refer to the L-Acoustics Device Scanner user guide.

  • Page 12: Software Applications

    System components Software applications LA Network Manager L-Acoustics Device Scanner P1 owner's manual (EN) version 7.0...

  • Page 13: Technical Description

    GPI and two GPO, allows for control of preconfigured status or operations. Two USB 2.0 host connectors allow the connection of the P1 Sensor for temperature and humidity measurement or a USB storage device (max. 500 mA / 5 V).

  • Page 14: Signal Processing

    +22 dBu. Each connector is an ESD protected female XLR3. To be processed by the DSP, the analog signal is converted into a digital signal. For this purpose, P1 is fitted with an A/ D converter operating at 32-bit/96 kHz.

  • Page 15: Measurement And Tuning

    Technical description Measurement and tuning P1 is the measurement platform for LA Network Manager 3.0, using the four MIC input connectors for multi-microphone measurement and the USB P1 Sensor for temperature and humidity acquisition. Refer to the LA Network Manager Help for detailed instructions.

  • Page 16: Signal Outputs

    Some P1 feature a USB port marked DBG. This port is reserved for advanced maintenance operations by qualified L- Acoustics personnel. Power supply P1 relies on a universal Switched Mode Power Supply (SMPS) suitable for mains from 100 V AC - 240 V AC (± 10%), 50 Hz - 60 Hz. Monitoring and control User interface The front panel is fitted with a 320 ×...

  • Page 17: Inspection And Preventive Maintenance

    CHK - External cleanness Use a dry cloth to remove any dust from the side grills. P1 owner's manual (EN) version 7.0...

  • Page 18: Chk - Network Functionalities And Firmware

    Refer to the LA Network Manager Help. 4. Check that all L-Acoustics processors in the system run the same version of the firmware. The version of the firmware should match with the version of LA Network Manager in use. Refer to the LA NWM and firmware compatibility issues technical bulletin.

  • Page 19: Installation

    Mounting P1 is one rack unit high (1U) and can be mounted in an EIA-standard 19'' rack using the four points on the front panel. Use the fixing material provided by the rack manufacturer to mount the processor to the rack front rails.

  • Page 20: General Purpose I/O (Gpio)

    No previous configuration found The preconfigured functions supported by P1 GPIO can be selected using LA Network Manager from version 3.2 when the GPIO Selector is enabled in the Options (refer to the Help).

  • Page 21: Audio And Network Cabling

    Audio and network cabling Connection panels P1 features input, ouput and L-NET/AVB connectors on its front and rear panels for audio and network connection. Do not connect the P1 outputs to its own inputs. Risk of damage to the product and the system.

  • Page 22: Ethernet Connectors

    SRC to 96 kHz. P1 has been tested with up to 200 m / 656 ft of OT234H AES/EBU rated cables from KLOTZ communications GmbH (single cuts, digital source signal running at Fs = 96 kHz, tested for input and output).

  • Page 23: Cabling Example

    • Integration of other platforms (like the self-powered P series). • Audio playback (with a USB drive and the P1 Media Player). • System measurement and tuning: multi-microphone measurement with temperature and humidity acquisition (with LA Network Manager 3.0 and the P1 Sensor).

  • Page 24: Connecting To Ac Mains

    — Connect the power cord female IEC C13 connector to the processor male IEC C14 socket. Check that the cable is properly locked. — Connect the power cord country-specific plug to the mains socket. Power consumption P1 power requirement is 27 W. P1 owner's manual (EN) version 7.0...

  • Page 25: Powering On/Off

    If the product is exposed to condensation, power on, then wait 30 minutes before use. Operation Parameters accessible only from LA Network Manager Most parameters are accessible both from the P1 front panel and from LA Network Manager. The following can only be performed from LA Network Manager: •...

  • Page 26: Using The Interface

    Operation Using the interface P1 is equipped with an encoding wheel with push button and a color touchscreen display. Navigating between pages: Changing selection or setting: Validating selections: Returning to the previous screen: P1 owner's manual (EN) version 7.0...

  • Page 27: Unlocking The Display

    DSP types output types Configuration information • * (star sign): indicates unsaved modification • memory space number: from 01 to 30 • configuration name Refer to the Configurations (p.58) menu. P1 owner's manual (EN) version 7.0...

  • Page 28: Dsp Indicators

    (p.29)). Bus is not routed to any output. IP address This number corresponds to the last number of the P1 IP address (from 1 to 254). Refer to Configuring the IP settings (p.75). P1 is not connected to LA Network Manager, or to any L-COM based remote controller.

  • Page 29: Level Meters And Mute

    Red bottom indicators represent a muted signal. On muted inputs, pre-mute levels are displayed above the red bottom indicator. Orange mute buttons represent a mixed status across a single input/output type. For individual signal mute, refer to Mute (p.38). P1 owner's manual (EN) version 7.0...
  • Page 30 Operation For confirmations before applying the main screen mute/unmute, refer to Selecting preferences (p.72). P1 owner's manual (EN) version 7.0...

  • Page 31: Time-Alignment

    The AES/EBU and analog outputs of P1 are always time-aligned. When a P1 unit is used as a front-end processor to feed LA12X, compatible LA4X, or other P1 units using AVB for the main distribution and AES/EBU or analog for the redundant distribution, it is recommended to enable Time-alignment for this P1 unit in LA Network Manager.

  • Page 32: Automatic Input Fallback

    Fallback button in LA Network Manager on Units that did not switch over in order to re-align the system until the initial cause of the problem is found and resolved. If the connected signal source comes from another P1, enable the time-alignment option in LA Network Manager to solve the issue.
  • Page 33 For example, it is not possible for MIC 3-4 to be the fallback of AES 1-2. Inputs designated as fallback are reserved for this usage, and therefore can no longer be selected as sources in the router. P1 owner's manual (EN) version 7.0...
  • Page 34 Fallback input: Type label and levels of activated channels are blue. INPUTS Main input: Type label and levels of recovered channels are orange. Total recovery Fallback input: Type label and levels of activated channels are blue. P1 owner's manual (EN) version 7.0...

  • Page 35: Using The Input/Output Pages

    Operation Using the input/output pages Access to the input/output pages through their types or level meters. Inputs For the Media Player, refer to Turning on the Media Player (p.72). P1 owner's manual (EN) version 7.0...
  • Page 36 Operation DSP BUS Outputs P1 owner's manual (EN) version 7.0...
  • Page 37 Operation P1 owner's manual (EN) version 7.0...

  • Page 38: Stacked Views

    When muted, the bottom indicators of the level meters are red. Example with muted ANA 2 and ANA 4 outputs. On the main screen, an orange mute represents a mixed status across a single input/output type. P1 owner's manual (EN) version 7.0...

  • Page 39: Gain

    G (dB) Edit gain for a specific signal. +/- 0.1 dB +/- 1.0 dB To select whether selections are additive (multiple selections) or exclusive (one item at a time), refer to Selecting preferences (p.72). P1 owner's manual (EN) version 7.0...

  • Page 40: Polarity

    Indicates the incoming digital signals are faulty and leads to loss of audio. The LOCKED status is re-acquired after at least 500 ms of stability. INVALID Indicates non-audio data in the payload or errors in the AES/EBU transmission. P1 owner's manual (EN) version 7.0...
  • Page 41 If displayed for more than a few seconds, check the number of hops in the network cabling. READY and the Processing of audio is suspended. sampling frequency Temporary status between Validating and Locked. P1 owner's manual (EN) version 7.0...
  • Page 42 If displayed for more than a few seconds, possible cause is: Non-Avnu certified devices on the network are disrupting the media clock synchronization. Preferably use Avnu-certified devices. STREAMING and the Sending audio stream data. stream format P1 owner's manual (EN) version 7.0...

  • Page 43: Mapping (Avb)

    P1 AVB outputs are directly mapped to the first AVB output stream. Using mapping, it is possible to patch any channel from the input streams to any P1 AVB input, and any P1 AVB output to any channel in the output streams.
  • Page 44 Operation Each AVB input can receive one of the eight channels of an input stream. Each channel of the output streams can be fed from any P1 AVB output. Normal mode input mapping output mapping S1.1 S1.1 S1.2 S1.2 S1.3 S1.3...

  • Page 45: Sampling Frequency (Aes)

    The default value is 96 kHz, but the setting can be edited to 48 kHz to enable long cable runs (up to 300 m) with selected AES/EBU rated cables. Example with AES 1/2 at 48 kHz and AES 3/4 at 96 kHz. P1 owner's manual (EN) version 7.0...

  • Page 46: Mic/Line Settings

    The mic/line page has three settings for each input. Edit settings for a specific mic/line input. Phantom Power (48V) Preamp Analog Gain (dB) from 0 dB to +60 dB +/- 3 dB High-pass Filter (40Hz) P1 owner's manual (EN) version 7.0...

  • Page 47: Media Player (Mpl)

    Use the Media Player to read audio files from a USB drive connected to one of the USB ports. P1 supports USB drives with a storage capacity of 32 GB or less using the FAT 16 or FAT 32 file system.
  • Page 48 Open the Media Player options. track_1.wav /Volume A/ my_music 4:54 Playback Mode file play a single file folder play all files in the folder Repeat Turn off/on the repeat option (file or folder played once or on loop). P1 owner's manual (EN) version 7.0...

  • Page 49: Generator

    Turn off/on the repeat option (signal played once or on loop). The repeat option can only be enabled when the generator is turned off. The generator can also be remotely controlled using the embedded Web interface. Refer to P1 embedded Web interface (p.77). P1 owner's manual (EN) version 7.0...

  • Page 50: Dsp (Bus And Cue)

    When two P1 processors are configured to create an 8x8 matrix, it is recommended to enable the 8x8 matrix option for these P1 units in LA Network Manager. In an 8x8 matrix, AVB 5-8 is used to cross patch physical inputs between the two P1 processors, and AVB 1-4 is used to send the DSP busses to amplified controllers.
  • Page 51 AVB 1-4 The 8x8 matrix option adds a small delay for the physical inputs of each P1 at the Matrix Mixer input stage to compensate for the AVB network latency, and to ensure that signals coming from any inputs to any bus are time- aligned.
  • Page 52 Tap and hold to open the numeric keypad. Maximum delay for the CUE BUS is 2000 ms. Maximum delay for each DSP BUS is 2000 ms, in addition to group delay. Refer to Group Parameters (DSP BUS) (p.53). P1 owner's manual (EN) version 7.0...
  • Page 53 • The EQ status is on if at least one of the contributing groups has active EQ. Maximum group delay is 2000 ms, in addition to individual DSP BUS delays. Refer to Delay (p.52). P1 owner's manual (EN) version 7.0...
  • Page 54 All selected signals are summed. Input or DSP BUS gain is not applied. AFL (After-Fader Listening) Select the DSP BUS input(s) to send to the CUE BUS. All selected signals are summed. Input and DSP BUS gain are applied. P1 owner's manual (EN) version 7.0...

  • Page 55: Source Selection

    (p.47). AES, ANA and MIC are crossed out when designated as fallback. Refer to Automatic input fallback (p.32). For a read-only recap of the source selection, refer to Matrix mixer view (DSP BUS) (p.50). P1 owner's manual (EN) version 7.0...

  • Page 56: Using The Menu

    Operation Using the menu Open the menu (or push the encoding wheel from the main screen). MENU CONFIGURATIONS MEDIA CLOCK MENU CONFIGURATIONS MEDIA CLOCK MONITORING & INFO MENU OPTIONS IP SETTINGS P1 owner's manual (EN) version 7.0...
  • Page 57 Operation MENU MONITORING & INFO OPTIONS IP SETTINGS P1 owner's manual (EN) version 7.0...

  • Page 58: Configurations

    DELETE LOAD DEFAULT EXPORT (USB) MENU > CONFIGURATIONS LOAD DEFAULT EXPORT (USB) IMPORT (USB) MENU > CONFIGURATIONS EXPORT (USB) IMPORT (USB) Access to the Configurations menu is disabled when LA Network Manager is connected. P1 owner's manual (EN) version 7.0...
  • Page 59 2: EMPTY Storing a configuration Select CONFIGURATIONS > STORE. There are 30 memory spaces. Choose a name (16 characters maximum) for the configuration. Deleting a configuration Select CONFIGURATIONS > DELETE to delete a previously stored configuration. P1 owner's manual (EN) version 7.0...

  • Page 60: Default Configuration

    • Delay: all at 0 ms, time-alignment off, 8x8 matrix delay off. • Mic/Line settings: phantom power and HPF off, and analog preamp gain at 0 dB. • Group parameters: cleared. • Matrix mixer: P1 owner's manual (EN) version 7.0...

  • Page 61: Exporting Configurations

    Exporting configurations Export configurations to a USB drive connected to one of the USB ports. P1 supports USB drives with a storage capacity of 32 GB or less using the FAT 16 or FAT 32 file system. • Select CONFIGURATIONS > EXPORT (USB) > EXPORT SINGLE CFG to export a single configuration.

  • Page 62: Importing Configurations

    Importing configurations Import configurations from a USB drive connected to one of the USB ports. P1 supports USB drives with a storage capacity of 32 GB or less using the FAT 16 or FAT 32 file system. • Select CONFIGURATIONS > IMPORT (USB) > IMPORT SINGLE CFG to import a single configuration.
  • Page 63 Select a folder and a *.lbak file from the USB drive. MENU > CONFIGURATIONS > IMPORT (USB) DIR/ Volume A IMPORT SINGLE CFG [my_folder_1] RESTORE ALL CFG [my_folder_2] DIR/ Volume A/ my_folder_1 [...] ALLCFG-P1-100 Importing an all-configurations file overwrites the 30 memory spaces. P1 owner's manual (EN) version 7.0...

  • Page 64: Media Clock

    AVB device as the media clock master, connect its media clock stream to the clock input stream using LA Network Manager, and select the clock input stream as the media clock source. Use the navigation arrow to display the Clock Output Stream status and information. P1 owner's manual (EN) version 7.0...
  • Page 65 Select an identical clock stream for both P1 processors, or • Set the media clock source of one P1 to Internal, and the media clock source of the other P1 to AVB Audio Input Stream 1. P1 owner's manual (EN) version 7.0...

  • Page 66: Monitoring & Info

    MENU > MONITORING & INFO MENU MEDIA CLOCK GENERAL MONITORING & INFO ETHERNET LINKS OPTIONS MENU > MONITORING & INFO GENERAL ETHERNET LINKS TEMPERATURE & HUMIDITY MENU > MONITORING & INFO ETHERNET LINKS TEMPERATURE & HUMIDITY P1 owner's manual (EN) version 7.0...
  • Page 67 MENU > MONITORING & INFO 2.9.1.0 GENERAL 20180409 ETHERNET LINKS 1.0.0.14 1.0.0.41 1.0.0.3 For troubleshooting purposes, it can be useful to communicate this data to your L-Acoustics representative. Item Format Comment Firmware Package 4 digits separated by periods example: 2.9.1.0 Firmware Date...
  • Page 68 Internal Temperature and humidity measured from inside the P1 Unit. A percentage on a color-coded background indicates if P1 is at risk of overheating: green (up to 70%), orange (between 70% and 75%), or red (75% and more). USB Sensor Temperature and humidity measured from a connected P1 Sensor.

  • Page 69: Options

    DISPLAY IP SETTINGS MENU > OPTIONS NETWORK SWITCH DISPLAY MEDIA PLAYER MENU > OPTIONS DISPLAY MEDIA PLAYER PREFERENCES MENU > OPTIONS MEDIA PLAYER PREFERENCES RESET TO FACTORY MENU > OPTIONS PREFERENCES RESET TO FACTORY P1 owner's manual (EN) version 7.0...
  • Page 70 Redundancy Turn off/on redundancy mode. When redundancy mode is enabled, P1 no longer operates as an AVB bridge: the two Ethernet ports are independent with their own IP address. P1 can receive and distribute two parallel AVB streams on two separate networks, one primary and one secondary, for seamless backup in case of failure.
  • Page 71 NETWORK SWITCH DISPLAY MEDIA PLAYER The levels of brightness are: High, Normal, Medium, Low and Off. Turning off the display is applied after a confirmation. To turn on the display again, use LA Network Manager. P1 owner's manual (EN) version 7.0...
  • Page 72 Select Options > PREFERENCES. MENU > OPTIONS MEDIA PLAYER PREFERENCES RESET TO FACTORY Gain Selection Select whether selections are additive (multiple selections) or exclusive (one item at a time). Additive Exclusive Example with additive selections: P1 owner's manual (EN) version 7.0...
  • Page 73 Select whether a confirmation is required before applying the main screen mute. Un-mute All Confirmation Select whether a confirmation is required before applying the main screen unmute. Resetting P1 to factory default Select OPTIONS > RESET TO FACTORY. The processor retains its network address. P1 owner's manual (EN) version 7.0...

  • Page 74: Ip Settings

    By convention, the first possible number of the host address is reserved to designate the subnet, and the last number is reserved to communicate with all devices of the subnet (IP broadcast address). The factory default IP settings of all L-Acoustics devices are: •...
  • Page 75 Interconnection is achieved thanks to a gateway. The gateway address must be set on the units to enable communication with the supervision tool. If the first byte of the gateway IP address is set to 0, the three other bytes are reset to 0 upon validation. P1 owner's manual (EN) version 7.0...

  • Page 76: Identifying P1

    Operation Identifying P1 When P1 is connected to the L-NET network, it is possible to identify it among other processors on the Workspace of LA Network Manager, and conversely in the physical setup. During identification: • On the Workspace of LA Network Manager, the identified P1 blinks in yellow.

  • Page 77: P1 Embedded Web Interface

    The embedded Web interface is available from firmware version 2.15.0. Connect P1 to a control computer using an Ethernet cable. Open a Web browser and enter the IP address of P1 in the address bar to open the embedded Web interface.

  • Page 78: Overview

    Select the Media Player tile to open the remote control panel. Use the panel to play or pause the audio file, go to the previous or next audio file, change the repeat and playback mode settings, and manage the levels and the gain. P1 owner's manual (EN) version 7.0...

  • Page 79: Settings

    Click the three dots on the right to open a menu for additional actions. Theme Select the color scheme of the embedded Web interface between System (color scheme is set based on the operating system theme), Light, or Dark. P1 owner's manual (EN) version 7.0...

  • Page 80: Corrective Maintenance

    Equipment and tools Equipment Before performing preventive maintenance on this product, make sure all the equipments listed are available. • dry cloth • computer with LA Network Manager (version 2.6 minimum) and CAT5e U/FTP cable P1 owner's manual (EN) version 7.0...

  • Page 81: Troubleshooting And Diagnosis

    • Check that the connected device produces enough power (5 V / 50 mA). • Check that the connected device does not produce more than 5 V / 50 mA power. If so, contact L-Acoustics. • Contact L-Acoustics. P1 owner's manual (EN) version 7.0...

  • Page 82: Network Issues

    L-NET cable is in working order and is correctly plugged on both ends, Update error and relaunch the update process. If the issue persists, contact L-Acoustics. Displayed if the unit detects a connection attempt from a version of LA Network...

  • Page 83: Sound Issues

    (validity bit), CRC error, bipolar encoding error, data slip. An AVB audio source can meet the following failures: switch/talker failure, cable failure, disconnection or "stop streaming" requested by AVB Controller, non-Avnu certified device in network other causes contact L-Acoustics P1 owner's manual (EN) version 7.0...
  • Page 84 (refer to the third-party documentation) audio source failure inspect the audio source for failure other causes contact L-Acoustics P1 owner's manual (EN) version 7.0...

  • Page 85: Exploded View

    Corrective maintenance Exploded view In the exploded view, each assembly corresponds to a D/R procedure and the necessary repair kit(s). External modules encoder wheel knob G03828 P1 owner's manual (EN) version 7.0...

  • Page 86: Disassembly And Reassembly Procedures

    Corrective maintenance Disassembly and Reassembly procedures D/R - Encoder wheel knob Repair kits G03828 KR encoder wheel knob ×1 1348 encoder wheel knob Exploded view P1 owner's manual (EN) version 7.0...

  • Page 87: Specifications

    Digital output 2 male XLR3, balanced stereo, ESD protected Network 2 × 1 Gb/s Ethernet etherCON ® Mains input 1 IEC C13 V-Lock compatible with on/off switch General Purpose I/O (GPIO) 1 female DB9 connector P1 owner's manual (EN) version 7.0...

  • Page 88: Inputs And Outputs

    0.0005%, 1 kHz, 12 dBu (10 dB below max), 20 kHz bandwidth Channel separation > 120 dB (20 Hz-20 kHz) CMRR 53 dB at 1 kHz, 50 Ω balanced source (IEC 60268-3 3 ed 2000-08 method) P1 owner's manual (EN) version 7.0...
  • Page 89 Sample Rate Converter (SRC) Sampling frequency 96 kHz Word length 24 bits Dynamic range 140 dB Distortion THD+N < -120 dBFS (dB Full Scale) Bandpass ripple ±0.05 dB (20 Hz - 40 kHz, 96 kHz) P1 owner's manual (EN) version 7.0...
  • Page 90 110 mW left + 110 mW right at 32 Ω to 600 Ω load Signal generator Signal types sine wave, sine bursts, 20 Hz-20 kHz sweep, white noise, pink noise Peak level from -75 dBFS to 0 dBFS by steps of 0.1 dB P1 owner's manual (EN) version 7.0...

  • Page 91: Signal Processing

    -10 °C / 14 °F to 85 °C / 185 °F Sensor humidity range 0% to 80% RH (non-condensing) male USB-A Remote control Network connection dual-port Ethernet Gigabit interface L-Acoustics remote control software LA Network Manager from 2.6 P1 owner's manual (EN) version 7.0...

  • Page 92: Physical Data

    465 mm / 18.3 in 483 mm / 19 in 275 mm / 10.83 in 445 mm / 17.52 in 93 mm / 3.66 in 19 mm / 0.75 in 10 mm / 0.39 in P1 owner's manual (EN) version 7.0...

  • Page 93: Appendix A - Glossary

    An emergency stream has been connected and reclaimed the bandwidth that rank was used by the Unit stream. • Wait until the emergency stream is disconnected (bandwidth is automatically reallocated). • Try the resolutions of error 1. P1 owner's manual (EN) version 7.0...
  • Page 94 One of the bridges on the path from the talker to the listener is incorrectly configured. • Configure the bridges to allow dynamic VLAN registration. • If possible, configure the talker to use a different VLAN (one that is authorized by the bridges). P1 owner's manual (EN) version 7.0...

  • Page 95: Appendix C - List Of Avb Connection (Con) Errors

    To access the list of the packages and their licenses, open a Web browser and enter in the address bar the full IP address of a connected processor, followed by the port number :8080. P1 owner's manual (EN) version 7.0...

  • Page 96: Appendix E - Approvals

    Approvals Approvals P1 owner's manual (EN) version 7.0...
  • Page 97 Approvals P1 is certified with the following: P1 is compliant with the following: Avnu Alliance and the Avnu design mark are registered trademarks and/or service marks of Avnu Alliance. P1 owner's manual (EN) version 7.0...
  • Page 98 L-Acoustics 13 rue Levacher Cintrat - 91460 Marcoussis - France +33 1 69 63 69 63 - info@l-acoustics.com www.l-acoustics.com...
