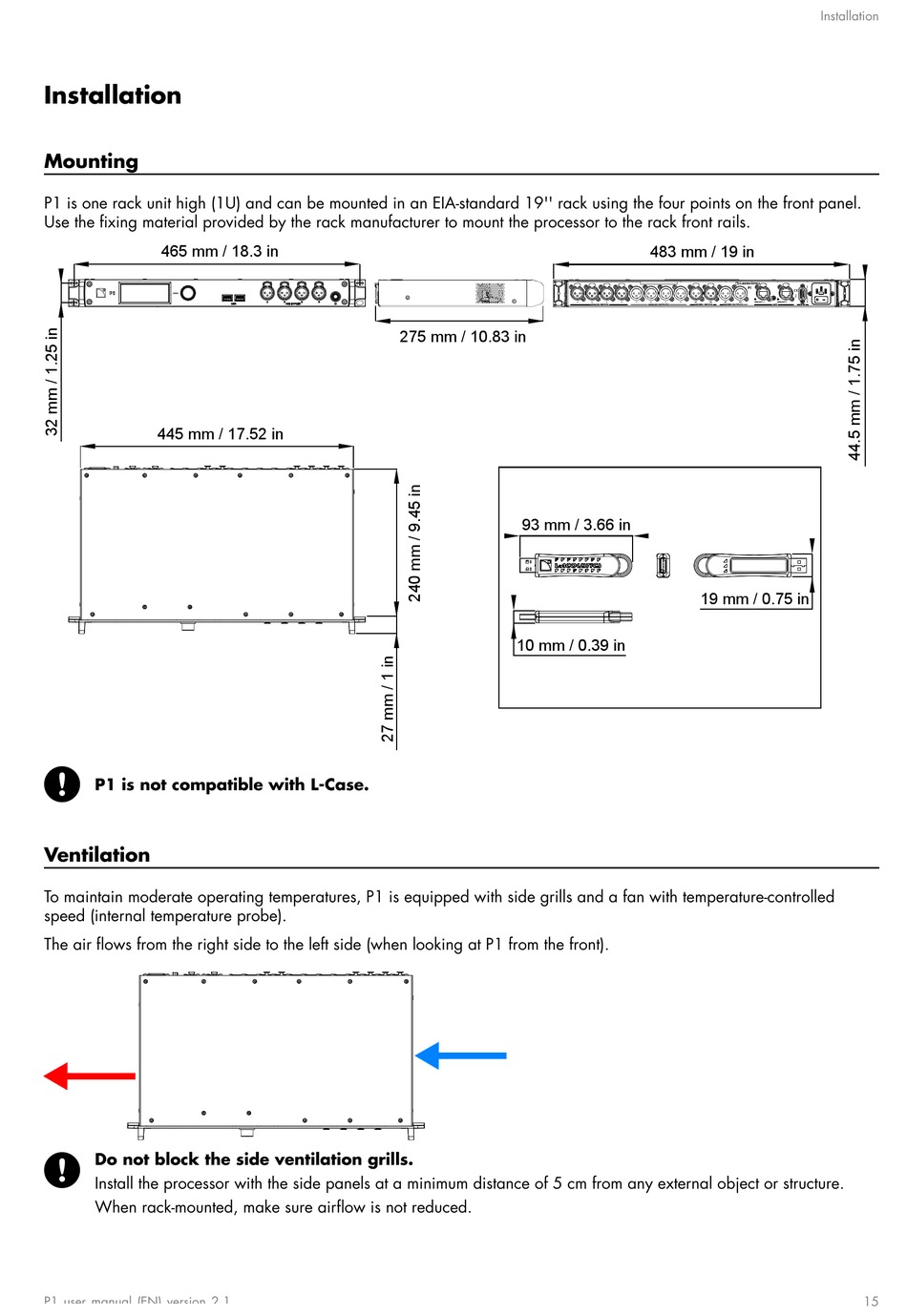

Installation

Mounting

P1 is one rack unit high (1U) and can be mounted in an EIA-standard 19'' rack using the four points on the front panel.
Use the xing material provided by the rack manufacturer to mount the processor to the rack front rails.
465 mm / 18.3 in
445 mm / 17.52 in
P1 is not compatible with L-Case.

Ventilation

To maintain moderate operating temperatures, P1 is equipped with side grills and a fan with temperature-controlled
speed (internal temperature probe).
The air ows from the right side to the left side (when looking at P1 from the front).
Do not block the side ventilation grills.
Install the processor with the side panels at a minimum distance of 5 cm from any external object or structure.
When rack-mounted, make sure airow is not reduced.
P1 user manual (EN) version 2.1
275 mm / 10.83 in
93 mm / 3.66 in
10 mm / 0.39 in
Installation
483 mm / 19 in
19 mm / 0.75 in
