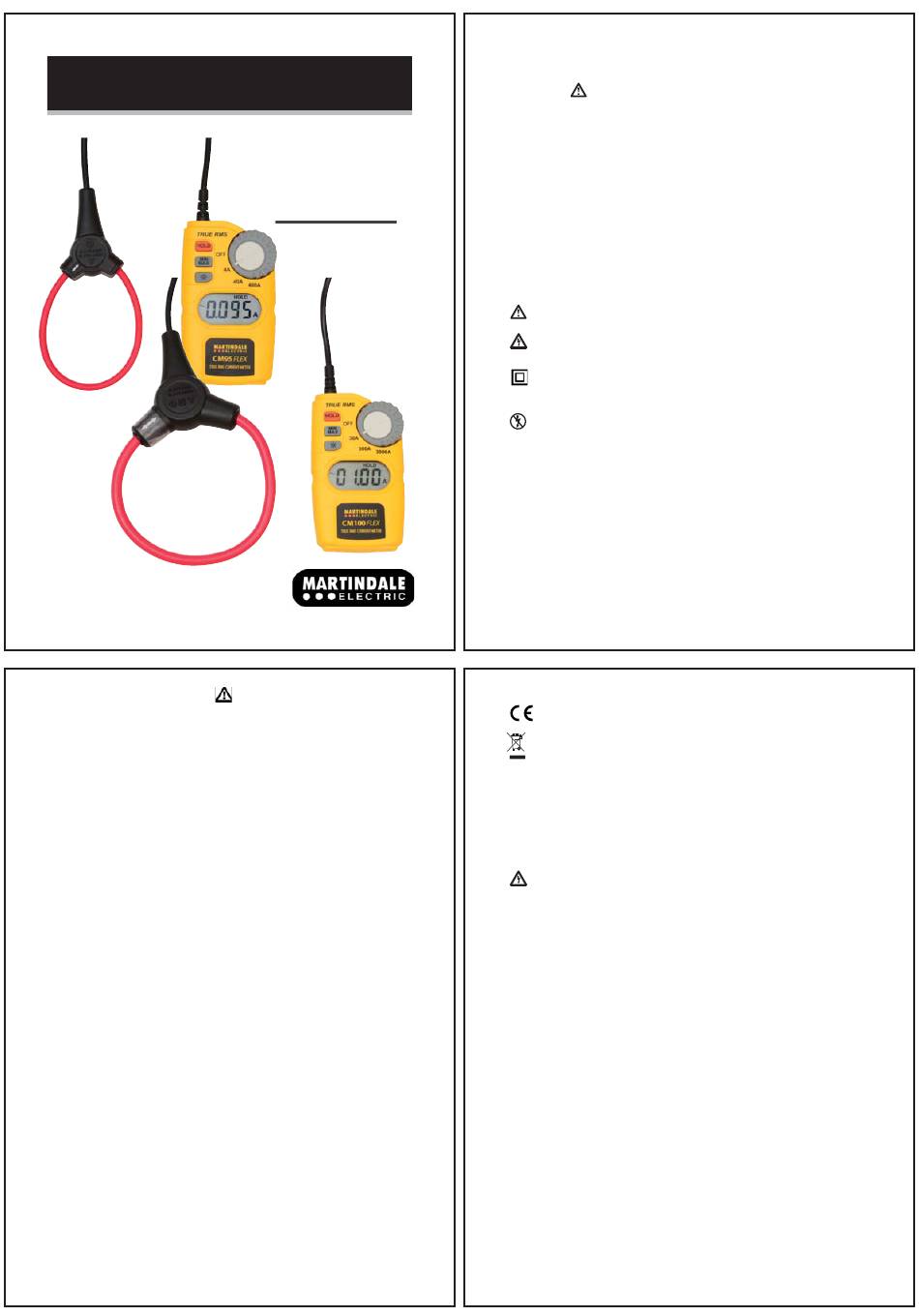

Martindale Electric CM95 Instruction Manual

CM95/ CM100
FLEXIBLE CLAMP METER
ALWAYS READ THESE INSTRUCTIONS BEFORE PROCEEDING
Thank you for buying one of our products. For safety and a full understanding of its benefits
please read this manual before use. Technical support is available from 01923 441717 and
support@martindale-electric.co.uk
CONTENTS
1

Safety Information

1.1

Meaning of Symbols and Markings

1.2

Precautions

2 Introduction
2.1 Inspection
2.2 Description
2.3 Accessories
2.4 Battery Installation
3 Operation
3.1 General
3.2 Low Battery Indication
3.3 Description Of Flexible Clamp Meter Elements
3.4 Description Of Press Buttons
3.5 Description Of Lcd Symbols
3.6 Auto Power Off
3.7 Display Hold
3.8 Min/Max
3.9 Backlight
3.10 Ac Current Measurements
3.11 Position Sensitivity
4 Maintenance
4.1 Battery Replacement
4.2 Calibration
4.3 Cleaning
4.4 Repair & Service
4.5 Storage Conditions
5 Warranty
Measurement Categories
Specifications
TRUE RMS
I
NSTRUCTION
M
ANUAL
1
1
2
4
4
4
4
4
5
5
5
6
6
7
7
8
8
8
8
9
10
10
10
11
11
11
12
14
1. SAFETY INFORMATION: Always read before proceeding.
REMEMBER: SAFETY IS NO ACCIDENT
These instructions contain both information and warnings that are necessary
for the safe operation and maintenance of this product. It is recommended
that you read the instructions carefully and ensure that the contents are
fully understood. Failure to understand and to comply with the warnings and
instructions can result in serious injury, damage or even death.
Particular attention should be paid to the Warnings, Precautions and Technical
Specifications.
Please keep these instructions for future reference. Updated instructions and
product information are available at: www.martindale-electric.co.uk
1.1 Meaning of Symbols and Markings
Caution - risk of danger & refer to instructions
Caution - risk of electric shock
Equipment protected by double or reinforced insulation
(Class II)
Do not apply around or remove from uninsulated hazardous
live conductors, which may render electric shock, electric
burn, or arc flash.
CAT III (Measurement Category III) is applicable to test and measuring
equipment connected to the distribution part of the building's low-
voltage MAINS installation.
CAT IV (Measurement Category IV) is applicable to test and measuring
equipment connected at the source of the building's low-voltage
MAINS installation.
For further information on measurement categories see page 14 or
visit www.martindale-electric.co.uk/measurement_categories.php
Equipment complies with relevant EU Directives
End of life disposal of this equipment should be in
accordance with relevant EU Directives
1.2 Precautions
This product has been designed with your safety in mind, but
please pay attention to the following warnings and cautions before
use.
Warnings
In order to avoid the danger of electrical shock, it is important that
proper safety measures are taken when working with voltages
exceeding 30V AC rms, 42V AC peak or 60V DC.
Where applicable other safety measures such as the use of
protective gloves, goggles etc. should be employed.
The flexible clamp meter must only be used by a skilled and
competent person who is familiar with the relevant regulations,
the safety risks involved and the consequent normal safe working
practices, and under the conditions and for the purposes for which
it has been constructed and specified.
Before each use the flexible clamp meter should be examined for
damage, cracks, cuts or scratches. Do not use if damaged in any
way.
The flexible sensor and meter to sensor cable have contrasting
outer and inner insulation to allow damage to the sensor and cable
to be easily identified. If the inner insulation can be seen, the
flexible clamp meter must not be used.
2
