15
Lift up on the plastic tabs at the top of
the Headrest and below the Shoulder Belt
Guides, as shown.
TO RE-ATTACH SOFTGOODS:
17
To re-attach Armrest covers refer to the USER GUIDE.
To re-attach zip padding repeat steps 2 thru 8 in REVERSE.
To re-attach fabric covers repeat steps 11 thru 16 in REVERSE. Make sure to insert the Foam Pad into
the fabric seat bottom before you re-install onto the seat bottom frame. Be sure to fit fabric cover
carefully around all orange belt guides.
The Booster Seat must never be used without the fabric covers. It may not perform as intended in the
event of a crash.
Cleaning Instructions:
Fabrics may be spot-cleaned with mild soap and water, or machine washed in cold water on
delicate cycle using mild detergent. Hang to dry. DO NOT BLEACH.
Please consult your product manual for additional care and maintenance instructions.
Contact Chicco Customer Service at 1-877-424-4226 for assistance in removing or replacing
the softgoods.
16
Pull the Seat fabric cover forward to
remove.
4
WARNING: Avoid serious injury or death to your child.
Never use your KidFit booster seat without the softgoods in
place. You must read and understand the Softgood Removal
instructions and the instructions in the User Guide. If you
do not understand these instructions, DO NOT attempt to
remove the Softgoods, STOP and call Chicco at
1-877-424-4226.
INSTRUCTIONS:

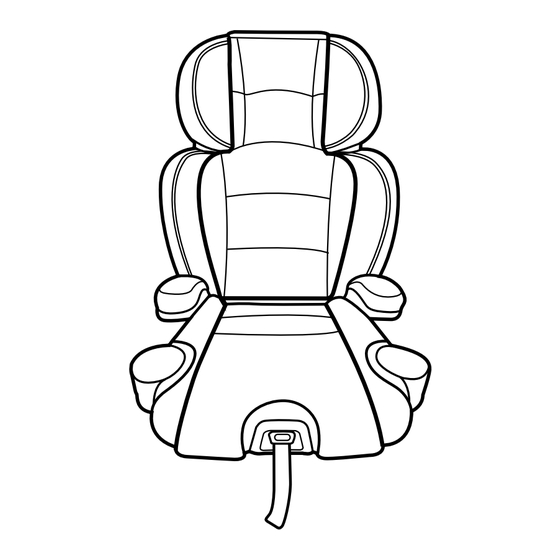

KidFit Zip Softgood Removal
IMPORTANT: Please also refer to the instructions that came with your product.
TO REMOVE THE ZIP PADDING:
1
The KidFit Zip has four interchangeable
pads (purchased separately). The Back Pad, the
Bottom Pad and the two Armrest covers.
3
Squeeze the Height Adjustment Lever
on the back of the Headrest and pull up to raise
the Backrest.
2
Unzip zipper on the top of the Headrest
(as shown.)
4
Unzip zipper on the Backrest (as shown).
