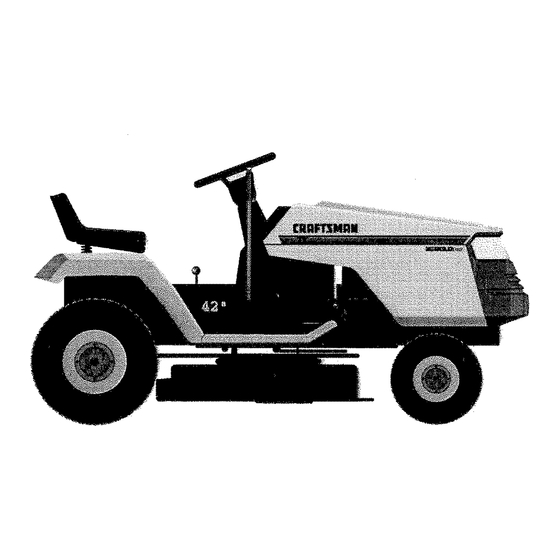

917.256500
OWNER'S MANUAL
o Assembly
Operation
Customer Responsibilities
Service and Adjustments
Repair Parts
CAUTfON:
Read and follow
all safety rules and instructions
before
operating
this equipment.
FOR CONSUMER ASSISTANCE HOT LINE, CALL THIS TOLL FREE NUMBER: 1-800-659-5917
! . ....................................................
IIIIIIIIIII
IIIiii IIIIIIIIIIIIII
I
I
[]
