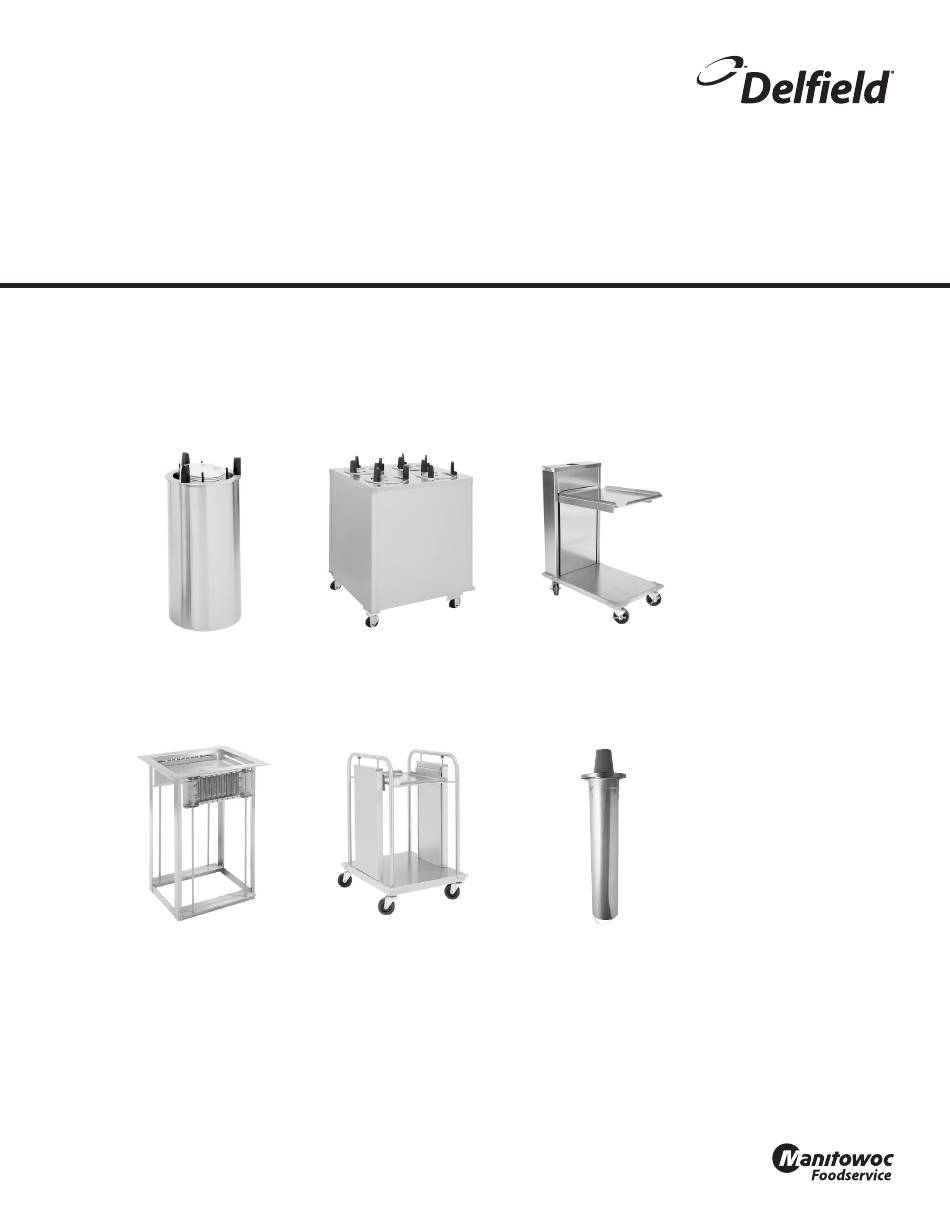

Dispensing Models
Original Instructions
Installation, Operation and Maintenance Manual
This manual is updated as new information and models are released. Visit our website for the latest manual.
DIS
Drop-In Dish Dispensers
LT
Drop-In Tray Dispensers
Part Number: 9291468 07/16
CAB
Mobile Enclosed Dish Dispensers
TT
Mobile Tray/Rack Dispensers
CT
Mobile Cantilever
Tray/Rack Dispensers
CD
Disposable Cup Dispensers
Also in this manual:
ND
SB
T
T-H
T2
FT2-SN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Delfield DIS
Summary of Contents for Delfield DIS
- Page 1 Dispensing Models Original Instructions Installation, Operation and Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. Drop-In Dish Dispensers Mobile Enclosed Dish Dispensers Mobile Cantilever Tray/Rack Dispensers Also in this manual: FT2-SN Mobile Tray/Rack Dispensers Disposable Cup Dispensers...
- Page 2 Safety Notices Warning Use caution when handling metal surface edges of all Warning equipment. Read this manual thoroughly before operating, installing or performing maintenance on the equipment. Failure Notice to follow instructions in this manual can cause property Proper installation, care maintenance damage, injury or death.
-
Page 3: Table Of Contents
Table of Contents Section 1 General Information Model Numbers ........................5 Serial Number Location ..................... 6 Warranty Information ......................6 Regulatory Certifications ....................6 Section 2 Installation Location ..........................7 Clearance Requirements ....................7 Weight Of Equipment ......................8 Dimensions ........................10 Capacity ..........................12 Cutout Installation Dimensions ..................14 Electrical Service ......................15... - Page 4 Table of Contents (continued) THIS PAGE INTENTIONALLY LEFT BLANK Part Number: 9291468 07/16...
-
Page 5: General Information
Section 1 General Information Model Numbers Dish Dispensers Drop-In With Even Temp Heated Dispensers Dish Dispensers DIS-500-ET DIS-575-ET DIS-650-ET Mobile Two Stack DIS-725-ET DIS-813-ET DIS-913-ET CAB2-500 CAB2-575 CAB2-650 DIS-1013-ET DIS-1200-ET DIS-1450-ET CAB2-725 CAB2-813 CAB2-913 Dish Dispensers CAB2-1013 CAB2-1200 CAB2-1450 Drop-In With Quick Temp Heated Dispensers... -
Page 6: Serial Number Location
Warranty Information • Underwriters Laboratories of Canada (CUL) • Register your product for warranty, • Verify warranty information, • View and download a copy of your warranty, at www.delfield.com/warranty Part Number: 9291468 07/16... -
Page 7: Section 2 Installation
Section 2 Installation The location selected for the equipment must meet the DANGER following criteria. If any of these criteria are not met, select Installation must comply with all applicable fire and another location. health codes in your jurisdiction. • Units are intended for indoor use only. -
Page 8: Weight Of Equipment
CT-1826 165lbs (75kg) CAB3-725ET 219lbs (99kg) CT-2020 168lbs (76kg) CAB3-813ET 233lbs (106kg) Dish Dispensers CAB3-913ET 239lbs (108kg) Drop-In CAB3-1013ET 245lbs (111kg) DIS-500 8lbs (4kg) CAB3-1200ET 262lbs (119kg) DIS-575 9lbs (4kg) CAB3-1450ET 277lbs (126kg) DIS-650 9lbs (4kg) Part Number: 9291468 07/16... - Page 9 Section 2 Installation Section 2 Installation Model Ship Weight Model Ship Weight Tray And Rack Dispensers DIS-725 10lbs (5kg) DIS-813 11lbs (5kg) Heated Mobile Enclosed DIS-913 12lbs (5kg) T-1221H 127lbs (58kg) DIS-1013 13lbs (6kg) T-1418H 155lbs (70kg) DIS-1200 14lbs (6kg)
-
Page 10: Dimensions
Drop-In CAB3-813 47.25” (120cm) 17.00” (43cm) 36.00” (91cm) & Drop-In With Even Temp Heated Dispensers CAB3-813ET & Drop-In With Quick Temp Heated Dispensers CAB3-813QT DIS-500 8.37” (21cm) Dia. 28.00” (71cm) CAB3-913 47.25” (120cm) 17.00” (43cm) 36.00” (91cm) DIS-500-ET CAB3-913ET DIS-575 9.12”... - Page 11 Section 2 Installation Section 2 Installation Model Length Depth Height Model Length Depth Height DIS-1013 13.50” (34cm) Dia. 28.00” (71cm) T-1221 29.50” (75cm) 21.87” (56cm) 36.00” (91cm) DIS-1013-ET T-1221H T-1418H 26.50” (67cm) 23.87” (61cm) 36.00” (91cm) DIS-1013-QT DIS-1200 15.37” (39cm) Dia.
-
Page 12: Capacity
CAB3-813ET Dish Dispensers CAB3-813QT Drop-In CAB3-913 9.12” (23cm) & Drop-In With Even Temp Heated Dispensers CAB3-913ET & Drop-In With Quick Temp Heated Dispensers CAB3-913QT DIS-500 5.00” (13cm) Dia. CAB3-1013 10.12” (26cm) DIS-500-ET CAB3-1013ET DIS-575 5.75” (15cm) Dia. CAB3-1013QT DIS-575-ET CAB3-1200 12.00”... - Page 13 Maximum Capacity Model Maximum Capacity Dish Diameter, Dish Diameter, Tray, Napkin or Bread Size Tray, Napkin or Bread Size Tray And Rack Dispensers DIS-813 8.12” (21cm) Dia. Mobile Enclosed DIS-813-ET & Heated Mobile Enclosed DIS-813-QT DIS-913 9.12” (23cm) Dia. T-1216 12”...
-
Page 14: Cutout Installation Dimensions
Drop-In T-H & T2-H Series & Drop-In With Even Temp Heated Dispensers Tray And Rack Dispensers & Drop-In With Quick Temp Heated Dispensers Mobile Open Frame DIS-500 7.75” (20cm) Dia. TT Series DIS-500-ET Tray And Rack Dispensers DIS-575 8.50” (22cm) Dia. -
Page 15: Electrical Service
DIS series units with plugs are supplied with approximately loose during shipment and installation. 4ft (1.2m) cords. DIS models plug into a wall receptacle when used as drop- Warning in models. If they are grouped together in a CAB model,... - Page 16 Section 2 Installation Section 2 Installation Model Volts, Hertz, Amps Nema Plug Phase Tray And Rack Dispensers Two Stack, Mobile Open Frame With Silverware Bin And Napkin Dispensers FT2-SN Series Tray And Rack Dispensers LT Series Napkin Dispensers ND Series Bread Dispensers SB-1 Tray And Rack Dispensers...
-
Page 17: Operation
Only load a manageable stack of dishes at a time, DANGER approximately 4” - 5” (10.2cm - 12.7cm). Each DIS model Do not operate any appliance with a damaged cord dispensing tube will accommodate a 26” (66cm) stack of or plug. -
Page 18: Dish Dispenser Temperature Adjustment - Et Models Only
Operation Section 3 Dish Dispenser Temperature Adjustment – ET 4. Remove filter from bottom of unit. It is not necessary Models Only to remove the perforated screen. The screen has access holes in it to allow adjustment of the thermostat. The Warning screen is removed in the below picture to show the location of the thermostat adjustment screw only. -
Page 19: Maintenance
The brushes on stainless steel or painted surfaces. power switch DOES NOT disconnect all incoming power. Cords on DIS models used as drop-ins into a counter or Warning into another piece of equipment are directly connected to the power source. -
Page 20: Cleaning And Sanitizing Procedures
Maintenance Section 4 After Prolonged Maintenance Daily Weekly Monthly At Start-Up Shutdown Exterior & Interior Cleaning and Sanitizing Procedures GENERAL You are responsible for maintaining the equipment in accordance with the instructions in this manual. Maintenance procedures are not covered by the warranty. EXTERIOR &... -
Page 21: Heated Dish Dispensers Troubleshooting
Adjust thermostat to a higher setting Air circulating fan partially blocked Remove blockage Not waiting long enough for pre-heating 90 minutes is a good average pre-heat on DIS models Thermostat set too high Adjust thermostat to a lower setting Too Hot... -
Page 22: Dish Dispenser Field Adjustment
Spring Tension Model Light Medium Heavy 1. Lock brakes on mobile units before beginning. DIS-500, 575, 650 DIS-725 2. Unload the dispenser. Remove dispensers from the unit DIS-813 by grasping the black plastic guide posts and lifting the DIS-913 dispenser completely out of the unit. -
Page 23: Ct Series Self-Leveling Dispensers Adjusting
Section 4 Maintenance CT Series Self-Leveling Dispensers Adjusting Tools Needed: • Small flat head screw driver • Phillips head screw driver Warning Wear safety glasses when adjusting your dispenser. Also, lock brakes on mobile units before beginning. 1. Unload dispenser. 2. -
Page 24: Ft2, Lt & Tt Series Self-Leveling Dispensers Adjusting
Maintenance Section 4 FT2, LT & TT Series Self-Leveling Dispensers Adjusting Tools Needed • Small flat head screw driver • Phillips head screw driver Warning Wear safety glasses when adjusting your dispenser. Also, lock brakes on mobile units before beginning. 1. - Page 25 Section 4 Maintenance bracket. Add as many springs as necessary. Remove Or Add Springs As Needed Remove Or Add Springs 6. When finished, put elevator housing back in unit (except on models LT) and put stainless steel load tray back on elevator housings. Load unit to test dispensing level.
- Page 26 Maintenance Section 4 THIS PAGE INTENTIONALLY LEFT BLANK Part Number: 9291468 07/16...
- Page 28 DELFIELD 980 SOUTH ISABELLA ROAD, MOUNT PLEASANT, MI 48858 800-733-8821 WWW.DELFIELD.COM Every new piece of Manitowoc Foodservice equipment comes with KitchenCare™ and you choose the level of service that meets your operational needs from one restaurant to multiple locations. StarCare – Warranty & lifetime service, certified OEM parts, global parts inventory, performance audited ExtraCare —...
