Operating Instructions - Klein Tools ET200 Instruction Manual

engliSh
SyMbolS
+
Positive DC Voltage
–
negative DC Voltage
~
AC Voltage
earth ground
CAt iii
Designed for transient protection
on indoor measurements at
installations connected directly
to the primary source. Examples
include distribution panels and
lighting systems in large buildings.
FeAture DetAilS
indicators
lights
• LEDs light up numerical voltage level indicators,
+
as well as AC and DC
• Continuity LED will light up on detection.
• Voltage detection will function without batteries installed.
Vibration
• Instrument will vibrate in the presence of voltage
measurements greater than 48V.
• Vibration will function only with batteries installed.
Sound
• Instrument will emit a tone in the presence of voltage
measurements greater than 48V.
• Instrument will emit a tone on detection of continuity.
• Sound will function only with batteries installed.
Accuracy
Accuracy of indicator lights is 70% to 100% of the voltage displayed
to account for normal variations in supply voltage.
Worklight
Press the light bulb button above the Klein Tools logo to toggle the
worklight on and off.
ghost Voltages
The approximate input resistance of 15k Ω will reduce the possibility of
false readings due to ghost voltages on de-energized lines.
lead Spacing
Molded lead holders on the back of the ET200 are spaced correctly
to test tamper-resistant outlets.
Warning or Caution
Dangerous levels
Double insulated Class ii
etl Certification
CAt iV
Designed for transient protection
on outdoor measurements taken
at the primary supply voltage
source. Examples include outdoor
overhead or underground utility
service and electricity meter.
–
or DC indicators.

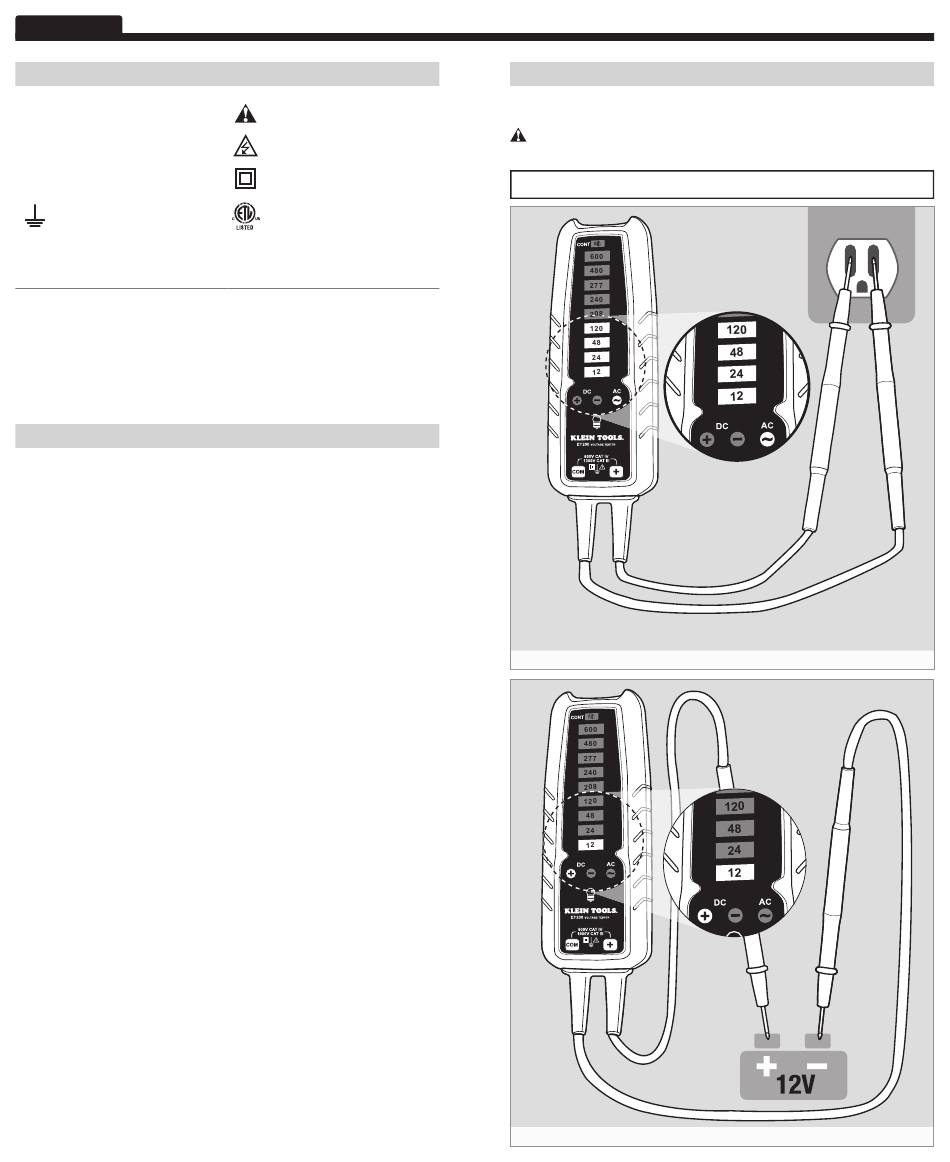

oPerAting inStruCtionS

Measuring Voltages
Time spent operational at voltages above 277V must be less than
60 seconds, with a cool-off time of at least 5 minutes.
Tester will turn on automatically when voltage is applied.
AC Voltage Measurement
DC Voltage Measurement
