Klein Tools ET200 Instruction Manual

Instruction Instruction
Manual Manual
ET200
ENGLISH
• AC/DC
VoltAge
to 600V
• Continuity
FunCtion
• Worklight
• light, VibrAtion, SounD inDiCAtorS
• CAt iV 600V SAFety rAting
• MoDern SoliD-StAte DeSign
www.kleintools.com
engliSh
ET200

instruction Manual

generAl SPeCiFiCAtionS

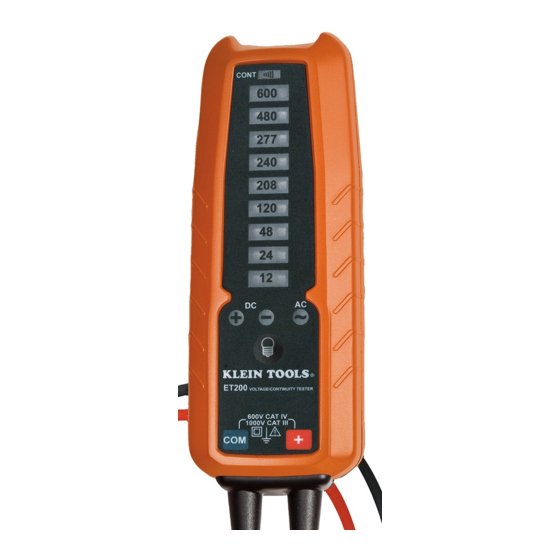

The Klein Tools ET200 is a solid-state electrical tester. It measures AC/DC
voltage, tests continuity, and features a bright LED worklight.
• Voltage level indicators: 12, 24, 48, 120, 208, 240, 277, 480, 600
• Voltage type indicators: AC, DC Positive, DC Negative
• AC Frequency: 45Hz to 66Hz
• Maximum Voltage to earth ground:
• Maximum Measurable Voltage:
• input impedance: 15k Ω on connection, up to 150k Ω steady-state.
• Continuity: < 270k Ω
• usage Duty Cycle (Above 277V):
• 70% to 100% of indicated voltage
Accuracy:
• battery type: 3 x AAA
• 2000m
operating Altitude:
• relative humidity: 0°C to 30°C (32°F to 86°F) 90%
30°C to 40°C (86°F to 104°F) 75%
40°C to 55°C (104°F to 131°F) 45%
• operating temperature: 0°C to 55°C (32°F to 131°F)
• Storage temperature: 0°C to 55°C (32°F to 131°F)
• Dimensions: 7.375 x 2.375 x 1.25"
• Weight: 8.1oz.
• Safety: CSA C22.2-1010.1, IEC 61010-1, Pollution Degree II
• CAT IV 600V, CAT III 1000V
CAt rating:
WArningS
To ensure safe operation and service of the tester, follow these instructions.
Failure to observe these warnings can result in severe injury or death.
• Before each use, verify meter operation by measuring
a known voltage or current.
• Never use the meter on a circuit with voltages that exceed the
category based rating of this meter.
• Do not use the meter during electrical storms, or in wet weather.
• Do not use the meter or test leads if they appear to be damaged.
• Ensure meter leads are fully seated, and keep fingers away from
the metal probe contacts when making measurements.
• Do not open the meter to replace batteries while the probes
are connected to a voltage source.
• Use caution when working with voltages above 60V DC,
or 25V AC RMS. Such voltages pose a shock hazard.
• Shut off and lock out power before testing continuity.
• Always adhere to local and national safety codes. Use individual
protective equipment to prevent shock and arc blast injury where
hazardous live conductors are exposed.
600V RMS
600V RMS (displayed by LEDs)
1 minute on, 5 minutes off
