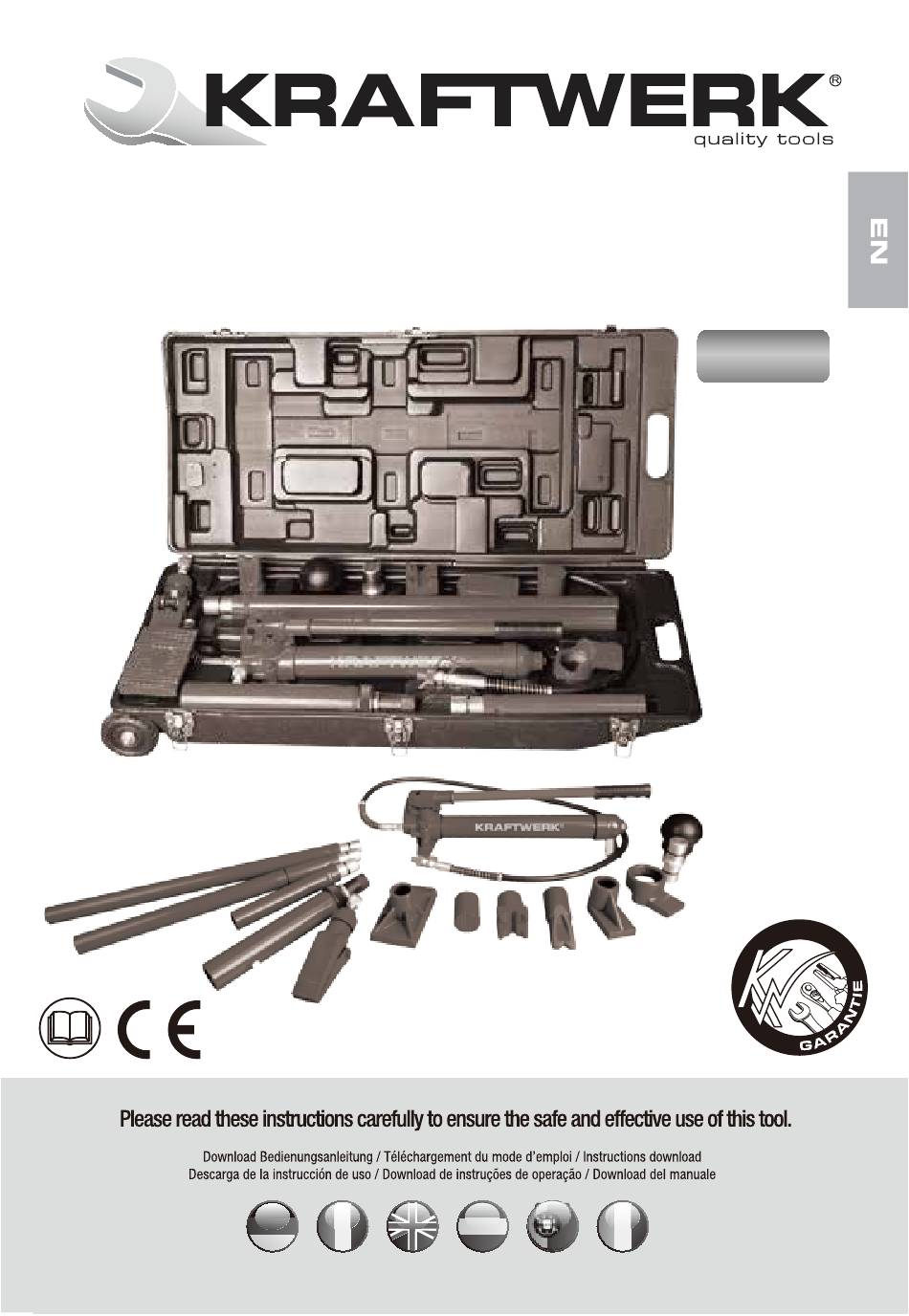

Page 1: Instruction Manual
Instruction manual Portable hydraulic body repair kit 10 T Art. 38125 www.KRAFTWERKtools.com... - Page 2 PRODUCT OVERVIEW Description Description Case Ram toe Extension bar 685 mm Plunger toe Extension bar 456 mm Cleft cap Extension bar 250 mm „V“ base Extension bar 127 mm Male connector Serrated cap 10 T Pump unit Spreading wedge Ram unit Big rubber head Hydraulic hose Base plate...
- Page 3 OPERATING INSTRUCTIONS 1. Use the pump together with the lifting cylinder and ensure that all connectors are fastened correctly. 2. Close the valve by turning it clockwise. 3. Build up pressure in the pump by using the lever to make pumping movements.
- Page 4 IMPORTANT: USE ONLY CERTIFIED HYDRAULIC OIL WHEN TOPPING UP AND REPLACING THE OIL. DECLARATION OF CONFORMITY 38125 Model: Portable hydraulic body repair kit 10 t KRAFTWERK Sàrl, 25 rue due Stade, F-67870 Bischoffsheim Declares under sole responsibility that the product to which this declaration relates is in conformity with the following...
