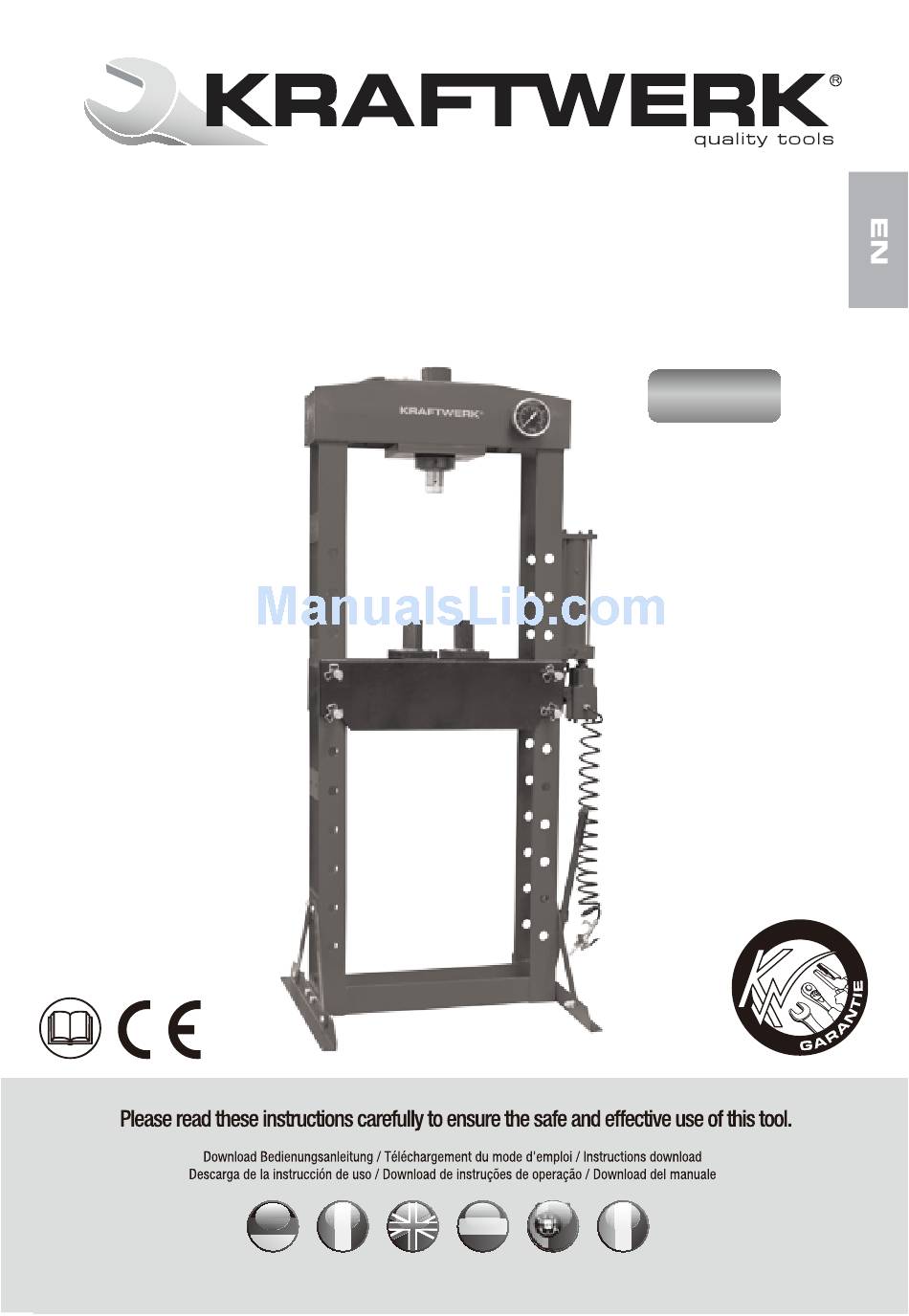

Page 1: Instruction Manual
Instruction Manual Hydropneumatic shop press 30 T Art. 38122 www.KRAFTWERKtools.com... - Page 2 SAFETY INSTRUCTIONS PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFETY INSTRUCTIONS AND WARNINGS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE OF WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE TO PROPERTY AND/OR SERIOUS PERSONAL INJURY. PLEASE KEEP THIS INSTRUCTION MANUAL SAFE FOR FUTURE USE.
- Page 3 BEFORE FIRST USE a) Before first use of this product, purge away air from the hydraulic system: open the release valve by turning it counterclockwise. Pump several full strokes to eliminate any air in the system. b) Check all parts and conditions, if there is any part broken, stop using it and contact your supplier immediately.
- Page 4 PART LIST SHOP PRESS CYLINDER PARTS Description Dust cup O-Ring Plug Connector nut Bolt Cylinder Nut M8 Spring Bolt M8 x 50 Protecting cup Nut bolt M8x10 Seal ring Retainer nut Bolt M8x10 Piston ring O-ring Piston ring Nylon-washer Back-up ring Y-ring Retaining ring...
- Page 5 PART LIST Use the exploded drawing as your guide to assemble. Lay all parts and assemblies out in front of you before beginning. No. Description No. Description No. Description No. Description Connecting base Hydraulic pressure pump Washer Press Pin Adapter Kit* Base support Connector Spring...
- Page 6 ASSEMBLY INSTRUCTIONS Use the exploded drawing as your guide to assemble. Lay all parts and assemblies out in front of you before beginning. The following procedure is recommended: • Attach one base support (02) to left post and lower connecting base (01) using spring washers (05), nuts (06), screw bolts (07) washers (04), then attach another to right post and the lower connecting base.
- Page 7 DECLARATION OF CONFORMITY 38122 Model: Hydropneumatic shop press 30 T KRAFTWERK Sàrl, 25 rue due Stade, F-67870 Bischoffsheim Declares under sole responsibility that the product to which this declaration relates is in conformity with the following standard(s) or other normative document(s):...
- Page 8 KRAFTWERK Europe AG KRAFTWERK Sàrl. Mettlenbachstrasse 23 25, rue du Stade CH-8617 Mönchaltorf F – 67870 Bischoffsheim Switzerland France Tel. +33-388 48 64 50 Tel. +41-44 949 40 50 www.KRAFTWERKtools.com...
