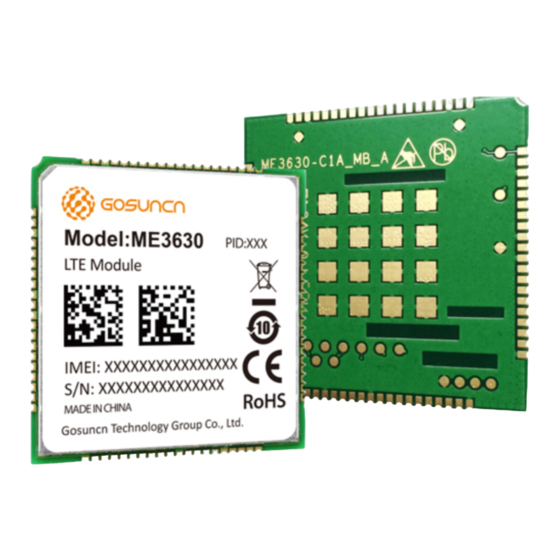

GOSUNCN ME3630 Series Command Reference Manual

Lte module series
Hide thumbs Also See for ME3630 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
ME3630
AT Command Reference Guide
Version: V2.0
Date: 2018-07-12
LTE Module Series
Website: www.gosuncnwelink.com
E-mail: welink@gosuncn.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ME3630 Series and is the answer not in the manual?

Questions and answers

Related Manuals for GOSUNCN ME3630 Series

Summary of Contents for GOSUNCN ME3630 Series

  • Page 1 ME3630 AT Command Reference Guide Version: V2.0 Date: 2018-07-12 LTE Module Series Website: www.gosuncnwelink.com E-mail: welink@gosuncn.com...

  • Page 2: About This Document

    R&D personnel using LTE modules to make the second development Reading Note The symbols below are the reading notes you should pay attention on: : Warning or Attention : Note or Remark PPLICATION RODUCT PRODUCT ME3630-U ME3630-E ME3630-J ME3630-A All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 3: Revision History

    Update +ZIPCREATE, +ZDST, +ZGPSR ,+ZNVWRITE, +ZNVREAD ， +ZBAND commands 2018-05-15 Add +ZECMCALL command Update the notes of +ZGRST and +ZGPSR commands Add +ZADB V2.0 2018-07-12 Update ATI ,+ZGFIXRATE commands Add +ZGPORT, +ZLOCKCELL command Delete +CGEQOSRDP command All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 4: Safety Information

    If not so, GOSUNCN does not take on any liability for customer failure to comply with these precautions. Full attention must be given to driving at all times in order to reduce the risk of an accident. Using a mobile while driving (even with a hands free kit) cause distraction and can lead to an accident.

  • Page 5: Table Of Contents

    2.13. AT+CIMI Request international mobile subscriber identity ............18 2.14. AT+ZGETICCID Get the ICCID of (U)SIM ................. 18 2.15. AT+ZPCB Check PCB No......................19 3. General Commands ...................... 20 3.1. ATS5 Command Line Editing Character ..................20 All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 6 6.9. AT+CMGL List Messages ......................46 6.10. AT+CMGR Read Message ....................... 47 6.11. AT+CMGS Send Message ....................... 49 6.12. AT+CMSS Send Message from Storage ..................50 6.13. AT+CMGW Write Message to Memory ..................50 All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 7 8.8. AT+ZECMCALL Make ECM data call ................... 90 8.9. +ZECMCALL active report the state of auto-dial ................. 91 8.10. AT+ZNVWRITE Enable auto-dial function ................. 92 8.11. AT+ZNVREAD Query the state of auto-dial function ..............93 All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 8 11.2. AT+ZIPCALL Start or End PS Call ..................123 11.3. AT+ZIPOPEN Establish TCP/UDP Connection ................124 11.4. AT+ZIPCLOSE Close TCP/UDP Connection ................125 11.5. AT+ZIPSEND TCP/UDP Send Data in ASCII format ..............126 All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 9 13.2. AT+ZHTTPGET Send GET Request to HTTP Server ..............140 13.3. AT+ZHTTPPOST Send POST Request to HTTP Server .............. 140 14. Extended commands ....................142 14.1. AT+ZCLRACQ Clear the historical earfcn/uarfcn ..............142 All Rights reserved, No Spreading without GOSUNCN Permission VIII...

  • Page 10: Introduction

    • 3GPP TS 27.005 specification and rules http://www.3gpp.org/ftp/Specs/archive/27_series/27.005/ 1.2. Audience Readers of this document should be familiar with GOSUNCN modules and their ease of controlling by means of AT Commands. 1.3. Document Organization This document contains the following chapters: Chapter 1: “Introduction” provides a scope for this document, target audience, contact and support information, and text conventions.

  • Page 11: Introduction To At Commands

    - Action type commands. This type of command may be “executed” or “tested”. NOTE: The response to the Test Command (trailing =?) may be changed in the future by GOSUNCN to allow the description of new values/functionalities.

  • Page 12: Information Responses And Result Codes

    ESPONSE Every command issued to the GOSUNCN modules returns a result response if response codes are enabled (default). The time needed to process the given command and return the response varies, depending on the command type. Commands that do not interact with the SIM or the network, and involve only internal set up settings or readings, have an immediate response, depending on SIM configuration(e.g., number of contacts stored in the phonebook, number of stored SMS), or on the network the command...

  • Page 13: Command Issuing Timing

    Save after restart(Y/N/NA) N:take effect after restarting NA:Not applicable Y:take effect once setting Y:Save after restart N: Parameter settings in the command are not saved after the module is powered off. ATS5 All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 14: At Commands References

    AT+CEREG AT+COPS AT+CTZU AT+CTZR AT+ZSNT AT+ZSNTE AT+ZBAND AT+CGDCONT AT$QCPDPP AT+ZGMODE AT+ZGFIXRATE AT+ZGQOS AT+ZGURL AT+ZGPSAPN AT+ZGPSR AT+ZSWITCH AT+ZGPIO AT+ZADSET AT+ZSDT AT+ZIPCFG? 2.3. AT Commands References “3GPP TS 27.005 specification” “3GPP TS 27.007 specification” All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 15 ME3630 AT Command Reference Guide of Module Product “ITU-T V.25ter specification” All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 16: Ati Request Identification Information

    <manufacturer>: the total number of characters, including line terminators, in the information text shall not exceed 2048 characters. 2.6. AT+CGMI Request manufacturer identification Execution command returns the device manufacturer identification code without command echo. Command Response +CGMI <CR><LF><manufacturer><CR><LF> <CR><LF>OK<CR><LF> <CR><LF>+CME ERROR: <err><CR><LF> All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 17: At+Gmm Request Model Identification

    This command causes the DCE to transmit one or more lines of information text, determined by the manufacturer, which is intended to permit the user of the DCE to identify the version, revision level or date, or other pertinent information of the device. All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 18: At+Cgmr Request Revision Identification

    ME3630U1AV1.0B04 2.11. AT+GSN Request IMEI This command is used to request IMEI Command Response +GSN <CR><LF><sn><CR><LF> <CR><LF>OK<CR><LF> <CR><LF>+CME ERROR: <err><CR><LF> +GSN=? <CR><LF>OK<CR><LF> Parameter <sn>: IMEI (International Mobile Equipment Identity) Example AT+GSN 356118040008583 All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 19: At+Cgsn Request Imei

    <IMSI>: International Mobile Subscriber Identity (string without double quotes) Example AT+CIMI 460199100106272 2.14. AT+ZGETICCID Get the ICCID of (U)SIM This command is used to request the ICCID of (U)SIM. Command Response +ZGETICCID <CR><LF>+ZGETICCID: <iccid><CR><LF> <CR><LF>OK<CR><LF> All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 20: At+Zpcb Check Pcb No

    This command is used to check PCB No. Command Response +ZPCB? <CR><LF>+ZPCB: <PCB version><CR><LF> <CR><LF>OK<CR><LF> <CR><LF>+CME ERROR: <err><CR><LF> Parameter <PCB version>: PCB No., the string shall not exceed 64 characters Example AT+ZPCB? +ZPCB: ME3630MB_B All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 21: General Commands

    <CR><LF>OK<CR><LF> <CR><LF>+CME ERROR: <err><CR><LF> For LTE, the execution of AT&F commands will restored all AT commands, includes 3GPP AT commands and GOSUNCN defined AT commands, to the default value predefined in AT command table. AT Command Settings storable with AT&F:...

  • Page 22: At&V Display Current Configuration

    (if implemented). If the DCE is connected to the line, it is disconnected from the line, terminating any call in progress. All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 23: Ato Return To Online Data State

    V.92. Example CONNECT 3.7. ATQ Result Code Suppression Set command enables or disables the result codes. Information text transmitted in response to commands is not affected by the setting of this parameter. All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 24: Ate Command Echo

    It also determines whether result codes are transmitted in a numeric form or an alphabetic (or "verbose") form. The text portion of information responses is not affected by this setting. Command Response V<val> <CR><LF>OK<CR><LF> <CR><LF>+CME ERROR: <err><CR><LF> Parameter All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 25: At+Cfun Set Phone Functionality

    <fun> effect. need to reset the module to make <fun> effect. NOTE: This shall be always default 0 when <rst> is not given Example AT+CFUN? All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 26: At+Cscs Select Te Character Set

    MT. When enabled, MT related errors cause +CME ERROR: <err> final result code instead of the regular ERROR final result code. ERROR is returned normally when error is related to syntax, invalid parameters, or TA functionality. All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 27: Cme Error Me Error Result Code

    <err> - error code can be either numeric or verbose (see +CMEE). The possible values of <err> are reported in the table: Numeric Format Verbose Format General error: Phone failure No connection to phone phone-adaptor link reserved Operation not allowed Operation not allowed All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 28 PUK required Hidden key required (NOTE: This key is required when accessing hidden phonebook entries.) EAP method not supported Incorrect parameters unknown GPRS-related errors Errors related to a failure to perform an Attach All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 29 Group Id not activated on SIM No matching notification VBS/VGCS call already present Congestion Network failure Uplink busy No access rights for SIM file No subscription for priority operation not applicable or not possible All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 30: Serial Interface Control Commands

    The DCE disconnects from the line. Automatic answer is disabled while DTR (circuit 108/2) remains off. NOTE: if parameter is omitted, the command has the same behavior as AT&D2. And the value can be available from the command AT&V. Example All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 31: At&S Set Data Set Ready (Dsr) Line Mode

    Circuit 133 (Ready for Receiving) DC1/DC3 on circuit 103 with DC1/DC3 characters being passed through to the remote DCE in addition to being acted upon for local flow control 4 to 127 Reserved for future standardization All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 32: At+Ipr Fixed Dte Rate

    (e.g., 134.5 bit/s should be specified as 134; 45.45 bit/s should be specified as 45). Example AT+IPR? +IPR: 115200 AT+IPR=? All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 33: At+Zuflow 4-Wires Uart Flow Control Command

    This command is used to enable CMUX function, there is no need to disable CMUX. When you close CMUX in MCU, the module will exit CMUX automatically. Command Response +CMUX=<mode> <CR><LF>OK<CR><LF> <CR><LF> ERROR <CR><LF> +CMUX? <CR><LF>OK<CR><LF> +CMUX=? <CR><LF>+CMUX: (list of supported <mode>s) <CR><LF> <CR><LF>OK<CR><LF> Parameter <mode> (multiplexer Transparency Mechanism) Enable CMUX Example AT+CMUX=0 All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 34: Sim Related Commands

    "PF" lock Phone to the very First inserted SIM/UICC card NOTE: The parameters of "PN", "PU", "PP", "PC", "PS" and so on need the support of network service provide, so the setting All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 35: At+Cpwd Change Password

    Test command returns a list of pairs which present the available facilities and the maximum length of their password. Command Response +CPWD=<fac>,<oldpwd>,<newpwd> <CR><LF>OK<CR><LF> <CR><LF>+CME ERROR: <err><CR><LF> +CPWD=? <CR><LF>+CPWD: list of supported (<fac>,<pwdlength>)s<CR><LF> <CR><LF>OK<CR><LF> <CR><LF>+CME ERROR: <err><CR><LF> Parameter <fac>: "P2" SIM PIN2 Refer to command Facility Lock +CLCK for other values All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 36: At+Cpin Enter Pin

    MT is waiting phone-to-SIM/UICC card password to be given PH-FSIM PIN MT is waiting phone-to-very first SIM/UICC card password to be given PH-FSIM PUK MT is waiting phone-to-very first SIM/UICC card unblocking password to be given All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 37: At+Crsm Restricted Sim Access

    <CR><LF>OK<CR><LF> Parameter <command> (command passed on by the MT to the SIM; refer GSM 11.11): 176 READ BINARY 178 READ RECORD 192 GET RESPONSE 214 UPDATE BINARY 220 UPDATE RECORD 242 STATUS All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 38: At+Cnum Subscriber Number

    <speed>: Please refer to the value defined in the command of +CBST <service> (service related to the phone number): asynchronous modem synchronous modem PAD Access (asynchronous) Packet Access (synchronous) 4-5 Other service,(reserved) <itc> (information transfer capability): 3,1 kHz Example All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 39: At+Zpinpuk Check Pin And Puk Retry Times

    This command is used to check PIN and PUK left retry times. Command Response +ZPINPUK=? +ZPINPUK: <pinnumber>,<puknumber> Parameter <pinnumber>: PIN left retry times <puknumber>: PUK left retry times Example AT+ZPINPUK=? +ZPINPUK: 3,10 All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 40: Sms Commands

    <mo> for mobile originated messages type not supported type supported <bm> for broadcast type messages type not supported type supported Example //CSMS:1 AT+CSMS=1 +CSMS: 1,1,1 AT+CMGF=1 AT+CMGS="18891006239" > this All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 41: At+Cmgf Message Format

    Command Response +CMGF=[<mode>] <CR><LF>OK<CR><LF> +CMGF? <CR><LF>+CMGF: <mode><CR><LF> <CR><LF>OK<CR><LF> +CMGF=? <CR><LF>+CMGF: (list of supported <mode>s) <CR><LF> <CR><LF>OK<CR><LF> Parameter <mode>: PDU mode (default when implemented) Text mode Example AT+CMGF=? +CMGF: (0-1) AT+CMGF? +CMGF: 0 All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 42: At+Csca Service Centre Address

    Test command returns the OK result code. Command Response +CSMP=[<fo>[,<vp>[,<pid>[,<dcs>]]]] <CR><LF>OK<CR><LF> +CSMP? <CR><LF>+CSMP: <fo>,<vp>,<pid>,<dcs><CR><LF> <CR><LF>OK<CR><LF> +CSMP=? <CR><LF>OK<CR><LF> Parameter <fo>: depending on the command or result code: first octet of 3GPP TS 23.040 [3] SMS-DELIVER, SMS-SUBMIT (default 17), All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 43 <dcs>:depending on the command or result code: 3GPP TS 23.038 [2] SMS Data Coding Scheme (default 0), or Cell Broadcast Data Coding Scheme in integer format, 8 is UCS2 coding scheme. Example AT+CSMP=17,169,0,0 AT+CSMP=25,169,0,0 ERROR All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 44: At+Cscb Select Cell Broadcast Message Types (Not Support Yet)

    Message Service Failure Result Code for <err> values. Test command shall display the supported profile numbers for reading and writing of settings. Command Response +CSAS[=<profile>] <CR><LF>OK<CR><LF> <CR><LF>+CMS ERROR: <err><CR><LF> +CSAS=? <CR><LF>+CSAS: (list of supported <profile>s) <CR><LF> <CR><LF>OK<CR><LF> Parameter All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 45: At+Cres Restore Settings

    TE should be acknowledged or not Command Response +CNMI=[<mode>[,<mt>[,<bm>[,<ds>[,<bfr>]]]]] <CR><LF>OK<CR><LF> <CR><LF>+CMS ERROR: <err><CR><LF> +CNMI? <CR><LF>+CNMI: <mode>,<mt>,<bm>,<ds>,<bfr><CR><LF> <CR><LF>OK<CR><LF> <CR><LF>+CNMI: (list of supported <mode>s),(list of supported <mt>s),(list +CNMI=? All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 46 ME may choose not to route messages of such data coding schemes into TE (indication of a stored CBM may be given as defined in <bm>=1). <ds>-for SMS-STATUS-REPORTs: No SMS-STATUS-REPORTs are routed to the TE. SMS-STATUS-REPORTs are routed to the TE using unsolicited result code: +CDS: <length><pdu> (PDU mode enabled); or All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 47: At+Cmgl List Messages

    (+CMGF=1), command successful and SMS-COMMANDs: <CR><LF>+CMGL: <index>,<stat>,<fo>,<ct>[<CR><LF> <CR><LF>+CMGL: <index>,<stat>,<fo>,<ct><CR><LF> [...]] <CR><LF>OK<CR><LF> if text mode (+CMGF=1), command successful and CBM storage: <CR><LF>+CMGL: <index>,<stat>,<sn>,<mid>,<page>,<pages> <data><CR><LF> [ <CR><LF>+CMGL: <index>,<stat>,<sn>,<mid>,<page>,<pages> <data><CR><LF> [...]] <CR><LF>OK<CR><LF> All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 48: At+Cmgr Read Message

    AT+CMGL="all" +CMGL: 1,"REC READ","130********","", abcdefg +CMGL: 2,"REC READ","131********","", abcdef +CMGL: 3,"STO SENT","1331********","" opqrxt 6.10. AT+CMGR Read Message Execution command returns message with location value <index> from message storage <mem1> to the TE. All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 49 1:“REC READ”:received read message 2:“STO UNSENT”: stored unsend message 3:“STO SENT”: stored sent message. <alpha>: Correspoding name to <da> or <oa> on ternimal device <stat>:message state in memory unit <oa>: Source number string of SMS All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 50: At+Cmgs Send Message

    <scts>: Service Centre Time Stamp in time-string format. Can set (+CSMS<service>as 1, network supported) return <scts> <length> must indicate the number of octets coded in the TP layer data unit to be given (i.e. SMSC address octets are All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 51: At+Cmss Send Message From Storage

    The entering of text/PDU is done similarly as specified in command Send Message +CMGS. If writing fails, final result code +CMS ERROR: <err> is returned. See chapter Message Service Failure Result Code for <err> values. All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 52: At+Cmgd Delete Message

    Delete all read messages from preferred message storage, sent and unsent mobile originated messages leaving unread messages untouched. Delete all messages from preferred message storage including unread messages. Example All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 53: At+Cmgc Send Command

    AT+CMMS More Messages to Send 6.16. Set command controls the continuity of SMS relay protocol link. When feature is enabled (and supported by network) multiple messages can be sent much faster as link is kept open. All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 54: At+Cpms Preferred Message Storage

    Read command reports the message storage status. Test command returns lists of memory storages supported by the TA Command Response +CPMS=<mem1>[, <CR><LF>+CPMS: <used1>,<total1>,<used2>,<total2>,<used3>, <total3><CR><LF> <mem2>[,<mem3>]] <CR><LF>OK<CR><LF> <CR><LF>+CMS ERROR: <err><CR><LF> +CPMS? <CR><LF>+CPMS: <mem1>,<used1>,<total1>,<mem2>,<used2>, <total2>,<mem3>,<used3>,<total3><CR><LF> <CR><LF>OK<CR><LF> All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 55: Cmti New Message Indications

    <mem1>: string type "ME" ME message storage "SM" (U)SIM message storage "SR" status report storage <index>: integer type; value in the range of location numbers supported by the associated memory Example +CMTI: “SM”,10 All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 56: At+Zspwakeup Enable/Disable Specified Sms Remote Wakeup Function

    <para>: The contents of SMS, the available characters are ’A’~’Z’, ’a’~’z’, ’0’~’9’. We recommend that the length of SMS content is not exceed 20 characters. the set value is stored in NVM, and it still takes effect after restart. All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 57: Cms Error Message Service Failure Result Code

    ERROR is returned normally when error is related to syntax or invalid parameters. Command Response <CR><LF>+CMS ERROR: <err><CR><LF> Parameter <err> values used by common messaging commands. The <err> values are reported in the table: All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 58 SIM busy SIM wrong SIM PUK required SIM PIN2 required SIM PUK2 required memory failure invalid memory index memory full SMSC address unknown no network service network time-out no +CNMA acknowledgement unknown error All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 59: Network Service Commands

    <lac>: string type; two bytes location area code in hexadecimal format <ci>: string type; two byte cell ID in hexadecimal format <AcT>: integer type; access technology of the serving cell All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 60: At+Cereg Network Registration

    <CR><LF>+CEREG: (list of supported <n>s)<CR><LF> <CR><LF>OK<CR><LF> Parameter <n>: disable network registration unsolicited result code enable network registration unsolicited result code +CEREG: <stat> enable network registration and location information unsolicited result code(default value) +CEREG: <stat>[,[<lac>],[<ci>],[<AcT>]] <stat>: All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 61: At+Cops Operator Selection

    Read command returns the current mode and the currently selected operator. If no operator is selected, <format> and <oper> are omitted. Test command returns a list of quadruplets, each representing an operator present in the network. Command Response +COPS=[<mode>[,<format> <CR><LF>OK<CR><LF> [,<oper>[,<AcT>]]]] <CR><LF>+CME ERROR: <err><CR><LF> +COPS? <CR><LF>+COPS: <mode>[,<format>,<oper>[,<AcT>]]<CR><LF> <CR><LF>OK<CR><LF> All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 62: At+Csq Signal Quality

    AT+COPS=? +COPS: (1,"CHN-UNICOM","UNICOM","46001",7),(3,"CHN-CT","CT","46011",7),,(0-4),(0-2) 7.4. AT+CSQ Signal quality Execution command returns received signal strength indication <rssi> and channel bit error rate <ber> from the MT. Test command returns values supported as compound values. All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 63: At+Cpol Preferred Operator List

    OPLMNwAcT HPLMNwAcT 31.102. Read command returns all used entries from the SIM/USIM list of preferred PLMNs, previously selected by the command +CPLS, with the Access Technologies for each PLMN in the list. All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 64 <UTRA_AcTn>: UTRA access technology: access technology not selected access technology selected <E-UTRAN_AcTn>: integer type; E-UTRAN access technology access technology not selected access technology selected Example AT+CPOL=,2,"46001",0,0,1,0 AT+CPOL=1 AT+CPOL? All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 65: At+Copn Read Operator Names

    <alphan>: string type; operator in long alphanumeric format (see +COPS) Example AT+COPN +COPN: "00101","Test PLMN 1-1" +COPN: "00102","Test PLMN 1-2" +COPN: "00201","Test PLMN 2-1" +COPN: "20201","GR COSMOTE" +COPN: "20201","GR COSMOTE" +COPN: "20205","vodafone GR" All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 66: At+Ctzu Automatic Time Zone Update

    +CTZV: <tz> whenever the time zone is changed. If setting fails in an MT error, +CME ERROR: <err> is returned. Read command returns the current reporting settings in the MT. All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 67: At+Zcellinfo Request The Information About Serving Cell

    <CR><LF>+ZCELLINFO: <LAC>,< Cell_ID>, <Cell_Band><CR><LF> <CR><LF>OK<CR><LF> When registered to HDR/CDMA, it will return: <CR><LF>+ZCELLINFO: <Local_ID>,< Cell_ID>, <Cell_Band><CR><LF> <CR><LF>OK<CR><LF> When registered to SRLTE, it will return: <CR><LF>+ZCELLINFO: <Global_cell_ID>,< Physical_Cell_ID>, < Cell_Band>,<earfcn><CR><LF> <CR><LF>OK<CR><LF> Or it will return: All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 68: At+Zlockcell Lock Cell Command

    Command Response +ZLOCKCELL=<lock_flag>[,<mode>,<earfcn_or_uar <CR><LF>OK<CR><LF> fcn>,<pci_or_psc>] <CR><LF> ERROR<CR><LF> +ZLOCKCELL=? <CR><LF>+ZLOCKCELL: lock_flag(0-1),sys_mode(0-1),uarfcn_earfcn(0-65535),psc(0-511),pci(0-50 3)<CR><LF> <CR><LF>OK<CR><LF> <CR><LF> ERROR<CR><LF> +ZLOCKCELL? <CR><LF>+ZLOCKCELL: <CR><LF> <CR><LF> wcdma ,[uarfcn:<uarfcn>,psc:<psc>,]lock:<lock_state><CR><LF> <CR><LF>lte,[earfcn:<earfcn>,pci:<pci>,]lock:<lock_state><CR><LF> <CR><LF>OK<CR><LF> <CR><LF>ERROR <CR><LF> Parameter: All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 69 //lock LTE frequency 1650 AT+ZLOCKCELL? + ZLOCKCELL: wcdma,lock::off lte,earfcn:1650,pci:186,lock::on //lock LTE frequency 1650，cell 186 AT+ZLOCKCELL? + ZLOCKCELL: wcdma,uarfcn:10663,lock::on //lock WCDMA frequency 10663 lte,lock::off AT+ZLOCKCELL? + ZLOCKCELL: wcdma,uarfcn:10663,psc:447,lock:on //lock WCDMA frequency 10663, cell 447 All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 70: At+Zsnt Configuration Of Network Selection Mode

    1: MANUAL network selection. NOTE: This parameter only used for read command. Set manual network selection should use AT+COPS. 2: LIMITIED network selection <pref_acq>: Preferred network mode acquisition parameter. 0 : AUTOMATIC order (default) All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 71: At+Zsnte Network Selection According To 2G/3G/4G

    Preferred network mode, this is used to set the 10 parameter of NV. 4G LTE Preferred (all Combination of mode with LTE, LTE preferred) 3G Preferred 2G ONLY 3G ONLY 4G ONLY Example AT+ZSNTE=3 AT+ZSNTE? +ZSNTE: 3 AT+ZSNTE=? +ZSNTE: 0-4 All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 72: At+Zpas Check Module Status

    The Execution command is used to return current system information. Command Possible response ^SYSINFO ^SYSINFO:<srv_status >,<srv_domain >,<roam_status >,<sys_mode>,<sim _state >[,[<reserve>],<sys_submode>] Parameter < srv_status>: Out of service Restricted service Service restricted region service All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 73 <sys_submode>: system sub mode Out of service GSM mode GPRS mode EDGE mode WCDMA mode HSDPA mode HSUPA mode HSUPA and HSDPA mode TD-SCDMA mode TDD-SUBACT FDD-SUBACT Example AT^SYSINFO ^SYSINFO: 2,3,0,15,1 All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 74: At+Zband Band Lock

    ALL the bands in this mode ALL/all all the bands of above a hexadecimal value that specifies the TD-S frequency band. <tdscdma_band_mask>: CDMA 0X00 disable ALL the bands in this mode All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 75 LTE BAND3 LTE BAND 5 LTE BAND7 LTE BAND5 LTE BAND 12 LTE BAND8 LTE BAND7 LTE BAND 17 LTE BAND 20 LTE BAND8 LTE BAND11 LTE BAND18 LTE BAND19 LTE BAND 21 All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 76: At+Zarfcn Return Current Arfcn

    GW:(800000, 4000000) CDMA:(0) TDS:(0) LTE:(2, 8, 10, 800, 10000) 7.16. AT+ZARFCN Return current ARFCN This command is used to return the current ARFCN. Command Response +ZARFCN? When register to network, return: <CR><LF><mode>: <value><CR><LF> All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 77: At+Zcds -Query Serving Cell Information

    GSM: <CR><LF>+ZCDS:<arfcn>,<mcc>,<mnc>,<lac_id>,<cell_id>,<rx_power>,<tx_power>,<s inr>,<ecio>,<imsi_buf><CR><LF> <CR><LF>OK<CR><LF> Parameter <channel>: UARFCN UMTS assigned radio channel <earfcn/arfch/uarfcn>:Absolute Radio Frequency Channel Number of the BCCH carrier <mcc>: Mobile Country Code <mnc>: Mobile Network Code <tac_id> Tracking Area Code All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 78: At+Zsrsp Query Rsrp,Rsrq,Sinr Of The Main Cell

    This command is used to query the RSRP,RSRQ,SINR of the module’s main cell. Note: This command is only valid when the module register to LTE network. This command is only supported by module ME3630-E. Command Response +ZSRSP? <CR><LF>+ZSRSP:<rsrp >,< rsrq>,<rssi >,<sinr><CR><LF> All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 79: At+Zrsp Query Rsrp,Rsrq,Sinr Of Lte Neighbour Cell

    AT command will return <rsrp1>,<rsrq1>,<rsrp2>,<rsrq2>,…,<rsrpN>,<rsrqN> <sinr>: signal to interference plus noise ratio,SINR. It is 10 times of real value, and only valid in LTE mode. Example AT+ZARFCN? LTE: 2850 AT+ZRSP? +ZRSP:"-1031","-84""-1149","-174""-1094","-113""-1169","-187""-1031","-84",161 All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 80: At+Cgeqos Define Eps Quality Of Service

    <UL_MBR>: integer type; indicates UL MBR in case of GBR QCI. The value is in kbit/s. This parameter is omitted for a non-GBR QCI. Example AT+CGEQOS=? +CGEQOS: (1-24),(0-9),(0-150000),(0-50000),(0-150000),(0-50000) AT+CGEQOS=1,0 AT+CGEQOS? +CGEQOS: 1,0,0,0,0,0 All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 81: At+Zmoni Get The Information Of Main& Neighbor Cells

    When neighbor cell is WCDMA, the WCDMA neighbor cells can be 16 at most: <CR><LF>+ZMONI:<mode>,<s/n>,<PSC>,<rscp>,<ecio>,<uarfcn>,<rx_pwr><CR><LF> <CR><LF>OK<CR><LF> When neighbor cell is LTE, the LTE neighbor cells can be 16 at most: <CR><LF>+ZMONI:<mode>,<s/n>,<rsrp>,<rsrq>,<physicalCellID>,<arfcn>,<rx_pwr><C R><LF> <CR><LF>OK<CR><LF> All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 82 WCDMA Japan 850 band When the mode is LTE LTE band 1 LTE band 3 LTE band 5 LTE band 7 LTE band 8 LTE band 20 The band is the numeric in this mode. All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 83 +ZMONI:mode:UMTS,s,uarfcn:10663, band:1,mcc:460,mnc:1,lac_id: 47901,cell_id:203242280，psc: 447, ura: 0, rscp: -85,rx_power:-85，ecio:-6 When <n>=0, and register to LTE, return the main cell information: AT+ZMONI? +ZMONI:mode:LTE,s,earfcn:1675,band:3,mcc:460,mnc:1,tac_id:37147,cell_id:196565553,pci:363,rsrp:-94.80,rsrq:-12.90,rx_po wer:-63.40,sinr:138,ecio:0 When <n>=1, and register to GSM, return the neighbour cells information: AT+ZMONI? All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 84 +ZMONI: mode: UMTS, N1, psc: 308, rscp:-8t, ecio: -8, uarfcn: 10663, rx power: -66 +ZMONI:mode: UMTS, N2, psc: 292, rscp: -95, ecio: -16, uarfcn: 10663, rx_power:-66 When <n>=2, and register to LTE, return the neighbour cells and main cell information: AT+ZMONI? +ZMONI:mode:LTE,s,earfcn:1675,band:3,mcc:460,mnc:1,tac_id:37147,cell_id:196565553,pci:363,rsrp:-92.70,rsrq:-9.80,rx_pow er:-64.50,sinr:163,ecio:0 +ZMONI:mode:LTE,N1,rsrp:-92.70,rsrq:-9.80,pci:363,earfcn:1675,rx_power:-64.50 All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 85: Packet Domain Commands

    <PDP_address>: a string parameter that identifies the MT in the address space applicable to the PDP. If the value is null or omitted, then a value may be provided by the TE during the PDP startup procedure or, failing that, a All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 86: At+Cgatt Ps Attach Or Detach

    <CR><LF>+CME ERROR: <err><CR><LF> +CGATT? <CR><LF>+CGATT: <state><CR><LF> <CR><LF>OK<CR><LF> +CGATT=? <CR><LF>+CGATT: (list of supported <state>s) <CR><LF> <CR><LF>OK<CR><LF> Parameter <state>: indicates the state of PS attachment 0 – detached 1 – attached Example AT+CGATT? +CGATT: 0 All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 87: At+Cgact Pdp Context Activate Or Deactivate

    … AT+CGACT=? +CGACT: (0,1) 8.4. AT+CGPADDR Show PDP address The execution command returns a list of PDP addresses for the specified context identifiers. The test command returns a list of defined <cid>s. All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 88: At+Cgerep Packet Domain Event Reporting

    +CGEV: NW REACT <PDP_type>, <PDP_addr>, [<cid>] The network has requested a context reactivation. The <cid> that was used to reactivate the context is provided if known to the MT. All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 89: At+Cgsms Select Service For Mo Sms Messages

    The set command is used to specify the service or service preference that the MT will use to send MO SMS messages. The read command returns the currently selected service or service preference. The test command is used for requesting information on the currently available services and service preferences. All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 90: At$Qcpdpp Set Pdp Authentication Parameters

    This command can be only used when the module has registered to network. Command Response $QCPDPP=<cid>,<auth_type>,<password>,<username> <CR><LF>OK<CR><LF> <CR><LF>+CME ERROR: <err><CR><LF> $QCPDPP? <CR><LF>$QCPDPP: <cid>,<auth_type>[,<username>]<CR><LF> [$QCPDPP: <cid>,<auth_type>[,<username>] <CR><LF> [...]] <CR><LF>OK<CR><LF> <CR><LF>+CME ERROR: <err><CR><LF> $QCPDPP=? <CR><LF>$QCPDPP: (list of supported <cid>s), (list of supported <auth_type>s)<CR><LF> All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 91: At+Zecmcall Make Ecm Data Call

    This command used to make data call based on ECM interface. The data call parameter can be also configured by +CGDCONT command. Command Possible response(s) +ZECMCALL=<action>[,<APN>[,<P +ZECMCALL: CONNECT DP_type>[,<username>[,<passwd >[,<auth_type>]]]]] ERROR +ZECMCALL? +ZECMCALL: <ip_type>,<ip_addr>,<gateway>,<pri_ dns>,<sec_dns> All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 92: Zecmcall Active Report The State Of Auto-Dial

    Use at+znvwrite=ecmcall_urc,1 command to enable active report the state of auto-dial; Use at+znvwrite=ecmcall_urc,0 command to disable active report the state of auto-dial; Use at+znvread=ecmcall_urc command to query state of auto-report switch. ME3630 V1.0B12 , ME3630J2ASV1.0B05 and above This command is supported on All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 93: At+Znvwrite Enable Auto-Dial Function

    2) AT+ZSWITCH=l, AT+ZADSET=e Command Response +ZNVWRITE=<auto_dial_mode>,<VALUE><CR> <CR><LF>OK<CR><LF> <CR><LF>ERROR<CR><LF> Parameter: <auto_dial_mode>: string type, auto-dial mode, fixed value, that is auto_dial_mode,. <value>:default void, means close auto-dial function. 1-----open auto-dial function 0-----close auto-dial function Example All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 94: At+Znvread Query The State Of Auto-Dial Function

    <VALUE>: void --default void, means close auto-dial function(when not set the +ZNVWRITE command) 0 -- auto-dial function is disabled 1 --auto-dial function is enabled Example at+znvread=auto_dial_mode +ZNVREAD: auto_dial_mode: AT+ZNVWRITE=auto_dial_mode,1 AT+ZNVREAD=auto_dial_mode +ZNVREAD: auto_dial_mode:1 All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 95: At+Zsdhcplease Amend Dhcp Lease Time

    //less than 120, response ERROR ERROR AT+ZSDHCPLEASE=180 //set as 180s, that is 3 minutes at+zsdhcplease=? // dhcplease_time value should not less than 120s +ZSDHCPLEASE:The value cannot be less than 120 AT+ZSDHCPLEASE? //query current dhcplease_time value +ZSDHCPLEASE:180 All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 96: Gps Relative Commands

    2: MS-ASSISTED 3: STANDALONE_ONLY (Default Value) Example AT+ZGMODE=1 AT+ZGMODE=? +ZGMODE: (1-3) 9.3. AT+ZGFIXRATE Set location mode choice when reset GPS This command is used to set location mode choice when reset GPS. All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 97: At+Zgqos Set Qos For Location

    <CR><LF>+ZGQOS: <flag1>,<flag2><CR><LF> <CR><LF>OK<CR><LF> MS error: <CR><LF>ERROR<CR><LF> +ZGQOS=? <CR><LF>+ZGQOS: (2-10000),(0-255)<CR><LF> <CR><LF>OK<CR><LF> Defined values <flag1>: Positioning accuracy (default : 50), the range is 2-10000 <flag2>: Desired level of performance. (0-255) (default: 255) Example AT+ZGQOS=50,100 AT+ZGQOS? All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 98: At+Zgurl Set Url Of Supl Server

    <CR><LF>+ZGRUN: <running_state><CR><LF> <CR><LF>OK<CR><LF> +ZGRUN=? <CR><LF>+ZGRUN: (0-2)<CR><LF> <CR><LF>OK<CR><LF> Defined values <flag>: 0 Stop GPS location command 1 Start one-shot location mode 2 Start tracking mode (not applicable for MSA), controlled by MS <running_state>: All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 99: Zgpserror Report Error Code

    ERROR_ NOT_CONNECTED ERROR_ REQUEST_ABORTED ERROR_ RETRY ERROR_ OUTOFMEMORY ERROR_ TIMEOUT ERROR_ RADIO_OFF Example +ZGPSERROR: 3 9.8. AT+ZGRST Reset GPS This command executes GPS reset. Command Possible response +ZGRST=<mode> When restart success, return: <CR><LF>OK<CR><LF> All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 100: At+Zgpsapn Set Agps Apn

    <id>: （1-6）：used to assign one APN configuration, a strip of configuration for one type of network, recommend to set as 1 <PDP_type>：used to assign data protocol, recommend to fit to net type IPV4 Internet protocol V4 IPV6 Internet protocol V6 All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 101: At+Zgport Set Gps Information Report Port

    +ZGPORT=? <CR><LF>+ZGPORT: (list of supported <n>s) <CR><LF> <CR><LF>OK<CR><LF> Parameter <n>: integer, default 0, that is information report from AT/MODEM/UART at the same time 0:PS information report from AT/MODEM/UART at the same time All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 102: Zgmeasure Report Satellites Measurements

    This AT command has some differences( increase the following function) in LTE Module as follows: NOTE : Set GPS ZGMEASURE Report enable or not. Command Possible response +ZGMEASURE=<status> <CR><LF>OK<CR><LF> +ZGMEASURE? <CR><LF>+ZGMEASURE: <status><CR><LF> <CR><LF>OK<CR><LF> +ZGMEASURE=? <CR><LF>+ZGMEASURE: (0-1)<CR><LF> <CR><LF>OK<CR><LF> Defined values <status>: enable All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 103: Zgpsr Report Location Data

    0 - Invalid Fix 2 - 2D fix 3 - 3D fix <cog> ddd.mm - Course over Ground (degrees, True) (referred to VTG sentence) where: ddd - degrees 000..360 mm - minutes All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 104: At+Zgpsr Enable/Disable +Zgpsr Report

    If location is failed，only return OK: <CR><LF>OK<CR><LF> +ZGPSR? <CR><LF>+ZGPSR: <status><CR><LF> <CR><LF>OK<CR><LF> +ZGPSR=? <CR><LF>+ZGPSR: (0-1)<CR><LF> <CR><LF>OK<CR><LF> Defined values <status>: 1: enable 0: disable The details of parameters: <UTC>,<latitude>,<longitude>,<hdop>,<altitude>,<fix>,<cog>,<spkm>,<spkn>,<date>,<nsat>, you can refer to +ZGPSR unsolicited command. Example AT+ZGPSR=1 All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 105: Zgpsevent Report Location Status Event

    NOTE : This AT command has some differences( increase the following function) in LTE Module as follows: Set GPSEVENT Report of GPS enable or not Command Possible response +ZGPSEVENT=<status> <CR><LF>OK<CR><LF> +ZGPSEVENT? <CR><LF>+ZGPSEVENT: <status><CR><LF> <CR><LF>OK<CR><LF> +ZGPSEVENT=? <CR><LF>+ZGPSEVENT: (0-1)<CR><LF> All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 106: At+Zgnmea Set The Reported Nmea Format Of Gps Data

    <value> the summation of all the reported message. For example, if the GGA and VTG message are needed, the <value> mustbe set to 17(=16+1) The default value of <value> is 0, that to say no reported NMEA message in default. Example AT+ZGNMEA? +ZGNMEA:GGA,RMC,GSV,GSA,VTG $GPGSV,4,1,16,04,,,36,09,07,317,37,16,76,282,32,23,42,309,28*4D $GPGSV,4,2,16,26,62,028,42,31,35,075,35,03,56,118,,05,,,*49 All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 107 ME3630 AT Command Reference Guide of Module Product $GPGSV,4,3,16,06,51,108,,08,04,281,,10,26,248,,11,,,*4E $GPGSV,4,4,16,12,74,009,,13,40,317,,18,07,194,,19,39,135,*73 $GPVTG,,T,,M,,N,,K,N*2C $GPGSA,A,1,,,,,,,,,,,,,,,*1E $GPGGA,,,,,,0,,,,,,,,*66 $GPRMC,,V,,,,,,,,,,N*53 $GPGSV,4,1,16,04,,,36,09,07,317,37,16,76,282,32,23,42,309,28*4D $GPGSV,4,2,16,26,62,028,42,31,35,075,35,03,56,118,,05,,,*49 $GPGSV,4,3,16,06,51,108,,08,04,281,,10,26,248,,11,,,*4E $GPGSV,4,4,16,12,74,009,,13,40,317,,18,07,194,,19,39,135,*73 $GPVTG,,T,,M,,N,,K,N*2C $GPGSA,A,1,,,,,,,,,,,,,,,*1E $GPGGA,,,,,,0,,,,,,,,*66 $GPRMC,,V,,,,,,,,,,N*53 $GPGSV,4,1,16,04,,,36,09,07,317,37,16,76,282,32,23,42,309,28*4D $GPGSV,4,2,16,26,62,028,42,31,35,075,35,03,56,118,,05,,,*49 $GPGSV,4,3,16,06,51,108,,08,04,281,,10,26,248,,11,,,*4E $GPGSV,4,4,16,12,74,009,,13,40,317,,18,07,194,,19,39,135,*73 $GPVTG,,T,,M,,N,,K,N*2C $GPGSA,A,1,,,,,,,,,,,,,,,*1E $GPGGA,,,,,,0,,,,,,,,*66 $GPRMC,,V,,,,,,,,,,N*53 All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 108 ME3630 AT Command Reference Guide of Module Product $GPGSV,4,1,16,04,,,36,09,07,317,37,16,76,282,32,23,42,309,28*4D $GPGSV,4,2,16,26,62,028,42,31,35,075,35,03,56,118,,05,,,*49 $GPGSV,4,3,16,06,51,108,,08,04,281,,10,26,248,,11,,,*4E $GPGSV,4,4,16,12,74,009,,13,40,317,,18,07,194,,19,39,135,*73 $GPVTG,,T,,M,,N,,K,N*2C $GPGSA,A,1,,,,,,,,,,,,,,,*1E $GPGGA,,,,,,0,,,,,,,,*66 $GPRMC,,V,,,,,,,,,,N*53 $GPGSV,4,1,16,04,,,36,09,07,317,37,16,76,282,32,23,42,309,28*4D $GPGSV,4,2,16,26,62,028,42,31,35,075,35,03,56,118,,05,,,*49 $GPGSV,4,3,16,06,51,108,,08,04,281,,10,26,248,,11,,,*4E $GPGSV,4,4,16,12,74,009,,13,40,317,,18,07,194,,19,39,135,*73 $GPVTG,,T,,M,,N,,K,N*2C $GPGSA,A,1,,,,,,,,,,,,,,,*1E $GPGGA,,,,,,0,,,,,,,,*66 $GPRMC,,V,,,,,,,,,,N*53 $GPGSV,4,1,16,04,,,36,09,07,317,37,16,76,282,32,23,42,309,28*4D $GPGSV,4,2,16,26,62,028,42,31,35,075,35,03,56,118,,05,,,*49 $GPGSV,4,3,16,06,51,108,,08,04,281,,10,26,248,,11,,,*4E $GPGSV,4,4,16,12,74,009,,13,40,317,,18,07,194,,19,39,135,*73 $GPVTG,,T,,M,,N,,K,N*2C $GPGSA,A,1,,,,,,,,,,,,,,,*1E All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 109: Syntax Of Nmea

    The check code is XOR of all characters between “$” and “*” (excluding these two); End with <CR> <LF>. All sentences must end with a carriage return, which is “Carriage return” and “Line feed” of ASCII character. All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 110: Standard Nmea Output Sentence

    There are detailed descriptions of standard NMEA sentences in the following chapters. 9.15.3. GGA SENTENCE Example: $GPGGA,065354.10,3411.295840,N,10852.586794,E,1,05,1.2,411.9,M,-28.0,M,,*4A<CR><LF> String name Example Unit Description $GPGGA GGA sentence header Message ID 065354.10 UTC time Hour/Minute/S econd Degree/Point 3411.295840 Latitude N= North or S=South North/South All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 111: Gsa Sentence

    2: 2D positioning(more than 4 satellites participating in positioning) 3: 3D positioning (more than 3 satellites participating in positioning) Satellite No. in Passage 1 Participated navigation satellite [1] Participated navigation Satellite No. in Passage 2 satellite [1] …… …… All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 112: Gsv Sentence

    Azimuth angle Degree 0 to 359°) Ranging from 0 to 99, null as the satellite is not captured Signal strength dBHz Check code Check code <CR><LF> Sentence Carriage return and line feed terminator All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 113: Rmc Sentence

    Check code Check code <CR><LF> Sentence Carriage return and line feed terminator 9.15.7. VTG SENTENCE Example: $GPVTG,231.24,T,,M,0.10,N,0.18,K,A*33<CR><LF> $GPVTG,0.0,T,3.1,M,0.0,N,0.0,K,A*21<CR><LF> String name Example Unit Description $GPVTG VTG sentence header MessageID Azimuth angle Degree Azimuth angle All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 114 1. It doesn’t support Magnetic Declination Angle output. < Azimuth angle above the ground > is relative to the true north’s output of WGS-84 coordinate system. 2. 1 Knot is equal to 1.852 Km/hour. All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 115: Hardware Relative Commands

    Note: It’s better to execute “AT+ZTURNOFF” before power off the module. Example AT+ZTURNOFF 10.3. AT+ZRST RESET the Module This command is used to reset the module. Module will deactivate PDP, release all resources, and then reset. Command Response +ZRST <CR><LF>OK<CR><LF> Example AT+ZRST All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 116: At+Zgpio Gpio Pins Set Command

    <CR><LF>+ZGPIO: <all pins mode and status> <CR><LF> (Query all the GPIO pins’ direction and voltage <CR><LF>OK<CR><LF> level) <CR><LF>+CME ERROR: <err><CR><LF> Parameters Parameters Range remarks <pin> stands for 5 single GPIO Pins <mode> Input All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 117 0 / 1 Set single GPIO high/low status. other other other ERROR Note: you can refer to hardware Development Guide for information fo GPIO pins Example //return GPIOs parameter range AT+ZGPIO=? +ZGPIO: (1-5),(0-1),(0-1),(0-7),(0-2) All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 118: At+Zadcx Read Pin Adcx Value

    When the module needs to be switched in different operating systems, we need use the AT command of +ZSWITCH to switch the ports. And this command will take effect after restarting the module. All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 119: At+Zadb Open/Close Adb Port

    0: ,default value, close ADB; it will take effect after the module is restarted. 1: open ADB, it will take effect exactly after be set, and saved after the module is powered off. All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 120: At+Zadset Port Switch Between Rndis/Ndis In Windows System

    AT+ZSWITCH=X E/e—Switch the USB interface to adaptive to Linux/Android system in ECM mode, this command need to cooperate with command AT+ZSWITCH=L Example AT+ZADSET=N AT+ZADSET? +ZADSET: n AT+ZADSET=? +ZADSET: (n/N,r/R,e/E) All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 121 DIAG in general firmware version, support ECM port MODEM under Linux/Android OS (AT+ZSWITCH=l AT+ZADSET=E) WindowsXP/7/VISTA/WinC 0x0601 RNDIS E mode RNDIS (AT+ZSWITCH=x DIAG AT+ZADSET=R) MODEM WIN8 mode 0x0602 DIAG (AT+ZSWITCH=8) MODEM MBIM MBIM All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 122: At+Zsdt Enable Sim Card Hot-Plug Function

    <pull> should be 0; if there is no SIM_DETECT external pull up, <pull> should be 3. 0 --- NO_PULL (default value) 1 --- PULL_DOWN（not recommend） 2 --- KEEPER（not recommend） 3 --- PULL_UP Example AT+ZSDT=0 AT+ZSDT=1,1,3 AT+ZSDT? +ZSDT: 1,1,3 AT+ZSDT=? +ZSDT: (0-1) (0-1) (0-3) All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 123: At+Zchiptemp Get The Temperature Of Pmic, Xo, Pa

    <pa_temprange>: overtemp temperature range is NULL, stands for no range limit. Example AT+ZCHIPTEMP? // get the current temperature of pmic, xo, pa. +ZCHIPTEMP: 287,313,300 AT+ZCHIPTEMP=? // get the temperature range(software) of pmic, xo, pa. (-300, 1100), (-300, 1050), (null) All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 124: Tcp/Ip Relative Commands

    +ZIPCALL: <State>[,<IP address>] <CR><LF>+CME ERROR: <err><CR><LF> <CR><LF>+ZIPCALL:<State>[,<IPaddress>]<CR><LF> +ZIPCALL? <CR><LF>OK<CR><LF> +ZIPCALL=? <CR><LF>+ZIPCALL: (list of supported <Action>s) <CR><LF> <CR><LF>OK<CR><LF> Defined values <Action> : end PS CALL start PS CALL <State>: Socket call connection state. 0:Disconnected 1:Connected All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 125: At+Zipopen Establish Tcp/Udp Connection

    <Type>: The protocol type of socket connection 0:TCP 1:UDP <Remote IP >: IP address or Domain name of Remote server. <Remote port>:Server port of Remote server, range: 1-65535 <Local port>:Local port,range: 1-65535 <Status>: State of Socket Connection All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 126: At+Zipclose Close Tcp/Udp Connection

    0:Socket connection closed. 1:Socket connection open, both send data and receive data normally. 2:Socket connection open, receive data normal, but send buffer is full. 3:Socket connection opening. 4:Socket connection closing. e.g. AT+ZIPCLOSE? +ZIPCLOSE: (Socket1,0),(Socket2,0),(Socket3,0),(Socket4,0),(Socket5,0) All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 127: At+Zipsend Tcp/Udp Send Data In Ascii Format

    Extensible AT command, this command is used to receive data. The data will be reported to TE automatically when module received data. The data length should less than 1024Bytes. Command Possible response <CR><LF>+ZIPRECV: <Socket id>,<Remote IP>,<Remote port>,<Data len>,<Data><CR><LF> Defined values <Socket id>: Socket Connection indication 0:Invalid Socket id All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 128: At+Zipstat Query Socket State

    AT+ZIPSTAT=1 +ZIPSTAT: 1,1 11.8. AT+ZIPSLCFG Set Parameters of TCP/UDP Server Extensible AT command, this command is used to Set parameters of TCP/UDP server. Command Possible response +ZIPSLCFG=<Server Type>,<Source port>,<Time out> <CR><LF>OK<CR><LF> All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 129: At+Ziplisten Open/Close Tcp/Udp Server

    <CR><LF>+CME ERROR: <err><CR><LF> +ZIPLISTEN? <CR><LF>+ZIPLISTEN:<Status>,<Type> [<CR><LF>+ZIPLISTEN:<Status>,<Type>] [<CR><LF>+ZIPLISTEN: <Status>,<Type>,<Socket id><Remote Address>,<Remote port>] [<CR><LF>+ZIPLISTEN: <Status>,<Type>,<Socket id><Remote Address>,<Remote port>[...]]<CR><LF> <CR><LF>OK<CR><LF> +ZIPLISTEN=? <CR><LF>+ZIPLISTEN: (range of supported <Mode>s),<Remote Address>, (range of supported <Type>s)[,(range of supported <Source port>s)]<CR><LF> All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 130: At+Zipfrwl Set Tcp/Udp Internal Firewall

    Command Possible response +ZIPFRWL=<Cmd type>[,<IP <CR><LF>OK<CR><LF> address>,<Net mask>] <CR><LF>+CME ERROR: <err><CR><LF> +ZIPFRWL? <CR><LF>+ZIPFRWL: <State> <CR><LF>+ZIPFRWL: <IP address>,<Net mask> All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 131: At+Zipsetrpt Set The Format Of Received Data

    11.11. AT+ZIPSETRPT set the format of received data This command is used to set the format of received data. Command Response +ZIPSETRPT=<view_mode> <CR><LF>OK <CR><LF> <CR><LF>+CME ERROR: <err><CR><LF> +ZIPSETRPT? <CR><LF>+ ZIPSETRPT: <view_mode> <CR><LF> <CR><LF>OK <CR><LF> All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 132: At+Zipsendraw Send Raw Data

    <len>: range is 1-1024, the length of data need to be sent. <timeout>: range is 0-60, Unit is s(second),the timeout, 0 is stand not enable Timeout mechanism Example AT+ZIPSENDRAW=1,10 > 0123456789 //The data need to be sent All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 133: At+Zipcreate Data Transparent Transfer

    This command is used for domain name resolution. This command can be used only when registered to the network. Note: This command doesn’t support IPv6. And this command is only supported by ME3630-E &ME3630-U currently. Command Response All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 134: At+Zipcontext Switch Pdp Context

    <CR><LF>+ ZIPCONTEXT: <n><CR><LF> <CR><LF>OK<CR><LF> <CR><LF>+ERROR<CR><LF> +ZIPCONTEXT=? <CR><LF>+ ZIPCONTEXT: (list of supported <n>s)<CR><LF> <CR><LF>OK<CR><LF> <CR><LF> ERROR<CR><LF> Parameter <n>: int type, used for PDP context ID, the default value is 1. Example AT+ZIPCONTEXT? +ZIPCONTEXT: 1 AT+ZIPCONTEXT=2 All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 135 ME3630 AT Command Reference Guide of Module Product AT+CGDCONT? +CGDCONT: 1,"IP","3gnet","0.0.0.0",0,0,0,0 +CGDCONT: 2,"IP","3gwap","0.0.0.0",0,0,0,0 +CGDCONT: 3,"IP","3GWAP","0.0.0.0",0,0,0,0 +CGDCONT: 4,"IP","3gnet","0.0.0.0",0,0,0,0 +CGDCONT: 5,"IP","3gnet","0.0.0.0",0,0,0,0 AT+ZIPCONTEXT=? +ZIPCONTEXT: (1-5) All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 136: Ftp Relative Commands

    $ZPDPACT: (0, 1) 12.2. AT$ZFTPCFG FTP Parameters Configuration You need to set the destination ip address, port, username, password of FTP server before login by this command. Command Response $ZFTPCFG=<destination_ip[:port]>,<username>,<password> <CR><LF>OK <CR><LF> All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 137: At$Zftpsize Get The Size Of Ftp File

    $ZFTPSIZE: 20 12.4. AT$ZFTPGET File Download This command is used to download the FTP file, you can download the whole file or part of the file. Command Response AT$ZFTPGET=<File_Name>[,<data_offset>, <data_length>] <CR><LF><content><CR><LF> <CR><LF>OK <CR><LF> All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 138: At$Zftpput File Upload

    <data_offset>: The offset of the data you want to download <input_content>:the file content you want to input, when the length exceed the setting value, the exceed content is invalid. Example AT$ZFTPPUT= test.txt,30 CONNECT All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 139: At$Zftpclose Close Ftp Service

    AT+CGDCONT=1,"IP","CTNET" //Set Operator APN AT$ZPDPACT=1 //Activate PDP connection AT$ZFTPCFG=219.144.130.27,test,test //FTP Parameters setting AT$ZFTPPUT=ftp.txt,20 //FTP file uplaod CONNECT //The content you want to upload, and when using COM tool, it won’t echo in All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 140 ME3630 AT Command Reference Guide of Module Product window AT$ZFTPSIZE=ftp.txt //Get the FTP file size of $ZFTPSIZE: 20 AT$ZFTPGET=ftp.txt // File download 01234567890123456789 All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 141: Http Relative Commands

    HTTP server with OK; if there is error, it will return the response data from HTTP server with ERROR. If there is no response from server in <input_time> seconds, it will return ERROR only. Command Possible response(s) All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 142 <time_out> : the value can between 0-60, the unit is second. When the value is set to 0, it stands not enable timeout mode. Example at+zpas? +ZPAS: "LTE","CS_PS","FDD" at+zpdpcall? +ZPDPCALL: 1 at+zhttpurl=http://58.215.47.25:8080/WSFUN/get_car_arrange_info at+zhttpurl? +ZHTTPURL: http://58.215.47.25:8080/WSFUN/get_car_arrange_info at+zhttpget HTTP/1.1 200 OK Server: Apache-Coyote/1.1 Content-Type: application/json;charset=UTF-8 Transfer-Encoding: chunked Date: Tue, 05 Sep 2017 09:06:30 GMT {"data":null,"key":100,"list":null,"list1":null,"map":null,"message":"exception","token":null} at+zhttppost=1,146 > All Rights reserved, No Spreading without GOSUNCN Permission...

  • Page 143: Extended Commands

    <rat>:clear the historical earfcn/uarfcn 3-----UMTS,clear the historical uarfcn 4-----LTE,clear historical earfcn When this parameter is omitted, it stands for clear all the historical earfcn/uarfcn of LTE and UMTS Example at+zclracq=0 at+zclracq=0,3 at+zclracq=0,4 All Rights reserved, No Spreading without GOSUNCN Permission...
  • Page 144 ME3630 AT Command Reference Guide of Module Product at+zclracq=? +ZCLRACQ: (0,<3,4>) All Rights reserved, No Spreading without GOSUNCN Permission...
