Summary of Contents for Inland DB-100

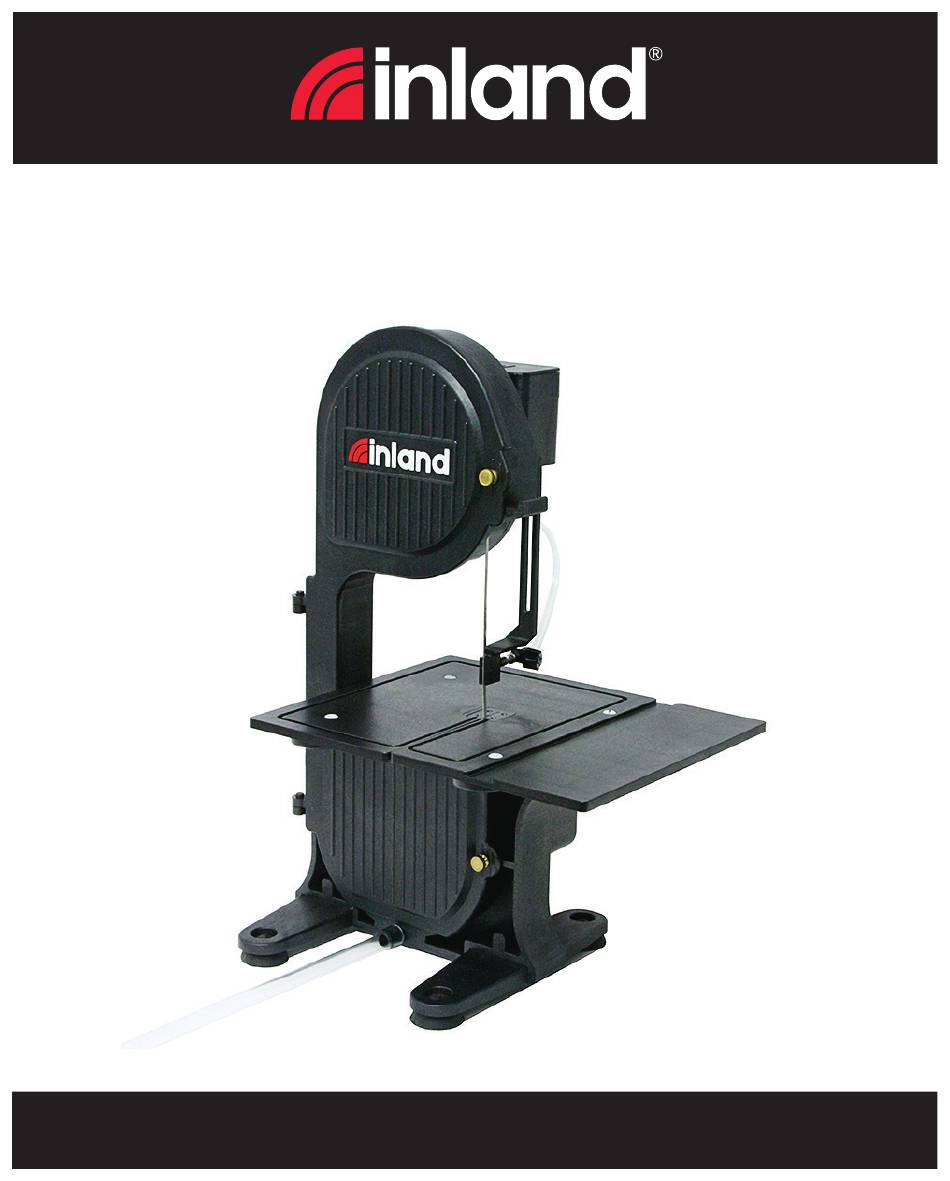

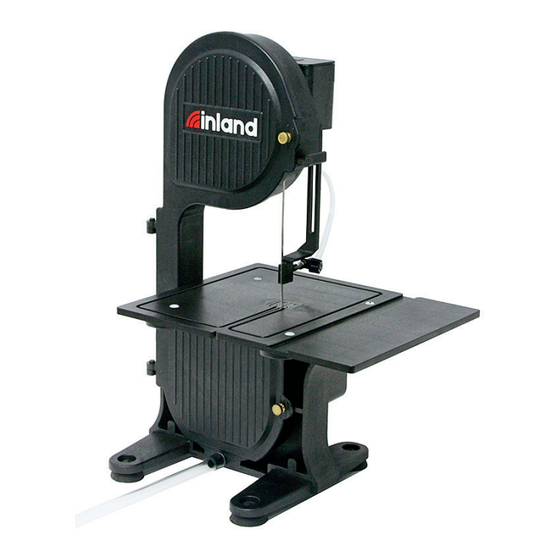

- Page 1 DB-100 band saw INSTRUCTION MANUAL...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT! READ FIRST Thank you for purchasing the DB-100 band saw from Inland Craft. For your own safety be sure to read, understand and follow all warnings, safety rules and instructions in this instruction manual before using this machine. Failure to do so can result in serious personal injury. - Page 3 Secure long hair We recommend cutting on the DB-100 for with a rubber band or hair tie. 30 minutes on, then allow 30 minutes off so the machine can cool down.
-
Page 4: Table Of Contents
TABLE OF CONTENTS SAFETY INSTRUCTIONS WARRANTY INFORMATION MACHINE DETAILS ASSEMBLY BAND SAW BLADES MAINTENANCE ACCESSORIES Register your product So that we can offer you the highest level of service possible, please take a moment to register your band saw at inlandcraft.com/ product-registration. -
Page 5: Warranty Information
WARRANTY INFORMATION We stand by the quality of this product. The Inland Craft DB-100 band saw machine is covered by a 90-day warranty for salt-water use and a 1-year warranty for all other uses from the date of purchase. Registering your product helps facilitate warranty requests. -
Page 6: Machine Details
MACHINE DETAILS The image below shows parts included with your DB-100 band saw Water reservoir with drip tube and water control valve Band saw blade drip guide Band saw blade (type and quantity vary by model) Band saw work table 10-24 x 1/2"... -
Page 7: Assembly
ASSEMBLY Installing the blade Slowly release the wheel, making sure the blade remains on both A band saw blade has been factory- wheels and passes through the right and mounted to set the wheel alignment. left channels (Fig. B). The blade must be re-mounted and properly aligned before use. - Page 8 ASSEMBLY Tension block Adjusting blade tracking and alignment The upper and lower wheels are factory- aligned, and the position of the blade is controlled by adjusting the upper wheel tilt. On the back of the upper saw housing is the tension block and springs, with a nylon tilt adjustment screw in the middle (Fig.
- Page 9 37.7" in circumference (+ or - .005”)—the exact dimension of Inland- brand blades. If you use an Inland blade, you should never have problems with tension. Some competitors make blades that are only 37.2" and so will have too Fig.
- Page 10 ASSEMBLY Installing the coolant Coolant reservoir reservoir and blade drip guide The coolant reservoir and blade drip guide must be installed when using a diamond saw blade to supply coolant to the blade. Using coolant with a diamond blade is required to maintain the Nylon screws cutting ability and life of the blade.
- Page 11 ASSEMBLY Installing the drain tube Optional leather wiper The drain tube must be installed when The included leather wiper helps reduce using a diamond band saw blade. This the amount of over spray that might be drains the dirty, used water so you don’t carried from the blade to the upper wheel use recycled water.
-
Page 12: Band Saw Blades
BAND SAW BLADES The DB-100 band saw is available with three different types of band saw blades; the diamond band saw blade, band saw blade for wood, and band saw blade for metal. Depending on the DB-100 model you purchased, you should have received at least one of these band saw blades, or all three. - Page 13 With the saw running, place your these blades for all material. Optionally cutting material on the work table remove all DB-100 water parts if using dry. in front of the blade. Using light pressure, guide the piece into the blade. DO NOT Install the blade with the teeth pointing force anything into the blade.
-
Page 14: Maintenance
MAINTENANCE Maintenance for the DB-100 is minimal but important. Follow these guidelines to prolong the life and performance of your band saw machine. Saw housing Leather wiper After each use, rinse the interior of the As the end wears, reposition it, referring saw with clean water. -
Page 15: Accessories
ACCESSORIES For a complete list of DB-100 parts and accessories, visit inlandcraft.com Diamond band saw blade SKU: 90007 Band saw blade for metal Band saw blade for wood SKU: 90003 SKU: 90001 Band saw BladeSert blade guide SKU: 90022... - Page 16 Manufactured by Reentel International Inc. 808 Burr Oak Drive Westmont, IL 60559 U.S.A. Phone (248) 583-7150 Email info@inlandcraft.com Website inlandcraft.com Facebook facebook.com/inlandcraft Twitter twitter.com/inlandcraft YouTube youtube.com/ICPVids...
Need help?
Do you have a question about the DB-100 and is the answer not in the manual?
Questions and answers
Suddenly, my DB100 blade is not running smoothly. It's very "wobbly" and it makes it hard to line it up to the pattern I'm cutting. Can you help, please? Thank-you.
To fix a wobbly Inland DB-100 blade that is not running smoothly, check the alignment of the upper and lower wheels. The lower (fixed) wheel should be 1/2” from the inside of the frame. If misaligned, insert a 5/64” long arm Allen wrench through the hole in the lower left side of the saw’s frame, loosen the set screw on the brass arbor, adjust the wheel position, and then secure the set screw. Also, ensure proper blade tension, as the tension springs reduce stress on the blade. Using an Inland brand blade can help maintain correct tension.
