Summary of Contents for Trust START-LINE AWMR-230

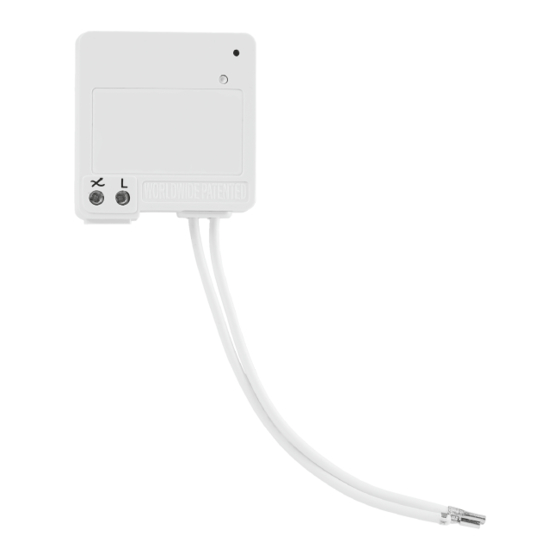

- Page 1 START-LINE RECEIVER AWMR-230 USER MANUAL MULTI LANGUAGE Item 71035 Version 1.0 Visit www.trustsmarthome.com for the latest instructions MINI BUILD-IN SWITCH...
- Page 2 Live wire Switch wire...
- Page 3 Live wire Neutral Live wire Live wire Neutral Live wire...
- Page 4 1 sec.
- Page 5 1 sec.
- Page 6 7 sec. 1 sec.
- Page 7 AWMR-230 MINI BUILD-IN SWITCH 1. Switch off the mains power (electric meter box) before installing this product Continue with [2] for installation behind a single wall switch. Continue with [5] for ceiling box installation. 2. Wall installation: Remove the existing light switch Detach the existing light switch and disconnect the wires.
- Page 8 AWMR-230 MINI BUILD-IN SWITCH 10. Assign Trust SmartHome transmitter code While the learn-mode is active, send an ON-signal with any Trust SmartHome transmitter to assign the code to the receiver’s memory. 11. Code confirmation The receiver will switch on/off 2 times to confirm the code has been received. The receiver can store up to 6 different transmission codes in its memory.
- Page 9 START-LINE RECEIVER AWMR-230 IMPORTANT INFORMATION MULTI LANGUAGE Item 71035 Version 1.0 Visit www.trustsmarthome.com for the latest instructions MINI BUILD-IN SWITCH...
- Page 10 COMPATIBILITY FUNCTIONALITY This receiver works with all Build-in receiver for switching lights with a Trust Trust SmartHome transmitters. SmartHome transmitter, while maintaining the functionality of the existing single wall switch. TECHNICAL SPECIFICATIONS •...
-
Page 11: Installation
2 receivers should be at least 50 cm. LEGAL INFORMATION CE: Trust declares this device complies with the Directives as listed in Section 2 of this document. WEEE: Dispose of the device at a recycling centre. More information: www.trustsmarthome.com Warranty information: www.trustsmarthome.com/warranty... - Page 12 AWMR-230 MINI BUILD-IN SWITCH Declaration of Conformity Trust International B.V. declares that this ome-product: trust smart h Model: AWMR-230 MINI BUILD-IN SWITCH Item number: 71035 Intended use: Indoor is in compliance with the essential requirements and other relevant provisions of the following directives: EMC Directive, Low Voltage Directive and R&TTE Directive.
