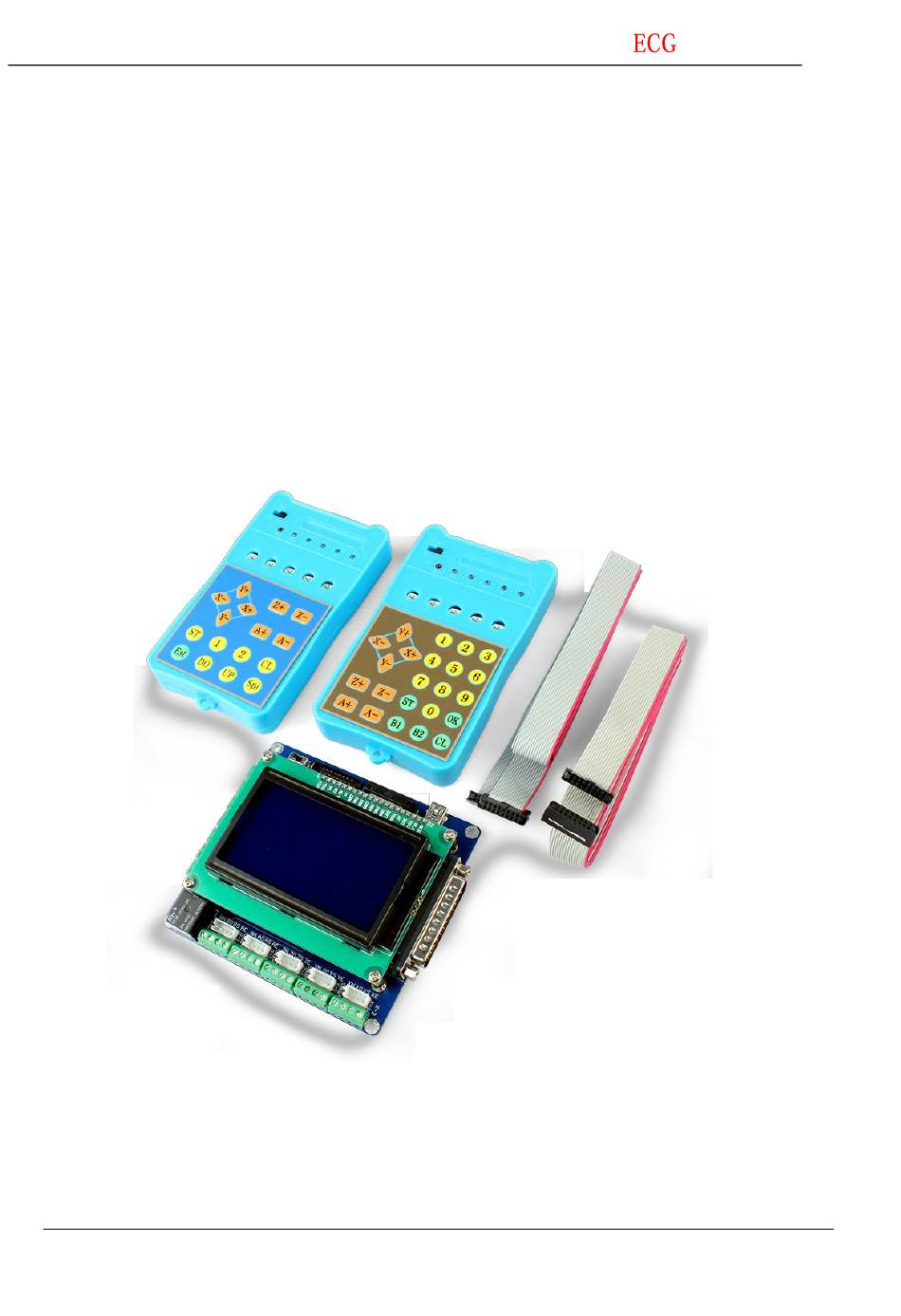

The 3
Generation 5 Axis Breakout Board Set
User Manual
For
3rd Generation
5 Axis Standard & Professional Breakout Board Set
Attention: Please read the manual carefully before using the products!
Email: ebay@savebase.com
Web: http://stores.ebay.co.uk/SAVEBASE
Advertisement
Table of Contents
Related Manuals for ECG TB6560
Summary of Contents for ECG TB6560
- Page 1 The 3 Generation 5 Axis Breakout Board Set User Manual 3rd Generation 5 Axis Standard & Professional Breakout Board Set Attention: Please read the manual carefully before using the products! Email: ebay@savebase.com Web: http://stores.ebay.co.uk/SAVEBASE...
-
Page 2: All Rights Reserved
The 3 Generation TB6560 Stepper Driver Set ECG Safety Statement Easy Commercial Global is not liable or responsible for any accidents, injuries, equipment damage, property damage, loss of money or loss of time resulting from improper use of electrical, mechanical or software products sold on this website or other Easy Commercial Global sales resources. -
Page 3: Introduction, Features And Applications
The 3 Generation TB6560 Stepper Driver Set 1. Introduction, Features and Applications I. Introduction The latest 3rd generation breakout board has been upgraded to the intelligent, professional and industrial-level interface board set by re-designing the PCB board, embedding intelligent memory chip(professional version) and upgrading the external manual control tools (display panel and control pad). -
Page 4: Specifications
The 3 Generation TB6560 Stepper Driver Set The 5th Axis(B Axis) on the breakout board can be used as a PWM signal output interface for the control of frequency inverter and spindle via software(E.g. Mach3...), to make spindle's speed adjustable. - Page 5 The 3 Generation TB6560 Stepper Driver Set III. PCB Instructions & Specifications Figure 1: PCB Instructions & Specifications Email: ebay@savebase.com Web: http://stores.ebay.co.uk/SAVEBASE...
- Page 6 The 3 Generation TB6560 Stepper Driver Set 3. Pin Assignment & Connectors Definitions I. DB25 & DB15 pin assignment Figure 2: DB25 & DB15 definitions Email: ebay@savebase.com Web: http://stores.ebay.co.uk/SAVEBASE...
-
Page 7: Connectors Definitions
The 3 Generation TB6560 Stepper Driver Set II. Connectors Definitions: Figure 3: Connections Definitions Email: ebay@savebase.com Web: http://stores.ebay.co.uk/SAVEBASE... -
Page 8: Working Principle
The 3 Generation TB6560 Stepper Driver Set 4. Working Principle Figure 4: Working Principle Email: ebay@savebase.com Web: http://stores.ebay.co.uk/SAVEBASE... -
Page 9: Wiring Notes
The 3 Generation TB6560 Stepper Driver Set 5. Wiring Diagram for Reference Figure 12: Wiring Diagram 6. Wiring Notes In order to improve anti-interference performance, it is recommended to use twisted pair shield cable. Please shut down the power before plugging or unplugging the connectors among the breakout board, microstep drivers and stepper motors.... - Page 10 The 3 Generation TB6560 Stepper Driver Set 7. Operation： I. Hardware Operation (See “Hardware_Operation. PDF” in CD) II. Software Operation Mach3 Usage: Figure 13: After installing Mach3 software, run “MACH3.exe” file, choose “Mach3mill”, and click “OK”. Figure 13 Figure 14: After clicking “OK”, Mach3 Main Interface shows as below.
- Page 11 The 3 Generation TB6560 Stepper Driver Set Figure 15: Click “Config” ----- “Ports and Pins” on Main Interface. Figure 15 Figure 16: Enter in “Port Setup and Axis Selection” to set “Port #1” and “Kernel Speed” shown as below. Please make sure the Port Address in PC System Bios is the same as that in the following Figure 4 (e.g.
- Page 12 The 3 Generation TB6560 Stepper Driver Set Figure 17: Click “Motor Outputs” to set it shown as below. Figure 17 Figure 18: Click “Output Signals” to set it shown as below. Figure 18 Email: ebay@savebase.com Web: http://stores.ebay.co.uk/SAVEBASE...
- Page 13 The 3 Generation TB6560 Stepper Driver Set Figure 19: Click “File” to select “Load G-code” on Menu to enter in “GCode” file in Mach3 folder’s root directory. Figure 19 Figure 20: Select the “roadrunner.tap” and “Open” it. Figure 20 Email: ebay@savebase.com...
- Page 14 Figure 21: After opening the G-Code, if the “Reset” button below flashes, please press the “Reset” button, it will stop flashing, and then press the “Cycle Start” to rerun the G-Code to test the TB6560 stepper drivers and motors. Figure 21 Email: ebay@savebase.com...
- Page 15 The 3 Generation TB6560 Stepper Driver Set 8. Appendix I. The 3 Generation 5 Axis Breakout Board Sets Categories Generation Models Contains Main Functions 5 Axis Breakout Board Intelligently Control Drivers & Motors Via PC Breakout Board○ S Manually Control Motors Via Control Pad ...
