ECG tb6560 User Manual
Hide thumbs Also See for tb6560:

Advertisement

rd
The 3
Generation TB6560 Stepper Driver Set

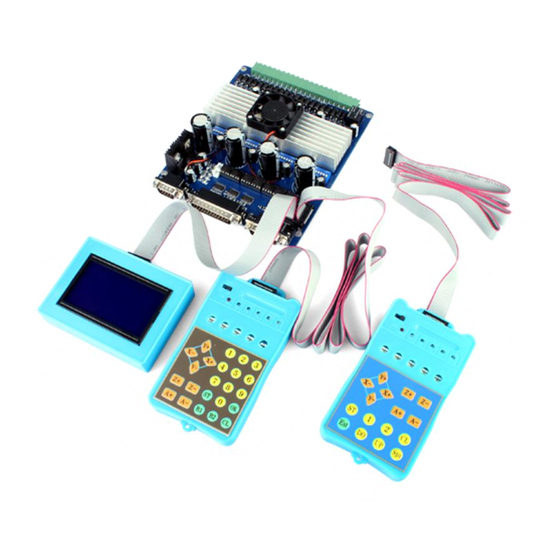

4 Axis Standard & Professional Stepper Driver Set
Attention: Please read the manual carefully before using the products!
Email: ebay@savebase.com
User Manual
For
3rd
TB6560
Web: http://stores.ebay.co.uk/SAVEBASE
-
-
S
A
V
E
B
A
S
E
-
-
S
A
V
E
B
A
S
E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the tb6560 and is the answer not in the manual?

Questions and answers

Summary of Contents for ECG tb6560

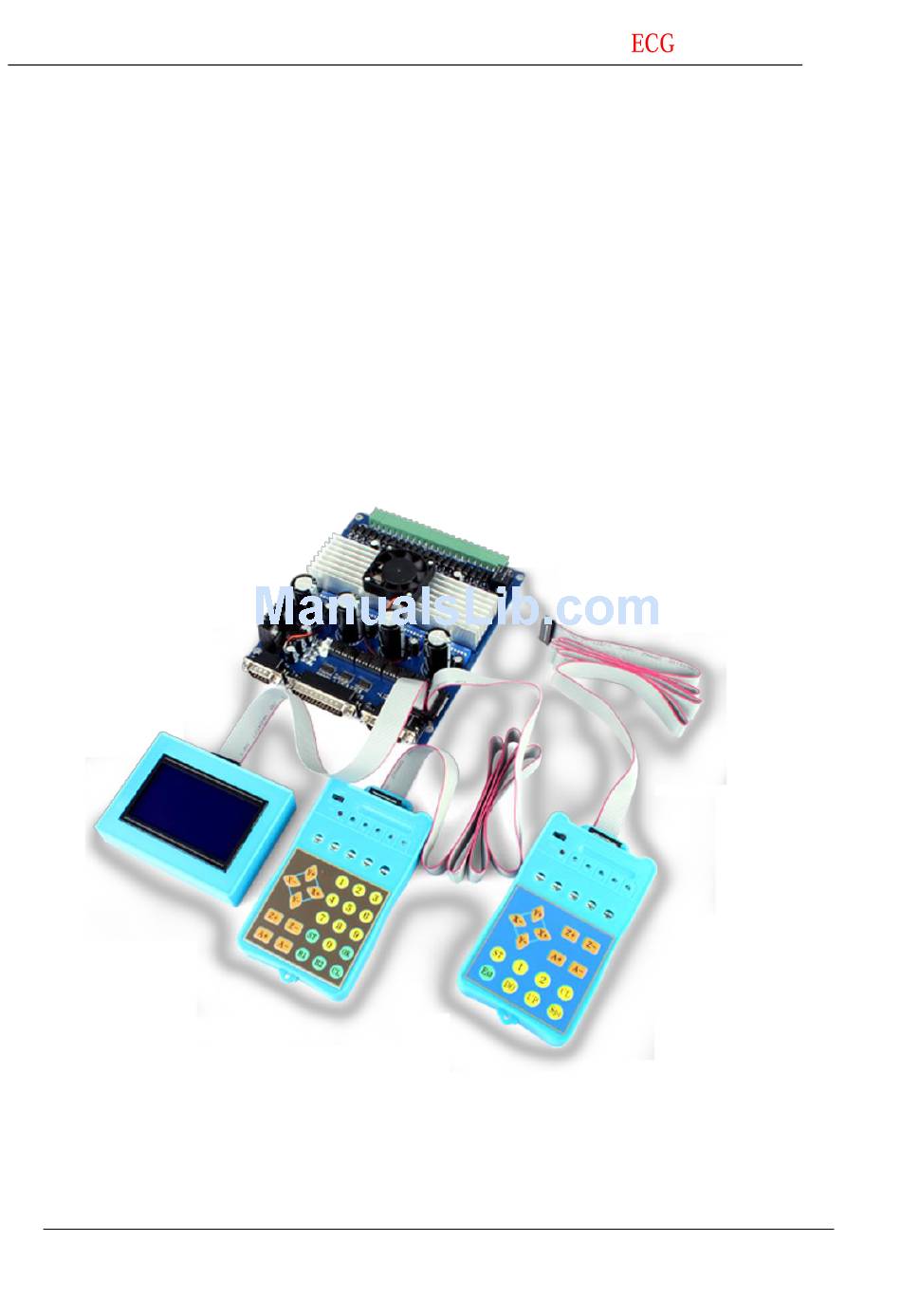

  • Page 1 The 3 Generation TB6560 Stepper Driver Set User Manual TB6560 4 Axis Standard & Professional Stepper Driver Set Attention: Please read the manual carefully before using the products! Email: ebay@savebase.com Web: http://stores.ebay.co.uk/SAVEBASE...
  • Page 2: All Rights Reserved

    The 3 Generation TB6560 Stepper Driver Set ECG Safety Statement Easy Commercial Global is not liable or responsible for any accidents, injuries, equipment damage, property damage, loss of money or loss of time resulting from improper use of electrical, mechanical or software products sold on this website or other Easy Commercial Global sales resources.
  • Page 3: Introduction, Features And Applications

    Firstly, both of these two types of versions have upgraded their PCB boards, the re-designing the PCB board will avoid the TB6560 chip on the board being easily blown as the previous version. With the embedded intelligent memory chip, the professional version of this 3rd generation 4 Axis TB6565 Stepper Driver can easily record the G-code running on the CNC software (e.g.
  • Page 4: Specifications

    The 3 Generation TB6560 Stepper Driver Set  1, 2, 8, 16 adjustable microstep control, motors run more precisely and smoothly.  Overload, overcurrent, overvoltage, overheat protection to avoid damaging your computer and devices.  Totally enclosed optical isolation and bipolar constant-current chopper to insure motors work at low noise & vibration, and avoid motors creep at a low speed.
  • Page 5 The 3 Generation TB6560 Stepper Driver Set III. PCB Instructions & Specifications (unit: Figure 1: PCB Instructions & Specifications Email: ebay@savebase.com Web: http://stores.ebay.co.uk/SAVEBASE...
  • Page 6: Connectors Definitions

    The 3 Generation TB6560 Stepper Driver Set 3. Pin Assignment & Connectors Definitions I. DB25 & DB9 definitions Figure 2: DB25 & DB9 definitions II. Connectors Definitions: Figure 3: Connections Definitions Email: ebay@savebase.com Web: http://stores.ebay.co.uk/SAVEBASE...
  • Page 7: Working Principle

    The 3 Generation TB6560 Stepper Driver Set 4. Working Principle Figure 4: Working Principle Email: ebay@savebase.com Web: http://stores.ebay.co.uk/SAVEBASE...
  • Page 8 5. Selections & Connections about the Motors The 3 generation TB6560 stepper driver can drive 2-pahse and 4-pahse hybrid stepping motors, including 4, 6 or 8 leads. Figure 5: Wiring diagrams for 4/6/8 leads motors I. Connections of 4-lead Motors 4 lead motors are the least flexible but easiest to wire.
  • Page 9 The 3 Generation TB6560 Stepper Driver Set Figure 7: 6-lead motor half coil (higher speed) connections ii. Full Coil Configurations The full coil configuration on a six lead motor should be used in applications where higher torque at lower speeds is desired. This configuration is also referred to as full copper.
  • Page 10: Power Supply Selection

    The 3 Generation TB6560 stepper driver can match Large and small size stepping motors (from Nema size 17 to 34) made by us or other motor manufactures around the world, as long as the rated current of the motors is within 0.5-3.5A(Peak Current) . To achieve good driving performances, it is important to select supply voltage and output current properly.
  • Page 11: Wiring Notes

    The 3 Generation TB6560 Stepper Driver Set 7. DIP Switches Settings (Current, Decay Mode, Microstep) This driver adopts a 6-bit DIP switch to set motor operating current, decay mode (buffer) and microstep resolution, as shown below: Figure 11: DIP Switches Settings...
  • Page 12 The 3 Generation TB6560 Stepper Driver Set 9. Wiring Diagram for Reference Figure 12: Wiring Diagram Email: ebay@savebase.com Web: http://stores.ebay.co.uk/SAVEBASE...
  • Page 13 The 3 Generation TB6560 Stepper Driver Set 10. Operation: I. Hardware Operation (See “Hardware_Operation. PDF” in CD) II. Software Operation Mach3 Usage: Figure 13: After installing Mach3 software, run “MACH3.exe” file, choose “Mach3mill”, and click “OK”. Figure 13 Figure 14: After clicking “OK”, Mach3 Main Interface shows as below.
  • Page 14 The 3 Generation TB6560 Stepper Driver Set Figure 15: Click “Config” ----- “Ports and Pins” on Main Interface. Figure 15 Figure 16: Enter in “Port Setup and Axis Selection” to set “Port #1” and “Kernel Speed” shown as below. Please make sure the Port Address in PC System Bios is the same as that in the following Figure 4 (e.g.
  • Page 15 The 3 Generation TB6560 Stepper Driver Set Figure 17: Click “Motor Outputs” to set it shown as below. Figure 17 Figure 18: Click “Input Signals” to set it shown as below. Figure 18 Email: ebay@savebase.com Web: http://stores.ebay.co.uk/SAVEBASE...
  • Page 16 The 3 Generation TB6560 Stepper Driver Set Figure 19: Click “File” to select “Load G-code” on Menu to enter in “GCode” file in Mach3 folder’s root directory. Figure 19 Figure 20: Select the “roadrunner.tap” and “Open” it. Figure 20 Email: ebay@savebase.com...
  • Page 17 Figure 21: After opening the G-Code, if the “Reset” button below flashes, please press the “Reset” button, it will stop flashing, and then press the “Cycle Start” to rerun the G-Code to test the TB6560 stepper drivers and motors. Figure 21 Email: ebay@savebase.com...
  • Page 18  The Driver is faulty Faulty power supply causes no power  The TB6560 chip is blown by incorrect operation  Unsuitable power supply causes too high input voltage for the chip  Incorrect wirings among the motor, driver, and power supply ...
  • Page 19 The 3 Generation TB6560 Stepper Driver Set 12. Appendix I. The 3 Generation TB6560 Driver Sets Categories Generation Models Contains Main Functions TB6560 Drivers  TB3-S 3 Axis Driver○ S Intelligently Control Motors Via PC  Intelligently Control Motors Via PC 3 Axis Driver○...
  • Page 20 The 3 Generation TB6560 Stepper Driver Set  TB3-P 3 Axis Driver○ P Intelligently Control Motors Via PC  Intelligently Control Motors Via PC  Manually Control Motors Via Control Pad 3 Axis Driver○ P  Intelligently Switch PC & Control Pad TB3CD-P + Control Pad○...
  • Page 21 The 3 Generation TB6560 Stepper Driver Set II. The 3 Generation TB6560 Driver Set Details Generation Models Contains & Pictures Models Contains & Pictures TB6560 Drivers TB3-S TB3-S(Box) TB4-S TB4-S(Box) TB3C-S TB3C-S(Box) Standard Models TB4C-S(Box) TB4C-S TB3CD-S TB3CD-S(Box) TB4CD-S TB4CD-S(Box) Email: ebay@savebase.com...
  • Page 22 The 3 Generation TB6560 Stepper Driver Set TB3-P TB3-P(Box) TB4-P TB4-P(Box) TB3C-P TB3C-P(Box) Professional Models TB4C-P(Box) TB4C-P TB3CD-P TB3CD-P(Box) TB4CD-P TB4CD-P(Box) Email: ebay@savebase.com Web: http://stores.ebay.co.uk/SAVEBASE...
