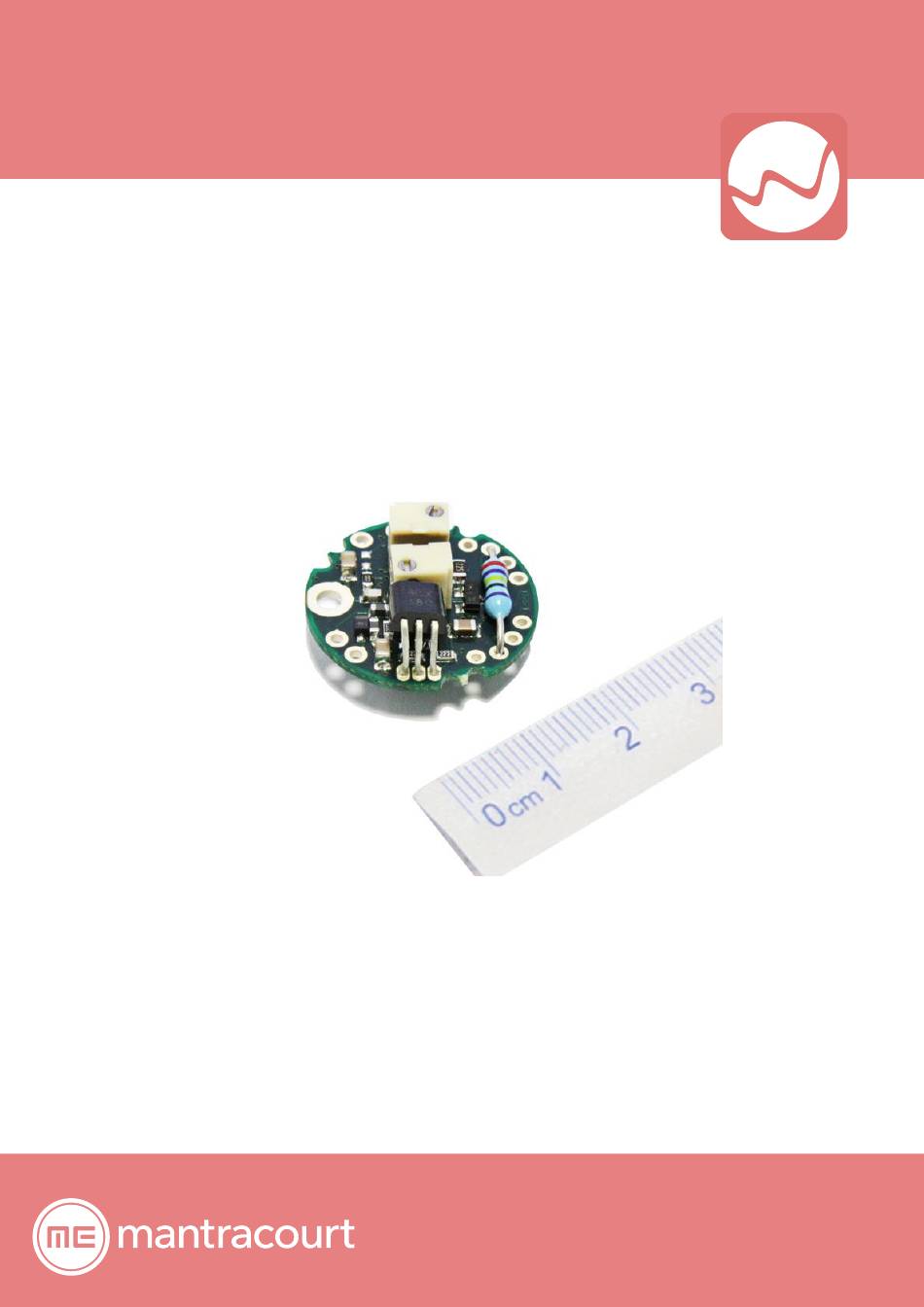

- Page 1 ICA User Manual ICA Embedded Strain Gauge Analogue Amplifiers...
-
Page 2: Table Of Contents
ICA1H & ICA2H Connections ...................................... 4 Figure 2.2 Connection Details for the ICA1H & ICA2H ..........................4 Figure 2.3 Connection Details for Best EMC Immunity for ICA1H & ICA2H ..................4 ICA3H & ICA6H Connections ...................................... 5 Figure 2.4 Connection Details for the ICA3H ..............................5 Figure 2.5 Connection Details for the ICA6H .............................. -
Page 3: Chapter 1 The Ica Range
±10 V output from a single 15-24 V supply. The ICA6H also has pads on its underside which can be used to mount and provide connections for a range of Transducer Electronic Data Sheet ICs (TEDS). Mantracourt Electronics Limited – ICA User Manual... -
Page 4: Chapter 2 Installing The Ica Range
N.B The voltage between either of the power supply connections and the load cell chassis should not exceed 50 V. Any leakage will be greater than 10 M ohms. Mantracourt Electronics Limited – ICA User Manual... -
Page 5: Ica1H & Ica2H Connections
ICA1H & ICA2H Connections The power supply for the ICA1H is nominally 24 V dc (between 13 and 28 V) and ICA2H is nominally 12 V dc (between 8.5 and 28 V).The power supply is commoned with the output at the ‘Com’ connection. -
Page 6: Ica3H & Ica6H Connections
See Figure 2.5 for ICA6H power connections. Take note of the grounding arrangement particularly the bolt hole which capacitively couples the common of the ICA electronics to the strain elements in the load cell to improve the EMC performance. Mantracourt Electronics Limited – ICA User Manual... -
Page 7: Ica4H Connections
Figure 2.9 Connection Details for Best EMC Immunity for ICA4H Take note of the grounding arrangement particularly the bolt hole which capacitively couples the common of the ICA electronics to the strain elements in the load cell to improve the EMC performance. Mantracourt Electronics Limited – ICA User Manual... - Page 8 The ICA4H can be used with three wire cabling in both sink and source mode. The only difference between the two modes is whether the common end of the load is connected to the positive of the PSU (sink mode) or the negative of the PSU (source mode). Mantracourt Electronics Limited – ICA User Manual...
-
Page 9: Ica5S & Ica5A Connections
Figure 2.11 Connection Details for Best EMC Immunity for ICA5S & ICA5A The securing bolt should be used to provide a good electrical ground and mechanical support. This is important for optimum EMC performance. Mantracourt Electronics Limited – ICA User Manual... -
Page 10: Output Connections
������������ 20 ���� 0.02 Example 2: ICA5S, assuming 10 ohm wiring resistance, 9 V supply �� − 7.5 9 − 7.5 ������������ − �� − 10 = 65 Ω ������������ 20 ���� 0.02 Mantracourt Electronics Limited – ICA User Manual... - Page 11 Do not run signal cables in parallel with power cables and only cross such cables at right angles. The ground connection conductor should have sufficient cross-sectional area to ensure a low impedance path to attenuate RF interference. Mantracourt Electronics Limited – ICA User Manual...
-
Page 12: Chapter 3 Calculating Offset And Gain Resistor Values
Chapter 3 Calculating Offset and Gain Resistor Values Calculating the offset resistor values The ICA1H and 2H can be used in a pseudo ‘bipolar ±’ mode by fitting a resistor ‘R ’ as shown in Figure 2.2. This will offs... - Page 13 If the gain is to be decreased for a higher mV/V input then the two surface mount resistors must be removed. It is then possible to use just the top pair of formulas as with the other models. Example 1: ICA1H, no offset, 0.5 mV/V required sensitivity. Gain constant ��������...
-
Page 14: Ica5S & Ica5A
(±2% FS). offs Its value will also depend on the impedance of the load cell. The factory-fitted value, 180k is optimised for a 1000 ohm cell. Mantracourt Electronics Limited – ICA User Manual... -
Page 15: Offset Resistor (R1) Vs Load Cell Impedance
The following table gives the value of R1 for various load cell impedances and ±2% FS and 4% FS trim: Load Cell Impedance ±2% FS ±4% FS 350 Ohms 700 Ohms 100k 1000 Ohms 180k 5000 Ohms 430k Mantracourt Electronics Limited – ICA User Manual... -
Page 16: Chapter 4 Calibration
‘Z’ potentiometer (Zero), set the output to the relevant low level depending on the model e.g. 0.1 V for the ICA1H, 4 mA for the ICA4H etc. Apply the known high calibration conditions (ideally between 75% and full scale) and adjust the ‘S’... -
Page 17: Chapter 5 Trouble Shooting
Ensure you have the calibration set-up correctly installed i.e. mV source and output as required. d) Ensure the temperature and other environmental parameters are within specification and where necessary taken into account when calibrating should such parameters have an effect on the calibration. Mantracourt Electronics Limited – ICA User Manual... - Page 18 If the potentiometer does not alter the output the unit must be repaired – remove from service. c) It is always wise to check a known good ICA against the problem installation before rejecting the suspect ICA. Mantracourt Electronics Limited – ICA User Manual...
-
Page 19: Chapter 6 Product Care
A worn out component, excessive use in harsh environments, an overly zealous operator; regrettably some circumstances necessitate repair. At Mantracourt Electronics Ltd we can't guarantee that a product will never require repairing. We can, however, promise a repair service of exceptional quality, one which is governed by a rigorous procedure. -
Page 20: Chapter 7 Glossary
ICA Resolution The input corresponding to a one-unit change in the least significant digit of the data acquisition/display equipment (Good resolution is not necessarily equal to good accuracy.) Mantracourt Electronics Limited – ICA User Manual... - Page 21 Span from 400 kg to 500 kg is said to have 400 kg Zero Suppression Units Alternating Current Direct Current hertz (Frequency) kilohertz (Frequency) milliamps millimetres Signal Conditioner In-Cell Strain Gauge Amplifier volts millivolt Mantracourt Electronics Limited – ICA User Manual...
-
Page 22: Chapter 8 Specifications For The Ica Range
Chapter 8 Specifications for the ICA Range Table 8.1 ICA1H (0.1 to 10.1 V) Electrical and Environmental Parameter Minimum Typical Maximum Units Notes Supply voltage Range volts Operating Current Note 1 Operating Temperature Range °C Storage Temperature Range °C Reverse polarity Protection volts Note 1: Not including excitation current. - Page 23 Note: The voltage between either of the power supply connections and the load cell shield should not exceed 50 V. Any leakage will be greater than 10 M ohms. Figure 8.2 ICA2H Pad and Potentiometer Positions Mantracourt Electronics Limited – ICA User Manual...
- Page 24 Note: The voltage between either of the power supply connections and the load cell shield should not exceed 50 V. Any leakage will be greater than 10 M ohms. Figure 8.3 ICA3H Pad and Potentiometer Positions Mantracourt Electronics Limited – ICA User Manual...
- Page 25 Note: The voltage between either of the power supply connections and the load cell shield should not exceed 50 V. Any leakage will be greater than 10 M ohms. Figure 8.4 ICA4H Pad and Potentiometer Positions Mantracourt Electronics Limited – ICA User Manual...
- Page 26 Note: The voltage between either of the power supply connections and the load cell shield should not exceed 50 V. Any leakage will be greater than 10 M ohms. Figure 8.5 ICA5S Pad and Potentiometer Positions Mantracourt Electronics Limited – ICA User Manual...
- Page 27 Note: The voltage between either of the power supply connections and the load cell shield should not exceed 50 V. Any leakage will be greater than 10 M ohms. Figure 8.6 ICA5A Pad and Potentiometer Positions Mantracourt Electronics Limited – ICA User Manual...
- Page 28 ‘Zero’ Temperature Stability 0.0004 0.0015 ±%FR/°C At 2.5 mV/V ‘Span’ Temperature Stability 0.002 0.0051 ±%FR/°C At 2.5 mV/V FR=Full Range (10 V) Note 1: Set by calibration resistor Figure 8.7 ICA6H Pad and Potentiometer Positions Mantracourt Electronics Limited – ICA User Manual...
-
Page 29: Eu Declaration Of Conformity
IEC 61326-2-3:2012 EN 61010-1:2010 IEC 61010-1:2010 Name and position of person binding the manufacturer or authorised representative: Signed Name: Robert Willmington-Badcock Function: Managing Director Location: Mantracourt Electronics Ltd Date of issue: July 2017 Mantracourt Electronics Limited – ICA User Manual... - Page 30 Mantracourt Electronics Limited – ICA User Manual...
- Page 31 Mantracourt Electronics Limited – ICA User Manual...
- Page 32 ICA Product Range Part Number: 517-936 Issue Number: 01.00 Dated: January 2018 In the interests of continued product development, Mantracourt Electronics Limited reserves the right to alter product specifications without prior notice. www.mantracourt.com Mantracourt Electronics Limited – ICA User Manual...
