M01240 User manual
1、contents

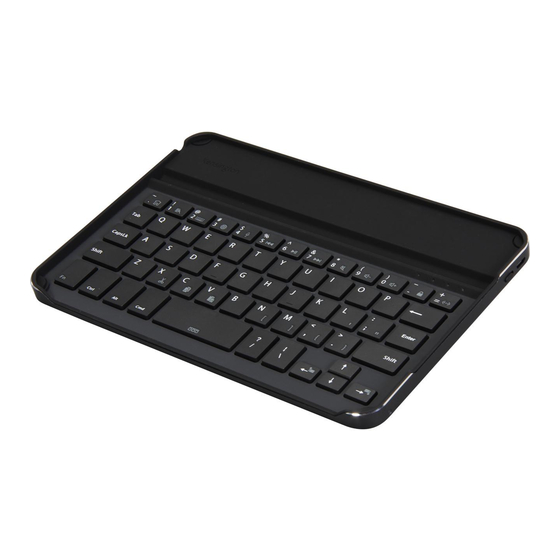

1.1、Bluetooth keyboard
1PCS
1.2、Instruction manual
1PCS
1.3、USB Charging cable
1PCS
2、Product Features
2.1、use Broadcom20730 main control chip, have Bluetooth3.0 interface。
2.2、industry leading bluetooth solutions, WIDCOMM BTW (Microsoft officially designated
software) bluetooth software。
2.3、built-in power management software, can be in Microsoft's Windows system automatically
usable capacity。
2.4、Mute design: effectively avoid other person sleeping(especially for one room with several
person).
2.5、Architecture design, provides comfortable handling feel.
2.6、Caps lock signal helps in capital letters writing
2.7、Support Iphone, Mac, Windows and Android system etc. It's more convenient for you.
3、Specifications
3.01、Executive standard: Bluetooth V3.0
3.02、Maximum operating distance: 10 meters
3.03、Modulation mode: 2.4 G straight sequence fh (FHSS)
3.04、Transmit power: Class 2 levels
3.05、Working voltage: 3.7V
3.06、working current: 2.0 MA
3.07、standby current: 1.0 MA
3.08、sleep current55uA
3.09、charging current: 110mA
3.10、standby time: 260days
3.11、theoretical use time: 30days
3.12、continuous uninterrupted use time: 120hours
3.13、heoretical charging time: 3 - 4 hours
3.14、lithium battery capacity: 230mAh
3.15、lithium battery life span: three years
3.16、the lithium battery type: 452447
3.17、the key dynamics: 60 + 10g
3.18、buttons life: 5 million times
3.19、operation temperature: 0-55 ℃
3.20、storage temperature: - 20-70 ℃
4、Keyboard and IPAD or Iphone setting
4.1、Built in lithium battery with bluetooth and connect with IPAD, mobilephone or PC.
4.1.1、Below information will show you how to using, setting and charging.
4.2、POWER ON/OFF
4.2.1、Power on :Switch to ON, power LED and bluetooth LED flash at the same time about 3
seconds.
4.2.2、Power off: Switch to OFF, power LED shut off, keyboard is turned off.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kensington M01240
Summary of Contents for Kensington M01240
- Page 1 M01240 User manual 1、contents 1.1、Bluetooth keyboard 1PCS 1.2、Instruction manual 1PCS 1.3、USB Charging cable 1PCS 2、Product Features 2.1、use Broadcom20730 main control chip, have Bluetooth3.0 interface。 2.2、industry leading bluetooth solutions, WIDCOMM BTW (Microsoft officially designated software) bluetooth software。 2.3、built-in power management software, can be in Microsoft's Windows system automatically usable capacity。...
- Page 2 4.3、Indicator 4.3.1、The LED indicator on the keyboard show battery, state and charge. If you turn on the keyboard first time, the power indicator constant light and the bluetooth indicator light 3 seconds. The battery is good. After 3 seconds, if keyboard didn’t match the IPAD, mobilephone and PC, the indicator will twinkle.
- Page 3 4.4.3、After the IPAD and IPHNE find out the bluetooth device and connect the bluetooth keyboard(see blow picture), IPAD will advise you input the password.
- Page 4 4.4.4、Input the password according to the IPAD advise.Please note there are no advise during the input. Please make sure input correct and press enter button. 4.4.5、 If IPAD and keyboard connect success. the power constant light. Power constant light advise you turn off the keyboard while you don’t use it.
- Page 5 5.2、When , the indicator will light, when the batteries full, the indicator will cut off automatically. (theory charging time for 3.5 hours) 6、Keyboard and iPad hotkeys specifies Press this button can fulfill the digital function of “`” on the computer, hold on “FN” and then press this button can return to the IPAD homepage.
- Page 6 Press this button can fulfill the digital function of “9” on the computer, Press this button can fulfill the digital function of “0” on the computer, Press this button can fulfill the digital function of “-” on the computer, hold on “FN” and then press this button to lock the Ipad screen.
- Page 7 7、Storage. 7.1、when you have finished using your keyboard or you need to carry the keyboard, please don't forget when the keyboard source switch to OFF place, closed keyboard power, to extend battery life. 7.2、when you need long time battery storage for your keyboard, please don't forget to put a battery power charger to a half, about charging 1 hour, then store your keyboard, this can help the lithium-ion batteries live longer 8、Troubleshooting...
- Page 8 changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device complies with industry Canada license-exempt RSS standard(s). Operation of this device is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
