INSTALLATION &
OPERATION MANUAL
VERSATILE CHEF STATION
VULCAN MULTIFUNCTION COOKER
Heavy Duty Units
RETAIN THIS MANUAL FOR FUTURE USE
FORM F47674 Rev. D (6-18)
MODELS:
VCS18
VCS36
VCS36D
www.wolfequipment.com
Advertisement
Related Manuals for Vulcan-Hart VCS18
Summary of Contents for Vulcan-Hart VCS18

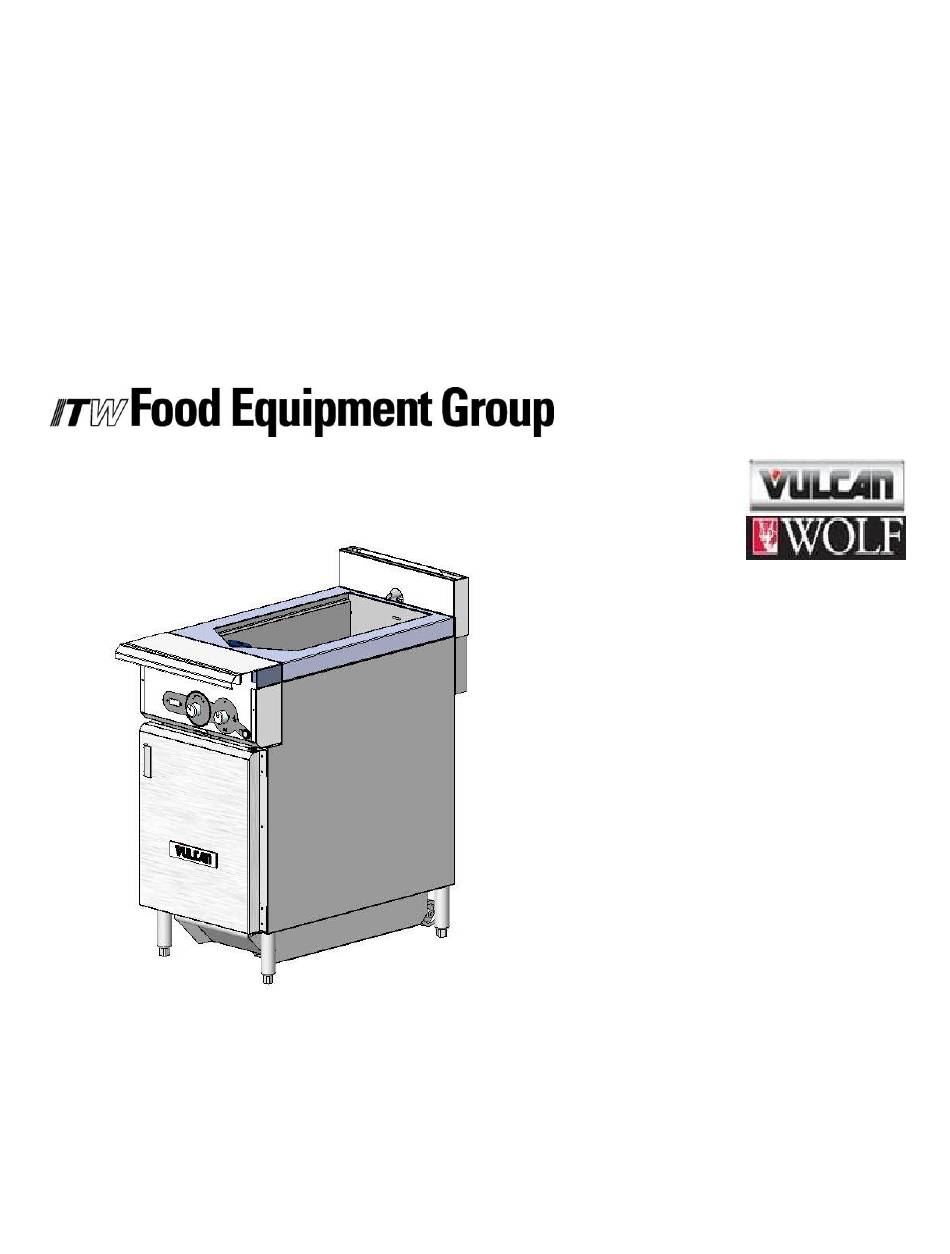

- Page 1 INSTALLATION & OPERATION MANUAL VERSATILE CHEF STATION VULCAN MULTIFUNCTION COOKER Heavy Duty Units MODELS: VCS18 VCS36 VCS36D www.vulcanequipment.com www.wolfequipment.com RETAIN THIS MANUAL FOR FUTURE USE ITW Food Equipment Group, LLC 3600 North Point Blvd Baltimore, MD 21222 FORM F47674 Rev. D (6-18)
-
Page 2: Important For Your Safety
IMPORTANT FOR YOUR SAFETY THIS MANUAL HAS BEEN PREPARED FOR PERSONNEL QUALIFIED TO INSTALL ELECTRICAL AND GAS EQUIPMENT, WHO SHOULD PERFORM THE INITIAL FIELD START-UP AND ADJUSTMENTS OF THE EQUIPMENT COVERED BY THIS MANUAL. POST IN A PROMINENT LOCATION THE INSTRUCTIONS TO BE FOLLOWED IN THE EVENT OF AN ELECTRICAL ISSUE OR IF THE SMELL OF GAS IS DETECTED. -
Page 3: Installation
INSTALLATION, OPERATION AND CARE OF VULCAN MULTIFUNCTION COOKER UNITS PLEASE KEEP THIS MANUAL FOR FUTURE USE GENERAL Vulcan Equipment is produced with quality workmanship and material. These units are designed with efficiency in cooking performance, sanitation and ease of cleaning ability in mind. Proper installation, usage and maintenance of your equipment will result in many years of satisfactory performance. - Page 4 Carefully unpack unit(s) and place in the approximate installation position. Make sure to retain parts packed separately in their own boxes or shipped separately in finishing kit. Before installing, verify that the electrical service agrees with the specifications on the rating plate located inside the front door of the unit.
- Page 5 LEG/CASTER ASSEMBLY The unit is provided with 6"(152 mm) adjustable stainless steel legs (hardware included). A set of 6"(152 mm) casters (adjustable or non- adjustable) are available as an optional field installable accessory. Installation of Legs/Casters: 1. Carefully tip unit on its side. 2.
-
Page 6: Operation
OPERATION The appliance and its parts are hot. Use care when operating, cleaning, or servicing the appliance. CONTROLS 1.Power Indicator — Green LED light is on when the unit is connected to power. 2.Temperature Display — Displays current temperature (in degrees F) of the tank surface when in Griddle mode, or of the cooking fluid when in Boil or Fryer modes. - Page 7 In Tank Probe – used to provide temperatures in BOIL and FRYER modes. TANK MUST BE FILLED TO MINIMUM MARKING IN THESE MODES 5.Water Button — Activates water flow from built in unit faucet. Single press will activate a continuous flow of water, press again to end.
- Page 8 NORMAL OPERATION GRIDDLE MODE Griddle mode can be used to perform sauté work, braising, griddle cooking, melting (sugar, chocolate, etc), and hot plate work. Griddle mode is entered by turning the Selector Knob to GRIDDLE and turning the Temperature Adjustment Knob to the desired cooking temperature. Any temperature between Room Temperature and 450°F can be selected.
- Page 9 To begin using Boil mode, ensure that the tank is clean of any contaminating substances and ensure that the drain plug is firmly seated in place to close the drain. Turn the Selector Knob to the BOIL setting and begin filling the tank for use. •...
- Page 10 POWER OUTAGE If a power outage occurs, the unit will cease to function. When power is restored, the unit will automatically resume normal functions if controls are still in an active configuration. In order to prevent damage or injury, turn Selector Knob to OFF during the power outage. When power is restored, resume operation as normal. The unit controls include a temperature sensor that will automatically stop the cooking cycle if high temperatures are detected in the cabinet.
-
Page 11: Maintenance
Due to the electronic nature of the controls, there are no user serviceable items on the unit. Please contact the Vulcan-Hart Service Department in your area to schedule any required service or repairs. - 11 -...
