MistAway iMistAway User Manual & Setup Manual

iMistAway
Gateway
Connect the Gateway Unit to your customer's Internet router or modem
A
using the included CAT-5 cable.
B
Connect your iMistAway Gateway Unit to the power adapter.
Place the gateway in a position which is as elevated as possible and not in
C
a metal cabinet – this will help to maximize wireless signal strength.
When the Gateway Unit is connected to the iMistAway server, the
D
"globe" symbol ( ) will be lit up with a solid green light.
E
Record the MAC Address and PAN ID on the Gateway Unit label.
Step Two – Mount iMistAway Node on Misting Unit
Gen 1.3 (Tank Unit)
A
Thread antenna onto iMistAway Node.
Mount node inside unit, next to the remote receiver. The Node antenna
should point away from the remote reciever. The Node ships with red
B
mounting tape attached.
Gen 3 (Tankless Unit)
Mount iMistAway Node to underside of lid. Use the two nuts supplied in
A
the Antenna Kit to secure the iMistAway Node to the lid.
B
Connect supplied antenna cable to male connector on iMistAway Node
Push the male connector end of the supplied antenna cable through hole
C
in lid of misting unit. Secure cable using attached nut, washer and o-ring.
IMPORTANT - O-Ring on antenna cable must be placed on the top of the lid before
securing the cable using the attached nut.
D
Thread iMistAway antenna onto the antenna connector.

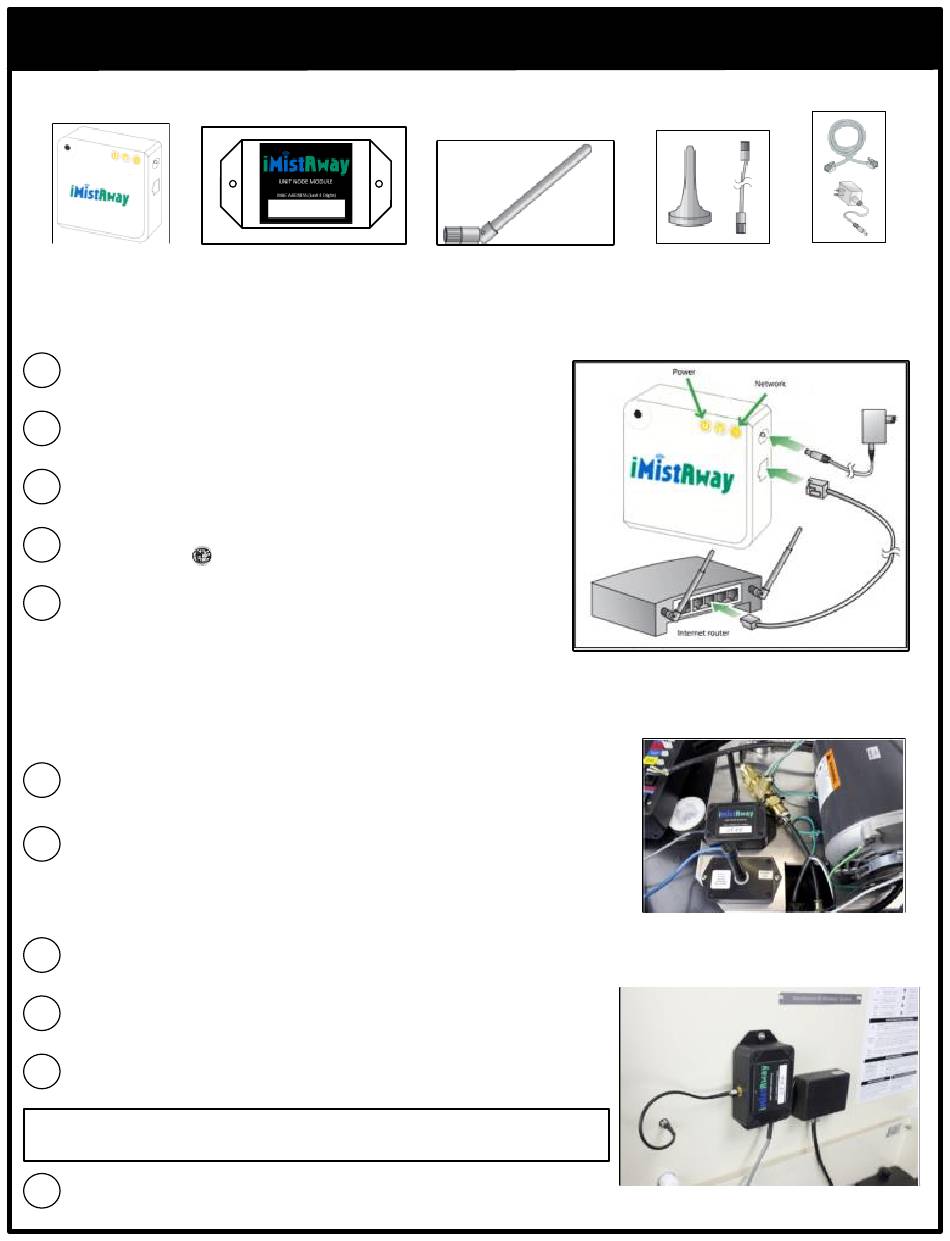

iMistAway Setup Guide
Verify iMistAway Kit Contents
A7:D3
iMistAway Node
Step One – Install Gateway Unit
Antenna (Gen 1.3)
Contains 1 antenna, 1 antenna cable
and 2 mounting nuts (not pictured)
Gen 3 Antenna Kit.
Ethernet Cable
and Power
Adapter
Gen 1.3 Mounting Location
Gen 3 Mounting Location
