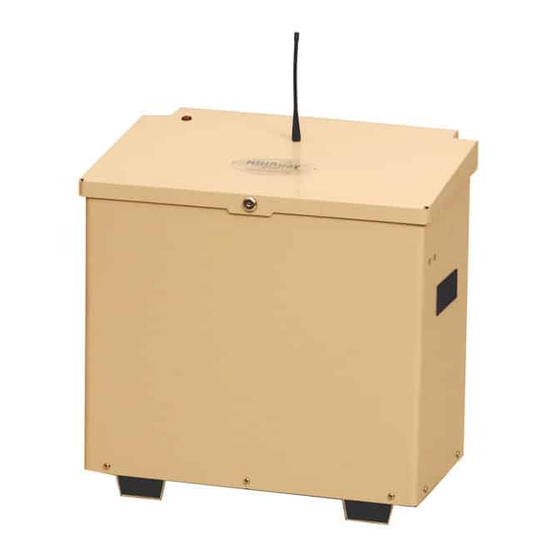

MistAway® Tankless Misting Unit – Gen III
Operations Manual
Section
1
Important Safety Instructions
Functionality and Components
2
Operating Instructions
3
4
Assembly and Installation Instructions
5
Maintenance and Winterization Instructions
6
Frequently Asked Questions
Troubleshooting
7
Warranty
8
Copyright © 2007 by MistAway® Systems, Inc.
Visit us on the web at
www.mistaway.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MistAway GEN III
Summary of Contents for MistAway GEN III
- Page 1 MistAway® Tankless Misting Unit – Gen III Operations Manual Section Important Safety Instructions Functionality and Components Operating Instructions Assembly and Installation Instructions Maintenance and Winterization Instructions Frequently Asked Questions Troubleshooting Warranty Visit us on the web at www.mistaway.com Copyright © 2007 by MistAway® Systems, Inc.
- Page 2 Section 1 Section 1 Important Safety Instructions Important Safety Instructions To Protect Against Accidental Exposure to Insecticide To Protect Against Fire or Electric Shock Using the Unit • Do not allow the unit to mist in the presence of people, pets or •...
- Page 3 • MistAway’s Tankless Misting Unit, Gen III, is a batch processing The operations of the Gen III are managed by a digital controller unit that precisely mixes water from a faucet and concentrated and a number of electro-mechanical components. The controller...
- Page 4 Section 2 Section 2 Functionality and Components Functionality and Components Components – Interface and Controls Components – Agitation and Atomization • Batch Tank – 2 gallon plastic tank with enough capacity to • Digital Controller – accepts user input, displays unit operating enable a 60 nozzle circuit to mist for 120 seconds.
- Page 5 Section 3 Section 3 Operating Instructions Operating Instructions Programming the Controller Controller Menu Structure DAY/TIME Menu Set the Day of the Week and the Time of Day. CYCLES Menu Configure the mist time and duration of each of the twelve possible AUTO MIST Cycles (Each with unique duration and time of day.) CUSTOM PGM Menu Configures the days of the week for AUTO...
- Page 6 Section 3 Section 3 Operating Instructions Operating Instructions Controller Menu Structure (continued) Controller Menu Structure (continued) MAINTENANCE Menu DATA Menu Drain. Unit will mist until batch tank is empty and Daily Mist time (cumulative, in seconds) pressure falls. Hold Green ► button for 5 seconds to Maximum Daily Mist allowed (in seconds, read from cap) trigger.
- Page 7 Section 3 Section 3 Operating Instructions Operating Instructions External LED Indications Operating Displays There are a number of other displays that will appear when the unit is The LED is located on the back left of the enclosure lid. The flash either operating or suspended (and not idle or being programmed.) pattern of the LED will indicate the operating status of the unit.
- Page 8 Section 3 Section 3 Operating Instructions Operating Instructions Manual Operations Remote Transmitter (continued) There are a number of operations that can be performed while standing at the unit: Set DIP Switches on Remote Antenna • STOP - Pressing Red MENU/STOP button will immediately stop any current operation of the unit, but will not change the System Mode from AUTO to OFF.
- Page 9 Smart Cap. Either contact the dealer who installed your unit or INS2 contact us at www.mistaway.com, and we will direct you to a source for refill cartridges. Currently, there is only one type of insecticide available for snap-in replenishment. It is called •...
- Page 10 Section 4 Section 4 Assembly and Installation Instructions Assembly and Installation Instructions 8. Program Controller 8. Program Controller (continued) • SET-UP Menu, DST • CYCLES Menu Set AUTO MIST a. Set Daylight • ON if daylight savings in effect, • Set duration and time for up to 12 Cycles Savings Time OFF if not.
- Page 11 Section 5 Section 5 Maintenance & Winterization Instructions Maintenance & Winterization Instructions Maintenance with Each Refill Winterization (performed at Fall shutdown) • If using a water-based insecticide in the unit, no maintenance is • Flush coupler, dosing pump and insecticide flow line. required with each refill.
- Page 12 Section 6 Section 6 Frequently Asked Questions Frequently Asked Questions Why does this machine have to be plugged into a GFI circuit? What happens if the water supply to the unit is accidentally turned off? • As an outdoor electrical appliance that is often exposed to the elements, for protection of both the installer and end-user it is •...
- Page 13 Section 6 Section 6 Frequently Asked Questions Frequently Asked Questions What is the symbol that looks like a “sunshine” flashing in the The manual mentions a zone kit. What is a zone kit, and how do lower right corner of the display? I know if I have one? •...
- Page 14 Section 6 Section 7 Frequently Asked Questions Troubleshooting Will the system recover if I press STOP in the middle of the batch Problem: The unit clock shows odd numbers. makeup process? • Potential Cause: The clock has not been set. •...
- Page 15 Section 7 Section 7 Troubleshooting Troubleshooting Problem: The system display is flashing “EMP CAR” and the Problem: The unit will not AUTO MIST. external LED is flashing. • Potential Cause: System Mode set to OFF or ON • Action: The System Mode must be set to AUTO-EVERYDAY or •...
- Page 16 Purchaser’s failure to submit a claim as provided above shall specifically Unit, Gen III – to be free from defects in material and workmanship as follows: waive all claims for damages or other relief, including but not limited to claims based on latent defects.
