Theory of operation

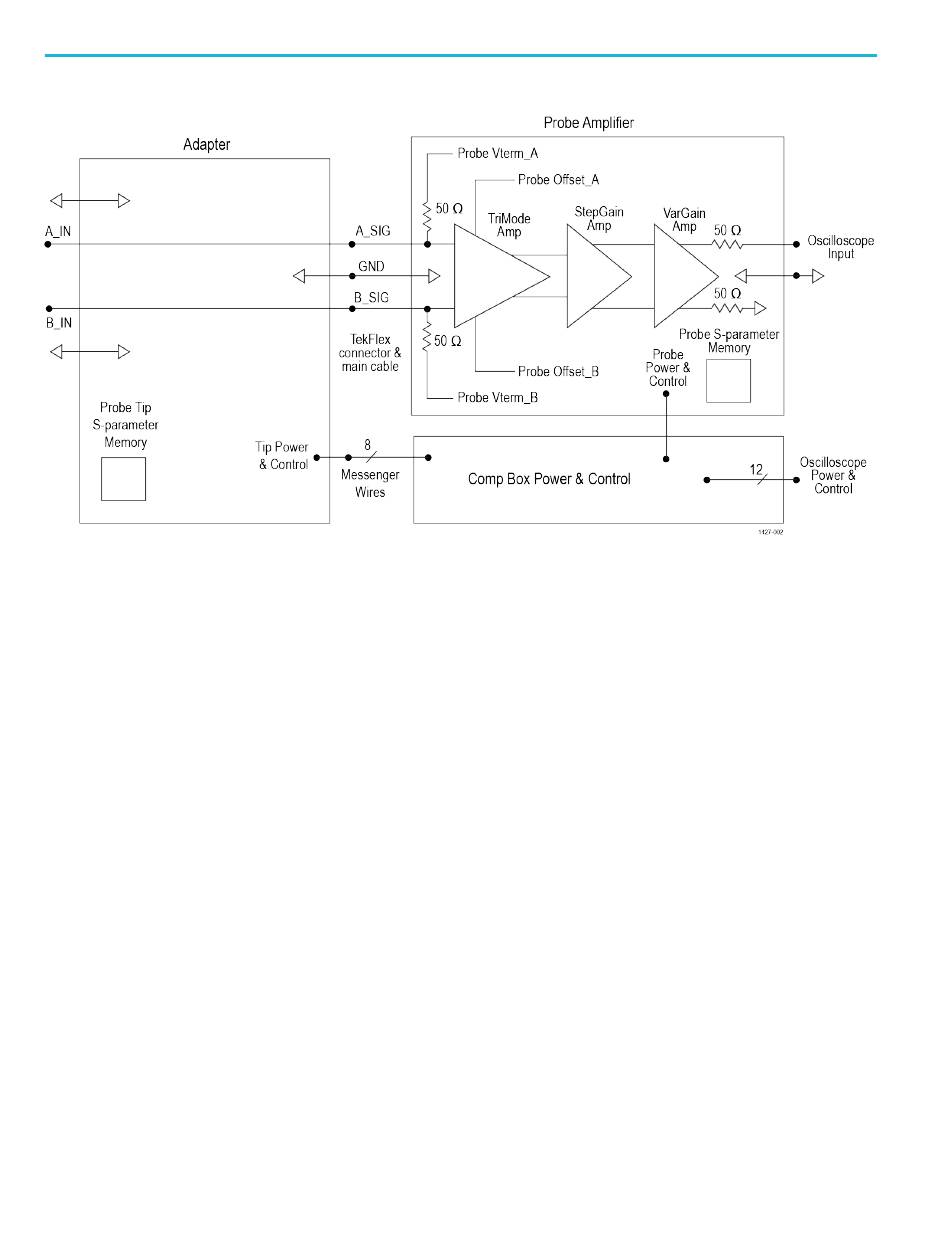

Figure 5: TDP7700 Series TriMode probe input architecture with the P77C292MM SMA adapter

TriMode operation

10
The TriMode feature of the TDP7700 Series probes is designed for improved
convenience and enhanced capability in measuring differential signal quality.
Because a differential signal is composed of two complementary single-ended
signals, full characterization of a differential signal requires more than a simple
differential measurement.
A TriMode probe features four input modes that allow a differential signal to be
fully characterized with four measurements:
■ Differential
■ Positive polarity, single-ended
■ Negative polarity, single-ended
■ Common mode
A TriMode probe provides improved efficiency and convenience by enabling full
differential signal characterization from a single soldered connection.
TekFlex active probe solder tips support the TriMode functionality of a TDP7700
Series probe by buffering a matched pair of input signals from a DUT differential
signal connection. These active solder tips support the transmission of high-
frequency return currents through a probe tip ground path referenced to the DUT
ground connection.
