INSTALLATION INFORMATION
EMG MODEL: PJ-HZ SET (GZR MODEL)
SPECIFICATIONS
Pickup Types: Passive
Logo Color
Magnet Type
Inductance (Henries)
DC Resistance (kOhm)
Resonant Frequency (KHz) (1)
Resonant Frequency (KHz) (2)
Impedance at Resonance (kOhm) (1)
(1) Loaded with 250K Volume and Tone
and 20' (6M) 560pf cable
(2) Loaded with 1 MegOhm / 47pf
Installation notes:

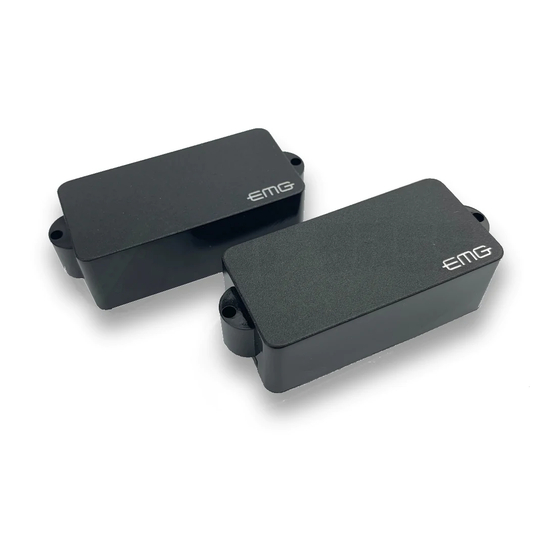

As you can see from the diagrams above, the J-HZ GZR Set consists of a P Style Pickup and the longer Bridge Pickup (LJ) from a J Set.
It's common to use the longer bridge pickup when mixing with a P Style Pickup because the pole pieces of the bridge pickup are spaced further apart.
All EMG-HZ Pickups are compatible with each other. The connector system is an easy method of installation, avoiding the need to solder.
EMG Accessory Circuits like the VLPF, EXB, BTC or BQC Controls can be added to any EMG Pickup System, all have buffered inputs and can
be used on either passive or active pickups. Adding Active circuitry will require a battery.
It is common to ground (earth) the strings of an instrument that uses passive pickups. This means there will be a wire
coming from the bridge into the control cavity that will be hooked to one of the pots. Included with the system is a single black wire
with a connector on it and an IDC connector that will attach to the existing ground wire and will provide the ground (earth) connection.
Included with THE SET:
2 VOLUME CONTROLS (250K)
1 TONE CONTROL (250K)
.235 (6)
.390
.310 (8)
(10)
MONO OUTPUT
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
warranty covers only those pickups and accessories sold by authorized EMG Dealers. This warranty is not transferable.
© 2014 Copyright EMG INC. All Rights Reserved.
MODEL:
-
P HZ
Gold
Alnico 5
6.12
11.2
1.77
2.36
68.00
ADJUSTMENT SCREWS (8)
BRIDGE GROUND
CONNECTOR
JACK
1.100 1.100
(24.95)
.920 (23.3)
J-HZ (LONG)
Gold
R .093 (2.36) TYP
Alnico 5
2.60
7.60
2.4
3.2
41.29
.850 (21.6)
P PICKUP CABLE 12" (30cm)
J PICKUP CABLE 10" (25cm)
CONNECT CABLES 5.5" (14cm)
OUTPUT CABLE 6" (15cm)
BRIDGE GROUND WIRE 6" (15cm)
P-HZ HOUSING
(1 SIDE ONLY)
2.250 2.250
(57.1)
2.450 2.450
(62.2)
#4 PHILLIPS RH WOOD SCREWS
FOR MOUNTING
LONG J HZ HOUSING
(LJHZ)
3.700
(94)
1.560
R .250 (6.35) TYP
(39.6)
#4 WOOD SCREW
FOR MOUNTING
R .125 (3.17) R .125 (3.17)
TYP TYP
R .234 (5.94) R .234 (5.94)
TYP TYP
.730 (18.54)
