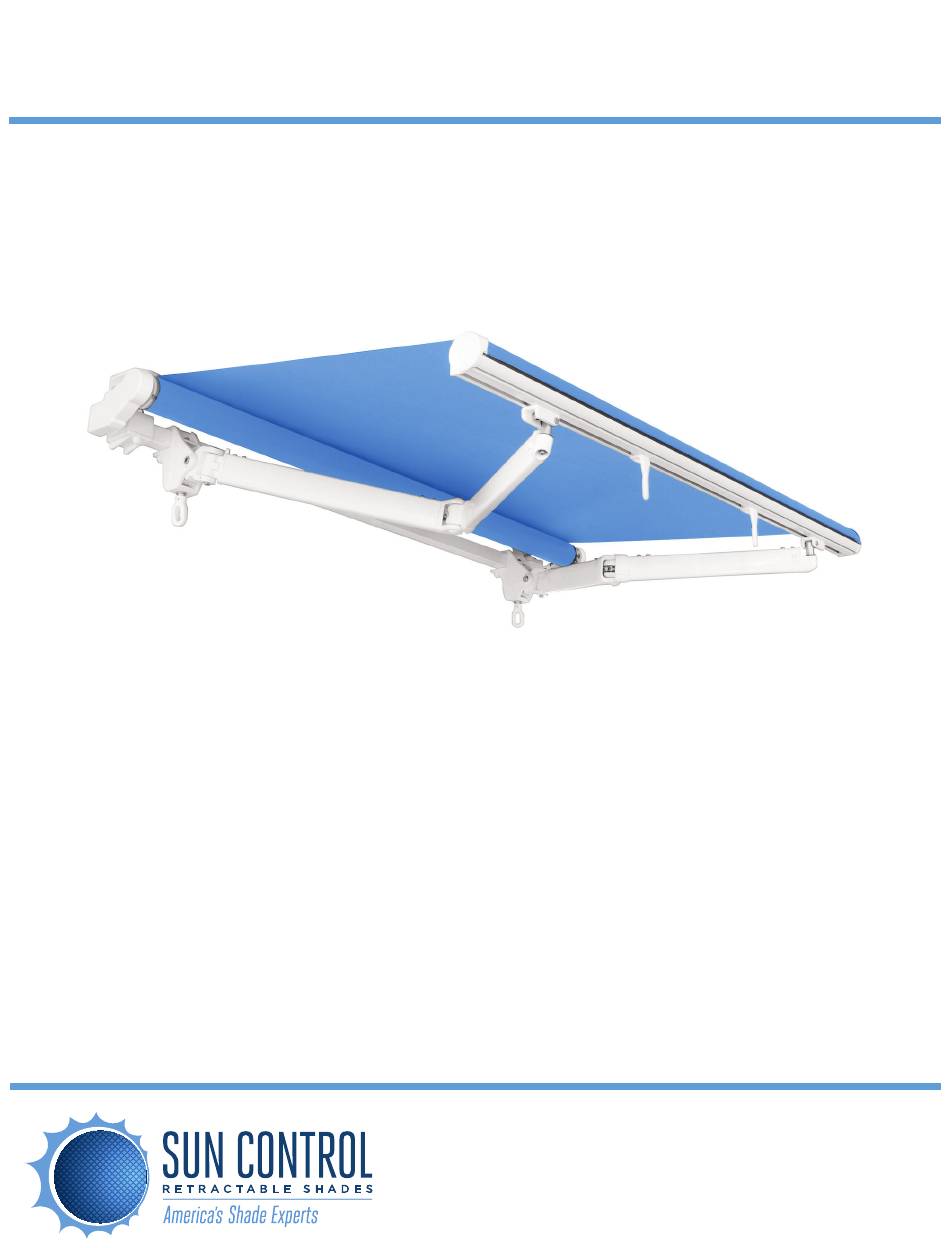

- Page 1 TUCSON PATIO AWNING Installation Manual 1115 TUCSON PATIO AWNING INSTALLATION MANUAL Toll Free 877-792-1775 | Fax 877-792-0031 swsuncontrolpro.com | sales@swsuncontrol.com...
-
Page 2: Table Of Contents
Table for no. of arms, square bar brackets and hood supports ..............5 Table for awning dimensions / component placement ................6 Diagrams of the covering and footprints ....................9 Exploded view of Tucson Patio components .................... 10 Mounting brackets ............................. 11 4 INSTALLATION OF MANUAL AWNING ................12 Fastening brackets to wall ......................... -
Page 3: Introduction
TUCSON PATIO AWNING Installation Manual 1115 1 INTRODUCTION This manual was prepared by the Manufacturer to provide the necessary information to those authorized to install and perform special maintenance on the product. It is prohibited to remove, rewrite or in any way modify the pages of the manual and their content. -
Page 4: Contents Of Packaging
TUCSON PATIO AWNING Installation Manual 1115 1.4 - Contents of packaging The awning is delivered complete with arms, fabric, control (manual or motorized) and any requested optional. INFORMATION AND PRECAUTIONS Never move the shoulders from the position in which they are supplied. -
Page 5: Technical Tables For Installation
TUCSON PATIO AWNING Installation Manual 1115 3 TECHNICAL TABLES FOR INSTALLATION 3.1 - Table of minimum dimensions MINIMUM FOOTPRINTS PROJECTION WIDTH (in) 1 PAIR OF ARMS 6'11" 8'6" 10'2" 11'9" 13'5" INFORMATION AND PRECAUTIONS It is advisable always to use an even number of arms. - Page 6 THE FOLLOWING TABLES ARE PURELY INDICATIVE. TO THE BEST OF OUR KNOWLEDGE THE INFORMATION IS UP TO DATE SW SUN CONTROL DOES NOT PROVIDE ANY GUARANTEE REGARDING ACCURACY, RELIABILITY, AND COMPLETENESS OF THE INFORMATION CONTAINED HEREIN. INDEED, IT IS THE USER’S RESPONSIBILITY TO ENSURE THE SUITABILITY AND CORRECTNESS OF THIS INFORMATION.
- Page 7 TUCSON PATIO AWNING Installation Manual 1115 WIDTH up to 236 (in) COMPONENT PLACEMENT 6'11" 8'6" 10'2" 11'9" 13'5" Adjustable Shoulders Mounting Brackets (4) 73 10 45 89 10 45 89 10 45 89 Tube Balance Support Center Center Center Center...
- Page 8 TUCSON PATIO AWNING Installation Manual 1115 COMPONENT PLACEMENT 13'5" Adjustable Shoulders 3rd Adjustable Shoulder* 201* Mounting Brackets (6) Additional Mounting Bracket Center Tube Balance Support (2) WIDTH up to 393 (in) COMPONENT PLACEMENT 6'11" 8'6" 10'2" 11'9" 13'5" Adjustable Shoulders...
-
Page 9: Diagrams Of The Covering And Footprints
TUCSON PATIO AWNING Installation Manual 1115 3.4 - Diagram of Covering and Footprint CEILING WALL INSTALLATION DIAGRAM (in) 0° 3.9375” 7.875” 11.8125” 15.75” 19.6875” 23.625” 27.5625” 31.5” 35.4375” 39.375” 43.3125” 15° 47.25” 51.1875” 55.125” 59.0625” 63” 66.9375” 70.875” 74.8125” 78.75”... -
Page 10: Exploded View Of Tucson Patio Components
TUCSON PATIO AWNING Installation Manual 1115 3.5 - Exploded View of Tucson Patio Components Gear Front bar end covers Hand brace Hood Ceiling brackets End covers for hood 3/1 Wall brackets Hood gasket Square bar Hood supports Tube support bracket set with covers... -
Page 11: Mounting Brackets
TUCSON PATIO AWNING Installation Manual 1115 3.6 Mounting brackets WALL BRACKET 3.125” .6875” .9375” .9375” 2.125” Ø.375” .125” Ø.375” .9375” .9375” .25” Ø.375” FIG. 1 CEILING BRACKET 4.875” .625” 2.875” 1.375” .5” .9375” .9375” Ø.375” .625” .625” Ø.375” FIG. 2... -
Page 12: Installation Of Manual Awning
TUCSON PATIO AWNING Installation Manual 1115 4 INSTALLATION OF MANUAL AWNING The instructions below refer to wall-mounting; ceiling mounting is the same. If any options are in use, first read Chapter 6 "Optionals" CAUTION Ensure a minimum space of 19.75 inches between the open awning and any fixed obstacle. - Page 13 TUCSON PATIO AWNING Installation Manual 1115 WALL BRACKET TEMPLATE scale...
- Page 14 TUCSON PATIO AWNING 1115 CEILING BRACKET TEMPLATE scale...
- Page 15 TUCSON PATIO AWNING Installation Manual 1115 CEILING BRACKET TEMPLATE scale...
-
Page 16: Wall Installation
TUCSON PATIO AWNING Installation Manual 1115 INFORMATION AND PRECAUTIONS If the wall is off-square, it may difficult to install the awning on the wall brackets. It is therefore advisable to check the alignment of the brackets and to provide inserts to ensure proper alignment for good installation. - Page 17 TUCSON PATIO AWNING Installation Manual 1115 CAUTION Make sure that when opening/closing the awning, there are no individuals within its range of action who are not involved in the work. FIG. 3 FIG. 1 1) Adjust the awning inclination using the hand brace on the adjustable shoulder eyelet.
-
Page 18: Installation Of Motorized Awning
TUCSON PATIO AWNING Installation Manual 1115 5 INSTALLATION OF MOTORIZED AWNING The instructions below refer to wall-mounting; ceiling mounting is the same. If any options are in use, first read Chapter 6 "Optionals" CAUTION IT IS PROHIBITED to install the motorized product in an explosive atmosphere. -
Page 19: Special Maintenance
TUCSON PATIO AWNING Installation Manual 1115 7 SPECIAL MAINTENANCE 7.1 - Troubleshooting table MANUAL AWNING PROBLEMS CAUSES SOLUTIONS The fabric does not roll up straight Incorrect symmetry of arms See manual for Assembly, Chap. 7 Uneven fabric Roll the fabric all the way back up...
