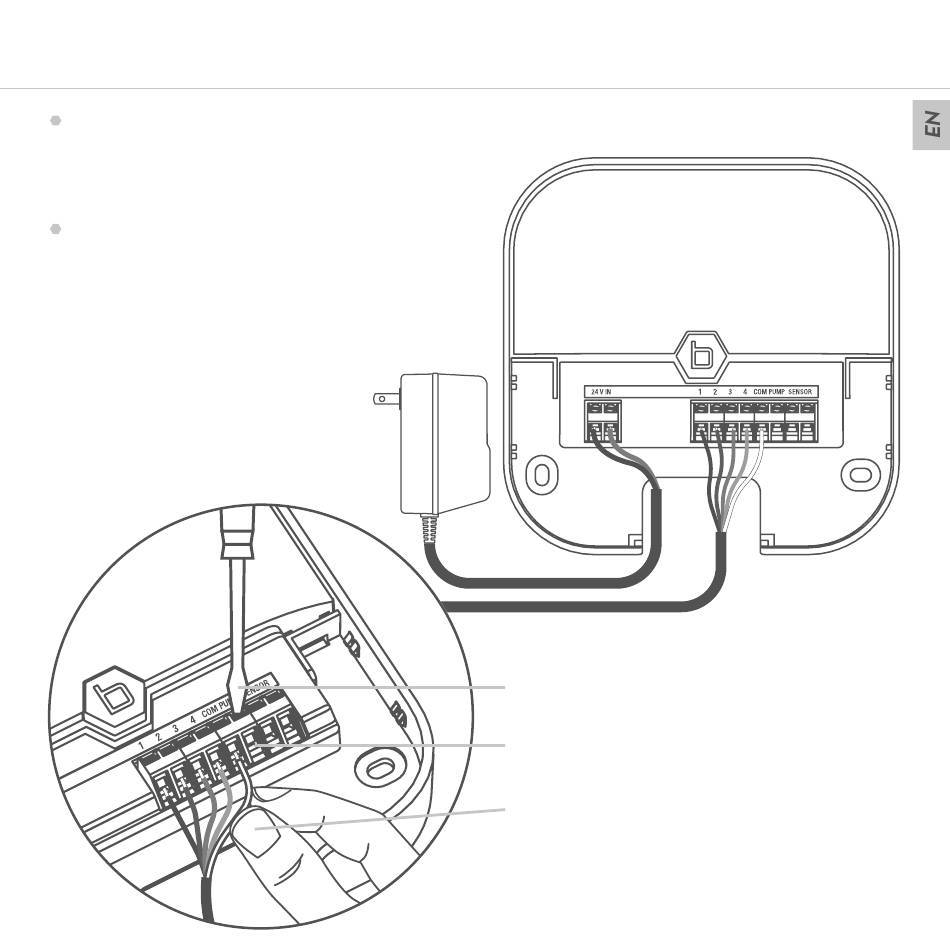

Connect Valve Wires
Prepare wire
Strip 1/2" (13 mm) of insulation from each
wire.
Connect wires
Attach one wire from each valve to a
"Common" (COM) wire and the other
wires to a numbered terminal (only one
wire per terminal.)
Loosen Screw
Strip Wire
Push In
Tighten Screw
