QVision Operations and Installation Guide

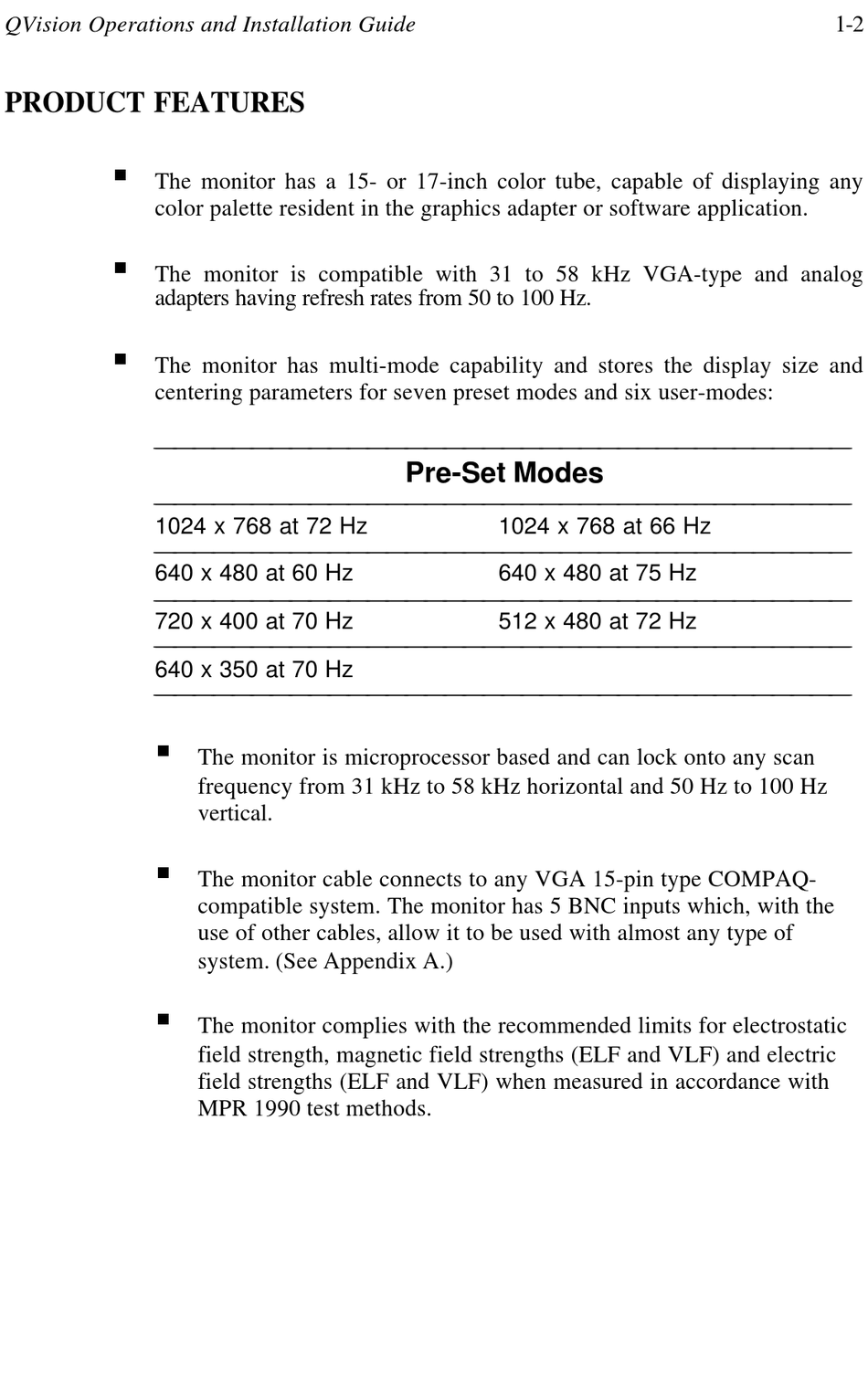

PRODUCT FEATURES
§
The monitor has a 15- or 17-inch color tube, capable of displaying any
color palette resident in the graphics adapter or software application.
§
The monitor is compatible with 31 to 58 kHz VGA-type and analog
adapters having refresh rates from 50 to 100 Hz.
§
The monitor has multi-mode capability and stores the display size and
centering parameters for seven preset modes and six user-modes:
1024 x 768 at 72 Hz
640 x 480 at 60 Hz
720 x 400 at 70 Hz
640 x 350 at 70 Hz
§
§
§
The monitor is microprocessor based and can lock onto any scan
frequency from 31 kHz to 58 kHz horizontal and 50 Hz to 100 Hz
vertical.
The monitor cable connects to any VGA 15-pin type COMPAQ-
compatible system. The monitor has 5 BNC inputs which, with the
use of other cables, allow it to be used with almost any type of
system. (See Appendix A.)
The monitor complies with the recommended limits for electrostatic
field strength, magnetic field strengths (ELF and VLF) and electric
field strengths (ELF and VLF) when measured in accordance with
MPR 1990 test methods.
Pre-Set Modes
1024 x 768 at 66 Hz
640 x 480 at 75 Hz
512 x 480 at 72 Hz
1-2
