ISASWISS 8270B Instruction Manual

PRESENTATION -- PRÉSENTATION -- PRÄSENTATION
Count down indicator (10 min maximum)
Indicateur de compte à rebours (10 min maximum)
Countdown-Anzeige (maximal 10 Minuten)
Central Hand
- Display count down minutes
- Display race timing minutes
Aiguille de trotteuse centrale
- Affichage compte à rebours en minutes
- Affichage chronométrage des minutes
Zeutrumszeiger
- Countdown-Minuten
- Zeitmessung in Minuten
Second and hour counter
- Display count down seconds
- Display race timing hours
- Number of hours and seconds counted
Compteur de secondes et d'heures
- Affichage secondes du compte à rebours
- Affichage chronométrage des heures
- Nombre d'heures et de secondes chronométrées
Sekunden und Stundenzeiger
- Anzeige Countdown Sekunden
- Anzeige Zeitmessung in Stunden
- Anzahl der gezählten Stunden und Sekunden
CAUTION:
BETWEEN 9 PM AND 0.30 AM.
SETTING AND ACTIVATION COUNT DOWN TIMER
WARNING: SETTING COUNT DOWN IS POSSIBLE ONLY AFTER
THE DISCOUNT FOR ZERO OF THE COUNT DOWN AND OF THE TIMING.
SETTING
4.1 Push the pusher B during 1 sec
One bip sounds
"SECOND CHANCE" COUNT DOWN ADJUSTEMENT
AND PROGRESS BEEPER
THE USER CAN, IN ALL MOMENT, ADJUST THE COUNT DURING THE CURRENT
COUNT DOWN EXCEPT IN THE LAST MINUTE.
SETTING
5.1 Push the pusher B to adjust
the current count down
RACE TIMING FUNCTION
RACE TIMING STARTS AUTOMATICALLY
AFTER COUNT DOWN.
Date of
departure
6.1
BATTERY - PILE - BATTERIE
399 - SR 927 W
INSTRUCTIONS MANUAL
MANUEL D'INSTRUCTIONS
BETRIEBSANLEITUNG
8270B
Hour hand
Aiguille des heures
Stundenzeiger

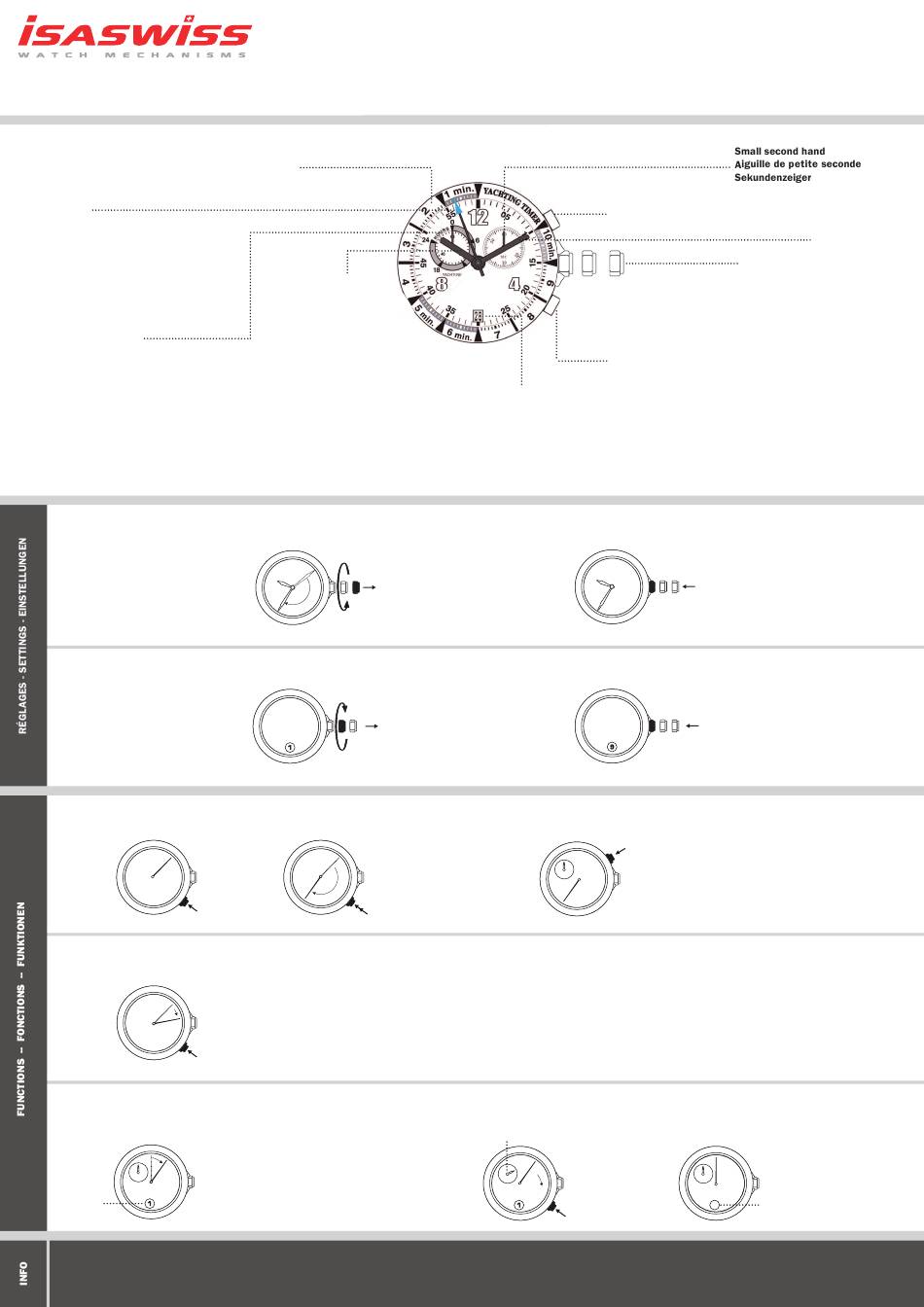

SETTING THE TIME
HOUR AND MINUTE
I II III
1.1 Pull the stem in pos. III
1.2 Turn the crown in the anticlockwise direction until the desired hour
SETTING THE DATE
NEVER CORRECT DATE
I II III
2.1 Pull the stem in pos. II
2.2 Turn the crown in the clockwise direction until the desired date
REGLAGE ET ACTIVATION DU COMPTE A REBOURS
ATTENTION:
LA REMISE A ZERO DU COMPTE A REBOURS OU DU CHRONOMETRAGE.
B
1 sec, 1 "bip"
4.2 Push the pusher B to adjust the hand
AJUSTAGE DU COMPTE A REBOURS "SECONDE CHANCE"
ET DESCRIPTION DES BIPS
L'UTILISATEUR PEUT A TOUS MOMENT AJUSTER LE COMPTEUR PENDANT LE
COMPTE A REBOURS EN COURS SAUF DURANT LA DERNIERE MINUTE.
Example:
If the count down was set at 10 minutes at the beginning with delay:
- During the count down runs, the user can press B to adjust the count
down minutes, the central minute hand will move from
"10 min." to "9 min." or "8 min."
- The small counter hand at 10H will advance fast to make a turn,
and stops shortly at "60", then it continues to count and display
B
the count down seconds.
- The central minute counter hand displays the race
timing minutes (1 step every 12 seconds).
The small hand at 10H counter displays the race
timing hours from 0 hour to 24 hours,
up to 96 hours maximum (1 step every hour).
Between "24" and "0", the small counter hand advances fast.
SERVICE LIFE BATTERY: WITHOUT CHRONO = 39 MONTHS, REGATE FUNCTION 1H/D = 32 MONTHS
DURÉE DE VIE DE PILE: SANS CHRONO = 39 MOIS, FONCTION REGATE 1H/J = 32 MOIS
LEBENSDAUER DER BATTERIE : OHNE CHRONO = 39 MONATE, REGATTA FUNKTION 1 STD/T = 32 MONATE
(2300)
Date window
Indicateur de la date
Datumsfenster
Warning: The measure of time starts by a count down, then of continues by a timing
Avertissement: La mesure de temps démarre par un compte à rebours, puis se poursuit par un chronométrage
Achtung : Die Zeitmessung beginnt mit dem Countdown, danach folgt ein Timing
REGLAGE DE
L'HEURE ET MINUTE
SET
CORRECTION DE LA DATE
ATTENTION: LA CORRECTION
DE LA DATE NE PEUT PAS SE
FAIRE ENTRE 21H00 ET 0H30.
SET
LE REGLAGE DU COMPTE A REBOURS N'EST POSSIBLE QU'APRES
ACTIVATION
B
Step by step
4.3 Push the pusher A to activate the count down timer
Two bips sound
PROGRESS
BEEPER
5.2
FONCTION CHRONOMETRE
LE CHRONOMETRE DEMARRE AUTOMATIQUEMENT
APRES LE COMPTE A REBOURS.
To display race timing seconds at 10H counter
(1 step every 2 seconds)
6.2 Push the pusher B to dispay the race timing seconds
YATCHING FONCTIONS AND DATE
FONCTIONS YATCHING ET DATE
FUNKTION YATCHING UND DATUM
Pushbutton A : start /stop
Poussoir A : start /stop
Drücker A : Start /Stop
I II III
Pushbutton B : split/reset
Poussoir B : split/reset
Drücker B : Split / Neueinstellung
EINSTELLEN DER ZEIT
STUNDEN UND MINUTEN
RESET
I II III
1.3 Push the stem in pos. I
EINSTELLEN DES DATUMS
ACHTUNG: DATUM NICHT
ZWISCHEN 21 UHR UND 0.30
UHR EINSTELLEN.
RESET
I II III
2.3 Push the stem in pos. I
EINSTELLEN UND AKTIVIERUNG DES COUNTDOWN-ZEIGERS
ACHTUNG: DER COUNTDOWN-ZÄHLER KANN NUR EIGESTELLT WERDEN, WENN DIE
COUNTDOWN-FUNKTION ODER DIE ZEITMESSUNG ZUERST AUF NULL GESETZT SIND.
A
2 "bips"
- The small counter hand at 10H turns fast to make a turn and stop
shortly at "60", then count down starts.
- When count down starts, the small counter hand at 10H indicates
the seconds (1 step every 2 seconds); the central counter hand
displays the minutes (1 step every 2.4 seconds).
"ZWEITE MÖGLICHKEIT" COUNTDOWN-ZÄHLER
ANPASSUNG UND PIEPTÖNE
DER BENUTZER KANN DIE COUNTDOWN ANZEIGE WÄHREND DES ABLAUFS
JEDERZEIT AMPASSEN AUSSER WÄHREND DER LETZTEN MINUTE.
Once count down is activated, there are beepers to communicate to the user about the progress
of the count down.
- During count down, 2 beeps emit every minute up to the last minute.
- 50 seconds before the end of count down, 1 beep emits.
- 40 seconds before the end of count down, 1 beep emits.
- 30 seconds before the end of count down, 2 beeps emit.
- 20 seconds before the end of count down, 2 beeps emit.
- 10 seconds before the end of count down, 1 beep emits every second to indicate the end of count down.
- At the end of count down, 1 long beep emits lasting for 1 second to communicate to the user that
the count down reaches zero, and the race timing function begins.
ZEITMESSUNG FUNKTION
DIE ZEITMESSUNG BEGINNT AUTOMATISCH NACH ABLAUF DES COUNTDOWNS
The race timing function allows the measurement of a duration
of 96 hours at maximum (= 4 days), then stops.
At the end of the race timing, the small counter hand at 10H will rest at "0",
and the central hand will rest at "12".
5
B
6.3
Minute hand
Aiguille des minutes
Minutenzeiger
Crown
Couronne
Krone
Date of
arrival
0312230 IM - B
