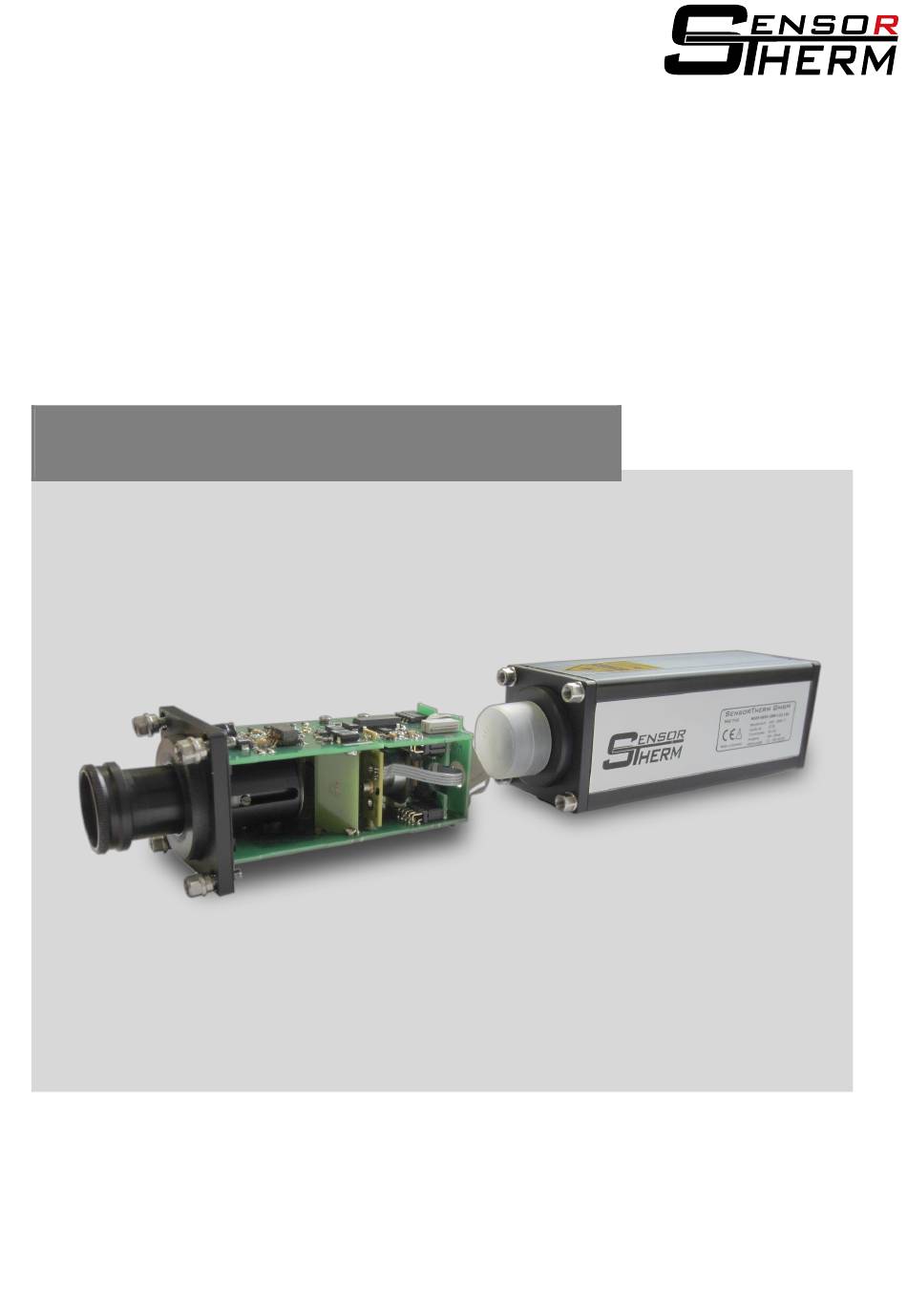

- Page 1 Analog Output Adjustment Metis MS/MI Maintenance Manual...
- Page 2 Maintenance Manual Metis MS / MI Pyrometer Specific Characteristics Before adjusting a Metis MS / MI pyrometer, the upper and lower limits of the analog output should be set. This is done via 2 potentiometers inside the device. Then the calibration or, if necessary, adjustment via interface and adjustment software will be carried out.
- Page 3 Analog Output Adjustment Metis MS/MI Maintenance Manual Metis MS / MI On the upper side of the device there are 2 holes with the adjustment potentiometers underneath, once for the current at the beginning of the temperature range (labeled mA on the printed circuit board) and once for end of temperature range (labeled 20 mA on printed circuit board).
- Page 4 Analog Output Adjustment Metis MS/MI Maintenance Manual Metis MS / MI Call up device configuration and start simulation: Call up simulation Set analog output to 0-20 mA Activate simulation Move slider to the left (a few degrees above the beginning...
- Page 5 Sensortherm GmbH Hauptstraße 123 65843 Sulzbach Tel: +49 (0)6196 64065-80 Fax: +49 (0)6196 64065-89 E-Mail: info@sensortherm.de Internet: www.sensortherm.de © Sensortherm GmbH Analog Output Adjustment Metis MS/MI (Feb. 02, 2017)
