  • Page 1 INSTALLATION, OPERATION AND MAINTENANCE MANUAL PLEASE READ THESE INSTRUCTIONS COMPLETELY BEFORE OPERATING THE ECOSMART™ FIRE. BK Series XL Series AB Series XS Series VB Series e-NRG bioethanol is the ONLY fuel to be used in this appliance. ! WARNINGS: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
  • Page 2 Showrooms 3 & 4, 40-42 O’Riordan Street Alexandria NSW 2015 Australia Visit - www.e-NRG.com Tel: +61 2 9997 3050 Call - (888) 670 ENRG Email: info@ecosmartfire.com Or contact your local EcoSmart Fire distributor. www.ecosmartfire.com e-NRG Bioethanol is the only fuel to use in this appliance.

  • Page 3: Table Of Contents

    Baffles Turning your Burner OFF - Extinguishing the flame Re-igniting the Burner Regular Safety Checks Caring for your EcoSmart Fire Troubleshooting Your Warranty After Sales Service © Copyright 2004 - 2014 The Fire Company Pty Ltd. All rights reserved. V090614...

  • Page 4: Important Safety Information

    Refer to ventilation information on page 12. This manual contains instructions for the safe installation and use of your new EcoSmart Fire. Before installing and using your appliance, read the entire manual and follow the instructions and warnings carefully.

  • Page 5: Important Safety Information

    Visit www.ecosmartfire.com for a full line of accessories for your appliance. ii. Doors must not be added to modify any EcoSmart Fire model. To reduce the risk of fire or injury, do not modify the appliance in any way. Models that are fitted with a door by the manufacturer must not be modified in any way.

  • Page 6: Standard Equipment Received

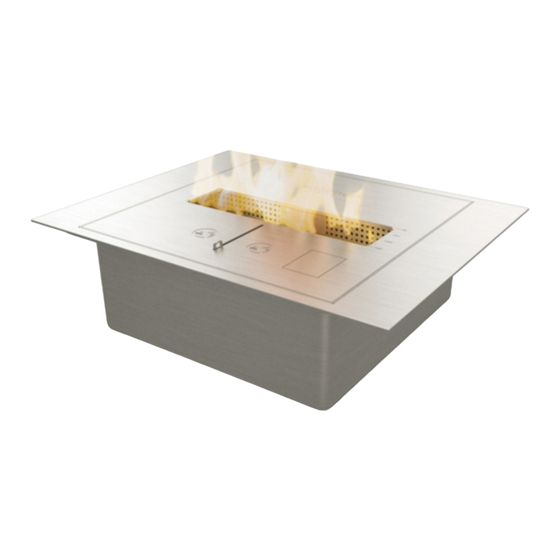

    XS340 VB Series AB Series AB8, AB3 Burner The Burner is the core product of the EcoSmart Fire as it is the chamber that houses the fuel. BK SERIES BK2UL h 123mm x l 400mm x d 317mm h 93mm x l 290mm x d 290mm h 93mm x l 290mm x d 290mm h [4.4in] x l [15.7in] x d [12.5in]...
  • Page 7 The BK series burners come with a protective Top Tray. All other burners do not. Top Trays for other burners are available as accessories through your local distributor. BK5 Top Tray BK2 and BK3 Top Tray h 123mm x l 400mm x d 317mm h 93mm x l 400mm x d 317mm h [4.8in] x l [15.7in] x d [12.5in]...
  • Page 8 ENGLISH Standard Equipment Received Wind Screen Static For those models that come with a Wind Screen Static – the Wind Screen can be fixed to the front of the model via the four (4) fixing points on the firebox facade using the circular screws provided. If a wind screen is not required, the model includes four (4) stainless steel plugs to hide these fixing points.

  • Page 9: Markings

    WARNING! Never fill above the MAX volume mark. Burner data plate location Every EcoSmart Fire Burner includes a data plate which provides minimum clearances and safety information. It also includes a unique bar code, serial number and key manufacturing information.

  • Page 10: Clearances & Installation

    *WARNING! Fire hazard. The rear wall should be non-combustible. If it is combustible, you must allow at least 600mm (23.6in.) clearance between the wall and the rear of the EcoSmart Fire. The VB2 burner is specially designed as a ‘drop-in’ burner system to a purpose-built, existing or new, fireplace setting.
  • Page 11 Side clearances to fixed and stable furniture items that are not susceptible to movement such as lounges or patio furniture must remain The best location for your EcoSmart Fire is: a minimum of 600mm [23.6in] away from the flame at all times.

  • Page 12: Clearances & Installation

    ENGLISH Clearances & Installation Top Tray The incorporation of a Top Tray into your setting protects against heat Top Trays provided by The Fire Company are fitted directly into the transference and aids in the collection of accidental spillage. Some Burner shelf from above.

  • Page 13: Ventilation & Efficiency

    Ventilation & Efficiency Ventilation EcoSmart Fires do not require any form of permanent fixture or fitting, Model Minimum room size such as a flue for ventilation, a permanent connection or any kind of fixed utility for fuel supply. ] per burner. The room cannot be less than 70m [2472ft Do not cover any existing ventilation systems or structures that are...

  • Page 14: Ventilation & Efficiency

    1.7 kW When used indoors. Thermal Efficiency: All EcoSmart Fire Burners have a Thermal Efficiency of over 90%. NOTE: These values are indicative only and may vary depending on the model purchased and installation and the country where the e-NRG Bioethanol is sourced.

  • Page 15: How To Operate The Burner

    Call - (888) 670 ENRG spillage (you may need to decant multiple bottles Or contact your local EcoSmart Fire distributor. depending on the packaging volume purchased). If spillage occurs, clean thoroughly before proceeding. (Refer to Troubleshooting on e-NRG Bioethanol is classified as a Dangerous Goods Flammable Liquid page 20).

  • Page 16: Decanting Your E-Nrg Bioethanol From The

    ENGLISH How to Operate the Burner Decanting your e-NRG Bioethanol from the Jerry Can AB8 & AB3: into the Burner To fill the AB Series, position the Jerry Can spout in the middle of WARNING: Fire hazard. Be sure Burner is cool before filling. Let stand the burner mouth.

  • Page 17: Lighting The Burner

    Only use the lighting rod supplied with your EcoSmart Fire to avoid hand burns. Check the slider is free from obstruction and operating smoothly. (Refer to Troubleshooting section on page 20 if difficulties are experienced).

  • Page 18: Turning Your Burner Off - Extinguishing The Flame

    ENGLISH How to Operate the Burner Turning your Burner OFF Re-igniting the Burner - Extinguishing the Flame WARNING! • NEVER LEAVE A FIRE UNGUARDED. 1. Let it burn until the fuel is consumed. The flame will extinguish when no fuel is left. •...

  • Page 19: Regular Safety Checks

    Like all fire and fireplace systems, it’s important to run through regular safety checks. Please take the time to familiarise yourself (and any other users) with the safety procedures associated with using your EcoSmart Fire. e-NRG bioethanol is the ONLY fuel suitable for use in this appliance.

  • Page 20: Caring For Your Ecosmart Fire

    ENGLISH Caring for your EcoSmart Fire Maintenance and cleaning must only be performed when the Cleaning the Firebox Burner is OFF, COMPLETELY EMPTY & DRY and at ROOM TEMPERATURE. As the stainless steel is exposed to flame and heat for a long period of time, its colour will eventually change.

  • Page 21: Troubleshooting

    Troubleshooting 1. There is smoke or a foreign smell coming from the Burner when 5. I have spilt some fuel, what do I do before lighting? burning Remove all ignition sources. Keep people away from the area. Wipe a. There may be waste burning that should not be in the Burner. up spilt liquid thoroughly using a dry cloth, wipe again with a cloth b.

  • Page 22: Your Warranty

    2. Instruct you how to use the Fire. INCLUDING RAW, LINISHED AND is found to be defective. B. Repairs when the EcoSmart Fire has been used in other than POWDER COATED. normal domestic/commercial use or when not used in accordance ONE YEAR WARRANTY FROM with the Installation, Operating and Maintenance Manual.

  • Page 23: After Sales Service

    After Sales Service It is our aim for you to be totally satisfied with your EcoSmart Fire product. NOTICE: If you need service or assistance, we suggest you follow these steps. After Sales Service for your EcoSmart Fire The Fire Company Pty Ltd offers an international network of authorised service agents.
  • Page 24 Showrooms 3 & 4, 40-42 O’Riordan Street Alexandria NSW 2015 Australia Tel: +61 2 9997 3050 Email: info@ecosmartfire.com ENG REV090614...
