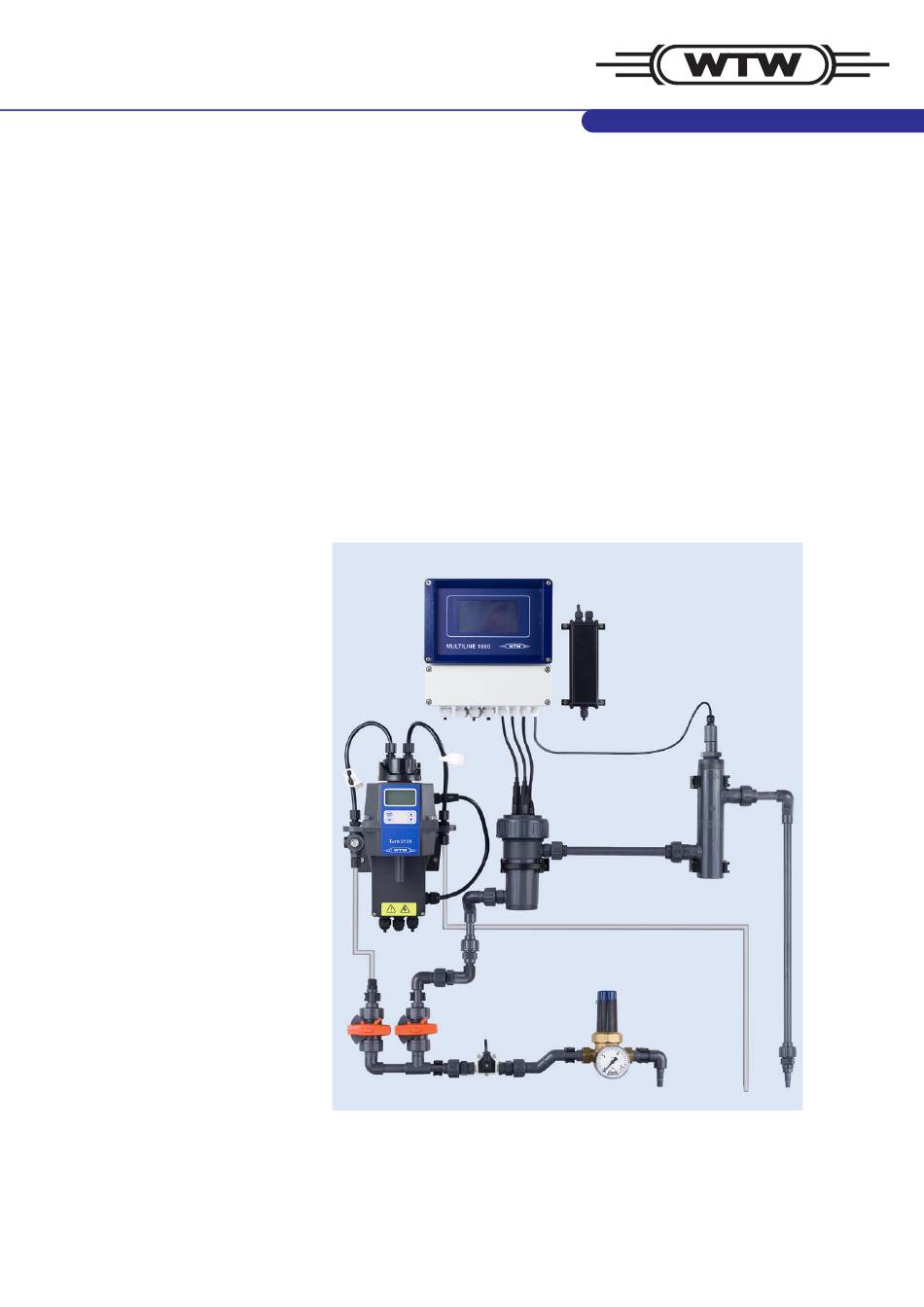

- Page 1 Operating manual MULTILINE 1000 Drinking water panel Modular multiparameter measuring system ba75708e02 12/2009...
- Page 2 The latest version of the present operating manual can be found on the Internet under www.WTW.com. © Copyright Weilheim 2009, WTW GmbH Reprinting - even as excerpts - is only allowed with the explicit written authorization of WTW GmbH, Weilheim. Printed in Germany.
-
Page 3: Table Of Contents
Typical configurations of the drinking water panel MULTILINE 1000 ......7 Safety instructions ......11 User qualification . - Page 4 Contents MULTILINE 1000 Drinking water panel ba75708e02 12/2009...
-
Page 5: Overview
Structure of the operating manual MULTILINE 1000 The MULTILINE 1000 operating manual has a modular structure like the MULTILINE 1000 system itself. It consists of this system operating manual and the operating manuals of all the components used. The space in the ring binder behind the system operating manual is intended for filing the component operating manuals. -
Page 6: The Multiline 1000 Drinking Water Panel
The basic functional units of the MULTILINE 1000 drinking water panel: Basic equipment: Wall mounting panel Multiparameter measuring transmitter MULTILINE 1000 Flow through armature D222/3 with receptacle for three sensors (pH, ORP, conductivity incl. -
Page 7: Typical Configurations Of The Drinking Water Panel
MULTILINE 1000 Drinking water panel Overview 1.2.2 Typical configurations of the drinking water panel MULTILINE 1000 Basic equipment Fig. 1-2 Basic equipment of the drinking water panel MULTILINE 1000 ba75708e02 12/2009... - Page 8 Overview MULTILINE 1000 Drinking water panel Basic equipment with flow measurement Fig. 1-3 Basic equipment of the drinking water panel MULTILINE 1000 with flow measurement ba75708e02 12/2009...
- Page 9 MULTILINE 1000 Drinking water panel Overview Basic equipment with flow measurement and chlorine measurement Fig. 1-4 Basic equipment of the drinking water panel MULTILINE 1000 with flow measurement and chlorine measurement (amperometric) ba75708e02 12/2009...
- Page 10 Overview MULTILINE 1000 Drinking water panel Basic equipment with flow measurement, chlorine measurement and turbidity measurement Fig. 1-5 Basic equipment of the drinking water panel MULTILINE 1000 with flow measurement, chlorine measurement (amperometric) and turbidity measurement ba75708e02 12/2009...
-
Page 11: Safety Instructions
This operating manual contains essential instructions that must be followed during the commissioning, operation and maintenance of the MULTILINE 1000 drinking water panel. Thus, it is essential for the operator to read this component operating manual before carrying out any work with the system. -
Page 12: Authorized Use
The following installation activities may only be performed by a qualifications qualified electrician: Connection of the drinking water panel MULTILINE 1000 to the power line. Connection of external, line voltage-carrying circuits to relay contacts (see operating manual of the measuring transmitter MULTILINE 1000). - Page 13 If you are in any doubt, contact the supplier of your MULTILINE 1000 drinking water panel. Obligations of the The operator of the MULTILINE 1000 drinking water panel must ensure...
- Page 14 Safety instructions MULTILINE 1000 Drinking water panel ba75708e02 12/2009...
-
Page 15: Installation
D-Cl) Flow through turbidity meter (Turb 2000 series) The relevant operating manuals Note Illustrations of the MULTILINE 1000 drinking water panel with some typical equipment variants are given in chapter 1 O VERVIEW ba75708e02... -
Page 16: Basics For Installation
Note How to connect the MULTILINE 1000 drinking water panel to the power supply is described in the operating manual of the measuring transmitter MULTILINE 1000. Note... -
Page 17: Connecting The Inlet And Outlet
Connect the outlet to an open channel flow such as a Ø 40 mm PVC pipe funnel. Caution The outlet of the drinking water panel MULTILINE 1000 may only be connected to an open channel flow, virtually pressureless. A water column of max. 0.5 m relating to the lid of the pH flow through armature may be applied. -
Page 18: Commissioning The System
To commission the system proceed as follows: Wait for the system to be powered up. Make the necessary settings on the touch screen of the MULTILINE 1000 measuring transmitter (see relevant operating manual). Provide the sample flow (sample flow, see... -
Page 19: Maintenance And Cleaning
MULTILINE 1000 Drinking water panel Maintenance and cleaning Maintenance and cleaning Maintenance Maintenance activities Component Maintenance Measuring cells / combination Depending on the type of sensor electrodes / sensors (see the component operating manual of the sensor) Other components see component operating manual... - Page 20 Maintenance and cleaning MULTILINE 1000 Drinking water panel ba75708e02 12/2009...
-
Page 21: Technical Data
MULTILINE 1000 Drinking water panel Technical data Technical data Total system Wall mounting panel Dimensions (H x W x D) approx. 1000 x 750 x 13 mm Material PVC rigid foam, spumed, white Mounting Through four drillings in the panel, diameter 8.5 mm, clearings see Fig. -
Page 22: Components Of The Basic Equipment
Technical data MULTILINE 1000 Drinking water panel Components of the basic equipment Measuring transmitter see separate operating manual MULTILINE 1000 Calibration console Dimensions (H x W) 160 x 120 mm Cal/C Material PVC, white Flow through armature Material D 222/3... - Page 23 MULTILINE 1000 Drinking water panel Technical data Pressure regulator Material Brass, plastic, stainless steel Pr-DN15 Sealing and membrane material Working temperature max. 40 °C Primary pressure max. 25 bar Back pressure max. 6 bar Minimum drop of 1 bar pressure...
- Page 24 Technical data MULTILINE 1000 Drinking water panel Dosage ball valve Housing material PVC-U Do-DN10 Ball sealing material PTFE Pressure max. 10 bar Figure ba75708e02 12/2009...
-
Page 25: Accessories, Maintenance Equipment And Replacement
ORP buffer solution, pH 7, RH 28 109 740 UH=427mV (CH), 250 mL (Buffer solutions in larger trading units are listed in the WTW catalog or on the Internet) Accessory kit for chlorine measuring ZBK-FCML 412 205 247 cell FCML 412, including 1 spare... - Page 26 Note More accessories and meters for the referencing of the measured values provided by the drinking water panel MULTILINE 1000 are given in the WTW catalog or on the Internet under www.WTW.com. Laboratory and portable photometers are also listed there and the photometric test sets suitable for your application and photometer.
- Page 28 For more information on how Xylem can help you, go to xyleminc.com. ® Service address: Xylem Analytics Germany Sales GmbH & Co. KG Dr.-Karl-Slevogt-Str. 1 82362 Weilheim Germany Tel.: +49 881 183-325 Fax: +49 881 183-414 E-Mail wtw.rma@xyleminc.com Internet: www.WTW.com Xylem Analytics Germany GmbH Dr.-Karl-Slevogt-Str. 1 82362 Weilheim Germany...
