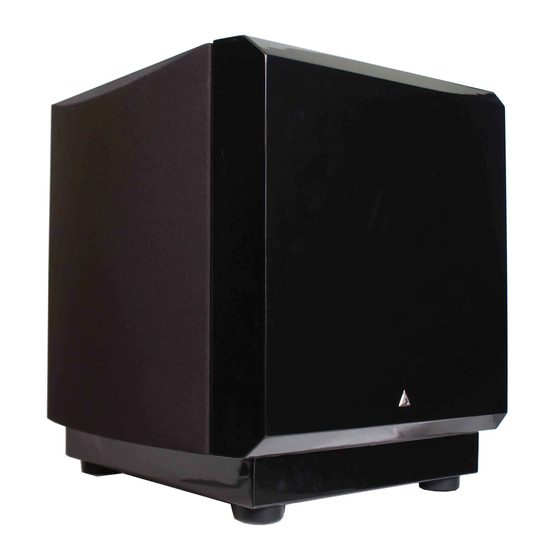

- Page 1 Model SBT-1000 & SBT-500 High Performance Powered Subwoofers...
-
Page 2: Table Of Contents
The serial number is found on the back panel. Copyright © 2018 Atlantic Technology International. Specifications are those in effect at the time of printing. Atlantic Technology reserves the right to change specifications or designs at any time without notice. Dolby Digital,... - Page 3 SBT-1000 & SBT-500 Powered Subwoofers Model SBT-1000 & SBT-500 High Performance Powered Subwoofers Congratulations on your purchase of an Atlantic Technology powered subwoofer. A well designed subwoofer, properly integrated into your system, will enhance your listening pleasure dramatically by pro- viding the bass foundation upon which most music and special effects are built.
- Page 4 SBT-1000 & SBT-500 Powered Subwoofers Subwoofer Rear Panels Crossover Lowpass Standby Frequency XLR Inputs Phase Volume Line In Max Spl Normal Normal Max Range Bypass Invert Auto SBT-1000 SBT-1000 Power Input Input Voltage Made In China 110-120V Use fuse T12AL-250V 110-120VAC~60Hz 220-240V Use fuse T6.3AL-250V 220-240VAC~50Hz...
-
Page 5: Features
If you hear distortion and extended deep bass output. increased bass output in one position, leave the switch in As with all Atlantic Technology subwoofers, we have that position. paid close attention to providing accurate musical bass ·... -
Page 6: Connecting Your Subwoofer
SBT-1000 & SBT-500 Powered Subwoofers Connecting Your Subwoofer Subwoofer Line Out to Low Level In Use the low-level (RCA jack) subwoofer line out of Run an RCA cable from your receiver’s Sub Out jack your surround sound receiver/processor. Simply to either the L (... - Page 7 SBT-1000 & SBT-500 Powered Subwoofers Monaural Connection Low Level Subwoofer Connection Sub Out/LFE SBT-1000 input shown SBT-500 is similar XLR INPUTS Left Right...
- Page 8 SBT-1000 & SBT-500 Powered Subwoofers Stereo Connection Sub Out/LFE Sub Out/LFE SBT-1000 input shown SBT-500 is similar XLR INPUTS Left Right...
-
Page 9: Placement And Operation
SBT-1000 & SBT-500 Powered Subwoofers Placement and Operation Subwoofer Tuning Without Aides (SPL Meter or Test Tones) Generally speaking, the best location for your new subwoofer Start your listening with the subwoofer Lowpass control set at is the front of the room, close to a corner (see diagram below). -
Page 10: Using The Subwoofer Lowpass Control
(Small) or full range (Large) mode. When using lites has been optimized to work with approximately an 80Hz a subwoofer with Atlantic Technology speakers we recommend setting such a controller to the Small position for all the speakers crossover point. -
Page 11: Troubleshooting Guide
Once your subwoofer is set up, you should have many years of maintenance-free enjoyment from your system. However, if you should encounter a problem, refer to the following guide to help you find the solution. If a problem persists, you should contact your local authorized Atlantic Technology dealer. Problem... - Page 12 343 Vanderbilt Avenue Norwood, MA 02062 (781) 762-6300 www.atlantictechnology.com...
