Summary of Contents for Wohler VIS 200

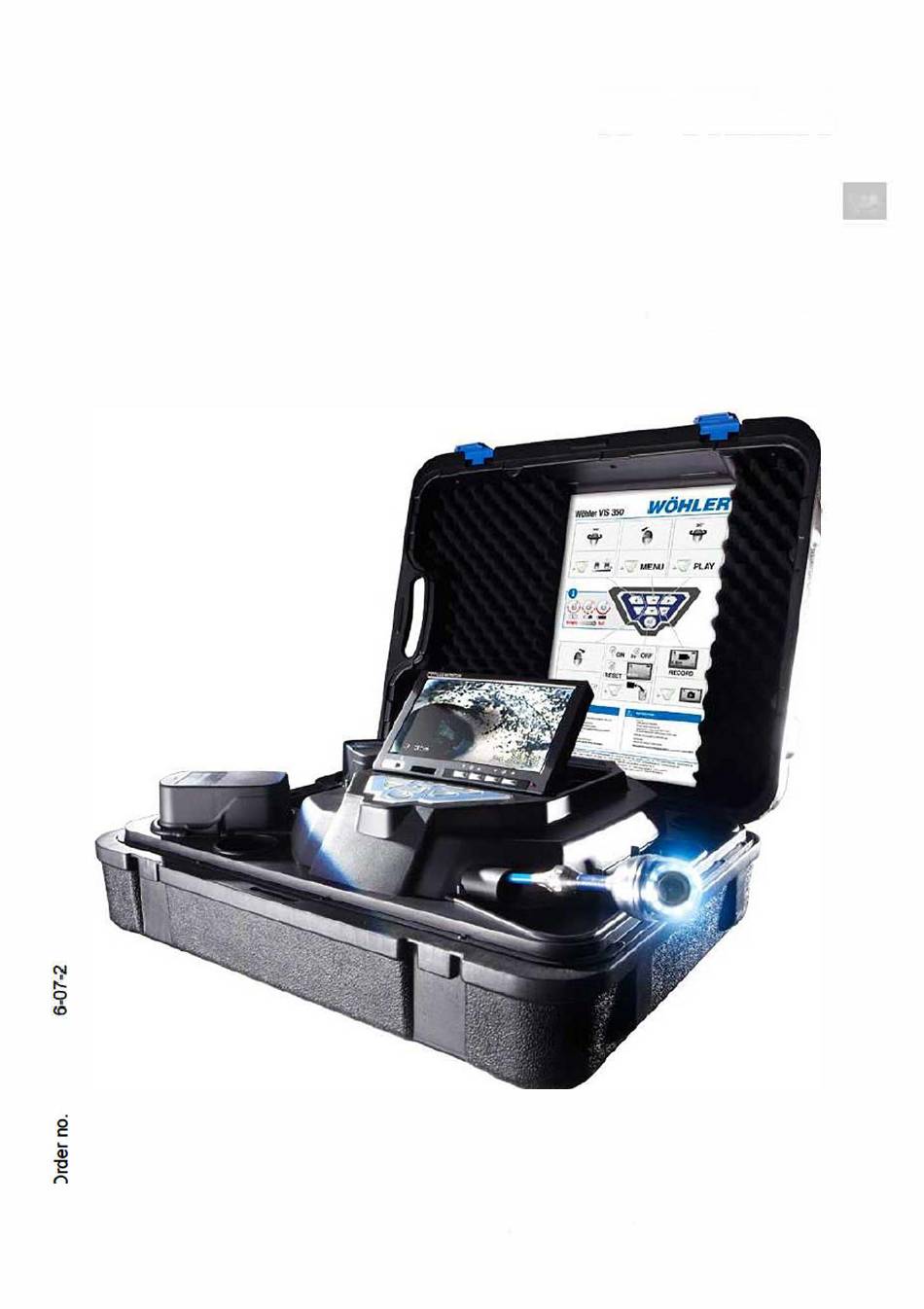

- Page 1 •• WOHLER Operating manual Service Camera Wohler VIS 200 / 250 Wohler VIS 300 / 350 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com...
- Page 4 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com...
-
Page 7: Information On Disposal
Manufacturer's address Wohler Technik GmbH Schi.itzenstr. 41 33181 Bad Wi.innenberg Tel.: +49 2953 73-100 Fax: +49 2953 73-96100 Email: info@woehler.com... -
Page 10: Camera Models
Camera Models Camera Models Different camera models Wohler VIS can be acquired. The difference between the mod els described in this version are as follows: VIS 200 VIS 350 VIS 300 VIS 250 Camera head 01 ½" 01 ½" 01 "... - Page 13 1.5" Maximum Deviation 1 0 % of reading Memory Description Details (Wohler VIS 250 / 350) Memory card If you are using a memory card other than the one included in the scope of supply, you must format it first before you can use it Max.
- Page 16 Fig 7. Control Panel Wohler VIS 200 VIS 300 Control Panel Wohler VIS 3 - 0 0 with ON/OFF-key and control keys for the pan and tilt camera head Fig 8. Control Panel Wohler VIS 300 Wohler VIS 250 / 350...
- Page 17 Design and function The keys on the control panel have the following functions: Wohler VIS 200/250/300/350 ON/OFF key turns the whole camera system on/off (monitor and camera head). NOTE! � The ON/OFF key is framed by green light when the system is switched on and the battery is charged.
-
Page 19: Delete Key
It is also possible to do individual settings which have influence of the video q uali ty in the menu of the Wohler VIS 350NIS 350 , see section 9.2. Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176... - Page 22 Making settings via the camera menu your settings will be saved automatically when you exit the menu. The user can select the following parameter set tings: 7.1.1 SETUP-Meno Video Setting 1 - 3 The user can switch between 3 pre-defined video settings.
-
Page 25: Video Menu
Making settings via the camera menu 7.1.3 VIDEO MENU The VIDEO menu will only be active, if the camera heads 0 40 mm and 26 mm are used. In the video menu the user can define the video settings. These settings will be stored as video settings 3. - Page 29 Getting started Rechargeable battery status in- When the camera is switched on, the battery sta- dicator tus indicator displays the charge status of the rechargeable battery in the top right corner of the display. The indicator flashes when the charge level of the batteries is low.
- Page 33 Loe OFF/ON This command allows the user to switch the transmitter integrated in the camera head on and off. The Wohler L 200 Locator is able to locate the camera head with the aid of signals transmitted by the transmitter.
- Page 34 Test Equipment Depot - 800.517.8431 - 99 Wa TestEquipmentDep...
- Page 36 The time and date are displayed in the bottom right corner. The recorded time is displayed when the video is played back. Home Function (only Wohler VIS 350) The home function ensures the camera head is automatically aligned to a straight position, ensur...
- Page 39 Transferring images and videos to a PC (Wohler VIS 250/350) Transferring images and videos to a PC (Wohler VIS 250/350) Two options are available to transfer image files (.jpg) and video files (ASF): • Read in the files on a PC from the SD memory card.
-
Page 42: Guide Accessories
Guide accessories Guide accessories This section contains some recommendations based on our experience about the se lection of guide accessories for the inspection in tubes and ducts. As all pipes and chimney systems are different, the user has to decide about the guide accessory in every single case. - Page 45 Wohler VIS Centering Brush Extension Order No. 3853 J Camera Roller Guide Order No. 3681 J Wohler Protection Sleeve for camera head 0 40 mm Order No. 2641 J Wohler Guidance Weight 740 g, stainless steel Order No. 3857 J Wohler Guidance Ball Order No.
