Wohler VE 200 Operating Manual

Video endoscope
Hide thumbs Also See for VE 200:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual
Operating manual
Video Endoscope
Wöhler VE 200
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VE 200 and is the answer not in the manual?

Questions and answers

Related Manuals for Wohler VE 200

Summary of Contents for Wohler VE 200

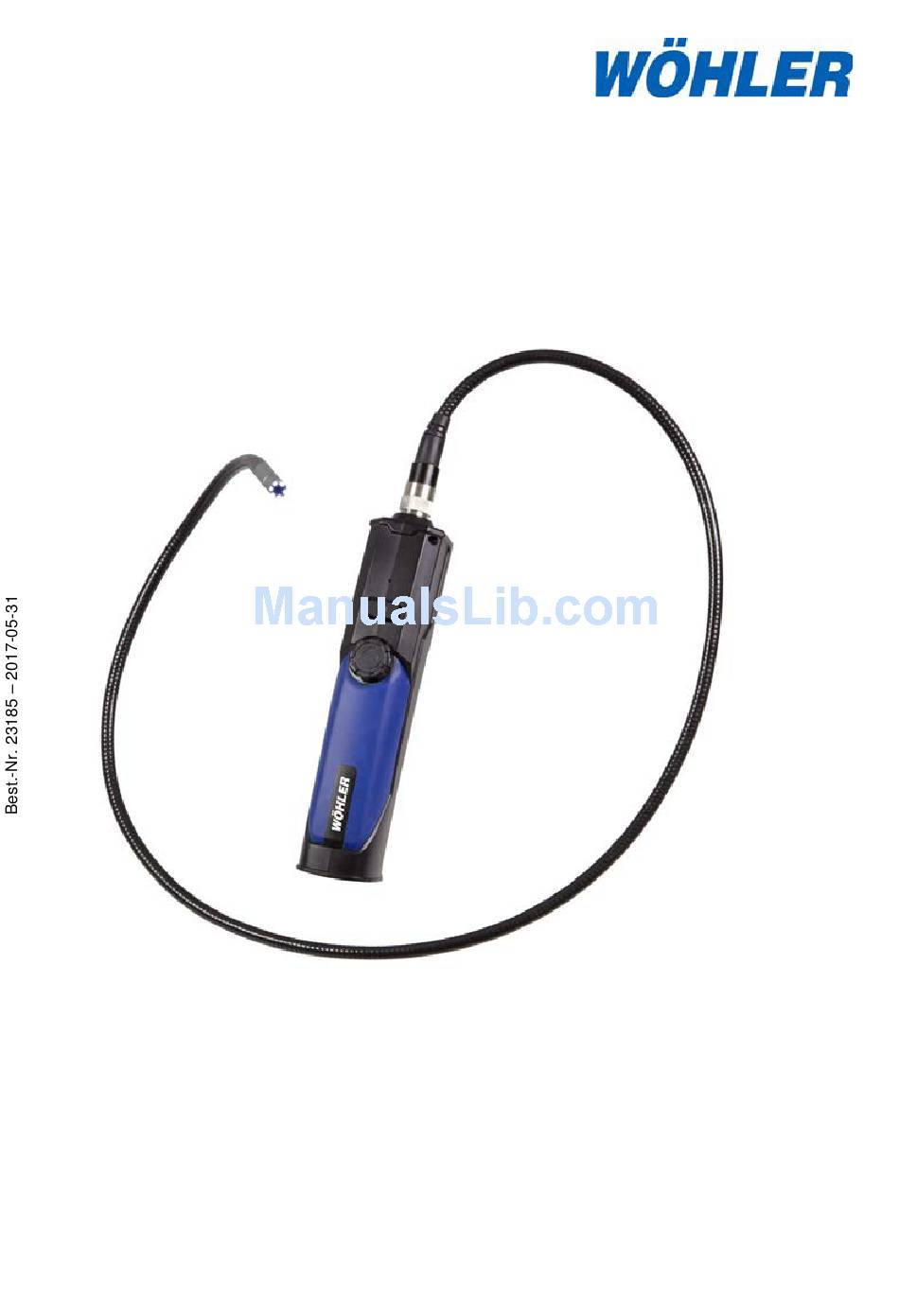

  • Page 1 Operating manual Video Endoscope Wöhler VE 200...

  • Page 2: Table Of Contents

    Contents General Information ......3 Operation Manual Information ....... 3 Notes ............. 3 Intended Use ..........3 Scope of supply ..........3 Storage and transport........3 Information on disposal ......... 4 Direction ............4 Technical Data ........5 Component explanation ....... 6 Components ..........

  • Page 3: General Information

    NOTE! Useful information Intended Use The Wöhler VE 200 Video Endoscope is used for the inspection of small cavities from Ø 20 mm on. The Wöhler VE 200 transfers the images by WLAN to a Laptop, tablet PC or a smartphone.

  • Page 4: Information On Disposal

    Always transport the Video Endoscope in the pro- vided carrying case in order to prevent damage. ATTENTION! When rolling up the probe, take care that the di- ameter is not smaller than the diameter of the probe section in the case. Information on disposal Electronic equipment does not belong into domes- tic waste, but must be disposed in accordance...

  • Page 5: Technical Data

    Technical Data Description Data WLAN Network Standard IEEE 802.11 b/g/n Antenna Built-in IPEX antenna Operating 2.4 GHz Frequency Data Rate up to 150 Mb per sec- (802.11 a/b/g/n) Camera head 8,5 mm Ø Resolution 2,0 Mega pixel CMOS Depth of Field 60 mm to 100 mm Resolution 800x600 pixel...

  • Page 6: Component Explanation

    Component explanation Components Fig. 1: Components, side view Explanation Camera probe Camera head Flash Light ON/OFF Flash Light Battery compartment Union nut...
  • Page 7 Support for smartphone or iPhone Reset hole ON/OFF-key 10 LED Adjust Wheel Fig. 2: Components, Front view...

  • Page 8: Inspection

    • On/Off-key Press the ON/OFF key to switch the Video Endoscope on and off. When the Wöhler VE 200 is switched on, the ON/OFF LED will shine blue. If the battery voltage is low, the ON/OFF LED will shine red.

  • Page 9: Functions

    Functions Fig. 4: Wifi devices that can be used with the Wöhler VE 200. The Wöhler VE 200 Video Endoscope has a powerful wireless module that provides a stable wifi connection to iPhones, iPads, Android Smartphones and PCs. Photos are...

  • Page 10: Transferring Images To An Android Smartphone, Iphone Or Ipad

    Installing the App on an Android Device • Search "VE 200 Wifi Endoscope" in the Google Play market or in the iTunes Store and install the app. Fig. 5: Icon of the "VE 200 Wifi Endo- scope" App • Switch on the Wöhler VE 200. •...
  • Page 11 • Select Wifi Endoscope. Fig. 6: Installation of the application The video of the Wöhler VE 200 is displayed on the smartphone. • Press the photo icon to save a photo as a jpg on your smartphone. The message "save succeed" will be displayed.

  • Page 12: Installing The App On Iphone Or Ipad

    Install the app „Wifi Endoscope“ on your IPh- one or IPad. • The WiFi Endoscope Icon will appear in the display. • Switch on the Wöhler VE 200 ein. • In the display of your mobile device tap on the settings icon. • Tap on WiFI WLAN.

  • Page 13: Settings

    • Run the software and click on "settings". • Click on Device and select IP Camera: Wifi Endoscope. The video is displayed now. Fig. 8: Connect the video endoscope to the PC. Settings • Click on Settings to make some adjustments. Change between full Select the video screen and normal screen...

  • Page 14: Take Photos

    Take photos • Click on Photos. • To store a photo, click on Take Photo. The image will be stored under the chosen direc- tory. The images will be shown as an Icon at the bot- tom of the screen. •...

  • Page 15: Changing The Batteries

    • Changing the Change the batteries, when the LED of the ON/OFF button shines red. batteries • Open the battery compartment • Insert 4 new AA batteries 1,5 V. Observe the right polarity. Fig. 12: Changing the batteries Troubleshooting Problem Solution No image Check whether the probe is connected to the handle body...

  • Page 16: Warranty And Service

    If used properly, the warranty period for the Wöh- ler VE 200 will be twelve month from the date of sale. Batteries are not covered by this warranty. This warranty does not cover the freight and pack- ing costs when the device is sent to the factory for repair.
