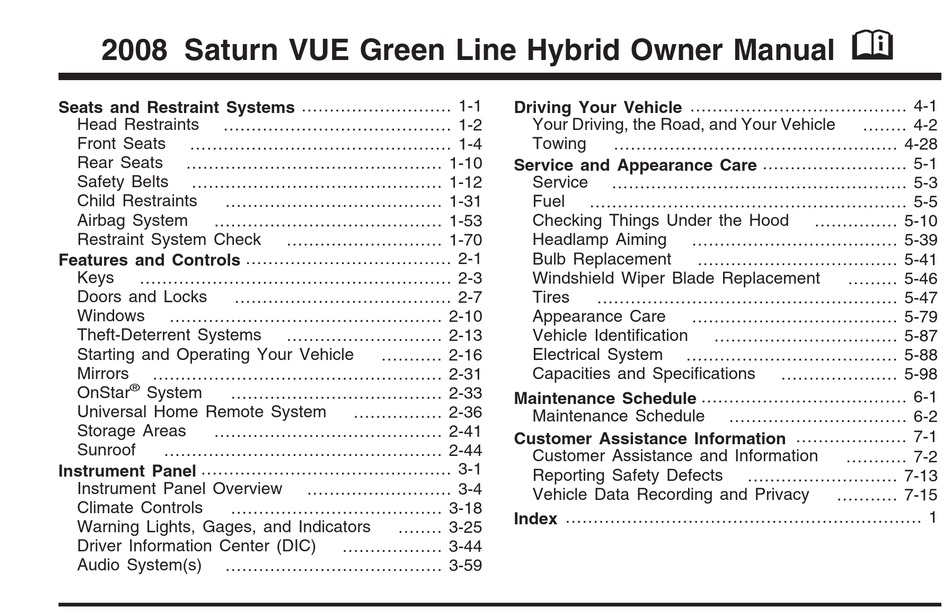

2008 Saturn VUE Green Line Hybrid Owner Manual

Seats and Restraint Systems ........................... 1-1

Head Restraints

......................................... 1-2

Front Seats

............................................... 1-4

Rear Seats

.............................................. 1-10

Safety Belts

............................................. 1-12

Child Restraints

....................................... 1-31

Airbag System

......................................... 1-53

Restraint System Check

Features and Controls ..................................... 2-1

Keys

........................................................ 2-3

Doors and Locks

....................................... 2-7

Windows

................................................. 2-10

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

.................................................... 2-31

®

OnStar

System

...................................... 2-33

Universal Home Remote System

Storage Areas

......................................... 2-41

Sunroof

.................................................. 2-44

Instrument Panel ............................................. 3-1

Instrument Panel Overview

Climate Controls

...................................... 3-18

Warning Lights, Gages, and Indicators

Driver Information Center (DIC)

Audio System(s)

....................................... 3-59

............................ 1-70

............................ 2-13

........... 2-16

................ 2-36

.......................... 3-4

........ 3-25

.................. 3-44

Driving Your Vehicle ....................................... 4-1

Your Driving, the Road, and Your Vehicle

Towing

................................................... 4-28

Service and Appearance Care .......................... 5-1

Service

..................................................... 5-3

Fuel

......................................................... 5-5

Checking Things Under the Hood

Headlamp Aiming

..................................... 5-39

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

...................................................... 5-47

Appearance Care

..................................... 5-79

Vehicle Identiﬁcation

Electrical System

...................................... 5-88

Capacities and Speciﬁcations

Maintenance Schedule ..................................... 6-1

Maintenance Schedule

Customer Assistance Information .................... 7-1

Customer Assistance and Information

Reporting Safety Defects

Vehicle Data Recording and Privacy

Index ................................................................ 1

M

........ 4-2

............... 5-10

.................................... 5-41

......... 5-46

................................. 5-87

..................... 5-98

................................ 6-2

........... 7-2

........................... 7-13

........... 7-15

Table of Contents

Advertisement

Chapters

Table of Contents

Need help?

Need help?

Do you have a question about the 2008 VUE Green Line Hybrid and is the answer not in the manual?

Questions and answers

Summary of Contents for Saturn 2008 VUE Green Line Hybrid

Page 1 2008 Saturn VUE Green Line Hybrid Owner Manual Seats and Restraint Systems ... 1-1 Head Restraints ... 1-2 Front Seats ... 1-4 Rear Seats ... 1-10 Safety Belts ... 1-12 Child Restraints ... 1-31 Airbag System ... 1-53 Restraint System Check ...
Page 2: Canadian Owners
GENERAL MOTORS and GM are registered trademarks of General Motors Corporation. This manual includes the latest information at the time it was printed. Saturn reserves the right to make changes after that time without further notice. This manual describes features that may or may not be on your speciﬁc vehicle.
Page 3: Using This Manual
About Driving Your Vehicle As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of control or an accident. Be sure to read the “on-pavement” and “off-road” driving guidelines in this manual. See Driving Your Vehicle on page 4-2. Using this Manual Read this owner manual from beginning to end to learn about the vehicle’s features and controls.
Page 4: Vehicle Symbols
Vehicle Damage Warnings Notices are also used in this manual. Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by the vehicle’s warranty, and it could be costly. The notice tells what to do to help avoid the damage.
Page 5: Table Of Contents
Section 1 Head Restraints ...1-2 Front Seats ...1-4 Manual Seats ...1-4 Seat Height Adjuster ...1-5 Power Seat ...1-5 Manual Lumbar ...1-6 Heated Seats ...1-6 Manual Reclining Seatbacks ...1-7 Passenger Folding Seatback ...1-9 Rear Seats ...1-10 Split Folding Rear Seat ...1-10 Safety Belts ...1-12 Safety Belts: They Are for Everyone ...1-12 How to Wear Safety Belts Properly ...1-17...
Page 6: Head Restraints
Head Restraints The vehicle’s front and rear seats have adjustable head restraints in the outboard seating positions. CAUTION: With head restraints that are not installed and adjusted properly, there is a greater chance that occupants will suffer a neck/spinal injury in a crash. Do not drive until the head restraints for all occupants are installed and adjusted properly.
Page 7 Pull the head restraint Push down on the head restraint after the button is up to raise it. To lower released to make sure that it is locked in place. the head restraint, The vehicle’s head restraints are not designed to press the button, be removed.
Page 8: Manual Seats
Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 9: Seat Height Adjuster
Seat Height Adjuster If your vehicle has a manual driver seat height adjuster, it is located on the outboard side of the seat near the front of the seat cushion. To raise the seat, move the lever upward repeatedly until the seat is at the desired height. To lower the seat, move the lever downward repeatedly until the seat is at the desired height.
Page 10: Manual Lumbar
Manual Lumbar If your vehicle has this feature, the knob is located on the inboard side of the driver’s seatback. Turn the knob clockwise or counterclockwise to increase or decrease the lumbar support. Heated Seats On vehicles with heated front seats the controls are located on the center console.
Page 11: Manual Reclining Seatbacks
Manual Reclining Seatbacks CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to. Adjust the driver’s seat only when the vehicle is not moving.
Page 12 CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job because it will not be against your body.
Page 13: Passenger Folding Seatback
Passenger Folding Seatback CAUTION: If you fold the seatback forward to carry longer objects, such as skis, be sure any such cargo is not near an airbag. In a crash, an inﬂating airbag might force that object toward a person. This could cause severe injury or even death.
Page 14: Rear Seats Split Folding Rear Seat
4. Continue to fold the seat forward until it locks in the folded position. 5. Pull up on the seatback to be sure it is locked. To raise the seatback, do the following: 1. Lift up fully on the recliner lever, located on the outboard side of the seat, and push up on the seatback.
Page 15 CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked. CAUTION: A safety belt that is improperly routed, not properly attached, or twisted will not provide the protection needed in a crash.
Page 16: Safety Belts: They Are For Everyone
Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where he or she cannot wear a safety belt properly.
Page 17: Why Safety Belts Work
Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. Put someone on it. Take the simplest vehicle. Suppose it is just a seat on wheels. 1-13...
Page 18 Get it up to speed. Then stop the vehicle. The rider does not stop. 1-14 The person keeps going until stopped by something. In a real vehicle, it could be the windshield...
Page 19 or the instrument panel... or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. 1-15...
Page 20: Questions And Answers About Safety Belts
Questions and Answers About Safety Belts Will I be trapped in the vehicle after a crash if I am wearing a safety belt? You could be — whether you are wearing a safety belt or not. But your chance of being conscious during and after an accident, so you can unbuckle and get out, is much greater if you are belted.
Page 21: How To Wear Safety Belts Properly
How to Wear Safety Belts Properly This section is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see Older Children on page 1-31 or Infants and Young Children on page 1-34.
Page 22 What is wrong with this? The shoulder belt is too loose. It will not give as much protection this way. 1-18 CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 23 What is wrong with this? The lap belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force on your abdomen.
Page 24 What is wrong with this? The belt is buckled in the wrong place. 1-20 CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not on the pelvic bones.
Page 25 What is wrong with this? The belt is over an armrest. CAUTION: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt.
Page 26 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. 1-22 CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 27 What is wrong with this? The belt is behind the body. CAUTION: You can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, you would not be restrained by the shoulder belt. Your body could move too far forward increasing the chance of head and neck injury.
Page 28 What is wrong with this? The belt is twisted across the body. 1-24 CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer/retailer to ﬁx it.
Page 29: Lap-Shoulder Belt
Lap-Shoulder Belt All seating positions in your vehicle have a lap-shoulder belt. Here is how to wear a lap-shoulder belt properly. 1. Adjust the seat, if the seat is adjustable, so you can sit up straight. To see how, see “Seats” in the Index.
Page 30 5. To make the lap part tight, pull up on the shoulder belt. It may be necessary to pull stitching on the safety belt through the latch plate to fully tighten the lap belt on smaller occupants. 1-26 To unlatch the belt, just push the button on the buckle. The belt should go back out of the way.
Page 31: Shoulder Belt Height Adjuster
Shoulder Belt Height Adjuster Your vehicle has a shoulder belt height adjuster for the driver and right front passenger. Adjust the height so that the shoulder portion of the belt is centered on your shoulder. The belt should be away from your face and neck, but not falling off your shoulder.
Page 32: Rear Safety Belt Comfort Guides
Rear Safety Belt Comfort Guides Rear shoulder belt comfort guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults. When installed on a shoulder belt, the comfort guide positions the belt away from the neck and head.
Page 33 CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.
Page 34: Safety Belt Use During Pregnancy
Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 35: Child Restraints
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. The manufacturer’s instructions that come with the booster seat state the weight and height limitations for that booster. Use a booster seat with a lap-shoulder belt until the child passes the below ﬁt test: •...
Page 36 What is the proper way to wear safety belts? An older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should ﬁt snugly below the hips, just touching the top of the thighs.
Page 37 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. In a crash, the child would not be restrained by the shoulder belt. The child might slide under the lap belt. The belt force would then be applied right on the abdomen.
Page 38: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 39 CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. CAUTION: (Continued) CAUTION: (Continued) Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 40 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 41: Child Restraint Systems
CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
Page 42 A booster seat (C-D) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. A booster seat can also help a child to see out the window. 1-38 Securing an Add-On Child Restraint in the Vehicle CAUTION: A child can be seriously injured or killed in a crash if the child restraint is not properly...
Page 43: Securing The Child Within The Child Restraint
To help reduce the chance of injury, the child restraint must be secured in the vehicle. Child restraint systems must be secured in vehicle seats by lap belts or the lap belt portion of a lap-shoulder belt, or by the LATCH system.
Page 44 A label on the sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys. CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inﬂates.
Page 45: Lower Anchors And Tethers For Children (Latch)
Lower Anchors and Tethers for Children (LATCH) The LATCH system holds a child restraint during driving or in a crash. This system is designed to make installation of a child restraint easier. The LATCH system uses anchors in the vehicle and attachments on the child restraint that are made for use with the LATCH system.
Page 46: Top Tether Anchor
Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle. A top tether anchor is built into the vehicle. The top tether attachment (B) on the child restraint connects to the top tether anchor in the vehicle in order to reduce the forward movement and rotation of the child restraint during driving or in a crash.
Page 47 To assist you in locating the lower anchors, each seating position with lower anchors has two labels, near the crease between the seatback and the seat cushion. To assist you in locating the top tether anchors, the top tether anchor symbol is located near the top tether anchors.
Page 48: Securing A Child Restraint Designed For The Latch System
Securing a Child Restraint Designed for the LATCH System CAUTION: If a LATCH-type child restraint is not attached to anchors, the restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed. Make sure that a LATCH-type child restraint is properly installed using the anchors, or use the vehicle’s safety belts to secure...
Page 49 CAUTION: Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck and the safety belt continues to tighten. Secure any unused safety belts behind the child restraint so children cannot reach them. Pull the shoulder belt all the way out of the retractor to set the lock, if your vehicle has one, after the child restraint has been installed.
Page 50 2. If the child restraint manufacturer recommends that the top tether be attached, attach and tighten the top tether to the top tether anchor, if equipped. Refer to the child restraint instructions and the following steps: 2.1. Find the top tether anchor. 2.2.
Page 51: Securing A Child Restraint In A Rear Seat Position
If the position you are using has an adjustable headrest or head restraint and you are using a single tether, raise the headrest or head restraint and route the tether under the headrest or head restraint and in between the headrest or head restraint posts.
Page 52 If you need to install more than one child restraint in the rear seat, be sure to read Where to Put the Restraint on page 1-39. 1. Put the child restraint on the seat. 2. Pick up the latch plate, and run the lap and shoulder portions of the vehicle’s safety belt through or around the restraint.
Page 53: Securing A Child Restraint In The Right Front Seat Position
5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt, and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 54 A label on your sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys. CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inﬂates.
Page 55 Do not secure a child seat in a position without a top tether anchor if a national or local law requires that the top tether be anchored, or if the instructions that come with the child restraint say that the top strap must be anchored.
Page 56 5. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 1-52 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
Page 57: Airbag System
If the airbag is off, the off indicator in the passenger airbag status indicator will come on and stay on when the vehicle is started. If a child restraint has been installed and the on indicator is lit, turn the vehicle off. Remove the child restraint from the vehicle and reinstall the child restraint.
Page 58 If your vehicle does not have a right front passenger seat, the frontal passenger airbag is disabled. The frontal passenger airbag is still in the vehicle, but it should not deploy in a crash. Even if the airbag is disabled, do not place cargo in front of this or any airbag.
Page 59 CAUTION: Frontal airbags are designed to deploy in moderate to severe frontal and near frontal crashes. They are not designed to inﬂate in rollover, rear crashes, or in many side crashes. Seat-mounted side impact airbags are designed to inﬂate in moderate to severe crashes where something hits the side of your vehicle.
Page 60: Where Are The Airbags
CAUTION: Airbags plus lap-shoulder belts offer the best protection for adults, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them. Young children and infants need the protection that a child restraint system can provide.
Page 61 The right front passenger’s frontal airbag is in the instrument panel on the passenger’s side. Driver Side shown, Passenger Side similar The seat-mounted side impact airbags for the driver and right front passenger are in the side of the seatbacks closest to the door.
Page 62 Driver Side shown, Passenger Side similar The roof-rail airbags for the driver, right front passenger, and second row outboard passengers are in the ceiling above the side windows. 1-58 CAUTION: If something is between an occupant and an airbag, the airbag might not inﬂate properly or it might force the object into that person causing severe injury or even death.
Page 63: When Should An Airbag Inﬂate
When Should an Airbag Inﬂate? Frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes to help reduce the potential for severe injuries mainly to the driver’s or right front passenger’s head and chest. However, they are only designed to inﬂate if the impact exceeds a predetermined deployment threshold.
Page 64 Frontal airbags are not intended to inﬂate during vehicle rollovers, rear impacts, or in many side impacts. In addition, your vehicle has dual-stage frontal airbags. Dual-stage airbags adjust the restraint according to crash severity. Your vehicle has electronic frontal sensors, which help the sensing system distinguish between a moderate frontal impact and a more severe frontal impact.
Page 65: What Makes An Airbag Inﬂate
What Makes an Airbag Inﬂate? In a deployment event, the sensing system sends an electrical signal triggering a release of gas from the inﬂator. Gas from the inﬂator ﬁlls the airbag causing the bag to break out of the cover and deploy. The inﬂator, the airbag, and related hardware are all part of the airbag module.
Page 66: What Will You See After An Airbag Inﬂates
What Will You See After an Airbag Inﬂates? After the frontal airbags and seat-mounted side impact airbags inﬂate, they quickly deﬂate, so quickly that some people may not even realize an airbag inﬂated. Roof-rail airbags may still be at least partially inﬂated for some time after they deploy.
Page 67: Passenger Sensing System
In many crashes severe enough to inﬂate the airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inﬂate only once. After an airbag inﬂates, you will need some new parts for the airbag system.
Page 68 The passenger sensing system works with sensors that are part of the right front passenger seat and safety belt. The sensors are designed to detect the presence of a properly-seated occupant and determine if the right front passenger frontal airbag should be enabled (may inﬂate) or not.
Page 69 If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, we recommend that rear-facing child restraints not be transported in your vehicle, even if the airbag is off. The passenger sensing system is designed to turn off the right front passenger frontal airbag if: •...
Page 70 When the passenger sensing system has allowed the airbag to be enabled, the on indicator will light and stay lit to remind you that the airbag is active. For some children who have outgrown child restraints and for very small adults, the passenger sensing system may or may not turn off the right front passenger frontal airbag, depending upon the person’s seating posture and body build.
Page 71 If you ever pull the shoulder portion of the belt out all the way, you will engage the child restraint locking feature. This may unintentionally cause the passenger sensing system to turn the airbag(s) off for some adult size occupants. If this happens, just let the belt go back all the way and start again.
Page 72: Servicing Your Airbag-Equipped Vehicle
Servicing Your Airbag-Equipped Vehicle Airbags affect how your vehicle should be serviced. There are parts of the airbag system in several places around your vehicle. Your dealer/retailer and the service manual have information about servicing your vehicle and the airbag system. To purchase a service manual, see Service Publications Ordering Information on page 7-14.
Page 73 In addition, your vehicle has a passenger sensing system for the right front passenger’s position, which includes sensors that are part of the passenger’s seat. The passenger sensing system may not operate properly if the original seat trim is replaced with non-GM covers, upholstery or trim, or with GM covers, upholstery or trim designed for a different vehicle.
Page 74: Restraint System Check
Restraint System Check Checking the Restraint Systems Safety Belts Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts.
Page 75: Replacing Restraint System Parts After A Crash
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.
Page 76 NOTES 1-72...
Page 77: Features And Controls
Section 2 Keys ...2-3 Remote Keyless Entry (RKE) System ...2-4 Remote Keyless Entry (RKE) System Operation ...2-5 Doors and Locks ...2-7 Door Locks ...2-7 Power Door Locks ...2-7 Delayed Locking ...2-7 Rear Door Security Locks ...2-8 Lockout Protection ...2-8 Liftgate ...2-9 Windows ...2-10 Power Windows ...2-11 Sun Visors ...2-12...
Page 78 Section 2 ® OnStar System ...2-33 Universal Home Remote System ...2-36 Universal Home Remote System Operation (With One Triangular LED) ...2-37 Storage Areas ...2-41 Glove Box ...2-41 Cupholders ...2-42 Instrument Panel Storage ...2-42 Features and Controls Sunglasses Storage Compartment ...2-42 Center Console Storage ...2-42 Rear Seat Armrest ...2-43 Convenience Net ...2-43...
Page 79: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function with the keys in the ignition and they could be seriously injured or killed if caught in the path of a closing...
Page 80: Remote Keyless Entry (Rke) System
Remote Keyless Entry (RKE) System If this vehicle has the Remote Keyless Entry (RKE) system, it operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
Page 81: Remote Keyless Entry (Rke) System Operation
Remote Keyless Entry (RKE) System Operation The vehicle’s doors can be locked and unlocked from about 3 feet (1 m) up to 65 feet (20 m) away with the Remote Keyless Entry (RKE) transmitter. There are other conditions which can affect the performance of the transmitter.
Page 82: Battery Replacement
Matching Transmitter(s) to Your Vehicle Each RKE transmitter is coded to prevent another transmitter from unlocking your vehicle. If a transmitter is lost or stolen, a replacement can be purchased through your dealer/retailer. All transmitters need to be re-coded to match the new transmitters. The lost transmitter will no longer work after the new transmitters are re-coded.
Page 83: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers, especially children, can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 84: Rear Door Security Locks
Rear Door Security Locks Your vehicle has rear door security locks to prevent passengers from opening the rear doors from the inside. Open the rear doors to access the security locks on the inside edge of each door. To set the locks, insert a key into the slot and turn it to the horizontal position.
Page 85: Liftgate
Liftgate CAUTION: It can be dangerous to drive with the liftgate or liftglass open because carbon monoxide (CO) gas can come into your vehicle. You cannot see or smell CO. It can cause unconsciousness and even death. If you must drive with the liftgate open or if electrical wiring or other cable connections must pass through the seal between the body and the liftgate or liftglass:...
Page 86: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 87: Power Windows
Power Windows CAUTION: Leaving children in a vehicle with the keys is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function and they could be seriously injured or killed if caught in the path of a closing window.
Page 88: Sun Visors
Express-Down Window The driver’s window switch has an express-down feature that allows the window to be lowered without holding the switch. Press the switch part way, and the driver’s window will open a small amount. Press the switch down all the way and release it and the window will go down automatically.
Page 89: Theft-Deterrent Systems
Theft-Deterrent Systems Vehicle theft is big business, especially in some cities. This vehicle has theft-deterrent features, however, they do not make it impossible to steal. Content Theft-Deterrent Your vehicle may have a content theft-deterrent alarm system. The security light is located near the center of the instrument panel.
Page 90: Testing The Alarm
Testing the Alarm To test the alarm: 1. From inside the vehicle, lower the driver’s window and open the driver’s door. 2. Get out of the vehicle, close the door and activate the system by locking the doors with the RKE transmitter.
Page 91: Pass-Key Iii+ Electronic Immobilizer Operation
® PASS-Key III+ Electronic Immobilizer Operation ® Your vehicle has PASS-Key III+ (Personalized Automotive Security System) theft-deterrent system. ® PASS-Key III+ is a passive theft-deterrent system. The system is automatically armed when the key is removed from the ignition. You do not have to manually arm or disarm the system. The security light will come on if there is a problem with arming or disarming the theft-deterrent system.
Page 92: Starting And Operating Your Vehicle
To program the new key: 1. Verify that the new key has a 2. Insert the already programmed key in the ignition and start the engine. If the engine will not start, see your dealer/retailer for service. 3. After the engine has started, turn the key to LOCK/OFF, and remove the key.
Page 93: Ignition Positions
Ignition Positions The ignition switch can be turned to four different positions with the key. To shift out of PARK (P), the ignition must be in ON/RUN and the brake pedal must be pressed. Notice: Using a tool to force the key from the ignition switch could cause damage or break the key.
Page 94: Key In The Ignition
Key In the Ignition Never leave your vehicle with the keys inside, as it is an easy target for joy riders or thieves. If you leave the key in the ignition and park your vehicle, a chime will sound, when you open the driver’s door. Always remember to remove your key from the ignition and take it with you.
Page 95: Starting Procedure
Starting Procedure 1. With your foot off the accelerator pedal, turn the ignition key to START. When the engine starts, let go of the key. The idle speed will go down as your engine gets warm. Do not race the engine immediately after starting it.
Page 96: Automatic Engine Start/Stop
Automatic Engine Start/Stop CAUTION: There is something about your vehicle that can make it move suddenly, and you or others can be seriously injured. This can happen if the vehicle is in the Auto Stop mode, and the shift lever is in DRIVE (D). Because your vehicle has the Automatic Engine Start/Stop feature, your vehicle’s engine might seem to be shut off when you come to a complete stop.
Page 97: The Engine Will Remain Running When
The Engine Will Remain Running When: • The engine, transmission, or hybrid battery is not warmed up yet. • The outside temperature is high — usually above 95°F (35°C) and the climate control system is working to cool the vehicle in A/C mode (yellow light illuminated on A/C button) or if defrost is selected.
Page 98: To Use The Engine Coolant Heater
Engine Coolant Heater The engine coolant heater, if available, can help in cold weather conditions at or below 0°F ( 18°C) for easier starting and better fuel economy during engine warm-up. Plug in the coolant heater at least four hours before starting your vehicle.
Page 99: Automatic Transmission Operation
Automatic Transmission Operation If your vehicle has an automatic transmission, the shift lever is located on the console between the seats. There are several different positions for the automatic transmission. PARK (P): This position locks your front wheels. It is the best position to use when you start your engine because your vehicle cannot move easily.
Page 100 REVERSE (R): Use this gear to back up. Notice: Shifting to REVERSE (R) while your vehicle is moving forward could damage the transmission. The repairs would not be covered by your warranty. Shift to REVERSE (R) only after your vehicle is stopped.
Page 101 DRIVE (D): This position is for normal driving with the automatic transmission. It provides the best fuel economy for your vehicle. If you need more power for passing, and you are: • Going less than about 35 mph (55 km/h), push your accelerator pedal about halfway down.
Page 102: Parking Brake
Parking Brake The parking brake lever is located to the right of the driver’s seat. To set the parking brake, hold the brake pedal down and pull up on the parking brake lever. If the ignition is on, the brake system warning light will come on. 2-26 To release the parking brake, hold the brake pedal down.
Page 103: Shifting Into Park (P)
Shifting Into PARK (P) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 104: Torque Lock
Torque Lock If you are parking on a hill and you do not shift your transmission into PARK (P) properly, the weight of the vehicle may put too much force on the parking pawl in the transmission. You may ﬁnd it difficult to pull the shift lever out of PARK (P).
Page 105: Parking Over Things That Burn
To shift out of PARK (P) use the following: 1. Apply the brake pedal. 2. Press the shift lever button. 3. Move the shift lever to the desired position. If you still are unable to shift out of PARK (P): 1.
Page 106: Running The Vehicle While Parked
Running the Vehicle While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: There is something about your vehicle that can make it move suddenly, and you or others can be seriously injured.
Page 107: Mirrors
CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. Do not leave your vehicle when the engine is running unless you have to. If you have left the engine running, the vehicle can move suddenly.
Page 108: Outside Power Mirrors
Outside Power Mirrors The outside power mirror control is located on the driver side door. 1. Turn the knob to the left (L) for the driver side mirror and to the right (R) for the passenger side mirror. 2. Adjust each mirror so that you can see the side of your vehicle and the area behind your vehicle.
Page 109: Onstar System
® OnStar System OnStar uses several innovative technologies and live advisors to provide you with a wide range of safety, security, information, and convenience services. If your airbags deploy, the system is designed to make an automatic call to OnStar Emergency advisors who can request emergency services be sent to your location.
Page 110: Onstar Virtual Advisor
Available Services with Safe & Sound Plan • Automatic Notiﬁcation of Airbag Deployment • Advanced Automatic Crash Notiﬁcation (AACN) (If equipped) • Link to Emergency Services • Roadside Assistance • Stolen Vehicle Location Assistance • AccidentAssist • Remote Door Unlock/Vehicle Alert •...
Page 111: Onstar Steering Wheel Controls
OnStar Steering Wheel Controls Your vehicle may have a Talk/Mute button that can be used to interact with OnStar Hands-Free Calling. See Audio Steering Wheel Controls on page 3-76 for more information. On some vehicles, you may have to hold the button for a few seconds and give the command “ONSTAR”...
Page 112: Your Responsibility
Location information about your vehicle is only available if the GPS satellite signals are unobstructed and available. Your vehicle must have a working electrical system (including adequate battery power) for the OnStar equipment to operate. There are other problems OnStar cannot control that may prevent OnStar from providing OnStar service to you at any particular time or place.
Page 113: Universal Home Remote System Operation
Universal Home Remote System Operation (With One Triangular LED) If there is one triangular Light Emitting Diode (LED) indicator light above the Universal Home Remote buttons, follow the instructions below. This system provides a way to replace up to three remote control transmitters used to activate devices such as garage door openers, security systems, and home automation devices.
Page 114: Programming The Universal Home Remote System
Programming the Universal Home Remote System If you have questions or need help programming the Universal Home Remote System, call 1-800-355-3515 or go to www.homelink.com. Programming a garage door opener involves time-sensitive actions, so read the entire procedure before you begin. If you do not follow these actions, the device will time out and you will have to repeat the procedure.
Page 115 5. Press and hold the newly-trained Universal Home Remote button and observe the indicator light. If the indicator light stays on continuously, the programming is complete and your garage door should move when the Universal Home Remote button is pressed and released. You do not need to continue the programming Steps 6 through 8 and can stop here.
Page 116: Gate Operator And Canadian Programming
7. Firmly press and release the “Learn” or “Smart” button. After you press this button, you will have 30 seconds to complete Step 8. 8. Immediately return to the vehicle. Firmly press and hold the Universal Home Remote button, chosen in Step 3 to control the garage door, for two seconds, and then release it.
Page 117: Storage Areas
Using Universal Home Remote Press and hold the appropriate Universal Home Remote button for at least half of a second. The indicator light will come on while the signal is being transmitted. Erasing Universal Home Remote Buttons Erase the programmed buttons when you sell or terminate your lease.
Page 118: Cupholders
Cupholders There are cupholders located in front of and behind the center console. To access the cupholders behind the center console, push the button. Instrument Panel Storage Your vehicle has a storage area located to left of the steering wheel. Pull down on the handle to access. 2-42 Sunglasses Storage Compartment Your vehicle may have a sunglasses storage...
Page 119: Rear Seat Armrest
Rear Seat Armrest To access the rear seat armrest, pull the handle down. Lift the top of the armrest to access the storage area. Convenience Net Your vehicle may have a convenience net in the rear of the vehicle. Store small loads as far forward as possible. The net should not be used to store heavy loads.
Page 120: Cargo Management System
Cargo Management System Your vehicle may have a cargo management system in the rear of the vehicle. The system has rails with adapters and hooks. These are used to hold the net and mesh pocket. The adapters are used to hold the net. Slide the adapters to the desired location on the upper and lower groove of the rail and turn the handle up to lock it in place.
Page 121 Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Horn ...3-6 Tilt Wheel ...3-6 Turn Signal/Multifunction Lever ...3-7 Turn and Lane-Change Signals ...3-7 Headlamp High/Low-Beam Changer ...3-8 Flash-to-Pass ...3-8 Windshield Wipers ...3-8 Rainsense™ II Wipers ...3-9 Windshield Washer ...3-10 Rear Window Wiper/Washer ...3-11 Cruise Control ...3-11 Exterior Lamps ...3-14...
Page 122 Section 3 Driver Information Center (DIC) ...3-44 DIC Operation and Displays ...3-44 DIC Compass ...3-48 DIC Warnings and Messages ...3-50 Audio System(s) ...3-59 Setting the Clock ...3-60 Radio(s) ...3-62 Instrument Panel Using an MP3 ...3-70 XM Radio Messages ...3-75 Audio Steering Wheel Controls ...3-76 Radio Reception ...3-76 Fixed Mast Antenna ...3-77 XM™...
Page 123 NOTES...
Page 124: Instrument Panel Overview
Instrument Panel Overview...
Page 125 The main components of the instrument panel are the following: A. Air Outlets. See Outlet Adjustment on page 3-23. B. Instrument Panel Brightness Control. See Instrument Panel Brightness on page 3-16. C. Turn Signal/Multifunction Lever. See Turn Signal/Multifunction Lever on page 3-7. D.
Page 126: Hazard Warning Flashers
Hazard Warning Flashers The hazard warning ﬂashers let you warn the police and others that you have a problem. The front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is on the instrument panel. Press the button to make the front and rear turn signal lamps ﬂash on and off.
Page 127: Turn Signal/Multifunction Lever
Turn Signal/Multifunction Lever The lever on the left side of the steering column includes: • Turn and Lane-Change Signals. See Turn and Lane-Change Signals on page 3-7. • Headlamp High/Low-Beam Changer. See Headlamp High/Low-Beam Changer on page 3-8. • Flash-to-Pass Feature. See Flash-to-Pass on page 3-8.
Page 128: Headlamp High/Low-Beam Changer
Headlamp High/Low-Beam Changer To change the headlamps from low beam to high or high beam to low, push the turn signal lever all the way towards the instrument panel and release it. This indicator light turns on in the instrument panel cluster when the high beams are on.
Page 129: Rainsense™ Ii Wipers
(Mist): Pull the lever down and release it for a single wiping cycle. The lever will return to its original position. For more cycles, hold the lever down before releasing it. (Off): Move the lever to this position to turn off the wipers.
Page 130: Windshield Washer
Windshield Washer CAUTION: In freezing weather, do not use your washer until the windshield is warmed. Otherwise the washer ﬂuid can form ice on the windshield, blocking your vision. Pull the windshield wiper lever toward you to spray washer ﬂuid on the windshield. The wipers will run for a few cycles to clear the windshield.
Page 131: Rear Window Wiper/Washer
Rear Window Wiper/Washer The rear wiper and rear wash button is located on the instrument panel above the climate control system. (Rear Wiper/Washer): Press this button to wash and wipe the rear window. The rear window washer uses the same reservoir as the windshield washer.
Page 132: Resuming A Set Speed
Setting Cruise Control CAUTION: If you leave your cruise control on when you are not using cruise, you might hit a button and go into cruise when you do not want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use cruise control.
Page 133 Increasing Speed While Using Cruise Control There are two ways to go to a higher speed. • Disengage the cruise control, but do not turn it off. • If the cruise control system is already engaged, press the thumbwheel up toward RES+ and hold it until your vehicle accelerates to the desired speed, and then release the switch.
Page 134: Lamps On Reminder
Erasing Speed Memory The cruise control set speed memory is erased when the cruise control or the ignition is turned off. Exterior Lamps The exterior lamp control is located on the instrument panel to the left of the steering wheel. The exterior lamp control can be turned to the following positions: (Off): This position turns off the exterior lamps.
Page 135: Daytime Running Lamps (Drl)
Daytime Running Lamps (DRL) Daytime Running Lamps (DRL) can make it easier for others to see the front of your vehicle during the day. DRL can be helpful in many different driving conditions, but they can be especially helpful in the short periods after dawn and before sunset.
Page 136: Instrument Panel Brightness
Instrument Panel Brightness This feature controls the brightness of the instrument panel lights. The thumbwheel for this feature is located on the left side of the steering wheel next to the exterior lamps control. Turn the thumbwheel to the right to brighten the lights or to the left to dim them.
Page 137: Reading Lamps
Reading Lamps The reading lamps are located on the overhead console. To turn the reading lamps on or off, press the button located next to each lamp. Battery Run-Down Protection The battery saver feature is designed to protect your vehicle’s battery. If any interior or exterior lamp is left on and the ignition is turned off, the battery rundown protection system automatically turns the lamp off after 10 minutes.
Page 138: Climate Controls
Climate Controls Automatic Climate Control System The heating, cooling, and ventilation for the vehicle can be controlled with this system. Climate Control Inﬂuence on Hybrid Operation and Fuel Economy To maximize your fuel economy, use the following settings: • Set the fan knob to AUTO. •...
Page 139: Manual Operation
AUTO (Automatic Air Delivery Mode): Turn the air delivery mode knob to AUTO for the system to automatically control the direction of the airﬂow to help reach the desired inside temperature. The system automatically controls the air inlet to supply the outside air or recirculated inside air needed to cool the vehicle faster.
Page 140 To change the current air delivery mode, use the right knob to select one of the following: (Vent): This mode directs air to the instrument panel outlets. (Bi-Level): This mode divides the air between the instrument panel outlets and the ﬂoor outlets. (Floor): This mode directs most of the air to the ﬂoor outlets with some air directed to the windshield.
Page 141: Defogging And Defrosting
(Recirculation): Press this button to toggle between recirculate and outside air modes. The indicator light turns on when the recirculate mode is selected. This mode can be used to prevent outside air and odors from entering the vehicle or to help cool the air inside the vehicle more quickly.
Page 142: Rear Window Defogger
Rear Window Defogger The rear window defogger uses a warming grid to remove fog from the rear window. The rear window defogger will only work when the ignition is in ON/RUN. < (Rear Window Defogger): Press this button to turn the rear window defogger on or off. An indicator light on the button comes on to show that the rear window defogger is activated.
Page 143: Outlet Adjustment
Outlet Adjustment Use the louvers located on the air outlets to change the direction of the airﬂow. Operation Tips • Clear away any ice, snow, or leaves from the air inlets at the base of the vehicle that may block the ﬂow of air into your vehicle.
Page 144 3. Unplug both wire cables and remove the glove box. 4. Remove the air ﬁlter cover screw. 3-24...
Page 145: Warning Lights, Gages, And Indicators
5. Remove the ﬁlter cover and pull out the old air ﬁlter. 6. Install the new air ﬁlter. 7. Reinstall the air ﬁlter cover. Reconnect the wire cabling and re-install the glove box. See your dealer/retailer if additional assistance is needed.
Page 146: Instrument Panel Cluster
Instrument Panel Cluster The instrument panel cluster is designed to let you know at a glance how your vehicle is running. You will know how fast you are going, about how much fuel you have and many other things you will need to know to drive safely and economically.
Page 147: Speedometer And Odometer
Speedometer and Odometer The speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). The odometer shows how far your vehicle has been driven, in either miles or kilometers. Your vehicle has a tamper-resistant odometer. If your vehicle needs a new odometer installed, the new one will be set to the mileage total of the old odometer.
Page 148: Passenger Safety Belt Reminder Light
Safety Belt Reminders Safety Belt Reminder Light When the engine is started, a chime will come on for several seconds to remind people to fasten their safety belts, unless the driver’s safety belt is already buckled. The safety belt light will also come on and stay on for several seconds, then it will ﬂash for...
Page 149: Airbag Readiness Light
Airbag Readiness Light There is an airbag readiness light on the instrument panel cluster, which shows the airbag symbol. The system checks the airbag’s electrical system for malfunctions. The light tells you if there is an electrical problem. The system check includes the airbag sensor, the pretensioners, the airbag modules, the wiring and the crash sensing and diagnostic module.
Page 150: Passenger Airbag Status Indicator
Passenger Airbag Status Indicator Your vehicle has the passenger sensing system. Your instrument panel has a passenger airbag status indicator. United States When you start the vehicle, the passenger airbag status indicator will light ON and OFF, or the symbol for on and off, for several seconds as a system check.
Page 151 CAUTION: Even though the passenger sensing system is designed to turn off the right front passenger’s frontal airbag if the system detects a rear-facing child restraint, no system is fail-safe, and no one can guarantee that an airbag will not deploy under some unusual circumstance, even though it is turned off.
Page 152: Charging System Light
Charging System Light This light will come on brieﬂy when you turn on the ignition key, but the engine is not running, as a check to show you it is working. It should go out once the engine is running. If it stays on, or comes on while driving, there could be a problem with the charging system.
Page 153: Anti-Lock Brake System (Abs) Warning Light
If the light comes on while driving, a chime will sound. Pull off the road and stop. The pedal might be harder to push or go closer to the ﬂoor. It might also take longer to stop. If the light is still on, have the vehicle towed for service.
Page 154: Traction Control System (Tcs) Warning Light
Traction Control System (TCS) Warning Light The Traction Control System (TCS) warning light may come on for the following reasons: • The system is turned off by pressing the traction control button located above the audio system on the instrument panel. The warning light will come on and stay on.
Page 155: Engine Coolant Temperature Warning Light
Engine Coolant Temperature Warning Light This light comes on brieﬂy when starting the vehicle as a system check. If it does not, take the vehicle to your dealer/retailer for service. If this light comes on and stays lit, the engine has overheated.
Page 156: Malfunction Indicator Lamp
Malfunction Indicator Lamp Check Engine Light A computer system called OBD II (On-Board Diagnostics-Second Generation) monitors operation of the fuel, ignition, and emission control systems. It makes sure that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment.
Page 157: If The Light Is Flashing
If the Light is Flashing The following can prevent more serious damage to your vehicle: • Reduce vehicle speed. • Avoid hard accelerations. • Avoid steep uphill grades. • If you are towing a trailer, reduce the amount of cargo being hauled as soon as it is possible. If the light stops ﬂashing and remains on steady, see “If the Light Is On Steady”...
Page 158: Emissions Inspection And Maintenance Programs
Emissions Inspection and Maintenance Programs Some state/provincial and local governments have or might begin programs to inspect the emission control equipment on your vehicle. Failure to pass this inspection could prevent you from getting a vehicle registration. Here are some things you need to know to help your vehicle pass an inspection: Your vehicle will not pass this inspection if the check engine light is on or not working properly.
Page 159: Change Engine Oil Light
CAUTION: Do not keep driving if the oil pressure is low. If you do, your engine can become so hot that it catches ﬁre. You or others could be burned. Check your oil as soon as possible and have your vehicle serviced. Notice: Lack of proper engine oil maintenance may damage the engine.
Page 160: Security Light
Security Light For information regarding this light and the vehicle’s security system, see Content Theft-Deterrent on page 2-13. Cruise Control Light This light comes on whenever the cruise control is set. The light goes out when the cruise control is turned off. See Cruise Control on page 3-11 for more information.
Page 161: Fuel Gage
Fuel Gage United States When the ignition is on, the fuel gage shows about how much fuel is in the fuel tank. When the indicator nears empty, the low fuel light will comes on. There still is a little fuel left, but you should get more soon.
Page 162: Low Fuel Warning Light
Low Fuel Warning Light The light next to the fuel gage comes on brieﬂy when you are starting the engine. It also comes on when the vehicle is low on fuel. After fuel is added, the light should go off. If it does not come on as you start the engine take the vehicle to your dealer/retailer for service.
Page 163: Charge/Assist Gage
Charge/Assist Gage The CHARGE/ASSIST gage displays the charge (current) into and out of the hybrid battery. While the electric motor is performing an automatic restart of the engine, or while it is assisting the engine, as in maximum acceleration, the needle moves to the ASSIST range, located on the right side of the gage.
Page 164: Driver Information Center (Dic)
Driver Information Center (DIC) Your vehicle has a Driver Information Center (DIC). All information appears in the DIC display located in the instrument panel cluster. The DIC comes on when the ignition is on. After a short delay, the DIC displays the information that was last displayed before the engine was turned off.
Page 165: Average Fuel Economy
RANGE Press and release the reset stem until RANGE is displayed. The RANGE display will only be available when the vehicle is not in PARK (P). This display shows the approximate number of remaining miles (mi) or kilometers (km) the vehicle can be driven without refueling.
Page 166: Tire Pressure
OIL LIFE Press and release the reset stem until OIL LIFE REMAINING displays. The OIL LIFE display will only be available when the vehicle is in PARK (P). This display shows an estimate of the oil’s remaining useful life. If OIL LIFE REMAINING 99% appears on the display, that means 99% of the current oil life remains.
Page 167 If the tire pressure display shows dashes instead of a value, there may be a problem with your vehicle. If this consistently occurs, see your dealer/retailer for service. HOLD STEM TO RELEARN REMOTE KEY This display matches Remote Keyless Entry (RKE) transmitters to your vehicle.
Page 168: Dic Compass
DIC Compass Your vehicle has a compass in the Driver Information Center (DIC). Compass Zone The zone is set to zone eight upon leaving the factory. Your dealer/retailer will set the correct zone for your location. Under certain circumstances, such as during a long distance cross-country trip or moving to a new state or province, it will be necessary to compensate for compass variance by resetting the zone through the DIC if the zone...
Page 169: Compass Calibration Procedure
Compass Calibration The compass can be manually calibrated. Only calibrate the compass in a magnetically clean and safe location, such as an open parking lot, where driving the vehicle in circles is not a danger. It is suggested to calibrate away from tall buildings, utility wires, manhole covers, or other industrial structures, if possible.
Page 170: Dic Warnings And Messages
DIC Warnings and Messages Messages are displayed on the DIC to notify the driver that the status of the vehicle has changed and that some action may be needed by the driver to correct the condition. Multiple messages may appear one after another.
Page 171: Buckle Seatbelt
BUCKLE SEATBELT This message reminds you to buckle the driver’s safety belt. This message displays and a chime sounds when the ignition is on, the driver’s safety belt is unbuckled, and the vehicle is in motion. You should buckle your safety belt.
Page 172: Check Tire Pressure
CHECK TIRE PRESSURE This message displays when the pressure in one or more of the vehicle’s tires needs to be checked. This message also displays LEFT FRONT, RIGHT FRONT, LEFT REAR, or RIGHT REAR to indicate which tire needs to be checked. You can receive more than one tire pressure message at a time.
Page 173: Engine Overheated Stop Engine
ENGINE OVERHEATED IDLE ENGINE Notice: If you drive your vehicle while the engine is overheating, severe engine damage may occur. If an overheat warning appears on the instrument panel cluster and/or DIC, stop the vehicle as soon as possible. Do not increase the engine speed above normal idling speed.
Page 174: Oil Pressure Low Stop Engine
LIFTGATE OPEN This message displays when the liftgate is not closed completely. Close the liftgate completely. See Liftgate on page 2-9. OIL PRESSURE LOW STOP ENGINE Notice: If you drive your vehicle while the engine oil pressure is low, severe engine damage may occur.
Page 175: Service Brake System
SERVICE AIR BAG This message displays when there is a problem with the airbag system. Have your vehicle serviced by your dealer/retailer immediately. See Airbag Readiness Light on page 3-29 for more information. SERVICE BRAKE SYSTEM This message displays and a chime sounds when the brake ﬂuid level is low.
Page 176: Service Transmission
SERVICE TIRE MONITORING SYSTEM This message displays if a part on the Tire Pressure Monitor System (TPMS) is not working properly. The tire pressure light also ﬂashes and then remains on during the same ignition cycle. See Tire Pressure Light on page 3-35.
Page 177: Stabilitrak Off
STABILITRAK OFF This message displays any time the Electronic Stability Program (ESP) turns off. When this message has been displayed, the system is no longer available to assist you with directional control of the vehicle. Adjust your driving accordingly. See Electronic Stability Program on page 4-8.
Page 178: Turn Signal On
TRACTION CONTROL OFF This message displays when the Traction Control System (TCS) turns off. See Traction Control System (TCS) on page 4-7 for more information. This message only displays while the ignition is in ON/RUN and disappears after 10 seconds, unless it is acknowledged or an urgent warning appears.
Page 179: Audio System(S)
Audio System(s) Determine which radio your vehicle has and then read the pages following to familiarize yourself with its features. CAUTION: This system provides you with far greater access to audio stations and song listings. Giving extended attention to entertainment tasks while driving can cause a crash and you or others can be injured or killed.
Page 180: Setting The Clock
Setting the Clock With Date Display Radio with Single CD or Radio with CD (MP3) These radios have a button for setting the time and date. To set the time and date, follow these instructions: 1. Turn the ignition key to ACC/ACCESSORY or ON/RUN.
Page 181: Radio With Six-Disc Cd (Mp3)
Radio with Six-Disc CD (MP3) This type of radio has a MENU button instead of button to set the time and date. To set the time and date, follow these instructions: 1. Turn the ignition key to ACC/ACCESSORY or ON/RUN. Press the knob, located in the center of the radio, to turn the radio on.
Page 182: Playing The Radio
Radio(s) Radio with CD shown, Radio with Six-Disc CD similar Radio Data System (RDS) The audio system has a Radio Data System (RDS). The RDS feature is available for use only on FM stations that broadcast RDS information. This system relies upon receiving speciﬁc information from these stations and only works when the information is available.
Page 183: Storing A Radio Station As A Favorite
(Information) (XM™ Satellite Radio Service, MP3, and RDS Features): Press to display additional text information related to the current FM-RDS or XM™ station, or MP3 song. A choice of additional information such as: Channel, Song, Artist, CAT (category) can display. Continue pressing to highlight the desired label, or press the pushbutton positioned under any one of the labels and the information about that label displays.
Page 184: Adjusting The Speakers (Balance/Fade)
Setting the Tone (Bass/Midrange/Treble) BASS/MID/TREB (Bass, Midrange, or Treble): To adjust bass, midrange, or treble, press the the tone control labels display. Continue pressing to highlight the desired label, or press the pushbutton positioned under the desired label. Turn the clockwise or counterclockwise to adjust the highlighted setting.
Page 185: Finding A Category (Cat) Station
Finding a Category (CAT) Station CAT (Category): The CAT button is used to ﬁnd XM™ stations when the radio is in the XM™ mode. To ﬁnd XM™ channels within a desired category, perform the following: 1. Press the BAND button until the XM™ frequency displays.
Page 186: Radio Messages
XM™ Satellite Radio Service XM™ is a satellite radio service that is based in the 48 contiguous United States and 10 Canadian provinces. XM™ Satellite Radio has a wide variety of programming and commercial-free music, coast-to-coast, and in digital-quality sound. During your trial or when you subscribe, you will get unlimited access to XM™...
Page 187: Care Of Your Cds
When a CD is inserted, the CD symbol displays on the CD. As each new track starts to play, the track number displays. The CD player can play the smaller 3 inch (8 cm) single CDs with an adapter ring. Full-size CDs and the smaller CDs are loaded in the same manner.
Page 188: Playing An Mp3 Cd-R Or Cd-Rw Disc
(Tune): Turn to select tracks on the CD currently playing. © ¨ SEEK : Press the left arrow to go to the start of the current track, if more than ten seconds have played. Press the right arrow to go to the next track. If either the left or right arrow is held, or pressed multiple times, the player continues moving backward or forward through the tracks on the CD.
Page 189: Using The Auxiliary Input Jack
CD Messages CHECK DISC: If this message displays and/or the CD comes out, it could be: • It is very hot. When the temperature returns to normal, the CD should play. • You are driving on a very rough road. When the road becomes smoother, the CD should play.
Page 190: Using An Mp3
CD/AUX (CD/Auxiliary): Press to play a CD when a portable audio device is playing. Press again and the system begins playing audio from the connected portable audio player. If a portable audio player is not connected, “No Input Device Found” displays. Using an MP3 MP3 CD-R or CD-RW Disc The radio plays MP3 ﬁles that were recorded on a...
Page 191: Root Directory
• Minimize the length of the ﬁle, folder or playlist names. Long ﬁle, folder, or playlist names, or a combination of a large number of ﬁles and folders, or playlists can cause the player to be unable to play up to the maximum number of ﬁles, folders, playlists, or sessions.
Page 192 Order of Play Tracks recorded to the CD-R or CD-RW are played in the following order: • Play begins from the ﬁrst track in the ﬁrst playlist and continues sequentially through all tracks in each playlist. When the last track of the last playlist has played, play continues from the ﬁrst track of the ﬁrst playlist.
Page 193 For the Six-Disc CD player, press and hold this button for two seconds to eject all discs. (Tune): Turn to select MP3 ﬁles on the CD-R or CD-RW currently playing. © ¨ SEEK : Press the left arrow to go to the start of the current MP3 ﬁle, if more than ten seconds have played.
Page 194 (Music Navigator): Use the music navigator feature to play MP3 ﬁles on the CD-R or CD-RW in order by artist or album. Press the pushbutton located below the music navigator label. The player scans the disc to sort the ﬁles by artist and album ID3 tag information. It can take several minutes to scan the disc depending on the number of MP3 ﬁles recorded to the CD-R or CD-RW.
Page 195: Xm Radio Messages
XM Radio Messages XL (Explicit Language Channels): These channels, or any others, can be blocked at a customer’s request, by calling 1-800-852-XMXM (9696). XM Updating: The encryption code in the receiver is being updated, and no action is required. This process should take no longer than 30 seconds.
Page 196: Audio Steering Wheel Controls
Audio Steering Wheel Controls Some audio controls can be adjusted at the steering wheel. They include the following: (Next/Previous): Press and release either the + or to go to the next or the previous preset radio station. When a CD is playing, press and release either the + or to go to the next or the previous track.
Page 197: Fixed Mast Antenna
XM™ Satellite Radio Service XM™ Satellite Radio Service gives digital radio reception from coast-to-coast in the 48 contiguous United States, and in Canada. Just as with FM, tall buildings or hills can interfere with satellite radio signals, causing the sound to fade in and out. In addition, traveling or standing under heavy foliage, bridges, garages, or through tunnels could cause loss of the XM signal for a period of time.
Page 198 NOTES 3-78...
Page 199: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ...4-2 Driving Your Vehicle ...4-2 Driver Behavior ...4-2 Driving Environment ...4-2 Vehicle Design ...4-3 Defensive Driving ...4-3 Drunk Driving ...4-4 Control of a Vehicle ...4-5 Braking ...4-5 Antilock Brake System (ABS) ...4-6 Braking in Emergencies ...4-6 Traction Control System (TCS) ...4-7 Electronic Stability Program ...4-8...
Page 200: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Driving Your Vehicle Whenever we drive, we are taking on an important responsibility. This is true for any motor vehicle — passenger car, van, truck, sport utility. Driver behavior, the driving environment, and the vehicle’s design all affect how well a vehicle performs.
Page 201: Vehicle Design
Vehicle Design According to the U.S. Department of Transportation, utility vehicles have a signiﬁcantly higher rollover rate than other types of vehicles. Utility vehicles do have higher ground clearance and a narrower track or shorter wheelbase than passenger cars, to make them more capable for off-road driving.
Page 202: Drunk Driving
Drunk Driving CAUTION: Drinking and then driving is very dangerous. Your reﬂexes, perceptions, attentiveness, and judgment can be affected by even a small amount of alcohol. You can have a serious — or even fatal — collision if you drive after drinking. Do not drink and drive or ride with a driver who has been drinking.
Page 203: Control Of A Vehicle
Control of a Vehicle The following three systems help to control your vehicle while driving — brakes, steering, and accelerator. At times, as when driving on snow or ice, it is easy to ask more of those control systems than the tires and road can provide.
Page 204: Antilock Brake System (Abs)
Antilock Brake System (ABS) Your vehicle has the Antilock Brake System (ABS), an advanced electronic braking system that will help prevent a braking skid. When you start the engine and begin to drive away, ABS will check itself. You might hear a momentary motor or clicking noise while this test is going on, and you might even notice that the brake pedal moves a little.
Page 205: Traction Control System (Tcs)
Traction Control System (TCS) Your vehicle has a Traction Control System (TCS) that limits wheel spin. This is especially useful in slippery road conditions. The system operates only if it senses that one or both of the front wheels are spinning or beginning to lose traction. When this happens, the system reduces engine power to limit wheel spin.
Page 206: Electronic Stability Program
Electronic Stability Program Your vehicle has an Electronic Stability Program (ESP) system which combines antilock brake, traction and stability control systems and helps the driver maintain directional control of the vehicle in most driving conditions. When you ﬁrst start your vehicle and begin to drive away, the system performs several diagnostic checks to ensure there are no problems.
Page 207: Electric Power Steering
It is recommended to leave the system on for normal driving conditions, but it may be necessary to turn the system off if your vehicle is stuck in sand, mud, ice or snow, and you want to “rock” your vehicle to attempt to free it.
Page 208: Steering Tips
Steering Tips It is important to take curves at a reasonable speed. A lot of the “driver lost control” accidents mentioned on the news happen on curves. Here is why: Experienced driver or beginner, each of us is subject to the same laws of physics when driving on curves. The traction of the tires against the road surface makes it possible for the vehicle to change its path when you turn the front wheels.
Page 209: Steering In Emergencies
Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and ﬁnd a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 210: Off-Road Recovery
Off-Road Recovery Your vehicle’s right wheels can drop off the edge of a road onto the shoulder while driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 211 Skidding In a skid, a driver can lose control of the vehicle. Defensive drivers avoid most skids by taking reasonable care suited to existing conditions, and by not overdriving those conditions. But skids are always possible. The three types of skids correspond to your vehicle’s three control systems.
Page 212: Driving At Night
Driving at Night Night driving is more dangerous than day driving because some drivers are likely to be impaired — by alcohol or drugs, with night vision problems, or by fatigue. Night driving tips include: • Drive defensively. • Do not drink and drive. •...
Page 213: Other Rainy Weather Tips
CAUTION: Wet brakes can cause crashes. They might not work as well in a quick stop and could cause pulling to one side. You could lose control of the vehicle. After driving through a large puddle of water or a car/vehicle wash, lightly apply the brake pedal until the brakes work normally.
Page 214: Before Leaving On A Long Trip
Before Leaving on a Long Trip To prepare your vehicle for a long trip, consider having it serviced by your dealer/retailer before departing. Things to check on your own include: • Windshield Washer Fluid: Reservoir full? Windows clean — inside and outside? •...
Page 215: Winter Driving
CAUTION: Coasting downhill in NEUTRAL (N) or with the ignition off is dangerous. The brakes will have to do all the work of slowing down and they could get so hot that they would not work well. You would then have poor braking or even none going down a hill.
Page 216: Driving On Snow Or Ice
Driving on Snow or Ice Most of the time, those places where the tires meet the road probably have good traction. However, if there is snow or ice between the tires and the road, you can have a very slippery situation. You have a lot less traction, or grip, and need to be very careful.
Page 217: If You Are Caught In A Blizzard
The Antilock Brake System (ABS) improves your vehicle’s stability when you make a hard stop on a slippery road. Even though you have ABS, begin stopping sooner than you would on dry pavement. See Antilock Brake System (ABS) on page 4-6. •...
Page 218 You can run the engine to keep warm, but be careful. 4-20 CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle.
Page 219: If Your Vehicle Is Stuck In Sand, Mud
Run your engine only as long as you must. This saves fuel. When you run the engine, make it go a little faster than just idle. That is, push the accelerator slightly. This uses less fuel for the heat that you get and it keeps the battery charged.
Page 220: Rocking Your Vehicle To Get It Out
Rocking Your Vehicle to Get It Out First, turn the steering wheel left and right to clear the area around the front wheels. Turn the traction control system off. See Traction Control System (TCS) on page 4-7. Then shift back and forth between REVERSE (R) and a forward gear, spinning the wheels as little as possible.
Page 221: Tire And Loading Information Label
Tire and Loading Information Label Example Label A vehicle speciﬁc Tire and Loading Information label is attached to the center pillar (B-pillar). With the driver’s door open, you will ﬁnd the label attached below the door lock post (striker). The tire and loading information label shows the number of occupant seating positions (A), and the maximum vehicle capacity weight (B) in kilograms and pounds.
Page 222: Steps For Determining Correct Load Limit
Steps for Determining Correct Load Limit Locate the statement “The combined weight of occupants and cargo should never exceed XXX lbs” on your vehicle’s placard. Determine the combined weight of the driver and passengers that will be riding in your vehicle.
Page 223 Example 2 Item Description Vehicle Capacity Weight for 1,000 lbs (453 kg) Example 2 Subtract Occupant Weight 150 lbs (68 kg) Available Occupant and Cargo Weight = Total Item 750 lbs (340 kg) 250 lbs (113 kg) Refer to your vehicle’s tire and loading information label for speciﬁc information about your vehicle’s capacity weight and seating positions.
Page 224: Certification/Tire Label
Certiﬁcation/Tire Label A vehicle speciﬁc Certiﬁcation/Tire label is attached to the lower area of the center pillar (B-pillar). The label shows the gross weight capacity of your vehicle. This is called the Gross Vehicle Weight Rating (GVWR). 4-26 The GVWR includes the weight of the vehicle, all occupants, fuel, cargo, and trailer tongue weight, if your vehicle is pulling a trailer.
Page 225 CAUTION: Do not load the vehicle any heavier than the Gross Vehicle Weight Rating (GVWR), or either the maximum front or rear Gross Axle Weight Rating (GAWR). If you do, parts on the vehicle can break, and it can change the way your vehicle handles. These could cause you to lose control and crash.
Page 226: Towing
Towing Towing Your Vehicle To avoid vehicle damage, a platform or ﬂatbed trailer should be used to transport this vehicle. Consult your dealer/retailer or a professional towing service if you need to have your disabled vehicle towed. See Roadside Assistance Program on page 7-6. If you want to tow your vehicle behind another vehicle for recreational purposes (such as behind a motorhome), see “Recreational Vehicle Towing”...
Page 227 To tow your vehicle from the front with all four wheels on the ground: 1. Position and attach the vehicle to tow it behind the recreational vehicle. 2. Turn the ignition key to ACC/ACCESSORY. 3. Shift the transmission to NEUTRAL (N). 4.
Page 228: Towing Your Vehicle From The Rear
Dolly Towing (Front-Wheel-Drive Vehicles) To tow your front-wheel-drive vehicle from the front with two wheels on the ground, do the following: 1. Put the front wheels on a dolly. 2. Move the shift lever to PARK (P). 3. Set the parking brake and then remove the key. 4.
Page 229: Towing A Trailer
Towing a Trailer CAUTION: If you do not use the correct equipment and drive properly, you can lose control when you pull a trailer. For example, if the trailer is too heavy, the brakes may not work well — or even at all.
Page 230: If You Do Decide To Pull A Trailer
If You Do Decide to Pull a Trailer If you do, here are some important points: • There are many different laws, including speed limit restrictions, having to do with trailering. Make sure your rig will be legal, not only where you live but also where you will be driving.
Page 231: Weight Of The Trailer Tongue
Weight of the Trailer How heavy can a trailer safely be? It should never weigh more than 1,500 lbs (680 kg). But even that can be too heavy. It depends on how you plan to use your rig. For example, speed, altitude, road grades, outside temperature and how much your vehicle is used to pull a trailer are all important.
Page 232 If you are using a weight-carrying hitch, the trailer tongue (A) should weigh 10 percent of the total loaded trailer weight (B). If you are using a weight-distributing hitch, the trailer tongue (A) should weigh 12 percent of the total loaded trailer weight (B). After you have loaded your trailer, weigh the trailer and then the tongue, separately, to see if the weights are proper.
Page 233: Total Weight On Your Vehicle's Tires
Since the rear axle already weighs 2,700 lbs (1 225 kg), adding 1,275 lbs (578 kg) brings the total to 3,975 lbs (1 803 kg). This is very close to, but within the limit for RGAWR as well. The vehicle is set to trailer up to 8,500 lbs (3 856 kg).
Page 234: Driving With A Trailer
Hitches It is important to have the correct hitch equipment. Crosswinds, large trucks going by and rough roads are a few reasons why you will need the right hitch. Here are some rules to follow: • The rear bumper on your vehicle is not intended for hitches.
Page 235: Turn Signals When Towing A Trailer
Following Distance Stay at least twice as far behind the vehicle ahead as you would when driving your vehicle without a trailer. This can help you avoid situations that require heavy braking and sudden turns. Passing You will need more passing distance up ahead when you are towing a trailer.
Page 236: Driving On Grades
Driving on Grades Notice: Do not tow on steep continuous grades exceeding 6 miles (9.6 km). Extended, higher than normal engine and transmission temperatures may result and damage your vehicle. Frequent stops are very important to allow the engine and transmission to cool.
Page 237: Maintenance When Trailer Towing
3. When the chocks are in place, release the regular brakes until the chocks absorb the load. 4. Reapply the regular brakes. Then apply your parking brake and shift into PARK (P). 5. Release the regular brakes. When You Are Ready to Leave After Parking on a Hill 1.
Page 238 NOTES 4-40...
Page 239: Service And Appearance Care
Section 5 Service ...5-3 Accessories and Modiﬁcations ...5-3 California Proposition 65 Warning ...5-4 California Perchlorate Materials Requirements ...5-4 Doing Your Own Service Work ...5-4 Adding Equipment to the Outside of Your Vehicle ...5-5 Fuel ...5-5 Gasoline Octane ...5-6 Gasoline Speciﬁcations ...5-6 California Fuel ...5-6 Additives ...5-7 Fuels in Foreign Countries ...5-7...
Page 240 Section 5 Wheel Alignment and Tire Balance ...5-64 Wheel Replacement ...5-64 Tire Chains ...5-66 If a Tire Goes Flat ...5-67 Tire Sealant and Compressor Kit ...5-68 Appearance Care ...5-79 Interior Cleaning ...5-79 Fabric/Carpet ...5-80 Instrument Panel, Vinyl, and Other Plastic Surfaces ...5-81 Care of Safety Belts ...5-81 Weatherstrips ...5-82...
Page 241: Service
Service For service and parts needs, visit your dealer/retailer. You will receive genuine Saturn parts and Saturn-trained and supported service people. Genuine Saturn parts have one of these marks. Accessories and Modiﬁcations When non-dealer/non-retailer accessories are added to your vehicle they can affect your vehicle’s performance...
Page 242: California Proposition 65 Warning
California Proposition 65 Warning Most motor vehicles, including this one, contain and/or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Engine exhaust, many parts and systems (including some inside the vehicle), many ﬂuids, and some component wear by-products contain and/or emit these chemicals.
Page 243: Adding Equipment To The Outside Of Your Vehicle
CAUTION: You can be injured and your vehicle could be damaged if you try to do service work on a vehicle without knowing enough about it. • Be sure you have sufficient knowledge, experience, the proper replacement parts, and tools before you attempt any vehicle maintenance task.
Page 244: Gasoline Octane
Gasoline Octane Use regular unleaded gasoline with a posted octane rating of 87 or higher. If the octane rating is less than 87, you might notice an audible knocking noise when you drive, commonly referred to as spark knock. If this occurs, use a gasoline rated at 87 octane or higher as soon as possible.
Page 245: Additives
Additives To provide cleaner air, all gasolines in the United States are now required to contain additives that help prevent engine and fuel system deposits from forming, allowing the emission control system to work properly. In most cases, you should not have to add anything to the fuel. However, some gasolines contain only the minimum amount of additive required to meet U.S.
Page 246: Filling The Tank
Filling the Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling. Do not smoke if you are near fuel or refueling your vehicle.
Page 247 CAUTION: Fuel can spray out on you if you open the fuel cap too quickly. If you spill fuel and then something ignites it, you could be badly burned. This spray can happen if your tank is nearly full, and is more likely in hot weather. Open the fuel cap slowly and wait for any hiss noise to stop.
Page 248: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the fuel vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
Page 249: Hood Release
Hood Release To open the hood, do the following: 1. Pull the handle with this symbol on it. It is located under the instrument panel on the driver side of the vehicle. 2. Then go to the front of the vehicle and lift up on the secondary hood release lever.
Page 250: Engine Compartment Overview
Engine Compartment Overview When you open the hood, you will see the following: 5-12...
Page 251: Engine Oil
A. Engine Air Cleaner/Filter. Engine Air Cleaner/Filter on page 5-18. B. Engine Oil Fill Cap. Engine Oil on page 5-13. C. Engine Coolant Surge Tank. Cooling System on page 5-25. D. Engine Coolant Surge Tank Protection Cap. Coolant Surge Tank Pressure Cap on page 5-23. E.
Page 252: When To Add Engine Oil
When to Add Engine Oil If the oil is below the MIN (minimum) mark, add at least one quart/liter of the recommended oil. This section explains what kind of oil to use. For engine oil crankcase capacity, see Capacities and Speciﬁcations on page 5-98.
Page 253: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use Look for three things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. Look for and use only an oil that meets GM Standard GM6094M. • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle.
Page 254: Engine Oil Additives
If you are in an area of extreme cold, where the temperature falls below 20°F ( 29°C), it is recommended that you use either an SAE 5W-30 synthetic oil or an SAE 0W-30 oil. Both provide easier cold starting and better protection for the engine at extremely low temperatures.
Page 255: How To Reset The Engine Oil Life System
How to Reset the Engine Oil Life System The Engine Oil Life System calculates when to change the engine oil and ﬁlter based on vehicle use. Whenever the oil is changed, reset the system so it can calculate when the next oil change is required. If a situation occurs where you change the oil prior to a change engine oil light being turned on, reset the system.
Page 256: When To Inspect The Engine Air Cleaner/Filter
Engine Air Cleaner/Filter See Engine Compartment Overview on page 5-12 for the location of the engine air cleaner/ﬁlter. When to Inspect the Engine Air Cleaner/Filter Inspect the air cleaner/ﬁlter at the Maintenance II intervals and replace it at the ﬁrst oil change after each 50,000 mile (80 000 km) interval.
Page 257 6. Inspect or replace the air ﬁlter element. If the air ﬁlter element is dirty, you should replace it. If it is only dusty, it may be cleaned by blowing compressed air through it from the clean side. Make sure you are away from the engine compartment when cleaning the air ﬁlter with compressed air.
Page 258: Automatic Transmission Fluid
Automatic Transmission Fluid It is not necessary to check the transmission ﬂuid level. A transaxle ﬂuid leak is the only reason for ﬂuid loss. If a leak occurs, take the vehicle to your dealer/retailer service department and have it repaired as soon as possible.
Page 259: What To Use
What to Use Use a mixture of one-half clean, drinkable water and ® one-half DEX-COOL coolant which will not damage aluminum parts. If you use this coolant mixture, you do not need to add anything else. CAUTION: Adding only plain water to the cooling system can be dangerous.
Page 260: Adding Coolant
Checking Coolant The surge tank is located on the driver side of the engine compartment. See Engine Compartment Overview on page 5-12 for more information on location. 5-22 CAUTION: Turning the surge tank pressure cap when the engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly.
Page 261: Coolant Surge Tank Pressure Cap
CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol, and it will burn if the engine parts are hot enough. Do not spill coolant on a hot engine. When replacing the pressure cap, make sure it is hand-tight and fully seated.
Page 262: If No Steam Is Coming From Your Engine
If No Steam Is Coming From Your Engine If you get an engine overheat warning, but see or hear no steam, the problem may not be too serious. Sometimes the engine can get a little too hot when you: • Climb a long hill on a hot day.
Page 263: Cooling System
Cooling System When you decide it is safe to lift the hood, here is what you will see: A. Electric Engine Fan (Not Shown) B. Coolant Surge Tank C. Pressure Cap CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you.
Page 264: How To Add Coolant To The Coolant Surge Tank
The coolant level should be between the MIN and MAX lines. If it is not, you may have a leak at the radiator hoses, heater hoses, radiator, water pump, or somewhere else in the cooling system. CAUTION: Heater and radiator hoses, and other engine parts, can be very hot.
Page 265 CAUTION: Steam and scalding liquids from a hot cooling system can blow out and burn you badly. They are under pressure, and if you turn the coolant surge tank pressure cap — even a little — they can come out at high speed. Never turn the cap when the cooling system, including the coolant surge tank pressure cap, is hot.
Page 266 CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough. Do not spill coolant on a hot engine. 1. You can remove the coolant surge tank pressure cap when the cooling system,...
Page 267: Adding Windshield Washer Fluid
Check the level in the surge tank when the cooling system has cooled down. If the coolant is not at the proper level, repeat Steps 1 through 3 and reinstall the pressure cap. If the coolant still is not at the proper level when the system cools down again, see your retailer.
Page 268: Brakes
Brakes Brake Fluid The brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 5-12 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down. The ﬁrst is that the brake ﬂuid goes down to an acceptable level during normal brake lining wear.
Page 269: What To Add
What to Add When you need brake ﬂuid, use only DOT-3 brake ﬂuid. Use new brake ﬂuid from a sealed container only. See Recommended Fluids and Lubricants on page 6-12. Always clean the brake ﬂuid reservoir cap and the area around the cap before removing it. This helps keep dirt from entering the reservoir.
Page 270: Brake Adjustment
Brake Wear Your vehicle has disc brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound can come and go or be heard all the time your vehicle is moving, except when you are pushing on the brake pedal ﬁrmly.
Page 271: Replacing Brake System Parts
Replacing Brake System Parts The braking system on a vehicle is complex. Its many parts have to be of top quality and work well together if the vehicle is to have really good braking. Your vehicle was designed and tested with top-quality brake parts. When you replace parts of the braking system —...
Page 272: Vehicle Storage
12-Volt Battery When it is time for a new standard 12-volt battery, see your dealer/retailer for one that has the replacement number shown on the original battery’s label. 36-Volt Battery System If you need a new 36-volt hybrid battery system, see your dealer/retailer.
Page 273 CAUTION: Batteries can hurt you. They can be dangerous because: • They contain acid that can burn you. • They contain gas that can explode or ignite. • They contain enough electricity to burn you. If you do not follow these steps exactly, some or all of these things can hurt you.
Page 274 4. Open each vehicle’s hood and locate the positive (+) and negative ( ) terminal locations of the other vehicle. Your vehicle has a remote positive (+) 12-volt jump starting terminal and a remote negative ( ) jump starting terminal. You should always use these remote terminals instead of the terminals on the battery.
Page 275 CAUTION: An electric fan can start up even when the engine is not running and can injure you. Keep hands, clothing and tools away from any underhood electric fan. CAUTION: Fans or other moving engine parts can injure you badly. Keep your hands away from moving parts once the engine is running.
Page 276 Notice: If the jumper cables are connected or removed in the wrong order, electrical shorting may occur and damage the vehicle. The repairs would not be covered by your warranty. Always connect and remove the jumper cables in the correct order, making sure that the cables do not touch each other or other metal.
Page 277: Headlamp Aiming
Headlamp Aiming The headlamp aiming system has been preset at the factory. If the vehicle is damaged in an accident, the aim of the headlamps may be affected and adjustment may be necessary. It is recommended that a dealer/retailer adjust the headlamps.
Page 278 4. At the wall measure from the ground upward (A) to the recorded distance from Step 3 and mark it. 5. Draw or tape a horizontal line (B) on the wall the width of the vehicle at the height of the mark in Step 4.
Page 279: Bulb Replacement
9. Make sure that the light from the headlamp is positioned at the bottom edge of the horizontal tape line. The lamp on the left (A) shows the correct headlamp aim. The lamp on the right (B) shows the incorrect headlamp aim. 10.
Page 280 Headlamps To replace one of the headlamp bulbs, use the following procedure. To replace the parking/turn signal lamp bulb, see Front Turn Signal and Parking Lamps on page 5-43. 1. Open the hood. See Hood Release on page 5-11 for more information. 2.
Page 281: Front Turn Signal And Parking Lamps
Front Turn Signal and Parking Lamps To replace a front turn signal or parking lamp bulb: 1. Follow Steps 1 through 6 under Headlamps on page 5-42 to access the front turn signal or parking lamp. 2. Turn the bulb to be replaced counterclockwise to remove it from the headlamp assembly.
Page 282: Taillamps, Turn Signal, Stoplamps And Back-Up Lamps
Taillamps, Turn Signal, Stoplamps and Back-up Lamps To replace one of these bulbs: A. Taillamp/Stoplamp B. Turn Signal Lamp C. Back-up Lamp 1. Open the liftgate. 5-44 2. Remove the two screws holding in the taillamp assembly. 3. Slide the taillamp assembly rearward and away from the vehicle.
Page 283: License Plate Lamp
License Plate Lamp To replace one of these bulbs: 1. Remove the two screws holding each of the license plate lamps to the fascia. 2. Turn and pull the license plate lamp forward through the fascia opening. 3. Turn the bulb socket counterclockwise and pull the bulb straight out of the socket.
Page 284: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected for wear and cracking. See Scheduled Maintenance on page 6-4 for more information. Replacement blades come in different types and are removed in different ways. For proper type and length, see Maintenance Replacement Parts on page 6-13.
Page 285: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your vehicle Warranty booklet for details. CAUTION: Poorly maintained and improperly used tires are dangerous.
Page 286: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into the sidewall. The following illustration is an example of a typical P-Metric tire sidewall. (A) Tire Size The tire size code is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type, and service description.
Page 287 (G) Maximum Cold Inﬂation Load Limit Maximum load that can be carried and the maximum pressure needed to support that load. For information on recommended tire pressure see Inﬂation - Tire Pressure on page 5-52 and Loading Your Vehicle on page 4-22. Tire Size The following illustration shows, an example of, a typical passenger car tire size.
Page 288: Tire Terminology And Deﬁnitions
Tire Terminology and Deﬁnitions Air Pressure The amount of air inside the tire pressing outward on each square inch of the tire. Air pressure is expressed in pounds per square inch (psi) or kilopascal (kPa). Accessory Weight This means the combined weight of optional accessories.
Page 289 Intended Outboard Sidewall asymmetrical tire, that must always face outward when mounted on a vehicle. Kilopascal (kPa) The metric unit for air pressure. Light Truck (LT-Metric) Tire light duty trucks and some multipurpose passenger vehicles. Load Index An assigned number ranging from 1 to 279 that corresponds to the load carrying capacity of a tire.
Page 290: Inﬂation - Tire Pressure
Speed Rating An alphanumeric code assigned to a tire indicating the maximum speed at which a tire can operate. Traction The friction between the tire and the road surface. The amount of grip provided. Tread The portion of a tire that comes into contact with the road.
Page 291: When To Check
If your tires have too much air (over-inﬂation), you can get the following: • Unusual wear • Poor handling • Rough ride • Needless damage from road hazards A vehicle speciﬁc Tire and Loading Information label is attached to your vehicle. This label shows your vehicle’s original equipment tires and the correct inﬂation pressures for your tires when they are cold.
Page 292: Tire Pressure Monitor System
Tire Pressure Monitor System The Tire Pressure Monitor System (TPMS) uses radio and sensor technology to check tire pressure levels. The TPMS sensors monitor the air pressure in your vehicle’s tires and transmit tire pressure readings to a receiver located in the vehicle. Each tire, including the spare (if provided), should be checked monthly when cold and inﬂated to the inﬂation pressure recommended by the vehicle manufacturer...
Page 293: Tire Pressure Monitor Operation
Federal Communications Commission (FCC) and Industry and Science Canada The Tire Pressure Monitor System (TPMS) operates on a radio frequency and complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2.
Page 294: Tpms Malfunction Light And Message
Using the DIC, tire pressure levels can be viewed by the driver. For additional information and details about the DIC operation and displays see DIC Operation and Displays on page 3-44 and DIC Warnings and Messages on page 3-50. The low tire pressure warning light may come on in cool weather when the vehicle is ﬁrst started, and then turn off as you start to drive.
Page 295: Tpms Sensor Matching Process
• Operating electronic devices or being near facilities using radio wave frequencies similar to the TPMS could cause the TPMS sensors to malfunction. If the TPMS is not functioning it cannot detect or signal a low tire condition. See your dealer/retailer for service if the TPMS malfunction light and DIC message comes on and stays on.
Page 296: Tire Inspection And Rotation
7. Proceed to the passenger side rear tire. The passenger side rear turn signal lamp comes on. Repeat the procedure in Step 5. 8. Proceed to the driver side rear tire. The driver side rear turn signal lamp comes on. Repeat the procedure in Step 5.
Page 297: When It Is Time For New Tires
Reset the Tire Pressure Monitor System. See Tire Pressure Monitor Operation on page 5-55. Make certain that all wheel nuts are properly tightened. See “Wheel Nut Torque” under Capacities and Speciﬁcations. CAUTION: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after a time.
Page 298: Buying New Tires
You need new tires if any of the following statements are true: • You can see the indicators at three or more places around the tire. • You can see cord or fabric showing through the tire’s rubber. • The tread or sidewall is cracked, cut, or snagged deep enough to show cord or fabric.
Page 299 CAUTION: Mixing tires could cause you to lose control while driving. If you mix tires of different sizes, brands, or types (radial and bias-belted tires) the vehicle may not handle properly, and you could have a crash. Using tires of different sizes, brands, or types may also cause damage to your vehicle.
Page 300: Different Size Tires And Wheels
You may increase the chance that you will crash and suffer serious injury. Only use Saturn speciﬁc wheel and tire systems developed for your vehicle, and have them properly installed by a Saturn certiﬁed technician.
Page 301 Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a speciﬁed government test course. For example, a tire graded 150 would wear one and a half (1.5) times as well on the government course as a tire graded 100.
Page 302: Wheel Alignment And Tire Balance
If you need to replace any of your wheels, wheel bolts, or wheel nuts, replace them only with new Saturn original equipment parts. This way, you will be sure to have the right wheel, wheel bolts, and wheel nuts for your vehicle.
Page 303 Be sure to use the correct wheel nuts. If you have to replace them, be sure to get new Saturn original equipment wheel nuts. Notice: Improperly tightened wheel nuts can lead to brake pulsation and rotor damage. To avoid...
Page 304: Tire Chains
You cannot know how it has been used or how far it has been driven. It could fail suddenly and cause a crash. If you have to replace a wheel, use a new Saturn original equipment wheel. Tire Chains CAUTION: Do not use tire chains.
Page 305: If A Tire Goes Flat
If a Tire Goes Flat Your vehicle has a tire sealant and compressor kit. See Tire Sealant and Compressor Kit on page 5-68. There is no spare tire, no tire changing equipment, and no place to store a tire. It is unusual for a tire to blow out while you are driving, especially if you maintain your tires properly.
Page 306: Tire Sealant And Compressor Kit
Tire Sealant and Compressor Kit Your vehicle is equipped with a tire sealant and compressor kit that is capable of temporarily sealing a puncture up to a ⁄ inch (6 mm) in the tread area of the tire. There is no jack of spare tire. The kit inﬂates with liquid sealant and air.
Page 307: Accessing The Tire Sealant And Compressor Kit
Accessing the Tire Sealant and Compressor Kit To access the tire sealant and compressor kit: 1. Open the liftgate. See Liftgate on page 2-9 for more information 2. Lift the forward ﬂoor panel of the load ﬂoor cargo organizer. 3. Remove the forward ﬂoor panel of the load ﬂoor cargo organizer and place it in the vehicle while you are removing the tire sealant and compressor kit.
Page 308 4. Open the ﬂoor cargo organizer locks, located on the top left and right corners of the organizer, by pushing inward on them. 5. Remove the load ﬂoor cargo organizer. 5-70 6. Remove the foam retainer bolt (B) holding down the foam container.
Page 309: Tire Sealant
Tire Sealant Read and follow the safe handling instructions on the instructional label adhered to the sealant canister. Check the tire sealant expiration date on the sealant canister. The sealant canister should be replaced before its expiration date. Replacement canisters are available at your local dealer/retailer.
Page 310 The sealant cannot seal sidewall damage, large punctures, or a tire that has become unseated from the wheel. See Roadside Assistance Program on page 7-6. Do not remove any objects that have penetrated the tire. 3. Place the tire sealant and compressor kit on the ground and unwrap the sealant/air hose (G) from the side of the compressor.
Page 311 9. Push the On/Off switch (D) to the I (on) position. The tire sealant and compressor kit will inject sealant and air into the tire. The pressure gage (E) will initially show a high pressure while the compressor pushes the sealant into the tire.
Page 312 16. If the ﬂat tire was able to inﬂate to the recommended inﬂation pressure, remove the maximum speed label from the sealant canister (B). 17. Place it in a highly visible location such as the inside of the upper left corner of the windshield or to the face of the radio/clock.
Page 313: Not Punctured
20. Stop at a safe location and check the tire pressure, refer to Steps 1 through 8 under “Using the Tire Sealant and Compressor Kit without Sealant to Inﬂate an Underinﬂated Tire (Not Punctured)” later in this section. If the tire pressure has fallen more then 10 psi (68 kPa), below the recommended inﬂation pressure, stop driving the vehicle.
Page 314 4. Push the air only hose (F) onto the tire valve stem and push the lever down to secure in place. 5. Remove the air compressor accessory plug (C) from the unit. 6. Plug the air compressor accessory plug into an accessory power outlet in the vehicle.
Page 315 11. Unplug the air compressor accessory plug from the accessory power outlet in the vehicle. 12. Unlock the air only hose (F) from the tire valve stem by pulling the lever up. 13. Disconnect the air only hose (F) from the tire valve stem and replace the tire valve stem cap.
Page 316: Removal And Installation Of The Sealant Canister
Removal and Installation of the Sealant Canister To remove the sealant canister, do the following: 1. Unlock the air only hose from the sealant canister by pulling the lever up. 2. Unwrap the sealant/air hose from the compressor. 5-78 3. Turn the sealant canister so the inﬂator ﬁlling hose is aligned with the slot in the compressor.
Page 317: Interior Cleaning
To install a new sealant canister, do the following: 1. Align the sealant/air hose with the slot in the air compressor. 2. Push the sealant canister down and turn it clockwise. 3. Wrap the sealant/air hose around the air compressor channel to stow it in its original location. 4.
Page 318: Fabric/Carpet
Your dealer/retailer has a product for cleaning your vehicle’s glass. Should it become necessary, you can also obtain a product from your dealer/retailer to remove odors from your vehicle’s upholstery. Do not clean your vehicle using: • A knife or any other sharp object to remove a soil from any interior surface.
Page 319: Instrument Panel, Vinyl, And Other Plastic Surfaces
If any of the soil remains, a commercial fabric cleaner or spot lifter may be necessary. When a commercial upholstery cleaner or spot lifter is to be used, test a small hidden area for colorfastness ﬁrst. If the locally cleaned area gives any impression that a ring formation may result, clean the entire surface.
Page 320: Weatherstrips
Weatherstrips Silicone grease on weatherstrips will make them last longer, seal better, and not stick or squeak. Apply silicone grease with a clean cloth. During very cold, damp weather frequent application may be required. See Recommended Fluids and Lubricants on page 6-12. Washing Your Vehicle The best way to preserve your vehicle’s ﬁnish is to keep it clean by washing it often.
Page 321: Finish Care
Finish Care Occasional waxing or mild polishing of your vehicle by hand may be necessary to remove residue from the paint ﬁnish. You can get approved cleaning products from your dealer/retailer. See Vehicle Care/Appearance Materials on page 5-86. If your vehicle has a basecoat/clearcoat paint ﬁnish, the clearcoat gives more depth and gloss to the colored basecoat.
Page 322: Windshield And Wiper Blades
Windshield and Wiper Blades Clean the outside of the windshield with glass cleaner. Clean the rubber blades using a lint free cloth or paper towel soaked with windshield washer ﬂuid or a mild detergent. Wash the windshield thoroughly when cleaning the blades. Bugs, road grime, sap, and a buildup of vehicle wash/wax treatments may cause wiper streaking.
Page 323: Tires
Notice: Using chrome polish on aluminum wheels could damage the wheels. The repairs would not be covered by your warranty. Use chrome polish on chrome wheels only. The surface of these wheels is similar to the painted surface of the vehicle. Do not use strong soaps, chemicals, abrasive polishes, abrasive cleaners, cleaners with acid, or abrasive cleaning brushes on them because the surface could be damaged.
Page 324: Underbody Maintenance
Underbody Maintenance Chemicals used for ice and snow removal and dust control can collect on the underbody. If these are not removed, corrosion and rust can develop on the underbody parts such as fuel lines, frame, ﬂoor pan, and exhaust system even though they have corrosion protection.
Page 325: Vehicle Identiﬁcation Number (Vin)
Description Removes swirl marks, ﬁne Swirl Remover Polish scratches, and other light surface contamination. Removes light scratches Cleaner Wax and protects ﬁnish. Cleans, shines, and Foaming Tire Shine Low protects tires. No wiping Gloss necessary. Medium foaming shampoo. Cleans Wash Wax Concentrate and lightly waxes.
Page 326: Service Parts Identiﬁcation Label
Service Parts Identiﬁcation Label This label is on the inside of the glove box. It is very helpful if you ever need to order parts. The label has the following information: • Vehicle Identiﬁcation Number (VIN) • Model designation • Paint information •...
Page 327: Add-On Electrical Equipment
Add-On Electrical Equipment Notice: Do not add anything electrical to your vehicle unless you check with your dealer/retailer ﬁrst. Some electrical equipment can damage your vehicle and the damage would not be covered by your warranty. Some add-on electrical equipment can keep other components from working as they should.
Page 328: Fuses And Circuit Breakers
Fuses and Circuit Breakers The wiring circuits in your vehicle are protected from short circuits by fuses. This greatly reduces the chance of circuit overload and ﬁre caused by electrical problems. There are three fuse blocks - the main underhood fuse block, the auxiliary hybrid underhood fuse block and the instrument panel fuse block.
Page 329 Fuses Usage Fuses Usage PWR SEAT Power Seat DRIV P/WIN Driver Side Power Window PASS P/WIN Passenger Side Power Window S/ROOF Sunroof Module 5-91...
Page 330 Fuses Usage CIGAR Cigarette Lighter Engine Control Module (ECM)/ ECM/TCM Transmission Control Module (TCM) FSCM Fuel Storage Control Module ISRVM Inner Side Rearview Mirror) Cluster Instrument Panel Cluster AIR BAG Airbag System OSRVM Outer Side Rearview Mirror KEY CAP Key Capture Solenoid WHL S/W Steering Wheel Switch F/DR LCK...
Page 331: Underhood Fuse Block
Fuses Usage BCM (VB2) Body Control Module (VB2) Daytime Running Light BCM (VB1) Body Control Module (VB1) ® ONSTAR OnStar Relays Usage RELAY Accessory, Retained Accessory ACC/RAP Power (RAP) Relay RELAY Run/Crank Relay RUN/CRANK Underhood Fuse Block Main Underhood Fuse Block The main underhood fuse block is located on the driver side of the engine compartment.
Page 332 Fuses ENG 1 Engine 1 ENG 2 Engine 2 5-94 Usage Fuses Usage Engine Control Module ENG 3 Engine 3...
Page 333 Fuses Usage A/C COMP Air Conditioning Compressor Engine Control Module/CAM, MAIN Emissions, Injectors, Electronic Throttle Control FUEL Fuel Pump Not Used Anti-lock Brake System Module (ABS) STOP Stoplamp HEATING MAT Heating Mat HORN Horn WIPER Windshield Wiper SUNROOF* Sunroof (Option) ANTI-THEFT* Theft Deterrent System (Option) POWER Power Seat (Option)
Page 334 Relays FAN AUX Cooling Fan Auxiliary Relay RELAY FUEL RELAY Fuel Pump Relay WIPER SPEED Windshield Wiper Speed Relay RELAY DEFOG Defogger Relay RELAY HI/LO RELAY High/Low Relay H/L WASHER Washer Relay RELAY Engine Control Module/CAM, MAIN RELAY Emissions, Injectors, Electronic Throttle Control Relay FAN MAIN Cooling Fan Main Relay...
Page 335 Hybrid Underhood Fuse Block The Hybrid Underhood Fuse Block is located on the passenger side of the engine compartment. It is the smaller of the two fuse blocks in the engine compartment. Fuses Usage HYBRID Hybrid Pumps PUMPS HILL HOLD Hill Hold Valves VLVS Auxiliary Transmission Pump...
Page 336: Capacities And Speciﬁcations
Capacities and Speciﬁcations Application Air Conditioning Refrigerant R134a Cooling System Engine Oil with Filter Fuel Tank Transmission (Bottom Pan Removal) Wheel Nut Torque All capacities are approximate. When adding, be sure to ﬁll to the approximate level, as recommended in this manual.
Page 337 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 Using the Maintenance Schedule ...6-2 Scheduled Maintenance ...6-4 Additional Required Services ...6-6 Maintenance Footnotes ...6-7 Maintenance Schedule Owner Checks and Services ...6-8 At Each Fuel Fill ...6-8 At Least Once a Month ...6-9 At Least Once a Year ...6-9 Recommended Fluids and Lubricants ...6-12...
Page 338: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts, and recommended ﬂuids and lubricants as prescribed in this manual are necessary to keep your vehicle in good working condition.
Page 339 The services in Scheduled Maintenance on page 6-4 should be performed when indicated. See Additional Required Services on page 6-6 and Maintenance Footnotes on page 6-7 for further information. CAUTION: Performing maintenance work on a vehicle can be dangerous. In trying to do some jobs, you can be seriously injured.
Page 340: Scheduled Maintenance
Scheduled Maintenance When the Change Engine Oil light comes on, it means that service is required for your vehicle. Have your vehicle serviced as soon as possible within the next 600 miles (1 000 km). It is possible that, if you are driving under the best conditions, the engine oil life system may not indicate that vehicle service is necessary for over a year.
Page 341 Scheduled Maintenance Service Maintenance I Maintenance II Change engine oil and ﬁlter. See Engine Oil on page 5-13. Reset oil life system. See Engine Oil Life System on page 5-16. An Emission Control Service. Visually check for any leaks or damage. See footnote (j). Inspect engine air cleaner ﬁlter.
Page 342: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 343: Maintenance Footnotes
Maintenance Footnotes (a) Visually inspect brake lines and hoses for proper hook-up, binding, leaks, cracks, chaﬁng, etc. Inspect disc brake pads for wear and rotors for surface condition. Inspect other brake parts, including calipers, parking brake, etc. (b) Visually inspect front and rear suspension and steering system for damaged, loose, or missing parts or signs of wear.
Page 344: Engine Oil Level Check
(i) Drain, ﬂush, and reﬁll cooling system. This service can be complex; you should have your dealer/retailer perform this service. See Engine Coolant on page 5-20 for what to use. Inspect hoses. Clean radiator, condenser, pressure cap, and ﬁller neck. Pressure test the cooling system and pressure cap.
Page 345: At Least Once A Month
Engine Coolant Level Check Check the engine coolant level and add DEX-COOL coolant mixture if necessary. See Engine Coolant on page 5-20. Windshield Washer Fluid Level Check Check the windshield washer ﬂuid level in the windshield washer ﬂuid reservoir and add the proper ﬂuid if necessary.
Page 346: Ignition Transmission Lock Check
Automatic Transmission Shift Lock Control System Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle. It should be parked on a level surface.
Page 347: Underbody Flushing Service
Parking Brake and Automatic Transmission Park (P) Mechanism Check CAUTION: When you are doing this check, your vehicle could begin to move. You or others could be injured and property could be damaged. Make sure there is room in front of your vehicle in case it begins to roll.
Page 348: Recommended Fluids And Lubricants
(GM Part No. U.S. 12346241, in Cylinders Canada 10953474). Hood Latch Lubriplate Lubricant Aerosol Assembly, (Saturn Part No. 21038869 or Secondary GM Part No. U.S. 12346293, in Latch, Pivots, Canada 992723) or lubricant Spring Anchor, meeting requirements of NLGI #2, and Release Category LB or GC-LB.
Page 349: Maintenance Replacement Parts
Passenger Compartment Air Filter Element Spark Plugs Wiper Blades Driver’s Side – 24 inches (60.0 cm) Passenger’s Side – 16 inches (40.0 cm) Rear – 12.0 inches (30.0 cm) Saturn Part Number ACDelco Part Number 96815102 12605566 19130294 1258004 96830172...
Page 350: Engine Drive Belt Routing
Engine Drive Belt Routing The engine drive belt on this hybrid vehicle is under a higher tension than the engine drive belt on a non-hybrid vehicle and requires the use of a special kind of tool to service. See your dealer/retailer for service. 6-14 Maintenance Record After the scheduled services are performed, record the...
Page 351 Maintenance Record Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-15...
Page 352 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-16...
Page 353 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-17...
Page 354 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-18...
Page 355: Customer Assistance Information
Reporting Safety Defects ...7-13 Reporting Safety Defects to the United States Government ...7-13 Reporting Safety Defects to the Canadian Government ...7-13 Reporting Safety Defects to Saturn ...7-13 Service Publications Ordering Information ...7-14 Vehicle Data Recording and Privacy ...7-15 Event Data Recorders ...7-15 ®...
Page 356: Customer Assistance And Information
Saturn. Together we are committed to providing our customers with unparalleled service, before, during, and after the purchase of a Saturn vehicle, for total customer satisfaction. We call this the Saturn Difference. Normally, any concerns with the sales transaction or the operation of the vehicle are resolved by the retailer’s sales or service departments.
Page 357 Telephone: 1-800-955-5100 This program is available in all 50 states and the District of Columbia. Eligibility is limited by vehicle age, mileage and other factors. Saturn Corporation reserves the right to change eligibility limitations and/or discontinue its participation in this program.
Page 358: Online Owner Center
Online Owner Center (United States only) This is a resource for your Saturn ownership needs. Speciﬁc vehicle information can be found in one place. The Online Owner Center allows you to: • Get e-mail service reminders. • Access information about your speciﬁc vehicle, including tips and videos and an electronic version of this owner manual.
Page 359: Customer Assistance Offices
The offer is available for a limited period of time from the date of vehicle purchase/lease. For more details, or to determine your vehicle’s eligibility, visit your Saturn retailer or call the Saturn Customer Assistance Center at 1-800-553-6000. Text telephone (TTY) users, call 1-800-833-6000.
Page 360: Roadside Assistance Program
(Text Telephone (TTY): 1-800-889-2438). For vehicles purchased in Canada, call 1-800-268-6800. Service is available 24 hours a day, 365 days a year. As the owner of a new Saturn vehicle, you are automatically enrolled in the Saturn Roadside Assistance Program.
Page 361: Calling For Assistance
However, any cost for parts and labor for non-warranty repairs are the responsibility of the driver. Saturn and General Motors of Canada Limited reserve the right to limit services or reimbursement to an owner or driver when, in their sole discretion, the claims become excessive in frequency or type of occurrence.
Page 362: Scheduling Service Appointments
Roadside Assistance is not part of or included in the coverage provided by the New Vehicle Limited Warranty. Saturn and General Motors of Canada Limited reserve the right to make any changes or discontinue the Roadside Assistance program at any time without notiﬁcation.
Page 363: Additional Program Information
Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait, Saturn helps to minimize your inconvenience by providing several transportation options. Depending on the circumstances, your retailer can offer you one of the following:...
Page 364: Collision Damage Repair
Collision Damage Repair If your vehicle is involved in a collision and it is damaged, have the damage repaired by a qualiﬁed technician using the proper equipment and quality replacement parts. Poorly performed collision repairs diminish your vehicle’s resale value, and safety performance can be compromised in subsequent collisions.
Page 365: If A Crash Occurs
When purchasing insurance, we recommend that you assure your vehicle will be repaired with GM original equipment collision parts. If such insurance coverage is not available from your current insurance carrier, consider switching to another insurance carrier. If your vehicle is leased, the leasing company may require you to have insurance that assures repairs with Genuine GM Original Equipment Manufacturer (OEM) parts or Genuine Manufacturer replacement parts.
Page 366: Managing The Vehicle Damage Repair Process
• Choose a reputable collision repair facility for your vehicle. Whether you select a dealer/retailer or a private collision repair facility to ﬁx the damage, make sure you are comfortable with them. Remember, you will have to feel comfortable with their work for a long time.
Page 367: Reporting Safety Defects
However, NHTSA cannot become involved in individual problems between you, your retailer or Saturn Corporation. To contact NHTSA, call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153);...
Page 368: Service Manuals
Service Publications Ordering Information Service Manuals A variety of publications are available to you. Saturn service manuals are written for trained technicians, and in some cases, specialized tools and equipment are necessary to complete certain repairs. However, the manuals are available to owners who either have the training, or wish to gain a greater understanding of the technical aspect of their Saturn.
Page 369: Vehicle Data Recording And Privacy
Vehicle Data Recording and Privacy Your Saturn vehicle has a number of sophisticated computers that record information about the vehicle’s performance and how it is driven. For example, your vehicle uses computer modules to monitor and control engine and transmission performance, to monitor...
Page 370: Onstar
EDR. Saturn will not access this data or share it with others except: with the consent of the vehicle owner or, if the vehicle is leased, with the consent of the lessee; in response to an official request of police or similar government office;...
Page 371 About Driving Your Vehicle ... iii Accessories and Modiﬁcations ... 5-3 Adding Equipment to Your Airbag-Equipped Vehicle ... 1-68 Additives, Fuel ... 5-7 Add-On Electrical Equipment ... 5-89 Air Cleaner/Filter, Engine ... 5-18 Air Conditioning ... 3-18 Airbag Passenger Status Indicator ... 3-30 Readiness Light ...
Page 372 Audio System(s) ... 3-62 Auto Stop Mode ... 3-42 Automatic Climate Control System ... 3-18 Automatic Headlamp System ... 3-15 Automatic Transmission Fluid ... 5-20 Operation ... 2-23 Battery ... 5-33 Run-Down Protection ... 3-17 Brake Emergencies ... 4-6 Brakes ... 5-30 Regenerative Braking ...
Page 373 Checking Things Under the Hood ... 5-10 Chemical Paint Spotting ... 5-86 Child Restraints Child Restraint Systems ... 1-37 Infants and Young Children ... 1-34 Lower Anchors and Tethers for Children ... 1-41 Older Children ... 1-31 Securing a Child Restraint in a Rear Seat Position ...
Page 374 Customer Assistance Information (cont.) GM Mobility Reimbursement Program ... 7-5 Reporting Safety Defects to Saturn ... 7-13 Reporting Safety Defects to the Canadian Government ... 7-13 Reporting Safety Defects to the United States Government ... 7-13 Roadside Assistance Program ... 7-6 Service Publications Ordering Information ...
Page 375 Electrical System (cont.) Underhood Fuse Block ... 5-93 Windshield Wiper Fuses ... 5-89 Electronic Immobilizer ® PASS-Key III ... 2-14 Electronic Immobilizer Operation ® PASS-Key III+ ... 2-15 Electronic Stability Program ... 4-8 Engine Air Cleaner/Filter ... 5-18 Change Engine Oil Light ... 3-39 Check and Service Engine Soon Light ...
