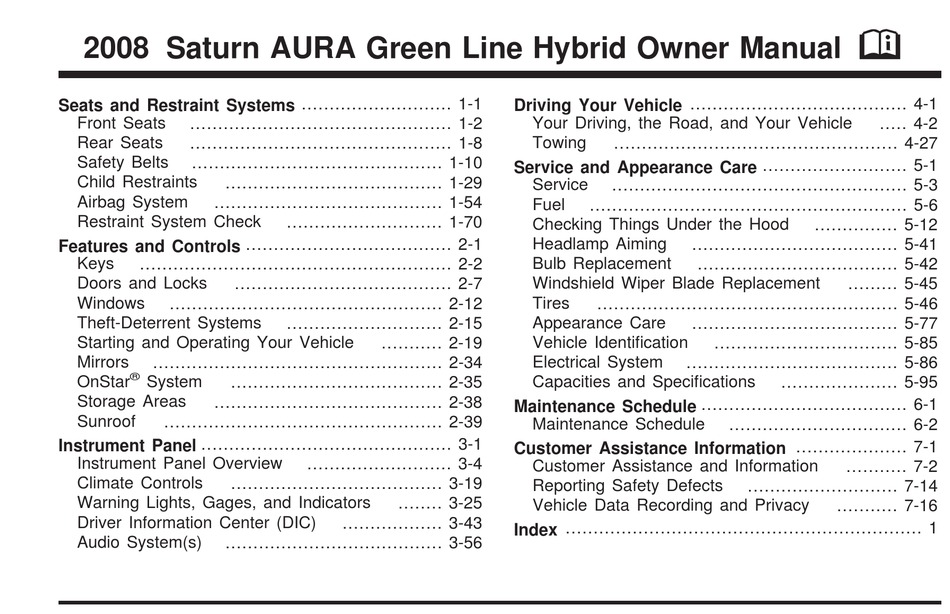

2008 Saturn AURA Green Line Hybrid Owner Manual
Seats and Restraint Systems ........................... 1-1
Front Seats
............................................... 1-2
Rear Seats
............................................... 1-8
Safety Belts
............................................. 1-10
Child Restraints
....................................... 1-29
Airbag System
......................................... 1-54
Restraint System Check
Features and Controls ..................................... 2-1
Keys
........................................................ 2-2
Doors and Locks
....................................... 2-7
Windows
................................................. 2-12
Theft-Deterrent Systems
Starting and Operating Your Vehicle
Mirrors
.................................................... 2-34
®
OnStar
System
...................................... 2-35
Storage Areas
......................................... 2-38
Sunroof
.................................................. 2-39
Instrument Panel ............................................. 3-1
Instrument Panel Overview
Climate Controls
...................................... 3-19
Warning Lights, Gages, and Indicators
Driver Information Center (DIC)
Audio System(s)
....................................... 3-56
............................ 1-70
............................ 2-15
........... 2-19
.......................... 3-4
........ 3-25
.................. 3-43
Driving Your Vehicle ....................................... 4-1
Your Driving, the Road, and Your Vehicle
Towing
................................................... 4-27
Service and Appearance Care .......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-6
Checking Things Under the Hood
Headlamp Aiming
..................................... 5-41
Bulb Replacement
Windshield Wiper Blade Replacement
Tires
...................................................... 5-46
Appearance Care
..................................... 5-77
Vehicle Identification
Electrical System
...................................... 5-86
Capacities and Specifications
Maintenance Schedule ..................................... 6-1
Maintenance Schedule
Customer Assistance Information .................... 7-1
Customer Assistance and Information
Reporting Safety Defects
Vehicle Data Recording and Privacy
Index ................................................................ 1
M
............... 5-12
.................................... 5-42
......... 5-45
................................. 5-85
..................... 5-95
................................ 6-2
........... 7-2
........................... 7-14
........... 7-16
..... 4-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2008 AURA Green Line Hybrid and is the answer not in the manual?

Questions and answers

Summary of Contents for Saturn 2008 AURA Green Line Hybrid

  • Page 1 2008 Saturn AURA Green Line Hybrid Owner Manual Seats and Restraint Systems ... 1-1 Front Seats ... 1-2 Rear Seats ... 1-8 Safety Belts ... 1-10 Child Restraints ... 1-29 Airbag System ... 1-54 Restraint System Check ... 1-70 Features and Controls ... 2-1 Keys ...
  • Page 2: Canadian Owners

    SATURN and the SATURN Emblem are registered trademarks, and the name AURA is a trademark of Saturn Corporation. GENERAL MOTORS and GM are registered trademarks of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without further notice.
  • Page 3: Using This Manual

    Using this Manual Many people read the owner manual from beginning to end when they first receive their new vehicle to learn about the vehicle’s features and controls. Pictures and words work together to explain things. Index A good place to quickly locate information about the vehicle is the Index in the back of the manual.
  • Page 4: Vehicle Symbols

    Vehicle Damage Warnings You will also find notices in this manual. Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
  • Page 5: Table Of Contents

    Section 1 Front Seats ...1-2 Manual Seats ...1-2 Power Seats ...1-3 Manual Lumbar ...1-3 Reclining Seatbacks ...1-4 Head Restraints ...1-7 Power Lift Seat ...1-8 Rear Seats ...1-8 Split Folding Rear Seat ...1-8 Safety Belts ...1-10 Safety Belts: They Are for Everyone ...1-10 How to Wear Safety Belts Properly ...1-15 Lap-Shoulder Belt ...1-22 Safety Belt Use During Pregnancy ...1-28...
  • Page 6: Manual Seats

    Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
  • Page 7: Manual Lumbar

    Power Seats In vehicles with power seats, the controls used to operate them are located on the outboard side of the seat. To adjust the seat, do any of the following: • Move the seat forward or rearward by sliding the control forward or rearward.
  • Page 8 Reclining Seatbacks Manual Reclining Seatbacks CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
  • Page 9: Power Reclining Seatbacks

    To return the seatback to an upright position, do the following: 1. Lift the lever fully without applying pressure to the seatback and the seatback returns to the upright position. 2. Release the lever to lock the seatback. 3. Push and pull on the seatback to make sure it is locked.
  • Page 10 CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job. In a crash, you could go into it, receiving neck or other injuries.
  • Page 11: Head Restraints

    Head Restraints Adjust the head restraint so that the top of the restraint is at the same height as the top of the occupant’s head. This position reduces the chance of a neck injury in a crash. Pull the restraint up to raise it.
  • Page 12: Power Lift Seat

    Power Lift Seat To adjust a power lift seat, press the top or bottom of the power lift seat switch to raise or lower the seat. Rear Seats Split Folding Rear Seat With this feature, you can fold either side of the seatback down for more cargo space.
  • Page 13 To lower the rear seatback, pull on the seat tab located on the outboard side of the seatback cushion and fold the seatback down. This allows access to the trunk. To raise the rear seatback pull the seatback up and make sure it latches.
  • Page 14: Safety Belts: They Are For Everyone

    Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where he or she cannot wear a safety belt properly.
  • Page 15: Why Safety Belts Work

    Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. Put someone on it. Take the simplest vehicle. Suppose it is just a seat on wheels. 1-11...
  • Page 16 Get it up to speed. Then stop the vehicle. The rider does not stop. 1-12 The person keeps going until stopped by something. In a real vehicle, it could be the windshield...
  • Page 17 or the instrument panel... or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. 1-13...
  • Page 18: Questions And Answers About Safety Belts

    Questions and Answers About Safety Belts Will I be trapped in the vehicle after a crash if I am wearing a safety belt? You could be — whether you are wearing a safety belt or not. But your chance of being conscious during and after an accident, so you can unbuckle and get out, is much greater if you are belted.
  • Page 19: How To Wear Safety Belts Properly

    How to Wear Safety Belts Properly This section is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see Older Children on page 1-29 or Infants and Young Children on page 1-32.
  • Page 20 What is wrong with this? The shoulder belt is too loose. It will not give as much protection this way. 1-16 CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
  • Page 21 What is wrong with this? The lap belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force on your abdomen.
  • Page 22 What is wrong with this? The belt is buckled in the wrong place. 1-18 CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not on the pelvic bones.
  • Page 23 What is wrong with this? The belt is over an armrest. CAUTION: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt.
  • Page 24 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. 1-20 CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
  • Page 25 What is wrong with this? The belt is behind the body. CAUTION: You can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, you would not be restrained by the shoulder belt. Your body could move too far forward increasing the chance of head and neck injury.
  • Page 26: Lap-Shoulder Belt

    What is wrong with this? The belt is twisted across the body. 1-22 CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer/retailer to fix it.
  • Page 27 3. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see Safety Belt Extender on page 1-28. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if necessary.
  • Page 28: Shoulder Belt Height Adjuster

    To unlatch the belt, push the button on the buckle. The belt should go back out of the way. When the safety belt is not in use, slide the latch plate up the safety belt webbing. The latch plate should rest on the stitching on the safety belt, near the guide loop on the side wall.
  • Page 29: Rear Safety Belt Comfort Guides

    Safety Belt Pretensioners Your vehicle has safety belt pretensioners for the front outboard occupants. Although you cannot see them, they are part of the safety belt assembly. They can help tighten the safety belts during the early stages of a moderate to severe frontal and near frontal crash if the threshold conditions for pretensioner activation are met.
  • Page 30 2. Place the guide over the belt and insert the 3. Be sure that the belt is not twisted and it lies flat. two edges of the belt into the slots of the guide. The elastic cord must be under the belt and the guide on top.
  • Page 31 CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.
  • Page 32: Safety Belt Use During Pregnancy

    Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
  • Page 33: Child Restraints

    Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. The manufacturer’s instructions that come with the booster seat state the weight and height limitations for that booster. Use a booster seat with a lap-shoulder belt until the child passes the below fit test: •...
  • Page 34 What is the proper way to wear safety belts? An older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should fit snugly below the hips, just touching the top of the thighs.
  • Page 35 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. In a crash, the child would not be restrained by the shoulder belt. The child might slide under the lap belt. The belt force would then be applied right on the abdomen.
  • Page 36: Infants And Young Children

    Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
  • Page 37 CAUTION: Children who are up against, or very close to, any airbag when it inflates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. CAUTION: (Continued) CAUTION: (Continued) Neither the vehicle’s safety belt system nor its airbag system is designed for them.
  • Page 38 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
  • Page 39: Child Restraint Systems

    CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
  • Page 40 A booster seat (C-D) is a child restraint designed to improve the fit of the vehicle’s safety belt system. A booster seat can also help a child to see out the window. 1-36 Securing an Add-On Child Restraint in the Vehicle CAUTION: A child can be seriously injured or killed in a crash if the child restraint is not properly...
  • Page 41: Securing The Child Within The Child Restraint

    To help reduce the chance of injury, the child restraint must be secured in the vehicle. Child restraint systems must be secured in vehicle seats by lap belts or the lap belt portion of a lap-shoulder belt, or by the LATCH system.
  • Page 42: Where To Put The Restraint

    Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We recommend that children and child restraints be secured in a rear seat, including: an infant or a child riding in a rear-facing child restraint;...
  • Page 43 When securing a child restraint in a rear seating position, study the instructions that came with your child restraint to make sure it is compatible with this vehicle. Wherever you install a child restraint, be sure to secure the child restraint properly. Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle.
  • Page 44: Lower Anchors And Tethers For Children (Latch)

    A. Child restraint or occupant using safety belt A. Child restraint or occupant using safety belt B. Child restraint using LATCH 1-40 Lower Anchors and Tethers for Children (LATCH) The LATCH system holds a child restraint during driving or in a crash. This system is designed to make installation of a child restraint easier.
  • Page 45: Top Tether Anchor

    Lower Anchors Lower anchors (A) are metal bars built into the vehicle. There are two lower anchors for each LATCH seating position that will accommodate a child restraint with lower attachments (B). Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle.
  • Page 46 Your child restraint may have a single tether (A) or a dual tether (C). Either will have a single attachment (B) to secure the top tether to the anchor. Some child restraints with top tethers are designed for use with or without the top tether being attached. Others require the top tether always to be attached.
  • Page 47 To assist you in locating the lower anchors, each rear anchor position has a label, near the crease between the seatback and the seat cushion, showing where the anchors are located. The top tether anchors are located behind the rear seat on the filler panel.
  • Page 48: Securing A Child Restraint Designed For The Latch System

    Securing a Child Restraint Designed for the LATCH System CAUTION: If a LATCH-type child restraint is not attached to anchors, the restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed. Make sure that a LATCH-type child restraint is properly installed using the anchors, or use the vehicle’s safety belts to secure the restraint, following the...
  • Page 49 CAUTION: (Continued) Pull the shoulder belt all the way out of the retractor to set the lock, if your vehicle has one, after the child restraint has been installed. Be sure to follow the instructions of the child restraint manufacturer. Notice: Contact between the child restraint LATCH attachment parts and the vehicle’s safety belt assembly may cause damage to these parts.
  • Page 50 This system is designed to make installation of child restraints easier. When using lower anchors, do not use the vehicle’s safety belts. Instead use the vehicle’s anchors and child restraint attachments to secure the restraints. Some restraints also use another vehicle anchor to secure a top tether.
  • Page 51: Securing A Child Restraint In A Rear Seat Position

    If the position you are using has an adjustable headrest or head restraint and you are using a single tether, route the tether under the headrest or head restraint and in between the headrest or head restraint posts. See Head Restraints on page 1-7.
  • Page 52 If you need to install more than one child restraint in the rear seat, be sure to read Where to Put the Restraint on page 1-38. 1. Put the child restraint on the seat. 2. Pick up the latch plate, and run the lap and shoulder portions of the vehicle’s safety belt through or around the restraint.
  • Page 53 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt, and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may find it helpful to use your knee to push down on the child restraint as you tighten the belt.
  • Page 54: Securing A Child Restraint In The Right Front Seat Position

    Securing a Child Restraint in the Right Front Seat Position Your vehicle has airbags. A rear seat is a safer place to secure a forward-facing child restraint. See Where to Put the Restraint on page 1-38. In addition, your vehicle has a passenger sensing system which is designed to turn off the right front passenger’s frontal airbag and seat-mounted side impact airbag under certain conditions.
  • Page 55 If your child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 1-40 for how to install your child restraint using LATCH. If you secure a child restraint using a safety belt and it uses a top tether, see Lower Anchors and Tethers for Children (LATCH) on page 1-40 for top tether anchor locations.
  • Page 56 4. Push the latch plate into the buckle until it clicks. 5. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if necessary.
  • Page 57 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may find it helpful to use your knee to push down on the child restraint as you tighten the belt.
  • Page 58: Airbag System

    Airbag System Your vehicle has the following airbags: • A frontal airbag for the driver. • A frontal airbag for the right front passenger. • A seat-mounted side impact airbag for the driver. • A seat-mounted side impact airbag for the right front passenger.
  • Page 59 CAUTION: Frontal airbags are designed to deploy in moderate to severe frontal and near frontal crashes. They are not designed to inflate in rollover, rear crashes, or in many side crashes. Seat-mounted side impact airbags and roof-rail airbags are designed to inflate in moderate to severe crashes where something hits the side of your vehicle.
  • Page 60: Where Are The Airbags

    CAUTION: Airbags plus lap-shoulder belts offer the best protection for adults, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them. Young children and infants need the protection that a child restraint system can provide.
  • Page 61 The right front passenger’s frontal airbag is in the instrument panel on the passenger’s side. Driver Side shown, Passenger Side similar The seat-mounted side impact airbags for the driver and right front passenger are in the side of the seatbacks closest to the door.
  • Page 62 Driver Side shown, Passenger Side similar The roof-rail airbags for the driver, right front passenger, and second row outboard passengers are in the ceiling above the side windows. 1-58 CAUTION: If something is between an occupant and an airbag, the airbag might not inflate properly or it might force the object into that person causing severe injury or even death.
  • Page 63: When Should An Airbag Inflate

    When Should an Airbag Inflate? Frontal airbags are designed to inflate in moderate to severe frontal or near-frontal crashes to help reduce the potential for severe injuries mainly to the driver’s or right front passenger’s head and chest. However, they are only designed to inflate if the impact exceeds a predetermined deployment threshold.
  • Page 64 Frontal airbags are not intended to inflate during vehicle rollovers, rear impacts, or in many side impacts. In addition, your vehicle has dual-stage frontal airbags. Dual-stage airbags adjust the restraint according to crash severity. Your vehicle has electronic frontal sensors, which help the sensing system distinguish between a moderate frontal impact and a more severe frontal impact.
  • Page 65: What Makes An Airbag Inflate

    What Makes an Airbag Inflate? In a deployment event, the sensing system sends an electrical signal triggering a release of gas from the inflator. Gas from the inflator fills the airbag causing the bag to break out of the cover and deploy. The inflator, the airbag, and related hardware are all part of the airbag module.
  • Page 66: What Will You See After An Airbag Inflates

    What Will You See After an Airbag Inflates? After the frontal airbags and seat-mounted side impact airbags inflate, they quickly deflate, so quickly that some people may not even realize an airbag inflated. Roof-rail airbags may still be at least partially inflated for some time after they deploy.
  • Page 67: Passenger Sensing System

    In many crashes severe enough to inflate the airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inflate only once. After an airbag inflates, you will need some new parts for the airbag system.
  • Page 68 The passenger sensing system will turn off the right front passenger’s frontal airbag and seat-mounted side impact airbag under certain conditions. The driver’s airbags are not part of the passenger sensing system. The passenger sensing system works with sensors that are part of the right front passenger’s seat. The sensors are designed to detect the presence of a properly-seated occupant and determine if the right front passenger’s frontal airbag and seat-mounted side...
  • Page 69 The passenger sensing system is designed to turn off the right front passenger’s frontal airbag and seat-mounted side impact airbag if: • The right front passenger seat is unoccupied. • The system determines that an infant is present in a rear-facing infant seat. •...
  • Page 70 When the passenger sensing system has allowed the airbags to be enabled, the on indicator will light and stay lit to remind you that the airbags are active. For some children who have outgrown child restraints and for very small adults, the passenger sensing system may or may not turn off the right front passenger’s frontal airbag and seat-mounted side impact airbag, depending upon the person’s seating posture and body build.
  • Page 71 CAUTION: If the airbag readiness light in the instrument panel cluster ever comes on and stays on, it means that something may be wrong with the airbag system. If this ever happens, have the vehicle serviced promptly, because an adult-size person sitting in the right front passenger’s seat may not have the protection of the airbag(s).
  • Page 72: Servicing Your Airbag-Equipped Vehicle

    Servicing Your Airbag-Equipped Vehicle Airbags affect how your vehicle should be serviced. There are parts of the airbag system in several places around your vehicle. Your dealer/retailer and the service manual have information about servicing your vehicle and the airbag system. To purchase a service manual, see Service Publications Ordering Information on page 7-15.
  • Page 73 Any object, such as an aftermarket seat heater or a comfort enhancing pad or device, installed under or on top of the seat fabric, could also interfere with the operation of the passenger sensing system. This could either prevent proper deployment of the passenger airbag(s) or prevent the passenger sensing system from properly turning off the passenger airbag(s).
  • Page 74: Restraint System Check

    Restraint System Check Checking the Restraint Systems Safety Belts Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts.
  • Page 75: Replacing Restraint System Parts After A Crash

    Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.
  • Page 76 NOTES 1-72...
  • Page 77: Features And Controls

    Section 2 Keys ...2-2 Remote Keyless Entry (RKE) System ...2-3 Remote Keyless Entry (RKE) System Operation ...2-4 Doors and Locks ...2-7 Door Locks ...2-7 Power Door Locks ...2-7 Door Ajar Reminder ...2-8 Delayed Locking ...2-8 Programmable Automatic Door Locks ...2-8 Rear Door Security Locks ...2-9 Lockout Protection ...2-10 Trunk ...2-10...
  • Page 78: Keys

    Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function with the keys in the ignition and they could be seriously injured or killed if caught in the path of a closing...
  • Page 79: Remote Keyless Entry (Rke) System

    Remote Keyless Entry (RKE) System If the vehicle has the Remote Keyless Entry (RKE) system, it operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
  • Page 80: Remote Keyless Entry (Rke) System Operation

    Remote Keyless Entry (RKE) System Operation The vehicle’s doors can be locked and unlocked, and the trunk can be opened from about 3 feet (1 m) up to 197 feet (60 m) away with the Remote Keyless Entry (RKE) transmitter. There are other conditions which can affect the performance of the transmitter.
  • Page 81: Matching Transmitter(S) To Your Vehicle

    (Unlock): Press to unlock the driver’s door. is pressed again within five seconds, all remaining doors unlock. The interior lamps turn on and stay on for 20 seconds or until the ignition is turned on. If enabled through the DIC, the remote unlock feedback can be programmed to have the horn chirp and/or the turn signals flash when the RKE transmitter is used to unlock the vehicle’s doors.
  • Page 82: Battery Replacement

    Battery Replacement Replace the battery if the KEY FOB BATT (Battery) LOW message displays in the DIC. See “KEY FOB BATT (Battery) LOW” under DIC Warnings and Messages on page 3-46 for additional information. Notice: When replacing the battery, use care not to touch any of the circuitry.
  • Page 83: Doors And Locks

    Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers, especially children, can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
  • Page 84: Door Ajar Reminder

    Door Ajar Reminder If one of the doors is not fully closed while the ignition is on and the shift lever is moved out of PARK (P) or NEUTRAL (N) the following will occur: • A chime will sound. • The DOOR AJAR message will display through the Driver Information Center (DIC) until the door is closed.
  • Page 85: Rear Door Security Locks

    When the shift lever is moved back to PARK (P), all doors will unlock. If someone needs to exit the vehicle once the doors are locked, have that person use the manual lock knob or power door unlock switch. The power door unlock function can be programmed through prompts displayed on the Driver Information Center (DIC).
  • Page 86: Lockout Protection

    When you want to open a rear door when the security lock is on, do the following: 1. Unlock the door using the remote keyless entry transmitter, if the vehicle has one, the power door lock switch, or by lifting the rear door manual lock. 2.
  • Page 87: Emergency Trunk Release Handle

    Remote Trunk Release Press the button located on the driver’s door near the map pocket to open the trunk. The trunk can only be opened while the vehicle is in PARK (P). To close the trunk use the pullstrap located on the trunk lid.
  • Page 88: Windows

    Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
  • Page 89: Programming The Power Windows

    Power Windows The power window switches are located on the armrest on the driver’s door. In addition, each passenger door has a switch for its own window. Express-Down Window The driver’s window has an express-down feature. This switch is labeled AUTO. Press the front of the switch part way, and the driver’s window opens a small amount.
  • Page 90: Express Window Anti-Pinch Feature

    Express Window Anti-Pinch Feature If any object is in the path of the window when the express-up is active, the window stops at the obstruction and auto-reverse to a preset factory position. Weather conditions such as severe icing may also cause the window to auto-reverse.
  • Page 91: Sun Visors

    Sun Visors To block out glare, swing down the visors. They can also be removed from the center mount and swung to the side, to block out glare from the side. The visors also have extenders that can be pulled out. Your vehicle may have lighted visor vanity mirrors located on the passenger and driver side visors.
  • Page 92: Disarming The System

    If you press the lock button on the transmitter a second time while all the doors are closed, the system will arm immediately. The system will still arm in 60 seconds if a door is open. When the open door is closed, the system will arm.
  • Page 93: How To Detect A Tamper Condition

    How to Turn Off the System Alarm To turn off the system alarm: • Press the lock button on the RKE transmitter. The system will then re-arm itself. • Press the unlock button on the RKE transmitter. This will also disarm the system. •...
  • Page 94: Pass-Key ® Iii

    ® PASS-Key III+ Operation ® Your vehicle has PASS-Key III+ (Personalized Automotive Security System) theft-deterrent system. ® PASS-Key III+ is a passive theft-deterrent system. The system is automatically armed when the key is removed from the ignition. You do not have to manually arm or disarm the system. The security light will come on if there is a problem with arming or disarming the theft-deterrent system.
  • Page 95: Starting And Operating Your Vehicle

    To program the new key: 1. Verify that the new key has a 2. Insert the already programmed key in the ignition and start the engine. If the engine will not start, see your dealer/retailer for service. 3. After the engine has started, turn the key to LOCK/OFF, and remove the key.
  • Page 96: Ignition Positions

    Ignition Positions With the key in the ignition switch, you can turn it to four different positions. In order to shift out of PARK (P), ignition must be in the ON/RUN or ACC/ACCESSORY and the regular brake pedal must be applied. Notice: Using a tool to force the key from the ignition switch could cause damage or break the key.
  • Page 97: Key In The Ignition

    Key In the Ignition Never leave your vehicle with the keys inside, as it is an easy target for joy riders or thieves. If you leave the key in the ignition and park your vehicle, a chime sounds, when the driver’s door is opened. Always remember to remove the key from the ignition and take it with you.
  • Page 98: Starting Procedure

    Starting Procedure 1. With your foot off the accelerator pedal, turn the ignition key to START. When the engine starts, let go of the key. The idle speed goes down as your engine gets warm. Do not race the engine immediately after starting it.
  • Page 99: Automatic Engine Start/Stop

    Automatic Engine Start/Stop CAUTION: Exiting your vehicle, without first shifting into PARK (P), may cause the vehicle to move, you or others may be injured. Because your vehicle has the Automatic Engine Start/Stop feature, your vehicle’s engine might seem to be shut off, however, once the brake pedal is released, the engine could start up again.
  • Page 100: The Engine Will Remain Running When

    The Engine Will Remain Running When: • The engine, transmission, or hybrid battery is not warmed up yet. • The outside temperature is less than 5°F ( 15°C). • While the A/C is in Normal Mode. • A/C is in Hybrid Mode and the climate control system is working to cool the vehicle.
  • Page 101: To Use The Engine Coolant Heater

    Engine Coolant Heater The engine coolant heater, if available, can help in cold weather conditions at or below 0°F ( 18°C) for easier starting and better fuel economy during engine warm-up. Plug in the coolant heater at least four hours before starting your vehicle. An internal thermostat in the plug-end of the cord may exist which will prevent engine coolant heater operation at temperatures above 0°...
  • Page 102: Automatic Transmission Operation

    Automatic Transmission Operation The shift lever is located on the console between the seats. There are several different positions for the automatic transmission. PARK (P): This position locks the front wheels. It is the best position to use when you start the engine because your vehicle cannot move easily.
  • Page 103 REVERSE (R): Use this gear to back up. Notice: Shifting to REVERSE (R) while your vehicle is moving forward could damage the transmission. The repairs would not be covered by your warranty. Shift to REVERSE (R) only after your vehicle is stopped.
  • Page 104: Parking Brake

    INTERMEDIATE (I): This position is also used for normal driving. However, it reduces vehicle speed without using your brakes for slight downgrades where the vehicle would otherwise accelerate due to steepness of grade. If constant upshifting or downshifting occurs while driving up steep hills, this position can be used to prevent repetitive types of shifts.
  • Page 105: Regenerative Braking

    The PUSH PARK PEDAL message will also appear in the Driver Information Center (DIC) to remind you to release the parking brake. See DIC Warnings and Messages on page 3-46. Notice: Driving with the parking brake on can overheat the brake system and cause premature wear or damage to brake system parts.
  • Page 106: Leaving Your Vehicle With The Engine Running

    Leaving Your Vehicle With the Engine Running CAUTION: It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake firmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch fire.
  • Page 107: Shifting Out Of Park (P)

    Shifting Out of PARK (P) This vehicle is equipped with an electronic shift lock release system. The shift lock release is designed to: • Prevent ignition key removal unless the shift lever is in PARK (P) with the shift lever button fully released, and •...
  • Page 108: Engine Exhaust

    Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: • The exhaust system sounds strange or different.
  • Page 109 CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle. See the earlier caution under Engine Exhaust on page 2-32. Also, idling in a closed-in place can let deadly carbon monoxide (CO) into your vehicle even if the climate control fan is at the highest setting.
  • Page 110: Mirrors

    Mirrors Manual Rearview Mirror When you are sitting in a comfortable driving position, adjust the mirror so you can see clearly behind your vehicle. Hold the mirror in the center to move it up or down and side to side. The day/night adjustment allows you to adjust the mirror to avoid glare from the lamps behind you.
  • Page 111: Heated Outside Mirrors

    Heated Outside Mirrors If your vehicle has this feature, the surface of the outside mirrors will heat when the rear window defogger is activated. See “Rear Window Defogger” under Automatic Climate Control System on page 3-19 for more information. Outside Automatic Dimming Mirror If your vehicle has this feature, the driver’s side mirror will adjust for the glare of headlamps behind you.
  • Page 112: Onstar Services

    OnStar Services For new vehicles with OnStar, the Safe & Sound Plan, or the Directions & Connections Plan is included for one year from the date of purchase. You can extend this plan beyond the first year, or upgrade to the Directions & Connections Plan.
  • Page 113: Onstar Steering Wheel Controls

    OnStar Virtual Advisor OnStar Virtual Advisor is a feature of OnStar Hands-Free Calling that uses your minutes to access location-based weather, local traffic reports, and stock quotes. By pressing the phone button and giving a few simple voice commands, you can browse through the various topics.
  • Page 114: Storage Areas

    Your vehicle must have a working electrical system (including adequate battery power) for the OnStar equipment to operate. There are other problems OnStar cannot control that may prevent OnStar from providing OnStar service to you at any particular time or place. Some examples are damage to important parts of your vehicle in an accident, hills, tall buildings, tunnels, weather or wireless phone network congestion.
  • Page 115: Center Console Storage

    Pull down the door on the back of the center console to use the rear seat cupholders. Center Console Storage Your vehicle has a center console with two storage areas. To access the upper tray storage, lift the passenger side lever. To access the lower storage area, lift the driver side lever.
  • Page 116 Press the back of the switch and release it to open the sunroof to the vent position. From the vent position, press and release the back of the switch to express-open the sunroof. To stop the sunroof from express opening, press the switch again. If the sunshade is closed, it will open automatically when the sunroof opens past the vented position.
  • Page 117 Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Other Warning Devices ...3-6 Horn ...3-6 Tilt and Telescopic Steering Wheel ...3-6 Turn Signal/Multifunction Lever ...3-7 Turn and Lane-Change Signals ...3-7 Headlamp High/Low-Beam Changer ...3-8 Flash-to-Pass ...3-8 Windshield Wipers ...3-8 Windshield Washer ...3-9 Cruise Control ...3-10 Headlamps ...3-13...
  • Page 118 Section 3 Engine Coolant Temperature Warning Light ...3-35 Tire Pressure Light ...3-35 Malfunction Indicator Lamp ...3-36 Oil Pressure Light ...3-39 Security Light ...3-40 Cruise Control Light ...3-40 Highbeam On Light ...3-40 Fuel Gage ...3-41 Auto Stop Mode ...3-42 Charge/Assist Gage ...3-42 Fuel Economy Light ...3-43 Driver Information Center (DIC) ...3-43 DIC Operation and Displays ...3-44...
  • Page 119 NOTES...
  • Page 120: Instrument Panel Overview

    Instrument Panel Overview...
  • Page 121 The main components of your instrument panel are the following: A. Air Outlets. See Outlet Adjustment on page 3-24. B. Turn Signal/Multifunction Lever. See Turn Signal/Multifunction Lever on page 3-7. C. Instrument Panel Cluster. See Instrument Panel Cluster on page 3-26. D.
  • Page 122: Hazard Warning Flashers

    Hazard Warning Flashers The hazard warning flashers let you warn the police and others that you have a problem. The front and rear turn signal lamps will flash on and off. The hazard warning flasher button is on the instrument panel. Press the button to make the front and rear turn signal lamps flash on and off.
  • Page 123: Turn Signal/Multifunction Lever

    Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following: • Turn and Lane-Change Signals. See Turn and Lane-Change Signals on page 3-7. • Headlamp High/Low-Beam Changer. See Headlamp High/Low-Beam Changer on page 3-8. •...
  • Page 124: Headlamp High/Low-Beam Changer

    Headlamp High/Low-Beam Changer To change the headlamps from low beam to high beam, push the turn signal/multifunction lever away from you. This light comes on in the instrument panel cluster if the high beam lamps are turned on while the ignition is in ON/RUN.
  • Page 125: Windshield Washer

    (Delay): While the lever is in the intermittent position, turn the intermittent adjust band with this symbol on it up or down to select a shorter or longer delay between wiping cycles. To the left of the adjust band are bars, increasing in size from bottom to top, that indicate the frequency of the wipes.
  • Page 126: Cruise Control

    Cruise Control Cruise control lets a speed of about 25 mph (40 km/h) or more be maintained without keeping your foot on the accelerator. This can really help on long trips. Cruise control does not work at speeds below 25 mph (40 km/h). CAUTION: Cruise control can be dangerous where you cannot drive safely at a steady speed.
  • Page 127: Resuming A Set Speed

    RES+ (Resume): Press RES+ to resume a set speed and to accelerate the speed. SET (Set): Press SET– to set a speed and to decrease the speed. To set a speed do the following: 1. Press to turn cruise control on. The indicator light on the button comes on.
  • Page 128 Reducing Speed While Using Cruise Control If the cruise control system is already engaged: • Push and hold the SET until the desired lower speed is reached, then release it. • To slow down in very small amounts, briefly push the SET . Each time this is done, the vehicle goes about 1 mph (1.6 km/h) slower.
  • Page 129: Headlamps

    Headlamps The band on the lever on the outboard side of the steering column operates the exterior lamps. The exterior lamp control has the following four positions: (Headlamps): Turn the band to this position to turn on the headlamps, parking lamps, and taillamps. (Parking Lamps): Turn the band to this position to turn on the parking lamps and taillamps only.
  • Page 130: Headlamps On Reminder

    Headlamps on Reminder If you open the driver’s door and turn off the ignition while leaving the lamps on, you will hear a warning chime. Headlamps Off in PARK (P) This feature works when the ignition is in the ON/RUN position and it is dark outside.
  • Page 131: Automatic Headlamp System

    Automatic Headlamp System When it is dark enough outside, the automatic headlamp system turns on the headlamps at the normal brightness along with other lamps such as the taillamps, sidemarker, parking lamps, and the instrument panel lights. The radio lights will also be dim. Your vehicle has a light sensor on top of the instrument panel that controls the automatic headlamp system.
  • Page 132: Instrument Panel Brightness

    Instrument Panel Brightness The control for this feature is located on the instrument panel to the left of the steering wheel. Turn the knob clockwise or counterclockwise to brighten or dim the lights. 3-16 Dome Lamp If the vehicle has a dome lamp with a switch, the following are the settings.
  • Page 133: Parade Dimming

    Parade Dimming Parade dimming is a separate lighting mode that comes on while the parking lamps are turned on during the day. It prevents the display lights and indicator lights from being dim, while the parking lamps are used during the day. Overhead Console Reading Lamps The vehicle may have reading lamps on the overhead console.
  • Page 134: Accessory Power Outlet(S)

    Accessory Power Outlet(s) Accessory power outlets can be used to connect auxiliary electrical equipment such as a cellular telephone or CB radio. There are two accessory power outlets. One accessory power outlet is inside the center storage console and the other is located on the center storage console below the climate controls.
  • Page 135: Climate Controls

    Climate Controls Automatic Climate Control System The heating, cooling, and ventilation in your vehicle can be automatically controlled with this system. Climate Control Influence on Hybrid Operation and Fuel Economy The climate control system is dependent upon other vehicle systems for heat and power input. Certain climate control settings can lead to higher fuel usage and/or fewer Auto Stops.
  • Page 136: Automatic Operation

    Automatic Operation AUTO (Automatic): Select AUTO on both the fan speed knob and the air delivery mode knob to activate the automatic system. When automatic operation is active the system controls the inside temperature and air delivery. Use the steps below to place the entire system in full automatic control: 1.
  • Page 137: Manual Operation

    Manual Operation The air delivery mode or fan speed, can manually be adjusted. Fan Speed Knob (Off): Select this position to turn off the fan. Outside air still enters the vehicle. The direction can be changed by changing the mode position. The temperature can also be adjusted using either the up or down arrow temperature buttons.
  • Page 138 In AUTO mode the system cools and dehumidifies the air inside the vehicle. Also while in AUTO mode, the system maximizes its performance by using recirculation as necessary. Heating: On cold days when using manual operation of the automatic system, use floor mode to deliver air to the floor outlets.
  • Page 139: Maximum Air Conditioning

    Maximum Air Conditioning On hot days, open the windows to let hot inside air escape; then close them. This helps to reduce the time it takes for the vehicle to cool down. It also helps the system to operate more efficiently. For quick cool down on hot days, do the following: 1.
  • Page 140: Rear Window Defogger

    Rear Window Defogger The rear window defogger uses a warming grid to remove fog from the rear window. < (Rear): Press this button to turn the rear window defogger on or off. An indicator light above the button comes on to show that the rear window defogger is activated.
  • Page 141: Warning Lights, Gages, And Indicators

    • Keep the path under the front seats clear of objects to help circulate the air inside of the vehicle more effectively. • When an objectionable odor outside the vehicle is encountered, use the recirculation mode, with the temperature knob at a comfortable setting to prevent the odor from entering the vehicle through the ventilation system.
  • Page 142: Instrument Panel Cluster

    Instrument Panel Cluster Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You will know how fast you are going, how much fuel you are using, and many other things you will need to drive safely and economically. Your vehicle has this instrument panel cluster, which includes indicator warning lights and gages that are explained on the following pages.
  • Page 143: Speedometer And Odometer

    Speedometer and Odometer Your speedometer lets you see your speed in miles per hour (mph) or kilometers per hour (km/h). See DIC Vehicle Personalization on page 3-51 for more information. Your odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada).
  • Page 144: Passenger Safety Belt Reminder Light

    Safety Belt Reminders Safety Belt Reminder Light When the engine is started, a chime will come on for several seconds to remind people to fasten their safety belts, unless the driver’s safety belt is already buckled. The safety belt light will also come on and stay on for several seconds, then it will flash for several more.
  • Page 145: Airbag Readiness Light

    Airbag Readiness Light There is an airbag readiness light on the instrument panel cluster, which shows the airbag symbol. The system checks the airbag’s electrical system for malfunctions. The light tells you if there is an electrical problem. The system check includes the airbag sensor, the pretensioners, the airbag modules, the wiring and the crash sensing and diagnostic module.
  • Page 146: Passenger Airbag Status Indicator

    Passenger Airbag Status Indicator Your vehicle has the passenger sensing system. Your instrument panel has a passenger airbag status indicator. United States When you start the vehicle, the passenger airbag status indicator will light ON and OFF, or the symbol for on and off, for several seconds as a system check.
  • Page 147 CAUTION: Even though the passenger sensing system is designed to turn off the right front passenger’s frontal airbag and seat-mounted side impact airbag (if equipped) if the system detects a rear-facing child restraint, no system is fail-safe, and no one can guarantee that an airbag will not deploy under some unusual circumstance, even though it is turned off.
  • Page 148: Charging System Light

    Charging System Light This light will come on briefly when you turn on the ignition key, but the engine is not running, as a check to show you it is working. It should go out once the engine is running. If it stays on, or comes on while driving, there could be a problem with the charging system.
  • Page 149: Antilock Brake System Warning Light

    The Driver Information Center (DIC) may display a BRAKE FLUID message. See DIC Warnings and Messages on page 3-46 for more information. If the light comes on while you are driving, pull off the road and stop carefully. You may notice that the pedal is harder to push or the pedal may go closer to the floor.
  • Page 150: Electronic Stability Control (Esc)/Traction Control System (Tcs) Indicator/Warning Light

    Electronic Stability Control (ESC)/ Traction Control System (TCS) Indicator/Warning Light This light is located in the center of the instrument panel cluster. For vehicles that have the Electronic Stability Control (ESC) system or the Traction Control System (TCS), this warning light should come on briefly when the engine is started.
  • Page 151: Engine Coolant Temperature Warning Light

    Engine Coolant Temperature Warning Light This light indicates that the engine coolant has overheated or the radiator cooling fan is not working. This light will come on briefly when you turn on the ignition as a check to show you it is working. If the light comes on and the vehicle has been operating under normal driving conditions, pull off the road, stop the vehicle, and turn off the engine as soon as possible.
  • Page 152: Malfunction Indicator Lamp

    When the Light Flashes First and Then is Solid This indicates that there may be a problem with the Tire Pressure Monitor System. The light flashes for about a minute and stays on solid for the remainder of the ignition cycle. This sequence will repeat with every ignition cycle.
  • Page 153: If The Light Is Flashing

    Notice: Modifications made to the engine, transmission, exhaust, intake, or fuel system of your vehicle or the replacement of the original tires with other than those of the same Tire Performance Criteria (TPC) can affect your vehicle’s emission controls and can cause this light to come on. Modifications to these systems could lead to costly repairs not covered by your warranty.
  • Page 154: Emissions Inspection And Maintenance Programs

    If the Light Is On Steady You might be able to correct the emission system malfunction by considering the following: Did you recently put fuel into your vehicle? If so, reinstall the fuel cap, making sure to fully install the cap. See Filling the Tank on page 5-8. The diagnostic system can determine if the fuel cap has been left off or improperly installed.
  • Page 155: Maintenance Schedule

    Your vehicle will not pass this inspection if the OBD (on-board diagnostic) system determines that critical emission control systems have not been completely diagnosed by the system. The vehicle would be considered not ready for inspection. This can happen if you have recently replaced the battery or if the battery has run down.
  • Page 156: Security Light

    Security Light For information regarding this light and the vehicle’s security system, see Content Theft-Deterrent on page 2-15. Cruise Control Light This light comes on whenever you set the cruise control. The light goes out when the cruise control is turned off. See Cruise Control on page 3-10 for more information.
  • Page 157: Fuel Gage

    Fuel Gage United States Your fuel gage tells you about how much fuel you have left, when the ignition is on. When the indicator nears empty, a LOW FUEL message will appear on the Driver Information Center (DIC). See DIC Warnings and Messages on page 3-46 for more information.
  • Page 158: Auto Stop Mode

    Auto Stop Mode United States This mark on the tachometer shows that the engine is in Auto Stop mode which is a fuel saving operation. When the ignition key is turned off, the tachometer needle will drop to OFF. If the driver’s door is opened while in Auto Stop, a chime will sound.
  • Page 159: Fuel Economy Light

    Fuel Economy Light If enabled, this light will come on briefly when the vehicle is started. This light will also come on when the vehicle is operating at a fuel efficient point. This light can be disabled by using the Driver Information Center (DIC) buttons.
  • Page 160: Dic Operation And Displays

    (Reset): Press this button to reset some vehicle information mode displays, select a personalization menu mode setting, or acknowledge a warning message. Press and hold the information and reset buttons at the same time for one second, then release the buttons to enter the personalization menu.
  • Page 161 MPG (L/100 KM) AVG (Average) Press the information button until MPG (L/100 KM) AVG displays. This mode shows how many miles per gallon (mpg) or liters per 100 kilometers (L/100 km) your vehicle is getting based on current and past driving conditions.
  • Page 162: Tire Pressure

    Tire Pressure The pressure for each tire can be viewed in the DIC. The tire pressure is shown in either pounds per square inch (psi) or kilopascals (kPa). Press the information button until LF ## PSI (kPa) ## RF displays for the front tires.
  • Page 163: Check Gas Cap

    CHANGE OIL SOON This message displays when the life of the engine oil has expired and it should be changed. When this message is acknowledged and cleared from the display, the engine oil life system must still be reset separately. See Engine Oil Life System on page 5-18 and Scheduled Maintenance on page 6-4 for more information.
  • Page 164: Ice Possible

    ESC (Electronic Stability Control) ACTIVE If your vehicle has Electronic Stability Control (ESC), this message displays and the ESC/TCS light on the instrument panel cluster flashes when ESC is assisting you with directional control of the vehicle. You may feel or hear the system working and see this message displayed in the DIC.
  • Page 165: Power Steering

    LOW TRACTION If your vehicle has the Traction Control System (TCS), this message displays and the ESC/TCS light on the instrument panel cluster flashes when the system is actively limiting wheel spin. Slippery road conditions may exist if this message is displayed, so adjust your driving accordingly.
  • Page 166: Traction Off

    SERVICE HYBRID This message displays if the hybrid components need to be serviced. Have your vehicle serviced by your dealer/retailer. SERVICE TRACTION If your vehicle has the Traction Control System (TCS), this message displays and a chime sounds when the system is not functioning properly. The ESC/TCS light also appears on the instrument panel cluster.
  • Page 167: Dic Vehicle Personalization

    DIC Vehicle Personalization Your vehicle has personalization capabilities that allow you to program certain features to a preferred setting. All of the features listed may not be available on your vehicle. Only the features available will be displayed on the DIC. The default settings for the features were set when your vehicle left the factory, but may have been changed from their default state since that time.
  • Page 168 LOCK HORN This feature, which allows the vehicle’s horn to chirp every time the lock button on the Remote Keyless Entry (RKE) transmitter is pressed, can be enabled or disabled. When LOCK HORN appears on the display, press and hold the reset button for at least one second to scroll through the available settings: OFF (default): The horn will not chirp on the first press of the lock button on the RKE transmitter.
  • Page 169 LIGHT FLASH This feature, which allows the vehicle’s exterior hazard/turn signal lighting to flash every time the lock, unlock, or trunk release buttons on the Remote Keyless Entry (RKE) transmitter are pressed, can be enabled or disabled. When LIGHT FLASH appears on the display, press and hold the reset button for at least one second to scroll through the available settings: OFF: The exterior hazard/turn signal lighting will...
  • Page 170 AUTO UNLK (Unlock) This feature, which allows the vehicle to automatically unlock certain doors, can be enabled or disabled. When AUTO UNLK appears on the display, press and hold the reset button for at least one second to scroll through the available settings: ALL (default): All of the doors will automatically unlock.
  • Page 171: Exiting Personalization Menu

    EXT (Exterior) LIGHTS This feature, which allows the vehicle’s exterior perimeter lighting to turn on each time the unlock button on the Remote Keyless Entry (RKE) transmitter is pressed, can be enabled or disabled. When EXT LIGHTS appears on the display, press and hold the reset button for at least one second to scroll through the available settings: OFF: The exterior perimeter lighting will not turn on...
  • Page 172: Audio System(S)

    Audio System(s) Determine which radio your vehicle has and then read the pages following to familiarize yourself with its features. CAUTION: This system provides you with far greater access to audio stations and song listings. Giving extended attention to entertainment tasks while driving can cause a crash and you or others can be injured or killed.
  • Page 173: Setting The Clock

    Setting the Clock Your vehicle has a radio with a setting the time and date. To set the time and date, follow these instructions: 1. Turn the radio on. 2. Press the button and the HR, MIN, MM, DD, YYYY (hour, minute, month, day, and year) displays.
  • Page 174: Radio(S)

    Radio(s) Radio with CD (MP3) Radio Data System (RDS) The audio system has a Radio Data System (RDS). The RDS feature is available for use only on FM stations that broadcast RDS information. This system relies upon receiving specific information from these stations and only works when the information is available.
  • Page 175: Playing The Radio

    Playing the Radio (Power/Volume): Press to turn the system on and off. Turn clockwise or counterclockwise to increase or decrease the volume. Speed Compensated Volume (SCV): The radio has Speed Compensated Volume (SCV). When SCV is on, the radio volume automatically adjusts to compensate for road and wind noise as you speed up or slow down while driving.
  • Page 176: Storing A Radio Station As A Favorite

    Storing a Radio Station as a Favorite Drivers are encouraged to set up their radio station favorites while the vehicle is parked. Tune to your favorite stations using the presets, favorites button, and steering wheel controls if the vehicle has this feature. See Defensive Driving on page 4-2.
  • Page 177: Adjusting The Speakers (Balance/Fade)

    Setting the Tone (Bass/Midrange/Treble) BASS/MID/TREB (Bass, Midrange, or Treble): To adjust bass, midrange, or treble, press the the tone control labels display. Continue pressing to highlight the desired label, or press the pushbutton positioned under the desired label. Turn the clockwise or counterclockwise to adjust the highlighted setting.
  • Page 178: Finding A Category (Cat) Station

    Finding a Category (CAT) Station CAT (Category): The CAT button is used to find XM™ stations while the radio is in the XM™ mode. To find XM™ channels within a desired category, perform the following: 1. Press the BAND button until the XM™ frequency displays.
  • Page 179: Radio Messages

    Radio Messages Calibration Error: The audio system has been calibrated for your vehicle from the factory. If Calibration Error displays, it means that the radio has not been configured properly for your vehicle and it must be returned to your dealer/retailer for service.
  • Page 180: Care Of Your Cd Player

    Care of Your CD Player Do not add any label to a CD, it could get caught in the CD player. If a CD is recorded on a personal computer and a description label is needed, try labeling the top of the recorded CD with a marking pen.
  • Page 181: Using The Auxiliary Input Jack

    BAND: Press to listen to the radio while a CD is playing. The CD remains inside the radio for future listening. CD/AUX (CD/Auxiliary): Press to play a CD while listening to the radio. The CD icon and a message showing disc and/or track number displays when a CD is in the player.
  • Page 182: Using An Mp3

    To use a portable audio player, connect a 3.5 mm (1/8 inch) cable to the radio’s front auxiliary input jack. When a device is connected, press the radio CD/AUX button to begin playing audio from the device over the vehicle speakers. (Power/Volume): Turn clockwise or counterclockwise to increase or decrease the volume of the portable player.
  • Page 183 MP3 Format If you burn your own MP3 disc on a personal computer: • Make sure the MP3 files are recorded on a CD-R or CD-RW disc. • Do not mix standard audio and MP3 files on one disc. • The CD player is able to read and play a maximum of 50 folders, 50 playlists, and 255 files.
  • Page 184: Root Directory

    Root Directory The root directory of the CD-R or CD-RW is treated as a folder. If the root directory has compressed audio files, the directory is displayed as F1 ROOT. All files contained directly under the root directory are accessed prior to any root directory folders.
  • Page 185 Preprogrammed Playlists Preprogrammed playlists that were created using WinAmp™, MusicMatch™, or Real Jukebox™ software can be accessed, however, there is no playlist editing capability using the radio. These playlists are treated as special folders containing compressed audio song files. Playing an MP3 Insert a CD-R or CD-RW partway into the slot, label side up.
  • Page 186 RDM (Random): With the random setting, MP3 files on the CD-R or CD-RW can be listened to in random, rather than sequential order. To play MP3 files from a CD-R or CD-RW in random order, press the pushbutton positioned under the RDM label until Random Current Disc displays.
  • Page 187: Xm Radio Messages

    XM Radio Messages XL (Explicit Language Channels): These channels, or any others, can be blocked at a customer’s request, by calling 1-800-852-XMXM (9696). XM Updating: The encryption code in the receiver is being updated, and no action is required. This process should take no longer than 30 seconds.
  • Page 188: Theft-Deterrent Feature

    Theft-Deterrent Feature ® THEFTLOCK is designed to discourage theft of your vehicle’s radio. The feature works automatically by learning a portion of the Vehicle Identification Number (VIN). If the radio is moved to a different vehicle, it does not operate and LOC, LOCK, or LOCKED could display.
  • Page 189: Radio Reception

    Radio Reception Frequency interference and static can occur during normal radio reception if items such as cell phone chargers, vehicle convenience accessories, and external electronic devices are plugged into the accessory power outlet. If there is interference or static, unplug the item from the accessory power outlet. The range for most AM stations is greater than for FM, especially at night.
  • Page 190: Backglass Antenna

    Backglass Antenna The AM-FM antenna is integrated with the rear window defogger, located in the rear window. Make sure that the inside surface of the rear window is not scratched and that the grid lines on the glass are not damaged. If the inside surface is damaged, it could interfere with radio reception.
  • Page 191: Driving Your Vehicle

    Section 4 Your Driving, the Road, and Your Vehicle ...4-2 Defensive Driving ...4-2 Drunk Driving ...4-2 Control of a Vehicle ...4-3 Braking ...4-3 Antilock Brake System (ABS) ...4-4 Braking in Emergencies ...4-5 Traction Control System (TCS) ...4-6 Electronic Stability Control (ESC) ...4-8 Steering ...4-10 Off-Road Recovery ...4-12 Passing ...4-12...
  • Page 192: Your Driving, The Road, And Your Vehicle

    Your Driving, the Road, and Your Vehicle Defensive Driving Defensive driving means “always expect the unexpected.” The first step in driving defensively is to wear your safety belt — See Safety Belts: They Are for Everyone on page 1-10. CAUTION: Assume that other road users (pedestrians, bicyclists, and other drivers) are going to be careless and make mistakes.
  • Page 193: Control Of A Vehicle

    Police records show that almost 40 percent of all motor vehicle-related deaths involve alcohol. In most cases, these deaths are the result of someone who was drinking and driving. In recent years, more than 17,000 annual motor vehicle-related deaths have been associated with the use of alcohol, with about 250,000 people injured.
  • Page 194: Antilock Brake System (Abs)

    Average reaction time is about three-fourths of a second. But that is only an average. It might be less with one driver and as long as two or three seconds or more with another. Age, physical condition, alertness, coordination, and eyesight all play a part. So do alcohol, drugs, and frustration.
  • Page 195: Using Abs

    If there is a problem with ABS, this warning light will stay on. See Antilock Brake System Warning Light on page 3-33. Let us say the road is wet and you are driving safely. Suddenly, an animal jumps out in front of you. You slam on the brakes and continue braking.
  • Page 196: Traction Control System (Tcs)

    Traction Control System (TCS) Your vehicle may have a Traction Control System (TCS) that limits wheel spin. This is especially useful in slippery road conditions. The system operates only if it senses that the front wheels are spinning too much or are beginning to lose traction.
  • Page 197: Traction Control Operation

    To turn the system off or on, press and release this button located on the instrument panel. The DIC will display the appropriate message as described previously when you press the button. Traction Control Operation Traction control limits wheel spin by reducing engine power to the wheels (engine speed management) and by applying brakes to each individual wheel (brake-traction control) as necessary.
  • Page 198: Electronic Stability Control (Esc)

    Electronic Stability Control (ESC) Your vehicle may have an Electronic Stability Control (ESC) system which combines antilock brake, traction and stability control systems and helps the driver maintain directional control of the vehicle in most driving conditions. When you first start your vehicle and begin to drive away, the system performs several diagnostic checks to ensure there are no problems.
  • Page 199 If the vehicle is in cruise control when the system begins to assist the driver maintain directional control of the vehicle, the ESC/TCS light will flash and the cruise control will automatically disengage. When road conditions allow you to use cruise again, you may re-engage the cruise control.
  • Page 200: Steering Tips

    Steering If the engine stalls while you are driving, the power steering assist system will continue to operate until you are able to stop your vehicle. If you lose power steering assist because the electric power steering system is not functioning, you can steer, but it will take more effort.
  • Page 201: Steering In Emergencies

    Try to adjust your speed so you can drive through the curve. Maintain a reasonable, steady speed. Wait to accelerate until you are out of the curve, and then accelerate gently into the straightaway. Adding non-dealer/non-retailer accessories can affect your vehicle’s performance. See Accessories and Modifications on page 5-3.
  • Page 202: Off-Road Recovery

    Off-Road Recovery You may find that your vehicle’s right wheels have dropped off the edge of a road onto the shoulder while you are driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
  • Page 203 Skidding In a skid, a driver can lose control of the vehicle. Defensive drivers avoid most skids by taking reasonable care suited to existing conditions, and by not overdriving those conditions. But skids are always possible. The three types of skids correspond to your vehicle’s three control systems.
  • Page 204: Driving At Night

    Driving at Night Night driving is more dangerous than day driving because some drivers are likely to be impaired — by alcohol or drugs, with night vision problems, or by fatigue. Night driving tips include: • Drive defensively. • Do not drink and drive. •...
  • Page 205: Other Rainy Weather Tips

    CAUTION: Wet brakes can cause crashes. They might not work as well in a quick stop and could cause pulling to one side. You could lose control of the vehicle. After driving through a large puddle of water or a car/vehicle wash, lightly apply the brake pedal until the brakes work normally.
  • Page 206: Before Leaving On A Long Trip

    Before Leaving on a Long Trip To prepare your vehicle for a long trip, consider having it serviced by your dealer/retailer before departing. Things to check on your own include: • Windshield Washer Fluid: Reservoir full? Windows clean — inside and outside? •...
  • Page 207: Winter Driving

    CAUTION: If you do not shift down, the brakes could get so hot that they would not work well. You would then have poor braking or even none going down a hill. You could crash. Shift down to let the engine assist the brakes on a steep downhill slope.
  • Page 208: Driving On Snow Or Ice

    Driving on Snow or Ice Most of the time, those places where the tires meet the road probably have good traction. However, if there is snow or ice between the tires and the road, you can have a very slippery situation. You have a lot less traction, or grip, and need to be very careful.
  • Page 209: If You Are Caught In A Blizzard

    The Antilock Brake System (ABS) improves your vehicle’s stability when you make a hard stop on a slippery road. Even though you have ABS, begin stopping sooner than you would on dry pavement. See Antilock Brake System (ABS) on page 4-4. •...
  • Page 210 You can run the engine to keep warm, but be careful. 4-20 CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle.
  • Page 211: If Your Vehicle Is Stuck In Sand, Mud, Ice, Or Snow

    Run your engine only as long as you must. This saves fuel. When you run the engine, make it go a little faster than just idle. That is, push the accelerator slightly. This uses less fuel for the heat that you get and it keeps the battery charged.
  • Page 212: Rocking Your Vehicle To Get It Out

    Rocking Your Vehicle to Get It Out First, turn the steering wheel left and right to clear the area around the front wheels. Turn off any traction or stability system. See Traction Control System (TCS) on page 4-6 and Electronic Stability Control (ESC) on page 4-8.
  • Page 213 Tire and Loading Information Label Label Example A vehicle specific Tire and Loading Information label is attached to the vehicle’s center pillar (B-pillar). With the driver’s door open, you will find the label attached below the door lock post (striker). The Tire and Loading Information label lists the number of occupant seating positions (A), and the maximum vehicle capacity weight (B) in...
  • Page 214 The resulting figure equals the available amount of cargo and luggage load capacity. For example, if the “XXX” amount equals 1400 lbs and there will be five 150 lb passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs (1400 750 (5 x 150) = 650 lbs).
  • Page 215 Example 2 Item Description Maximum Vehicle Capacity Weight for Example 2 Subtract Occupant Weight 150 lbs (68 kg) Available Cargo Weight Total Item 1,000 lbs (453 kg) 750 lbs (340 kg) 250 lbs (113 kg) Refer to your vehicle’s Tire and Loading Information label for specific information about your vehicle’s maximum vehicle capacity weight and seating positions.
  • Page 216 Certification Label A vehicle specific Certification label is found on the rear edge of the driver’s door. The label shows the gross weight capacity of your vehicle, called the Gross Vehicle Weight Rating (GVWR). The GVWR includes the weight of the vehicle, all occupants, fuel, and cargo. Never exceed the GVWR for your vehicle or the Gross Axle Weight Rating (GAWR) for either the front or rear axle.
  • Page 217: Towing

    CAUTION: Things you put inside your vehicle can strike and injure people in a sudden stop or turn, or in a crash. • Put things in the trunk of your vehicle. In a trunk, put them as far forward as you can. Try to spread the weight evenly.
  • Page 218: Dinghy Towing

    Here are some important things to consider before you do recreational vehicle towing: • What is the towing capacity of the towing vehicle? Be sure you read the tow vehicle manufacturer’s recommendations. • How far will you tow? Some vehicles have restrictions on how far and how long they can tow.
  • Page 219: Dolly Towing

    6. Shift your transmission to NEUTRAL (N). 7. Release the parking brake. Remember to reinstall the IGN SENSOR fuse once you have reached your destination. Notice: If you exceed 65 mph (105 km/h) while towing your vehicle, it could be damaged. Never exceed 65 mph (105 km/h) while towing your vehicle.
  • Page 220 NOTES 4-30...
  • Page 221: Service And Appearance Care

    Section 5 Service ...5-3 Accessories and Modifications ...5-3 California Proposition 65 Warning ...5-4 California Perchlorate Materials Requirements ...5-4 Doing Your Own Service Work ...5-4 Adding Equipment to the Outside of Your Vehicle ...5-5 Fuel ...5-6 Gasoline Octane ...5-6 Gasoline Specifications ...5-6 California Fuel ...5-6 Additives ...5-7 Fuels in Foreign Countries ...5-8...
  • Page 222 Section 5 Uniform Tire Quality Grading ...5-62 Wheel Alignment and Tire Balance ...5-64 Wheel Replacement ...5-64 Tire Chains ...5-66 If a Tire Goes Flat ...5-67 Tire Sealant and Compressor Kit ...5-68 Appearance Care ...5-77 Interior Cleaning ...5-77 Fabric/Carpet ...5-78 Instrument Panel, Vinyl, and Other Plastic Surfaces ...5-79 Care of Safety Belts ...5-79 Weatherstrips ...5-80...
  • Page 223: Service

    Service For service and parts needs, visit your dealer/retailer. You will receive genuine Saturn parts and Saturn-trained and supported service people. Genuine Saturn parts have one of these marks. Accessories and Modifications When non-dealer/non-retailer accessories are added to your vehicle they can affect your vehicle’s performance...
  • Page 224: California Proposition 65 Warning

    California Proposition 65 Warning Most motor vehicles, including this one, contain and/or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Engine exhaust, many parts and systems (including some inside the vehicle), many fluids, and some component wear by-products contain and/or emit these chemicals.
  • Page 225: Adding Equipment To The Outside Of Your Vehicle

    CAUTION: You can be injured and your vehicle could be damaged if you try to do service work on a vehicle without knowing enough about it. • Be sure you have sufficient knowledge, experience, the proper replacement parts, and tools before you attempt any vehicle maintenance task.
  • Page 226: Fuel

    Fuel Use of the recommended fuel is an important part of the proper maintenance of your vehicle. To help keep the engine clean and maintain optimum vehicle performance, we recommend the use of gasoline advertised as TOP TIER Detergent Gasoline. Gasoline Octane Use regular unleaded gasoline with a posted octane rating of 87 or higher.
  • Page 227: Additives

    Additives To provide cleaner air, all gasolines in the United States are now required to contain additives that help prevent engine and fuel system deposits from forming, allowing the emission control system to work properly. In most cases, you should not have to add anything to the fuel. However, some gasolines contain only the minimum amount of additive required to meet U.S.
  • Page 228: Fuels In Foreign Countries

    Fuels in Foreign Countries If you plan on driving in another country outside the United States or Canada, the proper fuel might be hard to find. Never use leaded gasoline or any other fuel not recommended in the previous text on fuel. Costly repairs caused by use of improper fuel would not be covered by your warranty.
  • Page 229 The fuel door is located on the passenger side of the vehicle. To open the fuel door, apply pressure on the center of the rear edge of the fuel door and it will pop open. To remove the tethered fuel cap, turn it slowly counterclockwise.
  • Page 230 While refueling, hang the tethered fuel cap from the hook on the fuel door. CAUTION: Fuel can spray out on you if you open the fuel cap too quickly. If you spill fuel and then something ignites it, you could be badly burned. This spray can happen if your tank is nearly full, and is more likely in hot weather.
  • Page 231: Filling A Portable Fuel Container

    Filling a Portable Fuel Container CAUTION: Never fill a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the fuel vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
  • Page 232: Checking Things Under The Hood

    Checking Things Under the Hood CAUTION: An electric fan under the hood can start up and injure you even when the engine is not running. Keep hands, clothing, and tools away from any underhood electric fan. 5-12 CAUTION: Things that burn can get on hot engine parts and start a fire.
  • Page 233: Hood Release

    Hood Release To open the hood, do the following: 1. Pull the hood release handle with this symbol on it. It is located inside the vehicle to the left of the steering column. 2. Then go to the front of the vehicle and push the secondary hood release handle toward the driver side of the vehicle.
  • Page 234: Engine Compartment Overview

    Engine Compartment Overview When you open the hood, this is what you see: 5-14...
  • Page 235: Engine Oil

    A. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 5-20. B. Cooling Fans. See Cooling System on page 5-28. C. Engine Oil Dipstick. See “Checking Engine Oil” under Engine Oil on page 5-15. D. Engine Oil Fill Cap. See “When to Add Engine Oil” under Engine Oil on page 5-15.
  • Page 236: When To Add Engine Oil

    When to Add Engine Oil If the oil is below the MIN (minimum) mark, add at least one quart/liter of the recommended oil. This section explains what kind of oil to use. For engine oil crankcase capacity, see Capacities and Specifications on page 5-95.
  • Page 237: What Kind Of Engine Oil To Use

    What Kind of Engine Oil to Use Look for three things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. Look for and use only an oil that meets GM Standard GM6094M. • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle.
  • Page 238: Engine Oil Additives

    If you are in an area of extreme cold, where the temperature falls below 20°F ( 29°C), it is recommended that you use either an SAE 5W-30 synthetic oil or an SAE 0W-30 oil. Both provide easier cold starting and better protection for the engine at extremely low temperatures.
  • Page 239: How To Reset The Engine Oil Life System

    How to Reset the Engine Oil Life System The Engine Oil Life System calculates when to change the engine oil and filter based on vehicle use. Whenever the oil is changed, reset the system so it can calculate when the next oil change is required. If a situation occurs where you change the oil prior to a CHANGE OIL SOON message being turned on, reset the system.
  • Page 240: When To Inspect The Engine Air Cleaner/Filter

    Engine Air Cleaner/Filter See Engine Compartment Overview on page 5-14 for the location of the engine air cleaner/filter. When to Inspect the Engine Air Cleaner/Filter Inspect the air cleaner/filter at the Maintenance II intervals and replace it at the first oil change after each 50,000 mile (80 000 km) interval.
  • Page 241 3. Inspect or replace the engine air cleaner/filter. 4. Align the filter correctly using the alignment tab. 5. Install the cover by guiding the tabs on the rim of the top cover into the bottom hinges and turn the cover down to close it. 6.
  • Page 242: Automatic Transmission Fluid

    Automatic Transmission Fluid It is not necessary to check the transmission fluid level. A transmission fluid leak is the only reason for fluid loss. If a leak occurs, take your vehicle to the dealer/retailer and have it repaired as soon as possible. Change the fluid and filter at the intervals listed in Additional Required Services on page 6-6, and be sure to use the transmission fluid listed in Recommended...
  • Page 243: What To Use

    What to Use Use a mixture of one-half clean, drinkable water and ® one-half DEX-COOL coolant which will not damage aluminum parts. If you use this coolant mixture, you do not need to add anything else. CAUTION: Adding only plain water to your cooling system can be dangerous.
  • Page 244: Checking Coolant

    Checking Coolant The engine coolant surge tank is located in the rear of the engine compartment. 5-24 See Engine Compartment Overview on page 5-14 for more information on location. CAUTION: Turning the surge tank pressure cap when the engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly.
  • Page 245: Adding Coolant

    Adding Coolant If you need more coolant, add the proper DEX-COOL coolant mixture at the surge tank, but only when the engine is cool. If the surge tank is empty, a special fill procedure is necessary. See Engine Overheating on page 5-26 and Cooling System on page 5-28. CAUTION: You can be burned if you spill coolant on hot engine parts.
  • Page 246: Engine Overheating

    Engine Overheating There is an engine coolant temperature warning light on your vehicle’s instrument panel. See Engine Coolant Temperature Warning Light on page 3-35 for more information. If Steam Is Coming From Your Engine CAUTION: Steam from an overheated engine can burn you badly, even if you just open the hood.
  • Page 247: If No Steam Is Coming From Your Engine

    If No Steam Is Coming From Your Engine An overheat warning, can indicate a serious problem. If you get an engine overheat warning, but see or hear no steam, the problem may not be too serious. Sometimes the engine can get a little too hot when you: •...
  • Page 248: Cooling System

    Cooling System When you decide it is safe to lift the hood, here is what you will see: A. Electric Engine Cooling Fans B. Engine Coolant Surge Tank C. Pressure Cap 5-28 CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you.
  • Page 249: How To Add Coolant To The Coolant Surge Tank

    CAUTION: Heater and radiator hoses, and other engine parts, can be very hot. Do not touch them. If you do, you can be burned. Do not run the engine if there is a leak. If you run the engine, it could lose all coolant. That could cause an engine fire, and you could be burned.
  • Page 250 If no coolant is visible in the surge tank, add coolant as follows: CAUTION: Steam and scalding liquids from a hot cooling system can blow out and burn you badly. They are under pressure, and if you turn the coolant surge tank pressure cap —...
  • Page 251 CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough. Do not spill coolant on a hot engine. 1. Remove the coolant surge tank pressure cap when the cooling system, including...
  • Page 252: Adding Washer Fluid

    3. Fill the coolant surge tank with the proper mixture, to the FULL COLD mark on the front of the surge tank. Wait about five minutes, then check to see if the level is below the FULL COLD mark. If the level is below the FULL COLD mark, add additional coolant to bring the level up to the mark.
  • Page 253: Brakes

    Notice: • When using concentrated washer fluid, follow the manufacturer’s instructions for adding water. • Do not mix water with ready-to-use washer fluid. Water can cause the solution to freeze and damage your washer fluid tank and other parts of the washer system.
  • Page 254: Brake Adjustment

    Brake Pedal Travel See your dealer/retailer if the brake pedal does not return to normal height, or if there is a rapid increase in pedal travel. This could be a sign that brake service might be required. Brake Adjustment Every time you apply the brakes, with or without the vehicle moving, the brakes adjust for wear.
  • Page 255: Vehicle Storage

    12-Volt Battery When it is time for a new standard 12-volt battery, see your dealer/retailer for one that has the replacement number shown on the original battery’s label. 36-Volt Battery System If you need a new 36-volt hybrid battery system, see your dealer/retailer.
  • Page 256: Jump Starting

    Jump Starting If your battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to use the following steps to do it safely. CAUTION: Batteries can hurt you. They can be dangerous because: •...
  • Page 257 To avoid the possibility of the vehicles rolling, set the parking brake firmly on both vehicles involved in the jump start procedure. Put an automatic transmission in PARK (P) or a manual transmission in NEUTRAL before setting the parking brake. Notice: If you leave your radio or other accessories on during the jump starting procedure, they could be damaged.
  • Page 258 CAUTION: Using a match near a battery can cause battery gas to explode. People have been hurt doing this, and some have been blinded. Use a flashlight if you need more light. Be sure the battery has enough water. You do not need to add water to the battery installed in your new vehicle.
  • Page 259 6. Connect the red positive (+) cable to the positive (+) terminal of the dead battery. Use a remote positive (+) terminal if the vehicle has one. 7. Do not let the other end touch metal. Connect it to the positive (+) terminal of the good battery. Use a remote positive (+) terminal if the vehicle has one.
  • Page 260 10. Now start the vehicle with the good battery and run the engine for a while. 11. Try to start the vehicle that had the dead battery. If it will not start after a few tries, it probably needs service. Notice: If the jumper cables are connected or removed in the wrong order, electrical shorting may occur and damage the vehicle.
  • Page 261: Headlamp Aiming

    To disconnect the jumper cables from both vehicles, do the following: 1. Disconnect the black negative ( ) cable from the vehicle that had the dead battery. 2. Disconnect the black negative ( ) cable from the vehicle with the good battery. 3.
  • Page 262: Bulb Replacement

    Bulb Replacement For the proper type of replacement bulbs, see Replacement Bulbs on page 5-44. For any bulb changing procedure not listed in this section, contact your dealer/retailer. Halogen Bulbs CAUTION: Halogen bulbs have pressurized gas inside and can burst if you drop or scratch the bulb. You or others could be injured.
  • Page 263 To replace a sidemarker lamp, turn signal lamp, or a back-up lamp: 1. Open the trunk. See Trunk on page 2-10 for more information. 2. Remove the convenience net, if the vehicle has one. 3. Remove the wing nuts holding the trunk trim. 4.
  • Page 264: License Plate Lamp

    License Plate Lamp To replace the license plate lamp bulb: 1. Remove the two screws holding the license plate lamp assembly to the fascia. 2. Turn and pull the license plate lamp forward through the fascia opening. 5-44 3. Turn the bulb socket counterclockwise and pull the bulb straight out of the socket.
  • Page 265: Windshield Wiper Blade Replacement

    Windshield Wiper Blade Replacement Windshield wiper blades should be inspected for wear or cracking. See Scheduled Maintenance on page 6-4 for more information on wiper blade inspection. To remove the wiper blade: 1. Pull the windshield wiper arm connector away from the windshield. 2.
  • Page 266: Tires

    Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your vehicle Warranty booklet for details. CAUTION: Poorly maintained and improperly used tires are dangerous.
  • Page 267: Tire Sidewall Labeling

    Tire Sidewall Labeling Useful information about a tire is molded into the sidewall. The following illustration is an example of a typical P-Metric tire sidewall. (A) Tire Size The tire size code is a combination of letters and numbers used to define a particular tire’s width, height, aspect ratio, construction type, and service description.
  • Page 268 (E) Tire Ply Material The type of cord and number of plies in the sidewall and under the tread. (F) Uniform Tire Quality Grading (UTQG) Tire manufacturers are required to grade tires based on three performance factors: treadwear, traction, and temperature resistance. For more information, see Uniform Tire Quality Grading on page 5-62.
  • Page 269: Tire Terminology And Definitions

    (D) Construction Code A letter code is used to indicate the type of ply construction in the tire. The letter R means radial ply construction; the letter D means diagonal or bias ply construction; and the letter B means belted-bias ply construction. (E) Rim Diameter Diameter of the wheel in inches.
  • Page 270 GVWR Gross Vehicle Weight Rating. See Loading Your Vehicle on page 4-22. GAWR FRT Gross Axle Weight Rating for the front axle. See Loading Your Vehicle on page 4-22. GAWR RR Gross Axle Weight Rating for the rear axle. See Loading Your Vehicle on page 4-22. Intended Outboard Sidewall an asymmetrical tire, that must always face outward when mounted on a vehicle.
  • Page 271 Radial Ply Tire A pneumatic tire in which the ply cords that extend to the beads are laid at 90 degrees to the centerline of the tread. A metal support for a tire and upon which the tire beads are seated. Sidewall The portion of a tire between the tread and the bead.
  • Page 272: Inflation - Tire Pressure

    Inflation - Tire Pressure Tires need the correct amount of air pressure to operate effectively. Notice: Do not let anyone tell you that under-inflation or over-inflation is all right. It is not. If your tires do not have enough air (under-inflation), you can get the following: •...
  • Page 273: Tire Pressure Monitor System

    Remove the valve cap from the tire valve stem. Press the tire gage firmly onto the valve to get a pressure measurement. If the cold tire inflation pressure matches the recommended pressure on the Tire and Loading Information label, no further adjustment is necessary. If the inflation pressure is low, add air until you reach the recommended amount.
  • Page 274 Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the system is not operating properly. The TPMS malfunction indicator is combined with the low tire pressure telltale. When the system detects a malfunction, the telltale will flash for approximately one minute and then remain continuously illuminated.
  • Page 275: Tire Pressure Monitor Operation

    Tire Pressure Monitor Operation The Tire Pressure Monitor System (TPMS) is designed to warn the driver when a low tire pressure condition exists. TPMS sensors are mounted onto each tire and wheel assembly. The TPMS sensors monitor the air pressure in the vehicle’s tires and transmits the tire pressure readings to a receiver located in the vehicle.
  • Page 276: Tpms Malfunction Light And Message

    TPMS Malfunction Light and Message The TPMS will not function properly if one or more of the TPMS sensors are missing or inoperable. When the system detects a malfunction, the low tire warning light flashes for about one minute and then stays on for the remainder of the ignition cycle.
  • Page 277 You have two minutes to match each tire and wheel position. If it takes longer than two minutes to match any tire and wheel position, the matching process stops and you need to start over. The TPMS matching process is outlined below: 1.
  • Page 278: Tire Inspection And Rotation

    Tire Inspection and Rotation We recommend that you regularly inspect your vehicle’s tires for signs of wear or damage. See When It Is Time for New Tires on page 5-59 for more information. Tires should be rotated every 5,000 to 8,000 miles (8 000 to 13 000 km).
  • Page 279: When It Is Time For New Tires

    CAUTION: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after a time. The wheel could come off and cause a crash. When you change a wheel, remove any rust or dirt from places where the wheel attaches to the vehicle.
  • Page 280: Buying New Tires

    The rubber in tires degrades over time, even if they are not being used. This is also true for the spare tire, if your vehicle has one. Multiple conditions affect how fast this aging takes place, including temperatures, loading conditions, and inflation pressure maintenance. With proper care and maintenance tires will typically wear out before they degrade due to age.
  • Page 281 CAUTION: Mixing tires could cause you to lose control while driving. If you mix tires of different sizes, brands, or types (radial and bias-belted tires) the vehicle may not handle properly, and you could have a crash. Using tires of different sizes, brands, or types may also cause damage to your vehicle.
  • Page 282: Different Size Tires And Wheels

    You may increase the chance that you will crash and suffer serious injury. Only use Saturn specific wheel and tire systems developed for your vehicle, and have them properly installed by a Saturn certified technician.
  • Page 283 Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and a half (1.5) times as well on the government course as a tire graded 100.
  • Page 284: Wheel Alignment And Tire Balance

    If you need to replace any of your wheels, wheel bolts, or wheel nuts, replace them only with new Saturn original equipment parts. This way, you will be sure to have the right wheel, wheel bolts, and wheel nuts...
  • Page 285 Be sure to use the correct wheel nuts. If you have to replace them, be sure to get new Saturn original equipment wheel nuts. Notice: Improperly tightened wheel nuts can lead to brake pulsation and rotor damage. To avoid...
  • Page 286: Used Replacement Wheels

    You cannot know how it has been used or how far it has been driven. It could fail suddenly and cause a crash. If you have to replace a wheel, use a new Saturn original equipment wheel. 5-66 Tire Chains CAUTION: Do not use tire chains.
  • Page 287: If A Tire Goes Flat

    If a Tire Goes Flat Your vehicle has a tire sealant and compressor kit. See Tire Sealant and Compressor Kit on page 5-68. There is no spare tire, no tire changing equipment, and no place to store a tire. It is unusual for a tire to blow out while you are driving, especially if you maintain your tires properly.
  • Page 288: Tire Sealant And Compressor Kit

    Tire Sealant and Compressor Kit Your vehicle has a tire sealant and compressor kit capable of sealing a small puncture up to in the tread area of the tire. The kit inflates the tire with liquid sealant and air. The tire sealant and compressor kit can also be used to inflate an underinflated tire.
  • Page 289: Tire Sealant

    Accessing the Tire Sealant and Compressor Kit To access the tire sealant and compressor kit: 1. Open the trunk. See Trunk on page 2-10 for more information. 2. Remove the tire sealant and compressor kit by turning the wing nut counterclockwise. 3.
  • Page 290 Using the Tire Sealant and Compressor Kit to Temporarily Seal a Punctured Tire Follow these directions closely for correct sealant usage. 1. Place the sealant and compressor kit on the ground and unwrap the sealant filling hose from the compressor. 2.
  • Page 291 5. Plug the air compressor accessory plug (C) into an accessory power outlet in the vehicle. See Accessory Power Outlet(s) on page 3-18 for more information. Do not slam door or close window on the compressor accessory plug. CAUTION: Idling the engine in a closed-in place or with the climate control system off can cause deadly carbon monoxide (CO).
  • Page 292 8. Inflate the tire to the recommended inflation pressure, found on the Tire and Loading Information label located on the vehicle’s center pillar (B-pillar) below the vehicle’s door latch, using the air pressure gage on the top of the unit. The pressure gage reads high while the compressor is running.
  • Page 293 The maximum speed label reminds you to drive cautiously and not to exceed 55 mph (90 km/h) until you have the damaged tire inspected and repaired. 16. Return the equipment to the proper storage location in the trunk of your vehicle. Turn the wing nut clockwise to secure the tire sealant and compressor kit.
  • Page 294: Not Punctured

    19. Wipe off any sealant from the wheel, tire or vehicle with a rag. 20. Dispose of the sealant canister at a local dealer/retailer or in accordance with local state codes and practices. After using the sealant canister, replace it with a new canister from your dealer/retailer.
  • Page 295 CAUTION: Idling the engine in a closed-in place or with the climate control system off can cause deadly carbon monoxide (CO). See Engine Exhaust on page 2-32. 6. Start the vehicle. See Starting the Engine (Automatic Engine Start/Stop) on page 2-21 for more information.
  • Page 296: Removal And Installation Of The Sealant Canister

    Removal and Installation of the Sealant Canister To remove the sealant canister: 1. Unlock the air compressor inflator hose from the sealant canister by pulling the lever up. 2. Disconnect the air compressor inflator hose from the sealant canister. 3. Unwrap the sealant filling hose from the compressor.
  • Page 297: Appearance Care

    To install a new sealant canister: 1. Align the sealant filling hose with the slot in the air compressor. 2. Push the sealant canister down and turn it clockwise. 3. Wrap the sealant filling hose around the air compressor channel to stow it in its original location. 4.
  • Page 298: Fabric/Carpet

    Your dealer/retailer has a product for cleaning your vehicle’s glass. Should it become necessary, you can also obtain a product from your dealer/retailer to remove odors from your vehicle’s upholstery. Do not clean your vehicle using the following cleaners or techniques: •...
  • Page 299: Instrument Panel, Vinyl, And Other Plastic Surfaces

    If any of the soil remains, a commercial fabric cleaner or spot lifter may be necessary. When a commercial upholstery cleaner or spot lifter is to be used, test a small hidden area for colorfastness first. If the locally cleaned area gives any impression that a ring formation may result, clean the entire surface.
  • Page 300: Weatherstrips

    Weatherstrips Silicone grease on weatherstrips will make them last longer, seal better, and not stick or squeak. Apply silicone grease with a clean cloth. During very cold, damp weather frequent application may be required. See Recommended Fluids and Lubricants on page 6-12. Washing Your Vehicle The best way to preserve your vehicle’s finish is to keep it clean by washing it often.
  • Page 301: Finish Care

    Finish Care Occasional waxing or mild polishing of your vehicle by hand may be necessary to remove residue from the paint finish. You can get approved cleaning products from your dealer/retailer. See Vehicle Care/Appearance Materials on page 5-84. If your vehicle has a basecoat/clearcoat paint finish, the clearcoat gives more depth and gloss to the colored basecoat.
  • Page 302: Aluminum Wheels

    Wipers can be damaged by: • Extreme dusty conditions • Sand and salt • Heat and sun • Snow and ice, without proper removal Aluminum Wheels Notice: Chrome wheels and other chrome trim may be damaged if you do not wash your vehicle after driving on roads that have been sprayed with magnesium, calcium or sodium chloride.
  • Page 303: Tires

    Tires To clean the tires, use a stiff brush with tire cleaner. Notice: Using petroleum-based tire dressing products on your vehicle may damage the paint finish and/or tires. When applying a tire dressing, always wipe off any overspray from all painted surfaces on your vehicle.
  • Page 304: Vehicle Care/Appearance Materials

    Vehicle Care/Appearance Materials Description Polishing Cloth Interior and exterior Wax-Treated polishing cloth. Tar and Road Oil Removes tar, road oil, Remover and asphalt. Chrome Cleaner Use on chrome or and Polish stainless steel. White Sidewall Removes soil and black Tire Cleaner marks from whitewalls.
  • Page 305: Vehicle Identification

    Vehicle Identification Vehicle Identification Number (VIN) This is the legal identifier for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver side. You can see it if you look through the windshield from outside your vehicle. The VIN also appears on the Vehicle Certification and Service Parts labels and the certificates of title and registration.
  • Page 306: Electrical System

    Electrical System Add-On Electrical Equipment Notice: Do not add anything electrical to your vehicle unless you check with your dealer/retailer first. Some electrical equipment can damage your vehicle and the damage would not be covered by your warranty. Some add-on electrical equipment can keep other components from working as they should.
  • Page 307: Fuses

    Fuses The wiring circuits in your vehicle are protected from short circuits by a combination of fuses, circuit breakers and fusible links. This greatly reduces the chance of damage caused by electrical problems. Look at the silver-colored band inside the fuse. If the band is broken or melted, replace the fuse.
  • Page 308 Fuses POWER Power Mirrors MIRRORS Not Used INSTALLED 5-88 Usage RUN/CRANK HVAC BLOWER HIGH Fuses Usage Cruise Control Switch, Passenger Airbag Status Indicator Heating Ventilation Air Conditioning Blower - High Speed Relay...
  • Page 309: Engine Compartment Fuse Block

    Fuses Usage CLUSTER/ Instrument Panel Cluster, THEFT Theft Deterrent System ® ONSTAR OnStar Not Used INSTALLED AIRBAG (IGN) Airbag (Ignition) Heating Ventilation Air Conditioning HVAC Control Diagnostic Link Connector CTRL (BATT) (Battery) PEDAL Adjustable Pedals WIPER SW Windshield Wiper/Washer Switch IGN SENSOR Ignition Switch STRG WHL...
  • Page 310 Fuses Air Conditioner Clutch Electronic Throttle Control Belt Alternator Starter (BAS) IGN 5-90 Usage Fuses Usage Transmission, Transmission Control Module Ignition 1 Belt Alternator Starter (BAS) Pumps...
  • Page 311 Fuses Usage Emission Left Headlamp Low-Beam Horn Right Headlamp Low-Beam Left Headlamp High-Beam Right Headlamp High-Beam Engine Control Module BATT Windshield Wiper Antilock Brake System (ABS) (IGN 1) Engine Control Module (IGN 1) Cooling Fan 1 Cooling Fan 2 Run Relay, Heating, Ventilation, Air Conditioning Blower Body Control Module 1 Body Control Module Run/Crank...
  • Page 312: Rear Compartment Fuse Block

    Relays Low-Beam Headlamp Windshield Wiper 1 Windshield Wiper 2 Daytime Running Lamps (DRL) Stoplamps Transmission Pump Motor Diodes Wiper 5-92 Rear Compartment Fuse Block Usage Usage The rear compartment fuse block is located in the trunk of the vehicle. Access the fuse block through the trunk panel on the driver side of the rear cargo area.
  • Page 313 Fuses Usage Passenger Seat Controls Driver Seat Controls Not Used Not Used Fuses Usage Emission 2, Canister Vent Solenoid Park Lamps, Instrument Panel Dimming Not Used 5-93...
  • Page 314 Fuses Not Used Sliding Panel Roof Sunroof Controls Not Used Not Used Audio Amplifier Heated Seat Controls Not Used Remote Keyless Entry (RKE) System, XM™ Satellite Radio, UGDO Back-up Lamps Not Used Not Used Auxiliary Power Outlets Not Used Trunk Release 5-94 Usage Relays...
  • Page 315: Capacities And Specifications

    Capacities and Specifications The following approximate capacities are given in English and metric conversions. Please refer to Recommended Fluids and Lubricants on page 6-12 for more information. Application Air Conditioning Refrigerant R134a Cooling System Transmission (Bottom Pan Removal) Engine Oil with Filter Fuel Tank Wheel Nut Torque All capacities are approximate.
  • Page 316 NOTES 5-96...
  • Page 317 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 Using the Maintenance Schedule ...6-2 Scheduled Maintenance ...6-4 Additional Required Services ...6-6 Maintenance Footnotes ...6-7 Maintenance Schedule Owner Checks and Services ...6-9 At Each Fuel Fill ...6-9 At Least Once a Month ...6-9 At Least Once a Year ...6-10 Recommended Fluids and Lubricants ...6-12...
  • Page 318: Maintenance Schedule

    Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts, and recommended fluids and lubricants as prescribed in this manual are necessary to keep your vehicle in good working condition.
  • Page 319 The services in Scheduled Maintenance on page 6-4 should be performed when indicated. See Additional Required Services on page 6-6 and Maintenance Footnotes on page 6-7 for further information. CAUTION: Performing maintenance work on a vehicle can be dangerous. In trying to do some jobs, you can be seriously injured.
  • Page 320: Scheduled Maintenance

    Scheduled Maintenance When the CHANGE OIL SOON message in the Driver Information Center (DIC) comes on, it means that service is required for your vehicle. Have your vehicle serviced as soon as possible within the next 600 miles (1 000 km). It is possible that, if you are driving under the best conditions, the engine oil life system may not indicate that vehicle service is necessary for over a year.
  • Page 321 Scheduled Maintenance Service Maintenance I Maintenance II Change engine oil and filter. See Engine Oil on page 5-15. Reset oil life system. See Engine Oil Life System on page 5-18. An Emission Control Service. Visually check for any leaks or damage. See footnote (j). Inspect engine air cleaner filter.
  • Page 322: Additional Required Services

    Additional Required Services The following services should be performed at the first maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
  • Page 323: Maintenance Footnotes

    Service and Miles (Kilometers) Engine cooling system service (or every five years, whichever occurs first). An Emission Control Service. See footnote (i). Inspect engine accessory drive belt. An Emission Control Service. See footnote (m). Maintenance Footnotes (a) Visually inspect brake lines and hoses for proper hook-up, binding, leaks, cracks, chafing, etc.
  • Page 324 (e) Make sure the safety belt reminder light and safety belt assemblies are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired. Have any torn or frayed safety belts replaced.
  • Page 325: Owner Checks And Services

    Owner Checks and Services These owner checks and services should be performed at the intervals specified to help ensure the safety, dependability, and emission control performance of your vehicle. Your dealer/retailer can assist you with these checks and services. Be sure any necessary repairs are completed at once. Whenever any fluids or lubricants are added to your vehicle, make sure they are the proper ones, as shown in Recommended Fluids and Lubricants on page 6-12.
  • Page 326: At Least Once A Year

    At Least Once a Year Starter Switch Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle.
  • Page 327: Ignition Transmission Lock Check

    Ignition Transmission Lock Check While parked, and with the parking brake set, try to turn the ignition to LOCK/OFF in each shift lever position. • The ignition should turn to LOCK/OFF only when the shift lever is in PARK (P). •...
  • Page 328: Recommended Fluids And Lubricants

    Recommended Fluids and Lubricants Fluids and lubricants identified below by name, part number, or specification can be obtained from your dealer/retailer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Certified for Gasoline Engine Oil Engines starburst symbol.
  • Page 329: Maintenance Replacement Parts

    Maintenance Replacement Parts Replacement parts identified below by name, part number, or specification can be obtained from your dealer/retailer. Part Engine Air Cleaner/Filter Engine Oil Filter Spark Plugs Windshield Wiper Blades Driver’s Side – 23.6 inches (60.0 cm) Passenger’s Side – 21.0 inches (53.0 cm) Engine Drive Belt Routing Part Numbers ACDelco...
  • Page 330: Maintenance Record

    Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 6-2. Any additional information from Owner Checks and Services on page 6-9 can be added on the following record pages.
  • Page 331 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-15...
  • Page 332 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-16...
  • Page 333: Customer Assistance Information

    Reporting Safety Defects ...7-14 Reporting Safety Defects to the United States Government ...7-14 Reporting Safety Defects to the Canadian Government ...7-15 Reporting Safety Defects to Saturn ...7-15 Service Publications Ordering Information ...7-15 Vehicle Data Recording and Privacy ...7-16 Event Data Recorders ...7-17 ®...
  • Page 334: Customer Assistance And Information

    Saturn. Together we are committed to providing our customers with unparalleled service, before, during, and after the purchase of a Saturn vehicle, for total customer satisfaction. We call this the Saturn Difference. Normally, any concerns with the sales transaction or the operation of your vehicle are resolved by your retailer’s sales or service departments.
  • Page 335 STEP THREE (U.S. Owners): Both Saturn and its retailers are committed to making sure you are completely satisfied with your Saturn vehicle. However, if you continue to remain unsatisfied after following the procedure outlined in Steps One and Two, Saturn and its retailers offer the additional assistance...
  • Page 336: Online Owner Center

    Your inquiry should be accompanied by your Vehicle Identification Number (VIN). Online Owner Center (United States only) The Owner Center is a resource for your Saturn ownership needs. Specific vehicle information can be found in one place. The Online Owner Center allows you to: •...
  • Page 337: Customer Assistance For Text Telephone (Tty) Users

    Telephone (TTY) Users To assist owners who have hearing difficulties, Saturn has installed special TDD (Telecommunication Devices for the Deaf) equipment in its Saturn Customer Assistance Center. Any hearing- or speech-impaired customer who has access to a TDD or to a conventional Text Telephone (TTY) can communicate with Saturn by dialing 1-800-TDD-6000.
  • Page 338: Customer Assistance Offices

    Customer Assistance Offices Saturn encourages customers to call the toll-free number for assistance. If a customer wishes to write to Saturn, the letter should be addressed to: Saturn Customer Assistance Center 100 Saturn Parkway Mail Code 371-999-S24 Spring Hill, TN 37174-1500...
  • Page 339: Roadside Assistance Program

    (Text Telephone (TTY): 1-800-889-2438). For vehicles purchased in Canada, call 1-800-268-6800. Service is available 24 hours a day, 365 days a year. As the owner of a new Saturn vehicle, you are automatically enrolled in the Saturn Roadside Assistance Program.
  • Page 340 However, any cost for parts and labor for non-warranty repairs are the responsibility of the driver. Saturn and General Motors of Canada Limited reserve the right to limit services or reimbursement to an owner or driver when, in their sole discretion, the claims...
  • Page 341: Calling For Assistance

    Roadside Assistance is not part of or included in the coverage provided by the New Vehicle Limited Warranty. Saturn and General Motors of Canada Limited reserve the right to make any changes or discontinue the Roadside Assistance program at any time without notification.
  • Page 342: Courtesy Transportation

    Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait, Saturn helps to minimize your inconvenience by providing several transportation options. Depending on the circumstances, your retailer can offer you one of the following:...
  • Page 343: Collision Damage Repair

    All Courtesy Transportation arrangements will be administered by appropriate retailer personnel. Saturn reserves the right to unilaterally modify, change or discontinue Courtesy Transportation at any time and to resolve all questions of claim eligibility pursuant to the terms and conditions described herein at its sole discretion.
  • Page 344: Insuring Your Vehicle

    Aftermarket collision parts are also available. These are made by companies other than GM and may not have been tested for your vehicle. As a result, these parts may fit poorly, exhibit premature durability/corrosion problems, and may not perform properly in subsequent collisions. Aftermarket parts are not covered by your GM New Vehicle Limited Warranty, and any vehicle failure related to such parts are not covered by that warranty.
  • Page 345 • Give only the necessary and requested information to police and other parties involved in the crash. Do not discuss your personal condition, mental frame of mind, or anything unrelated to the crash. This will help guard against post-crash legal action. •...
  • Page 346: Managing The Vehicle Damage Repair Process

    National Highway Traffic Safety Administration (NHTSA), in addition to notifying Saturn Corporation. If NHTSA receives similar complaints, it could open an investigation, and if it finds that a safety defect exists in a group of vehicles, it could order a recall and remedy campaign.
  • Page 347: Service Manuals

    Oshawa, Ontario L1H 8P7 Service Publications Ordering Information Service Manuals A variety of publications are available to you. Saturn service manuals are written for trained technicians, and in some cases, specialized tools and equipment are necessary to complete certain repairs. However,...
  • Page 348: Owner Publications

    7-16 Most bulletins apply to conditions affecting a small number of vehicles. Your Saturn retailer or a qualified technician may have to determine if a specific bulletin applies to your vehicle. To order Saturn bulletins, call Saturn Publications at 1-800-2-SATURN or visit www.saturn-publications.com to order online.
  • Page 349: Event Data Recorders

    EDR. Saturn will not access this data or share it with others except: with the consent of the vehicle owner or, if the vehicle is leased, with the consent of the lessee;...
  • Page 350: Onstar

    RFID technology in Saturn vehicles does not use or record personal information or link with any other Saturn system containing personal information.
  • Page 351 Accessories and Modifications ... 5-3 Adding Equipment to Your Airbag-Equipped Vehicle ... 1-68 Additives, Fuel ... 5-7 Add-On Electrical Equipment ... 5-86 Air Cleaner/Filter, Engine ... 5-20 Air Conditioning ... 3-19 Airbag Passenger Status Indicator ... 3-30 Readiness Light ... 3-29 Airbag System ...
  • Page 352 Auto Stop Mode ... 3-42 Automatic Climate Control System ... 3-19 Automatic Headlamp System ... 3-15 Automatic Transmission Fluid ... 5-22 Operation ... 2-26 Backglass Antenna ... 3-74 Battery ... 5-34 Run-Down Protection ... 3-17 Brake Emergencies ... 4-5 Brakes ... 5-33 Regenerative Braking ...
  • Page 353 Telephone (TTY) Users ... 7-5 Customer Assistance Offices ... 7-6 Customer Satisfaction Procedure ... 7-2 GM Mobility Reimbursement Program ... 7-6 Reporting Safety Defects to Saturn ... 7-15 Reporting Safety Defects to the Canadian Government ... 7-15 Reporting Safety Defects to the United States Government ...
  • Page 354 Door Delayed Locking ... 2-8 Door Ajar Reminder ... 2-8 Locks ... 2-7 Power Door Locks ... 2-7 Programmable Automatic Door Locks ... 2-8 Rear Door Security Locks ... 2-9 Driver Information Center (DIC) ... 3-43 DIC Operation and Displays ... 3-44 DIC Vehicle Personalization ...
  • Page 355 Filter Engine Air Cleaner ... 5-20 Finish Damage ... 5-83 Flashers, Hazard Warning ... 3-6 Flash-to-Pass ... 3-8 Flat Tire ... 5-67 Fluid ... 5-22 Windshield Washer ... 5-32 Folding Rear Seat ... 1-8 Fuel ... 5-6 Additives ... 5-7 California Fuel ...
  • Page 356 Headlamps Off in Park (P) ... 3-14 Heater ... 3-19 Highbeam On Light ... 3-40 Highway Hypnosis ... 4-16 Hill and Mountain Roads ... 4-16 Hood Checking Things Under ... 5-12 Release ... 5-13 Horn ... 3-6 How to Wear Safety Belts Properly ... 1-15 Ignition Positions ...
  • Page 357 Light (cont.) Oil Pressure ... 3-39 Passenger Airbag Status Indicator ... 3-30 Safety Belt Reminders ... 3-28 Security ... 3-40 Tire Pressure ... 3-35 Light, Auto Stop Mode ... 3-42 Lighting Entry/Exit ... 3-16 Parade Dimming ... 3-17 Lights ... 3-13 Flash-to-Pass ...
  • Page 358 Mirrors (cont.) Outside Automatic Dimming Mirror ... 2-35 Outside Power Mirrors ... 2-34 MP3 ... 3-66 MyGMLink.com ... 7-4 Navigation System, Privacy ... 7-18 New Vehicle Break-In ... 2-19 Odometer ... 3-27 Odometer, Trip ... 3-27 Off-Road Recovery ... 4-12 Engine ...
  • Page 359 Operation ... 2-4 Replacement Bulbs ... 5-44 Replacement Parts, Maintenance ... 6-13 Reporting Safety Defects Canadian Government ... 7-15 Saturn ... 7-15 United States Government ... 7-14 Restraint System Check Checking the Restraint Systems ... 1-70 Replacing Restraint System Parts After a Crash ...
  • Page 360 Safety Belt Reminder Light ... 3-28 Safety Belts Care of ... 5-79 How to Wear Safety Belts Properly ... 1-15 Lap-Shoulder Belt ... 1-22 Safety Belt Extender ... 1-28 Safety Belt Use During Pregnancy ... 1-28 Safety Belts Are for Everyone ... 1-10 Safety Warnings and Symbols ...
  • Page 361 Tachometer ... 3-27 Taillamps Turn Signal, Sidemarker, Stoplamps, and Back-Up Lamps ... 5-42 Telescopic Wheel ... 3-6 Theft-Deterrent, Radio ... 3-72 Theft-Deterrent Systems ... 2-15 Content Theft-Deterrent ... 2-15 ® PASS-Key III+ ... 2-17 ® PASS-Key III+ Operation ... 2-18 Tilt Wheel ...
  • Page 362 Vehicle Control ... 4-3 Damage Warnings ... iv Loading ... 4-22 Symbols ... iv Vehicle Data Recording and Privacy ... 7-16 Vehicle Identification Number (VIN) ... 5-85 Service Parts Identification Label ... 5-85 Vehicle Personalization DIC ... 3-51 Ventilation Adjustment ... 3-24 Visors ...

Table of Contents
