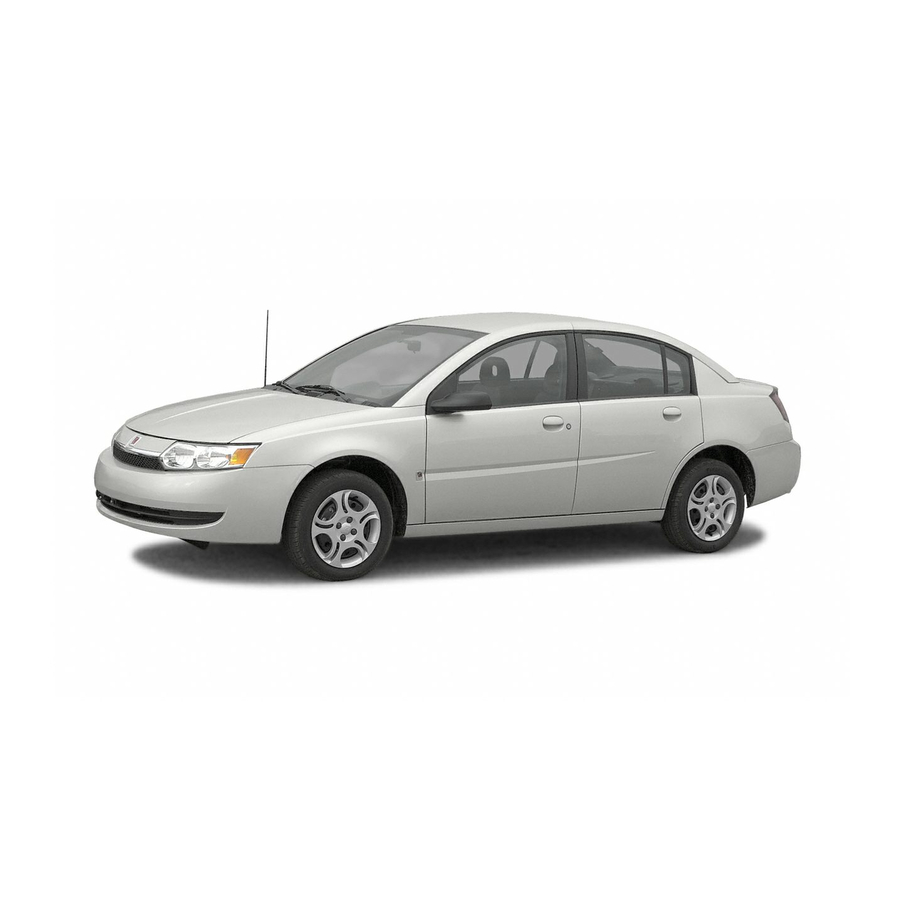

2004 Saturn ION Owner Manual Seats and Restraint Systems ... 1-1 Front Seats ... 1-2 Rear Seats ... 1-7 Safety Belts ... 1-8 Child Restraints ... 1-29 Air Bag Systems ... 1-50 Restraint System Check ... 1-59 Features and Controls ... 2-1 Keys ...
Page 2: How To Use This Manual
SATURN and the SATURN Emblem are registered trademarks of Saturn Corporation and the name ION is a trademark of Saturn Corporation. GENERAL MOTORS and GM are registered trademarks of General Motors Corportation. This manual includes the latest information at the time it was printed.
Page 3 Safety Warnings and Symbols You will ﬁnd a number of safety cautions in this book. We use a box and the word CAUTION to tell you about things that could hurt you if you were to ignore the warning. CAUTION: These mean there is something that could hurt you or other people.
Page 4: Vehicle Symbols
Vehicle Damage Warnings Also, in this manual you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage your vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 5 These are some examples of symbols that may be found on the vehicle:...
Page 6 NOTES...
Page 7: Seats And Restraint Systems
Section 1 Front Seats ...1-2 Manual Seats ...1-2 Driver Seat Height Adjuster ...1-3 Reclining Seatbacks ...1-3 Head Restraints ...1-5 Passenger Folding Seatback ...1-6 Rear Seats ...1-7 Split Folding Rear Seat ...1-7 Safety Belts ...1-8 Safety Belts: They Are for Everyone ...1-8 Questions and Answers About Safety Belts ...1-13 How to Wear Safety Belts Properly ...1-14 Driver Position ...1-14...
Page 8: Front Seats
Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 9: Reclining Seatbacks
Driver Seat Height Adjuster If your vehicle has this feature, the driver’s seat height adjuster is located on the left side of the seat. To raise the seat, ratchet the lever upward until the seat is at the desired height. To lower the seat, ratchet the lever downward until the seat is at the desired height.
Page 10 But don’t have a seatback reclined if your vehicle is moving. CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can not do their job when you are reclined like this. The shoulder belt can not do its job because it will not be against your body.
Page 11: Head Restraints
Head Restraints Press the button on the side of the head restraint to adjust it. Adjust your head restraint so that the top of the restraint is closest to the top of your head. This position reduces the chance of a neck injury in a crash.
Page 12: Passenger Folding Seatback
Passenger Folding Seatback The front passenger’s seatback may fold ﬂat. To fold the seatback, do the following: 1. Lift the bar under the seat to unlock it. 2. Slide the seat as far back as it will go and release the bar.
Page 13: Rear Seats
Rear Seats Split Folding Rear Seat You can fold either side of the rear seatback down for more cargo space. To lower the rear seatback, follow these steps: 1. If you have a sedan and it is equipped with this feature, open the trunk and pull one or both of the small handles located in the center of the trunk.
Page 14: Safety Belts
To raise the rear seatback, lift it up and rearward until you hear a click. Push and pull on the seat back to be sure it is locked into place. CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash.
Page 15 CAUTION: It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts.
Page 16: Why Safety Belts Work
Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. Put someone on it. Take the simplest vehicle. Suppose it’s just a seat on wheels. 1-10...
Page 17 Get it up to speed. Then stop the vehicle. The rider doesn’t stop. The person keeps going until stopped by something. In a real vehicle, it could be the windshield... 1-11...
Page 18 or the instrument panel... 1-12 or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That’s why safety belts make such good sense.
Page 19 Questions and Answers About Safety Belts Won’t I be trapped in the vehicle after an accident if I’m wearing a safety belt? You could be – whether you’re wearing a safety belt or not. But you can unbuckle a safety belt, even if you’re upside down.
Page 20: How To Wear Safety Belts Properly
How to Wear Safety Belts Properly This part is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see Older Children on page 1-29 or Infants and Young Children on page 1-32.
Page 21 Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see Safety Belt Extender on page 1-28. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 22: Shoulder Belt Height Adjuster (Sedan)
Shoulder Belt Height Adjuster (Sedan) Before you begin to drive, move the shoulder belt adjuster to the height that is right for you. Adjust the height so that the shoulder portion of the belt is centered on your shoulder. The belt should be away from your face and neck, but not falling off your shoulder.
Page 23 What’s wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should ﬁt against your body.
Page 24 What’s wrong with this? The belt is buckled in the wrong place. 1-18 CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
Page 25 What’s wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 26 What’s wrong with this? The belt is twisted across the body. 1-20 CAUTION: You can be seriously injured by a twisted belt. In a crash, you wouldn’t have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your retailer to ﬁx it.
Page 27: Safety Belt Use During Pregnancy
To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 28: Rear Seat Passengers
Right Front Passenger Position Rear Seat Passenger Positions To learn how to wear the right front passenger’s safety belt properly, see Driver Position on page 1-14. The right front passenger’s safety belt works the same way as the driver’s safety belt — except for one thing.
Page 29 Lap-Shoulder Belt All rear seating positions have lap-shoulder belts. Here is how to wear one properly. 1. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly.
Page 30 3. To make the lap part tight, pull down on the buckle The lap part of the belt should be worn low and snug on end of the belt as you pull up on the shoulder part. the hips, just touching the thighs. In a crash this applies force to the strong pelvic bones.
Page 31 The safety belt locks if there is a sudden stop or a crash, or if you pull the belt very quickly out of the retractor. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 32: Rear Safety Belt Comfort Guides For Children And Small Adults
Rear Safety Belt Comfort Guides for Children and Small Adults Rear shoulder belt comfort guides will provide added safety belt comfort for older children who have outgrown booster seats and for small adults. When installed on a shoulder belt, the comfort guide better positions the belt away from the neck and head.
Page 33 3. Return the rear seatback to its upright position and make sure it is latched into place. 4. Slide the guide under and past the belt. The elastic cord must be under the belt. Then, place the guide over the belt, and insert the two edges of the belt into the slots of the guide.
Page 34: Safety Belt Pretensioners
6. Buckle, position and release the safety belt as described in Rear Seat Passengers on page 1-22. Make sure that the shoulder belt crosses the shoulder. To remove and store the comfort guides, squeeze the belt edges together so that you can take them out of the guides.
Page 35: Child Restraints
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. What is the proper way to wear safety belts? If possible, an older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide.
Page 36 1-30 CAUTION: Never do this. Here two children are wearing the same belt. The belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck?
Page 37 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
Page 38: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 39 CAUTION: (Continued) hold it. For example, in a crash at only 25 mph (40 km/h), a 12-lb. (5.5 kg) baby will suddenly become a 240-lb. (110 kg) force on a person’s arms. A baby should be secured in an appropriate restraint. CAUTION: Children who are up against, or very close to, any air bag when it inﬂates can be seriously...
Page 40 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 41: Child Restraint Systems
CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
Page 42 A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint. 1-36 A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields.
Page 43 A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness. A booster seat can also help a child to see out the window.
Page 44: Where To Put The Restraint
When choosing a child restraint, be sure the child restraint is designed to be used in a vehicle. If it is, it will have a label saying that it meets federal motor vehicle safety standards. Then follow the instructions for the restraint. You may ﬁnd these instructions on the restraint itself or in a booklet, or both.
Page 45: Top Strap
CAUTION: (Continued) If you secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go. It is better to secure the child restraint in a rear seat. Wherever you install it, be sure to secure the child restraint properly.
Page 46 In Canada, the law requires that forward-facing child restraints have a top strap, and that the strap be anchored. In the United States, some child restraints also have a top strap. If your child restraint has a top strap, it should be anchored. 1-40 Anchor the top strap to an anchor point speciﬁed in Top Strap Anchor Location on page 1-41.
Page 47: Top Strap Anchor Location
Top Strap Anchor Location Your vehicle has top strap anchors installed for the rear seating positions only. Do not secure a child restraint with a top strap in the right front passenger’s position if a national or local law requires that the top strap be anchored, or if the instructions that come with the child restraint say that the top strap must be anchored.
Page 48 Lower Anchorages and Top Tethers for Children (LATCH System) Your vehicle has the LATCH system. You will ﬁnd anchors for all three rear seating positions on the sedan and both rear seat outside passenger positions on the coupe. This system, designed to make installation of child restraints easier, does not use the vehicle’s safety belts.
Page 49 A. Lower Anchorage B. Lower Anchorage In order to use the LATCH system in your vehicle, you need a child restraint designed for that system. To assist you in locating the lower anchors for this child restraint system, each seating position with the LATCH system has a label on the seatback at each lower anchor position.
Page 50: Securing A Child Restraint Designed For The Latch System
Securing a Child Restraint Designed for the LATCH System 1. Find the LATCH anchorages for the seating position you want to use, where the bottom of the seatback meets the back of the seat cushion. See Lower Anchorages and Top Tethers for Children (LATCH System) on page 1-42.
Page 51 If your child restraint does not have the LATCH system, you will be using the lap-shoulder belt. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. 1.
Page 52 4. Pull the rest of shoulder belt all the way out of the retractor to set the lock. 1-46 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
Page 53: Securing A Child Restraint In The Right Front Seat Position
To remove the child restraint, just unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger. Securing a Child Restraint in the Right Front Seat Position If your child restraint is equipped with the LATCH system, see Lower Anchorages and Top Tethers for...
Page 54 A rear seat is a safer place to secure a forward-facing child restraint. If you need to secure a forward-facing child restraint in the right front seat, you will be using the lap-shoulder belt to secure the child restraint. Be sure to follow the instructions that came with the child restraint.
Page 55 5. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
Page 56: Air Bag Systems
Air Bag Systems This part explains the air bag systems. Your vehicle has a frontal air bag for the driver and another frontal air bag for the right front passenger. Your vehicle may also have roof mounted side impact air bags. Roof mounted side impact air bags are available for the driver and the passenger seated directly behind the driver and for the right front passenger and the passenger seated directly behind that...
Page 57 CAUTION: (Continued) The roof-mounted side impact air bags are designed to inﬂate only in moderate to severe crashes where something hits the side of your vehicle. They are not designed to inﬂate in frontal, in rollover or in rear crashes. Everyone in your vehicle should wear a safety belt properly —...
Page 58: Where Are The Air Bags
There is an air bag readiness light on the instrument panel cluster, which shows the air bag symbol. The system checks the air bag electrical system for malfunctions. The light tells you if there is an electrical problem. See Air Bag Readiness Light on page 3-30 for more information.
Page 59 The right front passenger’s frontal air bag is in the instrument panel on the passenger’s side. If your vehicle has a side impact air bag for the driver and the person seated directly behind the driver, it is in the ceiling above the side windows. 1-53...
Page 60 If your vehicle has a side impact air bag for the right front passenger and the person seated directly behind that passenger, it is in the ceiling above the side windows. 1-54 CAUTION: If something is between an occupant and an air bag, the bag might not inﬂate properly or it might force the object into that person causing severe injury or even death.
Page 61: When Should An Air Bag Inﬂate
When Should an Air Bag Inﬂate? The driver’s and right front passenger’s frontal air bags are designed to inﬂate in moderate to severe frontal or near-frontal crashes. But they are designed to inﬂate only if the impact speed is above the system’s designed “threshold level.”...
Page 62: How Does An Air Bag Restrain
What Makes an Air Bag Inﬂate? In an impact of sufficient severity, the air bag sensing system detects that the vehicle is in a crash. For both frontal and side impact air bags, the sensing system triggers a release of gas from the inﬂator, which inﬂates the air bag.
Page 63 CAUTION: When an air bag inﬂates, there is dust in the air. This dust could cause breathing problems for people with a history of asthma or other breathing trouble. To avoid this, everyone in the vehicle should get out as soon as it is safe to do so.
Page 64: Servicing Your Air Bag-Equipped Vehicle
You don’t want the system to inﬂate while someone is working on your vehicle. Your retailer and the Saturn Service Manual have information about servicing your vehicle and the air bag systems. To purchase a service manual, see Service Publications Ordering Information on page 7-10.
Page 65: Restraint System Check
Restraint System Check Checking Your Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.
Page 66 If the LATCH system was being used during a more severe crash, you may need new LATCH system parts. If belts are cut or damaged, replace them. Collision damage also may mean you will need to have LATCH system, safety belt or seat parts repaired or replaced. New parts and repairs may be necessary even if the belt or LATCH system was not being used at the time of the collision.
Page 67: Features And Controls
Section 2 Keys ...2-3 Remote Keyless Entry System ...2-4 Remote Keyless Entry System Operation ...2-5 Doors and Locks ...2-9 Door Locks ...2-9 Power Door Locks ...2-10 Delayed Locking ...2-10 Programmable Automatic Door Locks ...2-10 Rear Door Security Locks ...2-11 Lockout Protection ...2-11 Leaving Your Vehicle ...2-11 Rear Doors (Coupe) ...2-12 Trunk ...2-12...
Page 68 Section 2 Mirrors ...2-36 Manual Rearview Mirror ...2-36 Manual Rearview Mirror with OnStar Automatic Dimming Rearview Mirror with ® OnStar , Compass and Temperature Display ...2-37 Automatic Dimming Rearview Mirror with Compass and Temperature Display ...2-40 Outside Remote Control Mirror ...2-42 Outside Power Mirrors ...2-42 Outside Convex Mirror ...2-42 Features and Controls...
Page 69: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed. Do not leave the keys in a vehicle with children.
Page 70: Remote Keyless Entry System
You may be able to obtain a valet key from you retailer. The valet key only works in the doors and ignition. Notice: If you ever lock your keys in your vehicle, you may have to damage the vehicle to get in. Be sure you have spare keys.
Page 71: Remote Keyless Entry System Operation
At times you may notice a decrease in range. This is normal for any remote keyless entry system. If the transmitter does not work or if you have to stand closer to your vehicle for the transmitter to work, try this: •...
Page 72: Theft-Deterrent System
(Unlock): Press this symbol on the remote keyless entry transmitter to unlock the driver’s door. This also disarms the theft-deterrent system. See “Theft-Deterrent System” following for information on disarming the theft-deterrent system. Press the button again to unlock the rest of the doors. Your vehicle can be programmed so that the parking lamps will ﬂash and/or the horn will sound when you unlock the doors with the remote keyless entry...
Page 73: Matching Transmitter(S) To Your Vehicle
3. You must complete one of the following within three seconds to change the mode. • To select the active arming mode, press the lock button on the transmitter. • To select the passive arming mode, press the trunk release button on the transmitter. •...
Page 74: Battery Replacement
Battery Replacement Under normal use, the battery in your remote keyless entry transmitter should last about four years. You can tell the battery is weak if the transmitter won’t work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it’s probably time to change the battery.
Page 75: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers — especially children — can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 76 Power Door Locks From the inside of the vehicle, push the top of the switch to unlock the door. Press the bottom of the switch to lock all of the doors at once. Delayed Locking The delayed locking feature will delay the actual locking of the doors for up to ﬁve seconds after exiting the vehicle when the power door lock or remote keyless entry transmitter is used to lock the vehicle.
Page 77: Lockout Protection
Rear Door Security Locks Your vehicle has rear door security locks that prevent passengers from opening the rear doors from the inside. The rear door security locks are located on the inside edge of each rear door. You must open the rear doors to access them.
Page 78: Rear Doors (Coupe)
Rear Doors (Coupe) Your vehicle has a driver’s and passenger’s side rear access door. To open the rear access doors, ﬁrst you must open the driver’s or passenger’s door. Then use the handle located on the front edge of the rear door to open it.
Page 79: Remote Trunk Release
Remote Trunk Release Press the remote trunk release button, located on the lower left side of the instrument panel, to release the trunk lid. Make sure the remote trunk release lockout feature is not activated. Also, the remote trunk release will only work when either the ignition is in OFF or ACC, the parking brake is engaged or the vehicle speed is less than 2 mph (3 km/h).
Page 80: Windows
Emergency Trunk Release Handle Notice: Using the emergency trunk release handle as a tie-down or anchor point when securing items in the trunk may damage it. Use the emergency trunk release handle only to help you open the trunk lid. There is a glow-in-the-dark emergency trunk release handle located on the inside of the trunk lid of your vehicle.
Page 81: Power Windows
Manual Windows On a vehicle with manual windows, use the window crank to open and close each window. Power Windows If your vehicle has power windows, switches located on the driver’s door armrest control each of the windows. In addition, each passenger’s door has a window switch that controls that door’s window.
Page 82: Sun Visors
Express-Down Window The driver’s window switch has an express-down feature. This switch is labeled AUTO. Tap the rear of the switch, and the driver’s window will open a small amount. If the rear of the switch is fully pressed, the window will go all the way down.
Page 83: Theft-Deterrent Systems
Theft-Deterrent Systems Vehicle theft is big business, especially in some cities. Although your vehicle has a number of theft-deterrent features, we know that nothing we put on it can make it impossible to steal. ® Passlock Your vehicle is equipped with the Passlock theft-deterrent system.
Page 84: Starting And Operating Your Vehicle
Starting and Operating Your Vehicle New Vehicle Break-In Notice: Your vehicle does not need an elaborate “break-in.” But it will perform better in the long run if you follow these guidelines: • Do not drive at any one speed — fast or slow —...
Page 85: Retained Accessory Power (Rap)
(LOCK): This position locks your steering column in a vehicle with a manual transmission. It is a theft-deterrent feature. You will only be able to remove your key when the ignition is turned to LOCK. If you have an automatic transaxle, the ignition switch can’t be turned to LOCK unless the shift lever is in PARK (P).
Page 86: Starting Your Engine
Starting Your Engine Automatic Transaxle Move your shift lever to PARK (P) or NEUTRAL (N). Your engine won’t start in any other position — that’s a safety feature. To restart when you’re already moving, use NEUTRAL (N) only. Notice: Shifting into PARK (P) with the vehicle moving could damage the transaxle.
Page 87: Racing Or Other Competitive Driving
3. If your engine still won’t start (or starts but then stops), it could be ﬂooded with too much gasoline. Try pushing your accelerator pedal all the way to the ﬂoor and holding it there as you hold the key in START for about three seconds.
Page 88: Engine Coolant Heater
Engine Coolant Heater If your vehicle has this feature, in very cold weather 0°F ( 18°C) or colder, the engine coolant heater can help. You will get easier starting and better fuel economy during engine warm-up. Usually, the coolant heater should be plugged in a minimum of four hours prior to starting your vehicle.
Page 89: Automatic Transaxle Operation
Automatic Transaxle Operation Five-Speed Automatic and VTi Variable If your vehicle is equipped with either the ﬁve-speed automatic transaxle or the VTi variable automatic transaxle, the shift lever is located on the console between the seats. There are several different positions for the automatic transaxle.
Page 90 For vehicles with the VTi variable transaxle, if the TRANS COLD message is displayed in cold temperatures (below 13°F ( 25°C)) and the shift lever is moved out of PARK (P), the transaxle will not go into gear. Return the shift lever to PARK (P) and wait for the TRANS COLD message to turn off.
Page 91 Notice: Shifting to a drive gear from NEUTRAL (N) while the vehicle is moving could damage the transaxle. Make sure the vehicle is stopped before shifting from NEUTRAL (N) into a drive gear. AUTOMATIC OVERDRIVE (D): This position is for normal driving with the automatic transaxle.
Page 92: Shift Lock Release
Shift Lock Release This vehicle is equipped with an electric shift lock release system. The shift lock release is designed to do the following: • Prevent the ignition key from being removed unless the shift lever is in PARK (P), and •...
Page 93 3. Place your ﬁnger into the access hole and locate the plunger. 4. Press and hold the plunger toward the driver’s door while turning the ignition key to LOCK. Remove the key. Have your vehicle serviced at your retailer as soon as possible.
Page 94: Manual Transaxle Operation
Manual Transaxle Operation Five-Speed This is your shift pattern. Here’s how to operate your transaxle: FIRST (1): Press the clutch pedal and shift into FIRST (1). Then, slowly let up on the clutch pedal as you press the accelerator pedal. You can shift into FIRST (1) when you’re going less than 20 mph (32 km/h).
Page 95: Shift Speeds
Shift Speeds CAUTION: If you skip a gear when you downshift, you could lose control of your vehicle. You could injure yourself or others. Don’t shift down more than one gear at a time when you downshift. Up-Shift Light If you have a manual transaxle, you may have an up-shift light.
Page 96: Parking Brake
Parking Brake The parking brake lever is located between the seats. 2-30 To set the parking brake, hold the brake pedal down and pull up on the parking brake lever. If the ignition is on, the brake system warning light will come on. To release the parking brake, hold the brake pedal down.
Page 97: Shifting Into Park (P)
Shifting Into Park (P) (Automatic Transaxle) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 98: Torque Lock
Leaving Your Vehicle With the Engine Running CAUTION: It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch ﬁre.
Page 99: Parking Your Vehicle
Shifting Out of Park (P) (Automatic Transaxle) Your vehicle has an automatic transaxle shift lock control system. You have to fully apply your regular brakes before you can shift from PARK (P) when the ignition is in RUN. See Automatic Transaxle Operation on page 2-23.
Page 100: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Do not park over papers, leaves, dry grass or other things that can burn. 2-34 Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you can not see or smell.
Page 101: Running Your Engine While You Are Parked
Running Your Engine While You Are Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 102: Mirrors
Mirrors Manual Rearview Mirror When you are sitting in a comfortable driving position, adjust the mirror so you can see clearly behind your vehicle. Grip the mirror in the center to move it up or down and side to side. The day/night adjustment allows you to adjust the mirror to avoid glare from the lamps behind you.
Page 103: Temperature And Compass Display
Automatic Dimming Rearview Mirror ® with OnStar , Compass and Temperature Display Your vehicle may have this feature. When on, an automatic dimming mirror automatically dims to the proper level to minimize glare from lights behind you after dark. The mirror also includes a dual display in the upper right corner of the mirror face.
Page 104: Automatic Dimming Mirror Operation
Automatic Dimming Mirror Operation The automatic dimming mirror function is turned on automatically each time the ignition is started. To operate the automatic dimming mirror do the following: 1. Make sure the green indicator light, located to the left of the on/off button, is lit. If it’s not, press and hold the on/off button for approximately six seconds until the green light comes on, indicating that the mirror is in automatic dimming mode.
Page 105 To adjust for compass variance do the following: 1. Find your current location and variance zone number on the following zone map. 2. Press and hold the on/off button until a zone number appears in the display. The compass is now in zone mode.
Page 106: Compass Operation
Automatic Dimming Rearview Mirror with Compass and Temperature Display If your vehicle is equipped with an automatic dimming mirror it will automatically dim to the proper level to minimize glare from lights behind you after dark. The mirror also includes a display in the upper right corner of the mirror face.
Page 107 To adjust for compass variance: 1. Find your current location and variance zone number on the following zone map. 2. Press and hold the COMP button for ﬁve seconds until a zone number appears in the display. 3. Press the COMP button on the bottom of the mirror until the new zone number appears in the display.
Page 108 Outside Remote Control Mirror The outside rearview mirror should be adjusted so you can see a little of the side of your vehicle when you are sitting in a comfortable driving position. Adjust the driver’s outside mirror with the knob on the driver’s door.
Page 109: Onstar System
® OnStar System Your vehicle may have this feature. OnStar global positioning system (GPS) satellite technology, wireless communications, and state of the art call centers to provide you with a wide range of safety, security, information and convenience services. ® A complete OnStar user’s guide and the terms and ®...
Page 110: Storage Areas
Luxury and Leisure Plan • All Directions and Connections Plan services • Personal Concierge ® OnStar Personal Calling ® With OnStar Personal Calling, you have a safer way to stay connected while driving. It’s a hands-free wireless phone that’s integrated into your vehicle. You can place calls nationwide using voice-activated dialing with no contracts and no additional roaming charges.
Page 111: Sunroof
Roof Rack System If your vehicle has a roof rack, you can load things on top of your vehicle. Notice: Loading cargo on the luggage carrier that weighs more than 100 lbs. (45 kg) or hangs over the rear or sides of the vehicle may damage your vehicle.
Page 112 NOTES 2-46...
Page 113: Instrument Panel
Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Other Warning Devices ...3-7 Horn ...3-7 Tilt Wheel ...3-7 Turn Signal/Multifunction Lever ...3-8 Windshield Wiper Lever ...3-11 Cruise Control ...3-12 Exterior Lamps ...3-15 Interior Lamps ...3-17 Accessory Power Outlets ...3-18 Ashtrays and Cigarette Lighter ...3-19 Climate Controls ...3-20 Climate Control System...
Page 114 Section 3 Message Center ...3-41 Low Traction Message ...3-42 Traction Off Message ...3-42 Cruise Control Message ...3-42 Transaxle Fluid Hot Message ...3-42 Transaxle Fluid Cold Message ...3-43 Low Coolant Level Warning Message ...3-43 Change Engine Oil Message ...3-43 Check Gage Message ...3-44 Power Steering Message ...3-44 Trunk Ajar Warning Message ...3-44 Low Fuel Warning Message ...3-45...
Page 115 NOTES...
Page 116: Instrument Panel Overview
Instrument Panel Overview...
Page 117 The main components of the instrument panel are the following: A. Air Outlets. See Outlet Adjustment on page 3-24 Outlet Adjustment. B. Turn Signal/Multifunction Lever. See Turn Signal/Multifunction Lever on page 3-8 Turn Signal/Multifunction Lever. C. Horn. See Horn on page 3-7. D.
Page 118: Hazard Warning Flashers
Hazard Warning Flashers Your hazard warning ﬂashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is located near the center of the instrument panel.
Page 119: Horn
Other Warning Devices If you carry reﬂective triangles, you can set one up at the side of the road about 300 feet (100 m) behind your vehicle. Horn You can sound the horn by pressing the center of your steering wheel. Tilt Wheel Your vehicle may have a tilt wheel which allows you to adjust the steering wheel before you drive.
Page 120: Turn Signal/Multifunction Lever
Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following: • Turn and Lane-Change Signals • Headlamps • Headlamp High/Low-Beam Changer • Flash-to-Pass Feature For additional information on the exterior lamps, see Exterior Lamps on page 3-15. Turn and Lane-Change Signals The turn signal has two upward (for right) and two downward (for left) positions.
Page 121: Headlamp High/Low-Beam Changer
As you signal a turn or a lane change, if the arrows ﬂash rapidly, a signal bulb may be burned out and other drivers won’t see your turn signal. If a bulb is burned out, replace it to help avoid an accident.
Page 122 Headlamps The exterior lamp control is located in the middle of the turn signal/multifunction lever. (Exterior Lamp Control): Turn the control with this symbol on it to operate the exterior lamps. The exterior lamp control has the following four positions: (Off): Turning the control to this position turns off all lamps except the Daytime Running Lamps (DRL).
Page 123: Windshield Wiper Lever
Windshield Wiper Lever The lever on the right side of the steering column operates the windshield wipers. (Mist): Pull the lever down and release it for a single wiping cycle. The lever will return to its original position. For more cycles, hold the lever down before releasing it.
Page 124: Windshield Washer
Windshield Washer CAUTION: In freezing weather, do not use your washer until the windshield is warmed. Otherwise the washer ﬂuid can form ice on the windshield, blocking your vision. (Washer Fluid): Pull the windshield wiper lever toward you to operate the windshield wipers. Washer ﬂuid will squirt onto the windshield and the wipers will run for a few cycles to clear the windshield.
Page 125 With cruise control, you can maintain a speed of about 25 mph (40 km/h) or more without keeping your foot on the accelerator. This can really help on long trips. Cruise control does not work at speeds below about 25 mph (40 km/h). If you apply your brakes or the clutch, the cruise control will shut off.
Page 126 Resuming a Set Speed Suppose you set your cruise control at a desired speed and then you apply the brake. This, of course, disengages the cruise control. But you don’t need to reset it. Once you’re going about 25 mph (40 km/h) or more, you can press the cruise control resume/accelerate button.
Page 127: Exterior Lamps
Using Cruise Control on Hills How well your cruise control will work on hills depends upon your speed, load and the steepness of the hills. When going up steep hills, you may have to step on the accelerator pedal to maintain your speed. When going downhill, you may have to brake or shift to a lower gear to keep your speed down.
Page 128: Automatic Headlamp System
When the DRL are on, your low-beam headlamps will be on at a reduced brightness. The taillamps, sidemarker and other lamps won’t be on. Your instrument panel won’t be lit up either. When you turn the exterior lamp band to the headlamp position, your low-beam headlamps will come on.
Page 129: Interior Lamps
Fog Lamps If your vehicle has this feature, use your fog lamps for better visibility in foggy or misty conditions. The button for your fog lamps is located next to the instrument panel brightness control. Push the button to turn the fog lamps on. Push the button again to turn the fog lamps off.
Page 130: Accessory Power Outlets
Entry Lighting If the dome lamp is in the DOOR position, the lamps inside your vehicle will come on when any door is opened. In addition, the light will come on when the remote keyless entry unlock button is pressed. It will stay on for 20 seconds or until a door is opened.
Page 131: Ashtrays And Cigarette Lighter
Certain electrical accessories may not be compatible with the accessory power outlet and could result in blown vehicle or adapter fuses. If you experience a problem, see your dealer for additional information on the accessory power outlet. Notice: Adding any electrical equipment to your vehicle may damage it or keep other components from working as they should.
Page 132: Climate Control System
Climate Controls Climate Control System (Without Air Conditioning) With this system you can control the heating and ventilation for your vehicle. 3-20 Operation To change the current mode, select one of the following: (Vent): This mode directs air to the instrument panel outlets.
Page 133: Defogging And Defrosting
Defogging and Defrosting Fog on the inside of windows is a result of high humidity (moisture) condensing on the cool window glass. This can be minimized if the climate control system is used properly. There are two modes to clear fog or frost from your windshield and side windows.
Page 134: Climate Control System
Climate Control System (With Air Conditioning) With this system you can control the heating, cooling and ventilation for your vehicle. Operation To change the current mode, select one of the following: (Vent): This mode directs air to the instrument panel outlets. 3-22 (Bi-Level): This mode directs approximately half of the air to the instrument panel outlets, and then...
Page 135 The air-conditioning compressor also comes on. Operation in this mode during periods of high humidity and cool outside temperatures may result in increased window fogging. If window fogging is experienced, select the defrost mode. (Air Conditioning): Press this button to turn the air-conditioning system on or off.
Page 136: Outlet Adjustment
Rear Window Defogger The rear window defogger uses a warming grid to remove fog from the rear window. The rear window defogger will only work when the ignition is in RUN. < (Rear): Press the button to turn the rear window defogger on or off.
Page 137: Passenger Compartment Air Filter
Passenger Compartment Air Filter Passenger compartment air, both outside air and recirculated air, is routed through a passenger compartment ﬁlter. The ﬁlter removes certain particles from the air, including pollen and dust particles. Reductions in airﬂow, which may occur more quickly in dusty areas, indicate that the ﬁlter needs to be replaced early.
Page 138 4. Open the passenger compartment air ﬁlter door by reaching through the opening in the back of the glove box and raising the tab until the door can be opened downward. 3-26 5. Remove the ﬁlter by sliding it out of the housing. When installing a new air ﬁlter make sure the AIR FLOW arrow is pointing downward.
Page 139: Warning Lights, Gages, And Indicators
Warning Lights, Gages, and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 140: Instrument Panel Cluster
Instrument Panel Cluster Your instrument cluster is designed to let you know at a glance how your vehicle is running. You’ll know how fast you’re going, about how much fuel you’ve used, and many other things you’ll need to know to drive safely and economically.
Page 141: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer is located in your message center, and shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada).
Page 142: Safety Belt Reminder Light
Safety Belt Reminder Light When the key is turned to RUN or START, a chime will come on for several seconds to remind people to fasten their safety belts, unless the driver’s safety belt is already buckled. The safety belt light will also come on and stay on for several seconds, then it will ﬂash for...
Page 143: Battery Warning Light
CAUTION: If the air bag readiness light stays on after you start your vehicle, it means the air bag system may not be working properly. The air bags in your vehicle may not inﬂate in a crash, or they could even inﬂate without a crash. To help avoid injury to yourself or others, have your vehicle serviced right away if the air bag readiness light stays on after you start your...
Page 144: Up-Shift Light
Up-Shift Light Your vehicle may have up-shift light. When this light comes on, you should shift to the next higher gear if weather, road, and traffic conditions allow you to. This light is located in your instrument panel cluster to the left of the speedometer.
Page 145 When the ignition is on, the BRAKE light will come on when you set your parking brake. The light will stay on if your parking brake doesn’t release fully. A chime will also sound if the parking brake is not fully released and the vehicle is moving.
Page 146: Anti-Lock Brake System Warning Light
Anti-Lock Brake System Warning Light If your vehicle has anti-lock brakes, the anti-lock brake system (ABS) warning light will come on brieﬂy, as a check, when you start your vehicle. If it doesn’t, have your vehicle serviced so that the light works properly when it needs to.
Page 147: Engine Coolant Temperature Gage
Engine Coolant Temperature Gage This gage on the left measures the temperature of the vehicle’s engine coolant. If the pointer moves into the shaded area, your engine is too hot! If the engine coolant temperature reaches 253° (123°C) the CHK GAGE message will appear and a chime will sound to alert you to the engine coolant temperature gage.
Page 148: Malfunction Indicator Lamp
Malfunction Indicator Lamp Service Engine Soon Light Your vehicle is equipped with a computer which monitors operation of the fuel, ignition and emission control systems. This system is called OBD II (On-Board Diagnostics- Second Generation) and is intended to assure that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment.
Page 149: If The Light Is Flashing
If the Light Is Flashing The following may prevent more serious damage to your vehicle: • Reducing vehicle speed. • Avoiding hard accelerations. • Avoiding steep uphill grades. • If you are towing a trailer, reduce the amount of cargo being hauled as soon as it is possible. If the light stops ﬂashing and remains on steady, see “If the Light Is On Steady”...
Page 150: Emissions Inspection And Maintenance Programs
Have you recently changed brands of fuel? If so, be sure to fuel your vehicle with quality fuel. See Gasoline Octane on page 5-5. Poor fuel quality will cause your engine not to run as efficiently as designed. You may notice this as stalling after start-up, stalling when you put the vehicle into gear, misﬁring, hesitation on acceleration or stumbling on acceleration.
Page 151: Maintenance Schedule
Oil Pressure Light If you have a low engine oil pressure problem, this light will stay on after you start your engine, or come on when you are driving. This indicates that your engine is not receiving enough oil. The engine could be low on oil, or could have some other oil problem.
Page 152: Passlock Warning Light
® Passlock Warning Light Your vehicle is equipped with a Passlock theft-deterrent system. With this system, the security light will ﬂash as you open the door if your ignition is off. For more information, see Passlock 3-40 Fuel Gage ® ®...
Page 153: Message Center
Here are four things that some owners ask about. None of these show a problem with your fuel gage: • At the service station, the fuel pump shuts off before the gage reads full. • It takes a little more or less fuel to ﬁll up than the gage indicated.
Page 154: Low Traction Message
Low Traction Message If your vehicle has a traction control system (TCS), this LOW TRAC message will be displayed when the system is limiting wheel spin. See Traction Control System (TCS) on page 4-8 for more information. Traction Off Message If your vehicle has a traction control system (TCS), this TRAC OFF...
Page 155: Transaxle Fluid Cold Message
Transaxle Fluid Cold Message The TRANS COLD message will be displayed if the automatic transaxle ﬂuid temperature is too cold to operate correctly. When this happens, shifting out of PARK (P) is prevented until the transaxle ﬂuid warms up. Let the engine run for a few minutes until this message is no longer displayed.
Page 156: Check Gage Message
Check Gage Message If the CHK GAGE message is displayed, the engine coolant may be overheated. A chime will also sound to alert you to this message. If this message is displayed, check your engine coolant temperature gage. If the needle is in the red area, your engine may be overheating.
Page 157: Low Fuel Warning Message
Low Fuel Warning Message When the LOW FUEL message is displayed, you may have less than 1.5 gallons (5.5 liters) of fuel left. A chime will also sound to alert you to this message. You should refuel your vehicle immediately. When the fuel tank is ﬁlled to more than 3.3 gallons (11.5 liters), this message will no longer be displayed.
Page 158: Audio System(S)
Audio System(s) Notice: Before adding any sound equipment to your vehicle, like a tape player, CB radio, mobile telephone, or two-way radio, make sure that it can be added by checking with your dealer. Also, check federal rules covering mobile radio and telephone units.
Page 159: Setting The Time For Radios With Radio Data Systems (Rds)
Setting the Time for Radios with Radio Data Systems (RDS) Press and hold the RCL button and at the same time press the HR (AUTO EQ left) or MN (AUTO EQ right) arrows. You will hear a beep indicating that you can change the time.
Page 160: Finding A Station
Finding a Station AM FM: Press this button to switch between FM1, FM2, or AM. The display will show the selection. TUNE : Press either arrow to select radio stations. SEEK : Press the up or down arrow to go to the next or to the previous station and stay there.
Page 161 Using Automatic Set Use this feature to automatically save the radio preset pushbuttons with the stations with the strongest radio signals. A.SET (Automatic Set): Press this button to have the radio automatically select the ﬁrst 12 strongest radio stations for FM and the six strongest radio stations for AM.
Page 162: Radio With Cd (Base Level)
Radio with CD (Base Level) Playing the Radio ON (Power): Push this knob to turn the system on and off. VOL (Volume): Turn this knob to increase or to decrease volume. RCL (Recall): Press this knob to switch the display between the radio station frequency and the time.
Page 163 Setting Preset Stations The six numbered pushbuttons let you return to your favorite stations. You can set up to 18 stations (six FM1, six FM2, and six AM) by performing the following steps: 1. Turn the radio on. 2. Press AM FM to select FM1, FM2, or AM. 3.
Page 164: Playing A Cd
Setting the Tone (Bass/Treble) MODE: Press this button until BAS or TRE appears on the display. Press the plus or minus buttons to increase or to decrease. The display will show the bass or the treble level. If a station is weak or noisy, you may want to decrease the treble.
Page 165 Do not play 3 inch CDs without a standard adapter CD. If an error appears on the display, see “CD Messages” later in this section. 1 PRV (Previous): Press this pushbutton to go to the start of the current track if more than eight seconds have played.
Page 166: Radio With Cd (Mp3)
CD Messages If ERR appears on the display and the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. • You are driving on a very rough road. When the road becomes smooth, the CD should play.
Page 167: Playing The Radio
With RDS, your radio can do the following: • Seek to stations broadcasting the selected type of programming • Receive announcements concerning local and national emergencies • Display messages from radio stations • Seek to stations with traffic announcements This system relies upon receiving speciﬁc information from these stations and will only work when the information is available.
Page 168 Finding a Station AM FM: Press this button to switch between FM1, FM2, or AM. The display will show your selection. AUX (Auxiliary): To select XM™ Satellite Radio Service (48 contiguous US states, if equipped), perform the following: 1. Press either CAT arrow to select different categories.
Page 169 Setting Preset Stations The six numbered pushbuttons let you return to your favorite stations. You can set up to 30 stations (six FM1, six FM2, and six AM, six XM1 and six XM2 (48 contiguous US states, if equipped) by performing the following steps: 1.
Page 170: Finding A Category (Cat) Station
Setting the Tone (Bass/Treble) (Bass/Treble): Press this knob until BASS or TREB appears on the display. Turn this knob to increase or to decrease. The display will show the bass or the treble level. If a station is weak or noisy, you may want to decrease the treble.
Page 171: Rds Messages
RDS Messages ALERT!: Alert warns of local or national emergencies. When an alert announcement comes on the current radio station, ALERT! will appear on the display. You will hear the announcement, even if the volume is muted or a CD is playing. If a CD is playing, play will stop during the announcement.
Page 172: Playing The Single Cd Player
Playing the Single CD Player Insert a CD partway into the slot, label side up. The player will pull it in and the CD should begin playing. The CD symbol will appear on the display. You can insert a CD with the ignition off. A CD can also be loaded by pressing the LOAD button.
Page 173 CAT (Reverse): Press and hold the left arrow to reverse quickly within a track. Release it to play the passage. The elapsed time of the track will appear on the display. (Forward): Press and hold the right arrow to advance quickly within a track. Release it to play the passage.
Page 174: Playing The Six-Disc Cd Player
Playing the Six-Disc CD Player If you turn off the ignition or radio with a CD in the player, it will stay in the player. When you turn on the ignition or radio, the CD will start playing where it stopped, if it was the last selected audio source.
Page 175 To load all CDs, do the following: 1. Turn the ignition on. 2. Press and hold the load button for more than three seconds. 3. Load, up to six CDs, in order, starting with the ﬁrst empty slot. Loading will continue until all six CDs are loaded or load is stopped by pressing any other radio button.
Page 176 CAT (Reverse): Press and hold the left arrow to rewind quickly within a track. Release it to play the passage. The elapsed time of the track will appear on the display. (Forward): Press and hold the right arrow to advance quickly within a track. Release it to play the passage.
Page 177: Using An Mp3 Cd
Using an MP3 CD MP3 Format The MP3 radio will play both standard audio CDs and CD-R or CD-RWs. The CD-R/RWs may contain either standard audio (*.cda) or compressed audio (*.mp3). Customers who record their own music CD-R/RWs should be aware of the following: •...
Page 178 Playing an MP3 If you turn off the ignition or radio with a CD in the player, it will stay in the player. When you turn on the ignition or radio, the CD will start playing where it stopped, if it was the last selected audio source. The CD player can play the smaller 8 cm or 3 inch single CDs with an adapter ring.
Page 179: Radio Personalization
CD Messages If any error message appears on the display and the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. • You are driving on a very rough road.
Page 180: Theft-Deterrent Feature
Theft-Deterrent Feature The Radio with Single CD (MP3) and the Radio with Six-Disc CD (MP3) have a theft deterrent feature. The theft deterrent feature is designed to discourage theft of your vehicle’s radio. It works by using a secret code to disable all radio functions whenever battery power is interrupted.
Page 181 6. Press the SEEK/SCAN up or SEEK right arrow to make the second digit agree with your code. 7. Press the TUNE down or AUTO EQ left arrow to make the third digit agree with your code. 8. Press the TUNE up or AUTO EQ right arrow to make the fourth digit agree with your code.
Page 182: Radio Reception
Disabling the Theft-Deterrent Feature Enter your secret code as follows; pause no more than 15 seconds between steps: Preform Steps 1 through 9 from the “Activating the Theft-Deterrent Feature” earlier to enter your secret code. OFF will appear on the display indicating the theft deterrent feature is off.
Page 183: Care Of Your Cds
Care of Your CDs Handle CDs carefully. Store them in their original cases or other protective cases and away from direct sunlight and dust. If the surface of a CD is soiled, dampen a clean, soft cloth in a mild, neutral detergent solution and clean it, wiping from the center to the edge.
Page 184 NOTES 3-72...
Page 185 Section 4 Your Driving, the Road, and Your Vehicle ...4-2 Defensive Driving ...4-2 Drunken Driving ...4-2 Control of a Vehicle ...4-5 Braking ...4-6 Traction Control System (TCS) ...4-8 Steering ...4-9 Off-Road Recovery ...4-12 Passing ...4-12 Loss of Control ...4-14 Driving at Night ...4-15 Driving in Rain and on Wet Roads ...4-17 City Driving ...4-20 Driving Your Vehicle...
Page 186: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 1-8. Defensive driving really means “be ready for anything.”...
Page 187 Many adults — by some estimates, nearly half the adult population — choose never to drink alcohol, so they never drive after drinking. For persons under 21, it is against the law in every U.S. state to drink alcohol. There are good medical, psychological and developmental reasons for these laws.
Page 188 There is a gender difference, too. Women generally have a lower relative percentage of body water than men. Since alcohol is carried in body water, this means that a woman generally will reach a higher BAC level than a man of her same body weight will when each has the same number of drinks.
Page 189: Control Of A Vehicle
There is something else about drinking and driving that many people do not know. Medical research shows that alcohol in a person’s system can make crash injuries worse, especially injuries to the brain, spinal cord or heart. This means that when anyone who has been drinking —...
Page 190: Braking
Braking Braking action involves perception time and reaction time. First, you have to decide to push on the brake pedal. That is perception time. Then you have to bring up your foot and do it. That is reaction time. Average reaction time is about 3/4 of a second. But that is only an average.
Page 191 When you start your engine, or when you begin to drive away, your anti-lock brake system will check itself. You may hear a momentary motor or clicking noise while this test is going on, and you may even notice that your brake pedal moves or pulses a little.
Page 192: Braking In Emergencies
Remember: Anti-lock does not change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle in front of you, you will not have time to apply your brakes if that vehicle suddenly slows or stops.
Page 193: Steering
If your vehicle is in cruise control when the traction control system begins to limit wheel spin, the cruise control will automatically disengage. When road conditions allow you to safely use it again, you may reengage the cruise control. See “Cruise Control” under Turn Signal/Multifunction Lever on page 3-8.
Page 194: Steering Tips
Steering Tips Driving on Curves It is important to take curves at a reasonable speed. A lot of the “driver lost control” accidents mentioned on the news happen on curves. Here is why: Experienced driver or beginner, each of us is subject to the same laws of physics when driving on curves.
Page 195: Steering In Emergencies
Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and ﬁnd a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 196: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your right wheels have dropped off the edge of a road onto the shoulder while you’re driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 197 • Do not get too close to the vehicle you want to pass while you are awaiting an opportunity. For one thing, following too closely reduces your area of vision, especially if you are following a larger vehicle. Also, you will not have adequate space if the vehicle ahead suddenly slows or stops.
Page 198: Loss Of Control
Loss of Control Let us review what driving experts say about what happens when the three control systems (brakes, steering and acceleration) do not have enough friction where the tires meet the road to do what the driver has asked. In any emergency, do not give up.
Page 199: Driving At Night
While driving on a surface with reduced traction, try your best to avoid sudden steering, acceleration or braking (including engine braking by shifting to a lower gear). Any sudden changes could cause the tires to slide. You may not realize the surface is slippery until your vehicle is skidding.
Page 200 Here are some tips on night driving. • Drive defensively. • Do not drink and drive. • Adjust your inside rearview mirror to reduce the glare from headlamps behind you. • Since you can not see as well, you may need to slow down and keep more space between you and other vehicles.
Page 201: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet road, you can not stop, accelerate or turn as well because your tire-to-road traction is not as good as on dry roads. And, if your tires do not have much tread left, you will get even less traction.
Page 202 Driving too fast through large water puddles or even going through some car washes can cause problems, too. The water may affect your brakes. Try to avoid puddles. But if you can not, try to slow down before you hit them. 4-18 CAUTION: Wet brakes can cause accidents.
Page 203: Driving Through Flowing Water
Hydroplaning Hydroplaning is dangerous. So much water can build up under your tires that they can actually ride on the water. This can happen if the road is wet enough and you are going fast enough. When your vehicle is hydroplaning, it has little or no contact with the road.
Page 204: City Driving
City Driving One of the biggest problems with city streets is the amount of traffic on them. You will want to watch out for what the other drivers are doing and pay attention to traffic signals. 4-20 Here are ways to increase your safety in city driving: •...
Page 205: Freeway Driving
Freeway Driving Mile for mile, freeways (also called thruways, parkways, expressways, turnpikes or superhighways) are the safest of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 206: Before Leaving On A Long Trip
If it needs service, have it done before starting out. Of course, you will ﬁnd experienced and able service experts at Saturn retailers all across North America. They will be ready and willing to help if you need it.
Page 207: Highway Hypnosis
Here are some things you can check before a trip: • Windshield Washer Fluid: Is the reservoir full? Are all windows clean inside and outside? • Wiper Blades: Are they in good shape? • Fuel, Engine Oil, Other Fluids: Have you checked all levels? •...
Page 208: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or mountains is different from driving in ﬂat or rolling terrain. 4-24 If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable.
Page 209 CAUTION: Coasting downhill in NEUTRAL (N) or with the ignition off is dangerous. Your brakes will have to do all the work of slowing down. They could get so hot that they would not work well. You would then have poor braking or even none going down a hill.
Page 210: Winter Driving
Winter Driving Here are some tips for winter driving: • Have your vehicle in good shape for winter. • You may want to put winter emergency supplies in your trunk. Also see Tires on page 5-58. 4-26 Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth and a couple of reﬂective warning triangles.
Page 211: Driving On Snow Or Ice
Driving on Snow or Ice Most of the time, those places where your tires meet the road probably have good traction. However, if there is snow or ice between your tires and the road, you can have a very slippery situation. You will have a lot less traction or “grip”...
Page 212: If You Are Caught In A Blizzard
Unless you have the anti-lock braking system, you will want to brake very gently, too. If you do have anti-lock, see Braking on page 4-6. This system improves your vehicle’s stability when you make a hard stop on a slippery road. Whether you have the anti-lock braking system or not, you will want to begin stopping sooner than you would on dry pavement.
Page 213 • Put on extra clothing or wrap a blanket around you. If you have no blankets or extra clothing, make body insulators from newspapers, burlap bags, rags, ﬂoor mats — anything you can wrap around yourself or tuck under your clothing to keep warm. You can run the engine to keep warm, but be careful.
Page 214: If You Are Stuck: In Sand, Mud, Ice Or Snow
Then, shut the engine off and close the window almost all the way to preserve the heat. Start the engine again and repeat this only when you feel really uncomfortable from the cold. But do it as little as possible. Preserve the fuel as long as you can. To help keep warm, you can get out of the vehicle and do some fairly vigorous exercises every half hour or so until help comes.
Page 215: Towing
Vehicles Equipped with VTi Variable Transaxle If you press too hard on the accelerator pedal, you may not be able to shift into DRIVE (D) or REVERSE (R). If this happens, release the accelerator pedal, then shift to the gear you want. Towing Towing Your Vehicle Consult your dealer or a professional towing service if...
Page 216: Dinghy Towing (Manual Transaxle)
Dinghy Towing (Manual Transaxle) To tow your vehicle from the front with all four wheels on the ground, do the following: 1. Set the parking brake. 2. Turn the ignition key to ACC. 3. Shift your transaxle to NEUTRAL. 4. Locate and remove the IP BATT2 fuse from the engine compartment fuse block.
Page 217: Loading Your Vehicle
Dolly Towing (All Transaxles) To tow your vehicle from the front with two wheels on the ground, do the following: 1. Put the front wheels on a dolly. 2. If you have a ﬁve-speed automatic transaxle or VTi variable transaxle, shift the transaxle to PARK (P). If you have a manual transaxle, shift the vehicle to SECOND (2).
Page 218 Tire and Loading Information Label Example 1 A. Vehicle Capacity Weight 4-34 Example 2 A. Vehicle Capacity Weight The Tire and Loading Information label shows the seating capacity and the total weight your vehicle can properly carry. This weight is called the vehicle capacity weight.
Page 219 The Tire and Loading Information label also gives you the size and recommended inﬂation pressure for the factory-installed, original equipment tires on your vehicle. For more information on tires and inﬂation see Tires on page 5-58 and Inﬂation - Tire Pressure on page 5-66.
Page 220 Example 1 Loading Your Vehicle Item Description Vehicle Capacity Weight for Example 1= Subtract Occupant Weight 150 lbs (68 kg) Available Occupant and Cargo Weight = 4-36 Total Item 1,000 lbs (453 kg) 300 lbs (136 kg) 700 lbs (317 kg) Example 2 Loading Your Vehicle Description...
Page 221 Example 3 Loading Your Vehicle Item Description Vehicle Capacity Weight for Example 3 = Subtract Occupant Weight 200 lbs (91 kg) Available Occupant and Cargo Weight = Refer to your vehicle’s tire and loading information label for speciﬁc information about your vehicle’s capacity weight and seating positions.
Page 222 If you do have a heavy load, spread it out. Don’t carry more than 167 pounds (75 kg) in your trunk. CAUTION: Do not load your vehicle any heavier than the GVWR, or either the maximum front or rear GAWR. If you do, parts on your vehicle can break, and it can change the way your vehicle handles.
Page 223: Towing A Trailer
Towing a Trailer CAUTION: If you do not use the correct equipment and drive properly, you can lose control when you pull a trailer. For example, if the trailer is too heavy, the brakes may not work well — or even at all.
Page 224: If You Do Decide To Pull A Trailer
If You Do Decide to Pull a Trailer If you do, here are some important points: • There are many different laws, including speed limit restrictions, having to do with trailering. Make sure your rig will be legal, not only where you live but also where you’ll be driving.
Page 225: Weight Of The Trailer
Weight of the Trailer How heavy can a trailer safely be? It should never weigh more than 1,000 lbs. (454 kg). But even that can be too heavy. It depends on how you plan to use your rig. For example, speed, altitude, road grades, outside temperature and how much your vehicle is used to pull a trailer are all important.
Page 226: Total Weight On Your Vehicle's Tires
Total Weight on Your Vehicle’s Tires Be sure your vehicle’s tires are inﬂated to the upper limit for cold tires. You’ll ﬁnd these numbers on the Tire-Loading Information label, See Loading Your Vehicle on page 4-33. Then be sure you don’t go over the GVW limit for your vehicle, including the weight of the trailer tongue.
Page 227: Driving With A Trailer
Driving with a Trailer Towing a trailer requires a certain amount of experience. Before setting out for the open road, you’ll want to get to know your rig. Acquaint yourself with the feel of handling and braking with the added weight of the trailer. And always keep in mind that the vehicle you are driving is now a good deal longer and not nearly as responsive as your vehicle is by itself.
Page 228: Turn Signals When Towing A Trailer
Turn Signals When Towing a Trailer When you tow a trailer, your vehicle may need a different turn signal ﬂasher and/or extra wiring. See your retailer if you need information. The arrows on your instrument panel will ﬂash whenever you signal a turn or lane change.
Page 229: Parking On Hills
Parking on Hills CAUTION: You really should not park your vehicle, with a trailer attached, on a hill. If something goes wrong, your rig could start to move. People can be injured, and both your vehicle and the trailer can be damaged. But if you ever have to park your rig on a hill, here’s how to do it: 1.
Page 230: Engine Cooling When Trailer Towing
Maintenance When Trailer Towing Your vehicle will need service more often when you’re pulling a trailer. See Scheduled Maintenance on page 6-4 for more information. Things that are especially important in trailer operation are automatic transaxle ﬂuid (don’t overﬁll), engine oil, axle lubricant, drive belt, cooling system and brake system.
Page 231 Section 5 Service ...5-3 Doing Your Own Service Work ...5-4 Adding Equipment to the Outside of Your Vehicle ...5-4 Fuel ...5-5 Gasoline Octane ...5-5 Gasoline Speciﬁcations ...5-5 California Fuel ...5-6 Additives ...5-6 Fuels in Foreign Countries ...5-7 Filling Your Tank ...5-8 Filling a Portable Fuel Container ...5-9 Checking Things Under the Hood ...5-10 Hood Release ...5-10...
Page 232 Section 5 Windshield Wiper Blade Replacement ...5-57 Tires ...5-58 Inﬂation - Tire Pressure ...5-66 Tire Inspection and Rotation ...5-68 When It Is Time for New Tires ...5-69 Buying New Tires ...5-70 Uniform Tire Quality Grading ...5-71 Wheel Alignment and Tire Balance ...5-72 Wheel Replacement ...5-72 Tire Chains ...5-74 If a Tire Goes Flat ...5-75...
Page 233: Service
You will get genuine Saturn parts and Saturn-trained and supported service people. We hope you will want to keep your Saturn vehicle all Saturn. Genuine Saturn parts have one of these marks. California Proposition 65 Warning...
Page 234: Doing Your Own Service Work
Doing Your Own Service Work If you want to do some of your own service work, you will want to use the proper service manual. It tells you much more about how to service your vehicle than this manual can. To order the proper service manual, see Service Publications Ordering Information on page 7-10.
Page 235: Fuel
Otherwise, you might damage your engine. Gasoline Speciﬁcations It is recommended that gasoline meet speciﬁcations which were developed by automobile manufacturers around the world and contained in the World-Wide Fuel Charter which is available from the Alliance of Automobile Manufacturers at www.autoalliance.org/fuel_charter.htm.
Page 236: California Fuel
(see Malfunction Indicator Lamp on page 3-36 ) and your vehicle may fail a smog-check test. If this occurs, return to your authorized Saturn retailer for diagnosis. If it is determined that the condition is caused by the type of fuel used, repairs may not be covered by your warranty.
Page 237: Fuels In Foreign Countries
MMT can reduce the life of spark plugs and the performance of the emission control system may be affected. The malfunction indicator lamp may turn on. If this occurs, return to your authorized Saturn retailer for service. Fuels in Foreign Countries...
Page 238: Filling Your Tank
Filling Your Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when CAUTION: (Continued) CAUTION: (Continued) you are refueling.
Page 239: Filling A Portable Fuel Container
CAUTION: If you get fuel on yourself and then something ignites it, you could be badly burned. Fuel can spray out on you if you open the fuel cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather. Open the fuel cap slowly and wait for any “hiss”...
Page 240: Checking Things Under The Hood
Checking Things Under the Hood CAUTION: An electric fan under the hood can start up and injure you even when the engine is not running. Keep hands, clothing and tools away from any underhood electric fan. CAUTION: Things that burn can get on hot engine parts and start a ﬁre.
Page 241 2. Then go to the front of the vehicle and push the hood release latch to the side. 3. Lift the hood, release the hood prop from its retainer and put the hood prop into the slot in the hood. Before closing the hood, be sure all the ﬁller caps are on properly.
Page 242: Engine Compartment Overview
Engine Compartment Overview When you open the hood on 2.2L L4 engine, you’ll see the following: 5-12...
Page 243 A. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 5-22. B. Engine Oil Fill Location. See Engine Oil on page 5-15. C. Engine Oil Dipstick Location. See Engine Oil on page 5-15. D. Brake Master Cylinder. See Brakes on page 5-38 and Hydraulic Clutch on page 5-25.
Page 244 When you open the hood on 2.0L Supercharged engine, you’ll see the following: 5-14...
Page 245: Engine Oil
A. Engine Oil Dipstick Location. See Engine Oil on page 5-15. B. Electric Cooling Fan. See Cooling System on page 5-32. C. Engine Oil Fill Location. See Engine Oil on page 5-15. D. Radiator Pressure Cap. See Engine Coolant on page 5-26.
Page 246: When To Add Engine Oil
When to Add Engine Oil If the oil is at or below the MIN mark, then you will need to add at least one quart of oil. But you must use the right kind. This section explains what kind of oil to use. For engine oil crankcase capacity, see Capacities and Speciﬁcations on page 5-102.
Page 247 • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle. However, if it is going to be 0°F (–18°C) or above and SAE 5W-30 is not available, you may use SAE 10W-30. These numbers on an oil container show its viscosity, or thickness.
Page 248 GM Goodwrench oil meets all the requirements for your vehicle. If you are in an area of extreme cold, where the temperature falls below 20°F ( 29°C), it is recommended that you use either an SAE 5W-30 synthetic oil or an SAE 0W-30 oil. Both will provide easier cold starting and better protection for your engine at extremely low temperatures.
Page 249: Engine Oil Additives
• SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle. However, you can use SAE 10W-30 if it is going to be 0°F (-18°C) or above. These numbers on an oil container show its viscosity, or thickness.
Page 250: When To Change Engine Oil
Your retailer has trained service people who will perform this work using genuine Saturn parts and reset the system. It is also important to check your oil regularly and keep it at the proper level.
Page 251: What To Do With Used Oil
Your vehicle has a unique oil ﬁlter element. When installing the ﬁller cap do not exceed 18 lb-ft (25 Y). Inspect the condition of the O-ring and replace if damaged. See your Saturn retailer for additional information. What to Do with Used Oil Used engine oil contains certain elements that may be unhealthy for your skin and could even cause cancer.
Page 252: Engine Air Cleaner/Filter
Engine Air Cleaner/Filter Engine Air Cleaner/Filter Replacement 2.2L L4 Engine 5-22 2.0L Supercharged Engine When to Inspect the Engine Air Cleaner/Filter Inspect the air cleaner/ﬁlter at every oil change and replace at the ﬁrst oil change after 25,000 miles (40,000 km).
Page 253: How To Inspect The Engine Air Cleaner/Filter
How to Inspect the Engine Air Cleaner/Filter To inspect the air cleaner/ﬁlter remove the ﬁlter from the vehicle and lightly shake ﬁlter to release loose dust and dirt. If the ﬁlter remains “caked” with dirt, a new ﬁlter is required. The engine air cleaner/ﬁlter is located in the engine compartment.
Page 254: Automatic Transaxle Fluid
3. Pull the air cleaner/ﬁlter box cover out and remove the air ﬁlter element from the air ﬁlter box. If the element is dirty, you should replace it. If the element is only dusty, it may be cleaned by blowing compressed air through it from the clean side.
Page 255: Manual Transaxle Fluid
Notice: For ﬁve-speed automatic transaxles, use only Saturn T-IV Transaxle Fluid. Using any other ﬂuid will result in transaxle damage. Damage cause by the use of ﬂuid other than Saturn T-IV Transaxle Fluid will not be covered by your warranty.
Page 256: Engine Coolant
Engine Coolant The cooling system in your vehicle is ﬁlled with ® DEX-COOL engine coolant. This coolant is designed to remain in your vehicle for 5 years or 100,000 miles (166 000 km), whichever occurs ﬁrst, if you add ® only DEX-COOL extended life coolant.
Page 257 CAUTION: (Continued) Your vehicle’s coolant warning system is set for the proper coolant mixture. With plain water or the wrong mixture, your engine could get too hot but you would not get the overheat warning. Your engine could catch ﬁre and you or others could be burned.
Page 258: Checking Coolant
Checking Coolant The surge tank is located on the driver’s side of the engine compartment. See Engine Compartment Overview on page 5-12 for more information on location. 5-28 CAUTION: Turning the surge tank pressure cap when the engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly.
Page 259: Coolant Surge Tank Pressure Cap
Be sure the cap is properly and tightly secured. If you replace your coolant surge tank pressure cap, a Saturn cap is required. Engine Overheating You will ﬁnd a coolant temperature gage and a low coolant level warning message on your vehicle’s...
Page 260: If Steam Is Coming From Your Engine
If Steam Is Coming From Your Engine 5-30 CAUTION: Steam from an overheated engine can burn you badly, even if you just open the hood. Stay away from the engine if you see or hear steam coming from it. Just turn it off and get everyone away from the vehicle until it cools down.
Page 261: If No Steam Is Coming From Your Engine
If No Steam Is Coming From Your Engine An overheat warning can indicate a serious problem. See Low Coolant Level Warning Message on page 3-43. If you get an engine overheat warning with no warning messages, but see or hear no steam, the problem may not be too serious.
Page 262: Cooling System
Cooling System When you decide it’s safe to lift the hood, here’s what you’ll see: A. Electric Engine Fan B. Coolant Surge Tank with Pressure Cap 5-32 CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you.
Page 263 The coolant level should be at the cold ﬁll line. If it isn’t, you may have a leak at the radiator hoses, heater hoses, radiator, water pump or somewhere else in the cooling system. CAUTION: Heater and radiator hoses, and other engine parts, can be very hot.
Page 264: How To Add Coolant To The Coolant Surge Tank
How to Add Coolant to the Coolant Surge Tank If you haven’t found a problem yet, check to see if coolant is visible in the surge tank. If coolant is visible but the coolant level isn’t at the cold ﬁll line, add a 50/50 mixture of clean, drinkable water and DEX-COOL coolant at the coolant surge tank, but be sure the cooling system, including the coolant surge tank...
Page 265 CAUTION: (Continued) Your vehicle’s coolant warning system is set for the proper coolant mixture. With plain water or the wrong mixture, your engine could get too hot but you would not get the overheat warning. Your engine could catch ﬁre and you or others could be burned.
Page 266 3. Fill the coolant surge tank with the proper ® DEX-COOL coolant mixture, to the cold ﬁll line. 5-36 4. With the coolant surge tank pressure cap off, start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fan.
Page 267: Windshield Washer Fluid
Windshield Washer Fluid What to Use When you need windshield washer ﬂuid, be sure to read the instructions before use. If you will be operating your vehicle in an area where the temperature may fall below freezing, use a ﬂuid that has sufficient protection against freezing.
Page 268: Brakes
Brakes Brake Fluid Your brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 5-12 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down. The ﬁrst is that the brake ﬂuid goes down to an acceptable level during normal brake lining wear.
Page 269: Checking Brake Fluid
Checking Brake Fluid You can check the brake ﬂuid level without removing the reservoir cap by just looking at the brake ﬂuid reservoir. The ﬂuid level should be at or below the MAX ﬁll mark. After work has been done on the brake hydraulic system, make sure the level does not exceed the MAX ﬁll mark on the reservoir.
Page 270: Brake Adjustment
When tires are rotated, inspect brake pads for wear and evenly tighten wheel nuts in the proper sequence to Saturn speciﬁcations. The rear drum brakes do not have wear indicators, but if you ever hear a rear brake rubbing noise, have the rear brake linings inspected immediately.
Page 271: Battery
— be sure you get new approved Saturn replacement parts. If you do not, your brakes may no longer work properly. For example, if someone puts in brake linings that are wrong for your vehicle, the balance between your front and rear brakes can change —...
Page 272: Jump Starting
Jump Starting If your battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to follow the steps below to do it safely. CAUTION: Batteries can hurt you. They can be dangerous because: •...
Page 273 4. Open the hoods and locate the batteries. Find the positive (+) and negative ( ) terminal locations on each vehicle. You will not need to access your battery for jump starting. Your vehicle has a remote positive (+) jump starting terminal for that purpose.
Page 274 CAUTION: Fans or other moving engine parts can injure you badly. Keep your hands away from moving parts once the engine is running. 5. Check that the jumper cables don’t have loose or missing insulation. If they do, you could get a shock.
Page 275 7. Don’t let the other end touch metal. Connect it to the positive (+) terminal of the good battery. Use a remote positive (+) terminal if the vehicle has one. 9. Connect the other end of the negative ( ) cable at 8.
Page 276 10. Now start the vehicle with the good battery and run the engine for a while. 11. Press UNLOCK on the RKE transmitter to disarm your security system (if equipped). 12. Try to start the vehicle that had the dead battery. If it won’t start after a few tries, it probably needs service.
Page 277: Headlamp Aiming
To disconnect the jumper cables from both vehicles, do the following: 1. Disconnect the black negative ( ) cable from the vehicle that had the dead battery. 2. Disconnect the black negative ( ) cable from the vehicle with the good battery. 3.
Page 278: Bulb Replacement
Bulb Replacement For the type of bulb to use, see Replacement Bulbs on page 5-56. For any bulb changing procedure not listed in this section, contact your retailer. Halogen Bulbs CAUTION: Halogen bulbs have pressurized gas inside and can burst if you drop or scratch the bulb. You or others could be injured.
Page 279 4. To access the headlamp bulb, turn the dust cap 5. Raise the lock tab and pull the connector from the counter-clockwise to remove it. base of the bulb to remove the electrical connector from the headlamp bulb. 5-49...
Page 280: Headlamps (Coupe)
6. To remove the bulb retaining nut, turn it counter-clockwise. 7. Remove the bulb and replace it with the appropriate bulb. 5-50 Headlamps (Coupe) 1. Turn the ignition and headlamp switch off. 2. After allowing the bulb to cool, open the hood. See Hood Release on page 5-10.
Page 281: Front Turn Signal Lamps (Sedan)
4. Remove the retaining nut. 5. Remove the bulb and replace it with the appropriate bulb. Front Turn Signal Lamps (Sedan) 1. Turn the ignition and headlamp switch off. 2. After allowing the bulb to cool, open the hood. See Hood Release on page 5-10. 3.
Page 282 4. To access the park/turn bulb, turn the dust cap counter-clockwise to remove it. 5-52 5. Remove the park/turn bulb socket and bulb by rotating it counter-clockwise. 6. Gently remove the bulb and replace it with the appropriate bulb.
Page 283: Front Turn Signal And Parking Lamps (Coupe)
Front Turn Signal and Parking Lamps (Coupe) 1. Open the hood. See Hood Release on page 5-10. 2. Reach behind the headlamp from inside the hood. 3. Rotate the bulb socket counter-clockwise to remove it from the housing. 4. Gently pull the bulb from the socket and replace it with the appropriate bulb.
Page 284: Sidemarker Lamps (Coupe)
Sidemarker Lamps (Coupe) 1. Turn the ignition and headlamp switch off. 2. Open the hood. See Hood Release on page 5-10. 3. Pull up on the headlamp retaining pins to remove them, gently pull the headlamp assembly away from the vehicle and remove the electrical connector.
Page 285: Center High-Mounted Stoplamp (Chmsl)
Center High-Mounted Stoplamp (CHMSL) 1. Remove the CHMSL cover by pulling down on the cover edges. 2. Twist the sockets out of the stop lamp and remove the bulbs. 3. Replace with the appropriate bulbs. Taillamps, Stoplamps and Back-up Lamps 1.
Page 286: Replacement Bulbs
For any bulb not listed here contact your retailer. Lamp Type Headlamps 9007 (All Models) Front Sidemarker Lamps (Coupe) Front Turn Signal/Parking 5702 Lamps Stop/Taillamps 3057 (Top) Back-Up Lamps 921L CHMSL PC-175 Fog Lamps 881L (All Models) Saturn Part Number 16524431 9425542 10319394 12450064 22692679 9442441 12450176...
Page 287: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected at least twice a year for wear or cracking. See “Windshield Wipers, Blade Check” under Scheduled Maintenance on page 6-4 for more information. Replacement blades come in different types and are removed in different ways.
Page 288: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your GM Warranty booklet for details. For additional information refer to the tire manufacturer’s booklet included with your vehicle’s Owner’s Manual.
Page 289 Low-Proﬁle Performance Tire (Red Line) If your vehicle has 215/45ZR17 size tires, they are classiﬁed as “low-proﬁle performance” tires. These tires are designed for very responsive driving on wet or dry pavement. You may also notice more road noise with low-proﬁle performance tires and that they tend to wear faster.
Page 290: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into its sidewall. Passenger Car Tire Example (A) Tire Size: The tire size code is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type and service description.
Page 291 Compact Spare Tire Example (A) Temporary Use Only: The compact spare tire or temporary use tire has a tread life of approximately 3,000 miles (5 000 km) and should not be driven at speeds over 65 mph (105 km/h). The compact spare tire is for emergency use when a regular road tire has lost air and gone ﬂat.
Page 292: Tire Size
Tire Size The following illustration shows an example of a typical passenger car tire size. (A) P-Metric Tire: The United States version of a metric tire sizing system. The letter “P” as the ﬁrst character in the tire size means a passenger vehicle tire engineered to standards set by the U.
Page 293: Tire Terminology And Deﬁnitions
Tire Terminology and Deﬁnitions Air Pressure: The amount of air inside the tire pressing outward on each square inch of the tire. Air pressure is expressed in pounds per square inch (psi) or kilopascal (kPa). Accessory Weight: This means the combined weight of optional accessories.
Page 294 GAWR RR: Gross Axle Weight Rating for the rear axle, see Loading Your Vehicle on page 4-33. Intended Outboard Sidewall: The side of an asymmetrical tire that must always face outward when mounted on a vehicle. Kilopascal (kPa): The metric unit for air pressure. There are 6.9 kPa’s to one psi.
Page 295 Rim: A metal support for a tire and upon which the tire beads are seated. Sidewall: The portion of a tire between the tread and the bead. Speed Rating: An alphanumeric code assigned to a tire indicating the maximum speed at which a tire can operate.
Page 296: Inﬂation - Tire Pressure
Inﬂation - Tire Pressure Tires need the correct amount of air pressure to operate effectively. Notice: Do not let anyone tell you that under-inﬂation or over-inﬂation is all right. It is not. If your tires do not have enough air (under-inﬂation), you can get the following: •...
Page 297: How To Check
How to Check Use a good quality pocket-type gage to check tire pressure. You can’t tell if your tires are properly inﬂated simply by looking at them. Radial tires may look properly inﬂated even when they’re underinﬂated. Check the tire’s inﬂation pressure when the tires are cold. Cold means your vehicle has been sitting for at least three hours or driven no more than 1 mile (1.6 km).
Page 298: Tire Inspection And Rotation
Tire Inspection and Rotation Tires should be rotated every 5,000 to 8,000 miles (8 000 to 13 000 km). Any time you notice unusual wear, rotate your tires as soon as possible and check wheel alignment. Also check for damaged tires or wheels. See When It Is Time for New Tires on page 5-69 and Wheel Replacement on page 5-72 for more information.
Page 299: When It Is Time For New Tires
After the tires have been rotated, adjust the front and rear inﬂation pressures as shown on the Tire and Loading Information label. Make certain that all wheel nuts are properly tightened. See “Wheel Nut Torque” under Capacities and Speciﬁcations on page 5-102. CAUTION: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts...
Page 300: Buying New Tires
Buying New Tires To ﬁnd out what kind and size of tires your vehicle needs, look at the tire and loading information label. For more information about this label and its location on your vehicle, see Loading Your Vehicle on page 4-33. The tires installed on your vehicle when it was new had a Tire Performance Criteria Speciﬁcation (TPC Spec) number on each tire’s sidewall.
Page 301: Uniform Tire Quality Grading
Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the United States National Highway Traffic Safety Administration, which grades tires by treadwear, traction and temperature performance.
Page 302: Wheel Alignment And Tire Balance
Temperature – A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a speciﬁed indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 303: Used Replacement Wheels
If you need to replace any of your wheels, wheel bolts or wheel nuts, replace them only with new Saturn original equipment parts. This way, you will be sure to have the right wheel, wheel bolts and wheel nuts for your vehicle.
Page 304: Tire Chains
Tire Chains CAUTION: If your vehicle has P195/60R15, P205/55R16 or 215/45ZR17 size tires, don’t use tire chains, there’s not enough clearance. Tire chains used on a vehicle without the proper amount of clearance can cause damage to the brakes, suspension or other vehicle parts.
Page 305: If A Tire Goes Flat
If a Tire Goes Flat It’s unusual for a tire to “blowout” while you’re driving, especially if you maintain your tires properly. If air goes out of a tire, it’s much more likely to leak out slowly. But if you should ever have a “blowout,” here are a few tips about what to expect and what to do: If a front tire fails, the ﬂat tire will create a drag that pulls the vehicle toward that side.
Page 306: Changing A Flat Tire
Changing a Flat Tire If a tire goes ﬂat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your hazard warning ﬂashers. CAUTION: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people.
Page 307: Removing The Spare Tire And Tools
Removing the Spare Tire and Tools The equipment you’ll need is located in the trunk. 2.0L Supercharged Engine 1. Lift the trunk liner and place the plastic hook in the lip of the trunk lid. 2.2 L4 Engine 5-77...
Page 308 2.2 L4 Engine 2.0L Supercharged Engine 5-78...
Page 309 2. Remove the nut that holds down the spare tire. See Compact Spare Tire on page 5-86 3. Remove the spare tire by placing your hands at the four and eight o’clock positions. Gently pull it up and out of the trunk. For vehicles equipped with the 2.0L supercharged engine, complete Step 4 ﬁrst, then Step 3.
Page 310: Removing The Flat Tire And Installing The Spare Tire
Press the button and then pull on the end of the wheel wrench to extend the handle. 5-80 Removing the Flat Tire and Installing the Spare Tire 1. If your vehicle is equipped with plastic wheel covers, use the wheel wrench to loosening the plastic wheel nut caps.
Page 311 3. Position the jack lift head at the jack location nearest the ﬂat tire. The front location is about 7 inches (17.8 cm) rearward from the front wheel opening. The rear location is about 2 inches (5.1 cm) forward of the rear wheel opening. Make sure the jack head is touching the metal jacking ﬂange under the body.
Page 312 6. Remove all of the wheel nuts. 7. Remove any rust or dirt from the wheel bolts, mounting surfaces and spare wheel. CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after a time.
Page 313 11. Tighten the wheel nuts ﬁrmly in a crisscross sequence, as shown. CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts.
Page 314: Storing The Flat Or Spare Tire And Tools
Storing the Flat or Spare Tire and Tools CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place. 5-84 2.2 L4 Engine...
Page 315 2.0L Supercharged Engine 1. Remove the stow bolt extension rod and sleeve from the jack. 2. Reattach the wheel wrench to the jack. 3. Screw the stow bolt extension rod and the sleeve into the existing spare tire hold-down bolt. 4.
Page 316: Compact Spare Tire
Compact Spare Tire Although the compact spare tire was fully inﬂated when your vehicle was new, it can lose air after a time. Check the inﬂation pressure regularly. It should be 60 psi (420 kPa). After installing the compact spare tire on your vehicle, you should stop as soon as possible and make sure your compact spare tire is correctly inﬂated.
Page 317: Appearance Care
Appearance Care Remember, cleaning products can be hazardous. Some are toxic. Others can burst into ﬂames if you strike a match or get them on a hot part of the vehicle. Some are dangerous if you breathe their fumes in a closed space.
Page 318: Special Fabric Cleaning Problems
Here are some cleaning tips: • Always read the instructions on the cleaner label. • Clean up stains as soon as you can — before they set. • Carefully scrape off any excess stain. • Use a clean cloth or sponge, and change to a clean area often.
Page 319: Cleaning Vinyl
Cleaning Vinyl Use warm water and a clean cloth. • Rub with a clean, damp cloth to remove dirt. You may have to do this more than once. • Things like tar, asphalt and shoe polish will stain if you do not get them off quickly. Use a clean cloth and vinyl cleaner.
Page 320: Weatherstrips
Weatherstrips Silicone grease on weatherstrips will make them last longer, seal better, and not stick or squeak. Apply silicone grease with a clean cloth. During very cold, damp weather frequent applications may be required. See Recommended Fluids and Lubricants on page 6-14. Cleaning the Outside of Your Vehicle The paint ﬁnish on your vehicle provides beauty, depth...
Page 321: Cleaning Aluminum Wheels
Foreign materials such as calcium chloride and other salts, ice melting agents, road oil and tar, tree sap, bird droppings, chemicals from industrial chimneys, etc., can damage your vehicle’s ﬁnish if they remain on painted surfaces. Wash the vehicle as soon as possible.
Page 322: Sheet Metal Damage
Cleaning Tires To clean your tires, use a stiff brush with tire cleaner. Notice: Using petroleum-based tire dressing products on your vehicle may damage the paint ﬁnish and/or tires. When applying a tire dressing, always wipe off any overspray from all painted surfaces on your vehicle.
Page 323: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials See your Saturn retailer for more information on purchasing the following products. Vehicle Care/Appearance Materials Description Polishing Cloth Interior and exterior Wax-Treated polishing cloth. Tar and Road Removes tar, road oil Oil Remover and asphalt. Chrome Cleaner...
Page 324: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle.
Page 325: Electrical System
Electrical System Add-On Electrical Equipment Notice: Don’t add anything electrical to your vehicle unless you check with your dealer ﬁrst. Some electrical equipment can damage your vehicle and the damage wouldn’t be covered by your warranty. Some add-on electrical equipment can keep other components from working as they should.
Page 326: Instrument Panel Fuse Block
Instrument Panel Fuse Block Some fuses are in a fuse block on the driver’s side of the vehicle, near the driver’s right leg. Loosen the screw on the cover and remove the cover. 5-96 Fuses Usage Air bags, Sensing and Diagnostic AIR BAG Module (SDM) ACCOMMO-...
Page 327 Fuses Usage FUEL PUMP Fuel Pump Relay HVAC Climate Control CLUSTER Instrument Panel Cluster LIGHTER Cigar Lighter RADIO Radio Receiver, Entertainment (BATT1) Memory RADIO (ACC) Radio Receiver, Entertainment SUNROOF Power Sunroof, OnStar Mirror Windshield Wipers and Washers, WIPER SW Transaxle Shift Lock Control Switch DASH Instrument Panel, Dimming Switch IGN SW...
Page 328: Engine Compartment Fuse Block
Engine Compartment Fuse Block (2.2L L4 Engine) Some fuses are in a fuse block in the engine compartment on the driver’s side of the vehicle. See Engine Compartment Overview on page 5-12 for more information on location. 5-98 Fuses Engine Control Module, 1 ECM/TCM Transmission Control Module 4 HDLP-RH...
Page 329 Fuses 18 HDLP-LH Driver’s Side Headlamp 19 WIPER Wiper Mini Relay 20 HORN Horn Micro Relay Entertainment, Premium Radio 21 PREM AUDIO Ampliﬁer Anti-Lock Brake System, 22 ABS Traction Control Module 23 RR DEFOG Rear Defog Mini Relay 38 RUN/CRANK Ignition 1 Mini Relay 39 IP BATT1 Body Control Module...
Page 330 Engine Compartment Fuse Block (2.0L Supercharged Engine) Some fuses are in a fuse block in the engine compartment on the driver’s side of the vehicle. See Engine Compartment Overview on page 5-12 for more information on location. 5-100 Fuses 1 ECM Engine Control Module 4 RH HDLP Passenger’s Side Headlamp...
Page 331 Fuses 22 ABS Anti-Lock Brake System 23 RR DEFOG Rear Defog Mini Relay 38 RUN/CRANK Ignition 1 Mini Relay 39 IP BATT1 Body Control Module 40 ABS Anti-Lock Brake System 41 IP BATT2 Body Control Module 43 EPS Electric Power Steering 44 COOLING Cooling Fan Mini Relay FAN 2...
Page 332: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. See Recommended Fluids and Lubricants on page 6-14 for more information. Application Air Conditioning Refrigerant R134a Use Refrigerant Oil, R134a Systems Cooling System Engine Oil with Filter 2.2L L4 2.0L Supercharged Fuel Tank...
Page 333: Engine Speciﬁcations
Engine Speciﬁcations Engine 2.2L L4 (L61) 2.0L Supercharged VIN Code Transaxle Five-speed manual Five-speed automatic VTi variable Five-speed manual Spark Plug Gap 0.045 inches (1.0 mm) 0.059 inches (1.5 mm) 5-103...
Page 334 NOTES 5-104...
Page 335 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 Using Your Maintenance Schedule ...6-2 Scheduled Maintenance ...6-4 Additional Required Services ...6-6 Maintenance Footnotes ...6-8 Maintenance Schedule Owner Checks and Services ...6-9 At Each Fuel Fill ...6-10 At Least Once a Month ...6-10 At Least Once a Year ...6-11 Recommended Fluids and Lubricants ...6-14...
Page 336: Maintenance Schedule
Using Your Maintenance Schedule We at Saturn want to help you keep your vehicle in good working condition. But we do not know exactly how you will drive it. You may drive very short distances only a few times a week.
Page 337 Saturn retailer do these jobs. When you go to your Saturn retailer for your service needs, you will know that Saturn-trained and supported service technicians will perform the work using genuine Saturn parts.
Page 338: Scheduled Maintenance
However, your engine oil and ﬁlter must be changed at least once a year and at this time the system must be reset. Your Saturn retailer has Saturn-trained service technicians who will perform this work using genuine Saturn parts and reset the system.
Page 339 Scheduled Maintenance Service Maintenance I Maintenance II Change engine oil and ﬁlter. Reset oil life system. See Engine Oil on page 5-15. An Emission Control Service. Visually check for any leaks or damage. See footnote (j). Inspect engine air cleaner ﬁlter. If necessary, replace ﬁlter. See Engine Air Cleaner/Filter on page 5-22.
Page 340: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 341 Additional Required Services (cont’d) 25,000 50,000 75,000 100,000 125,000 150,000 Service and Miles (Kilometers) (41 500) (83 000) (125 000) (166 000) (207 500) (240 000) Replace spark plugs. An Emission Control Service. Replace engine fuel ﬁlter. An Emission Control Service. See footnote †. Engine cooling system service (or every 5 years, whichever occurs ﬁrst).
Page 342: Maintenance Footnotes
Inspect all pipes, ﬁttings and clamps; replace with genuine Saturn parts as needed. To help ensure proper operation, a pressure test of the cooling system and pressure cap and cleaning the outside of the radiator and air conditioning condenser is recommended at least once a year.
Page 343: Owner Checks And Services
These owner checks and services should be performed at the intervals speciﬁed to help ensure the safety, dependability and emission control performance of your vehicle. Your Saturn retailer can assist you with these checks and services. Be sure any necessary repairs are completed at once.
Page 344: At Each Fuel Fill
At Each Fuel Fill It is important to perform these underhood checks at each fuel ﬁll. Engine Oil Level Check Check the engine oil level and add the proper oil if necessary. See Engine Oil on page 5-15 for further details.
Page 345: At Least Once A Year
3. On automatic transaxle vehicles, try to start the engine in each gear. The starter should work only in PARK (P) or NEUTRAL (N). If the starter works in any other position, contact your Saturn retailer for service. On manual transaxle vehicles, put the shift lever in Neutral (N), push the clutch pedal down halfway and try to start the engine.
Page 346 With an automatic transaxle, the key should turn to OFF only when the shift lever is in PARK (P). The key should come out only in OFF. • With a manual transaxle, the key should come out only in OFF. Contact your Saturn retailer if service is required.
Page 347 With the engine running, shift to PARK (P). Then release the parking brake followed by the regular brake. Contact your Saturn retailer if service is required. Underbody Flushing Service At least every spring, use plain water to ﬂush any corrosive materials from the underbody.
Page 348: Recommended Fluids And Lubricants
Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number or speciﬁcation may be obtained from your dealer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Engine Oil Certiﬁed for Gasoline Engines (2.2L engine) starburst symbol.
Page 349 (GM Part No. U.S. 12346241, Cylinders in Canada 10953474). Hood Latch Lubriplate Lubricant Aerosol Assembly, (Saturn Part No. 21038869 or Secondary GM Part No. U.S. 12346293, Latch, Pivots, in Canada 992723) or lubricant Spring Anchor meeting requirements of NLGI #2, and Release Category LB or GC-LB.
Page 350: Normal Maintenance Replacement Parts
Spark Plugs 2.2L L4 Engine 2.0L Supercharged Windshield Wiper Blade Driver’s Side Length – 21.5 inches (54.6 cm) Passenger’s Side Length – 20.0 inches (50.8 cm) 6-16 Saturn Part Number AC Delco Part Number 22679620 — 22685727 12579143 52493319 25337472...
Page 351: Engine Drive Belt Routing
Engine Drive Belt Routing 2.0L Supercharged (LSJ) Engine 2.2L Four Cylinder (L61) Engine 6-17...
Page 352: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service and the type of services performed in the boxes provided. See Maintenance Requirements on page 6-2 in this section. Any additional information from Owner Checks and Services on page 6-9 can be added on the following record pages. Also, you should retain all maintenance receipts.
Page 353 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-19...
Page 354 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-20...
Page 355 Vehicle Data Collection and Event Data Recorders ...7-7 Customer Assistance and Information Reporting Safety Defects ...7-9 Reporting Safety Defects to the United States Government ...7-9 Reporting Safety Defects to the Canadian Government ...7-9 Reporting Safety Defects to Saturn ...7-9 Service Publications Ordering Information ...7-10...
Page 356: Customer Assistance And Information
• Vehicle delivery date and present mileage. • Your daytime and evening phone numbers. If you wish to write to the Saturn Customer Assistance Center, our address is: Saturn Customer Assistance Center 100 Saturn Parkway Mail Code 371-999-S24 Spring Hill, TN 37174-1500...
Page 357 Saturn vehicle. However, if you continue to remain unsatisﬁed after following the procedure outlined in Steps One and Two, Saturn and its retailers offer the additional assistance of a neutral party through our voluntary participation in a mediation/arbitration program called BBB Auto Line.
Page 358: Online Owner Center
(United States) or My GM Canada within www.gmcanada.com (Canada). Customer Assistance for Text Telephone (TTY) Users To assist owners who have hearing difficulties, Saturn has installed special TDD (Telecommunication Devices for the Deaf) equipment in its Saturn Customer Assistance Center.
Page 359: Gm Mobility Program For Persons With Disabilities
For vehicles purchased in the U.S. call 1-800-553-6000 (TTY: 1-800-833-6000). For vehicles purchased in Canada call 1-800-268-6800. As the proud owner of a new Saturn vehicle, you are automatically enrolled in the Saturn Roadside Assistance Program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road.
Page 360 Delivery of the replacement key will be covered within 10 miles. • Emergency Tow: Tow to the nearest Saturn retailer for warranty service or in the event of a vehicle-disabling accident. Assistance when the vehicle is mired in sand, mud or snow.
Page 361: Vehicle Data Collection And Event Data Recorders
Saturn Roadside Assistance: 1-800-553-6000; text telephone (TTY) users, call 1-800-833-6000. Saturn reserves the right to limit services or reimbursement to an owner or driver when, in Saturn’s judgment, the claims become excessive in frequency or type of occurrence. Roadside Assistance is not part of or included in the coverage provided by the New Vehicle Limited Warranty.
Page 362 This information has been used to improve vehicle crash performance and may be used to improve crash performance of future vehicles and driving safety. Unlike the data recorders on many airplanes, these on-board systems do not record sounds, such as conversation of vehicle occupants.
Page 363: Reporting Safety Defects
Reporting Safety Defects to Saturn In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you’ll notify us. U.S. customers can call the Saturn Customer Assistance Center at 1-800-553-6000, or write: Saturn Corporation 100 Saturn Parkway...
Page 364: Service Manuals
Service Publications Ordering Information Service Manuals A variety of publications are available to you. Saturn service manuals are written for trained technicians, and in some cases, specialized tools and equipment are necessary to complete certain repairs. However, the manuals are available to owners who either have the training, or wish to gain a greater understanding of the technical aspect of their Saturn.
Page 365 Accessory Power Outlets ... 3-18 Activating the Theft-Deterrent Feature ... 3-68 Adding Windshield Washer Fluid ... 5-37 Additives, Fuel ... 5-6 Add-On Electrical Equipment ... 5-95 Adjusting the Speakers (Balance/Fade) ... 3-49, 3-52, 3-58 Air Bag Readiness Light ... 3-30 Air Bag Systems ...
Page 366 Automatic Headlamp System ... 3-16 Automatic Transaxle ... 2-20 Fluid ... 5-24 Operation ... 2-23 Backing Up ... 4-43 Battery ... 5-41 Battery Replacement ... 2-8 Battery Run-Down Protection ... 3-18 Battery Warning Light ... 3-31 Before Leaving on a Long Trip ... 4-22 Brake Parking ...
Page 367 Change Engine Oil Message ... 3-43 Changing a Tire When Trailer Towing ... 4-46 Changing the Language (Canada Only) ... 3-41 Check Engine Light ... 3-36 Check Gage Message ... 3-44 Checking Brake Fluid ... 5-39 Checking Coolant ... 5-28 Checking Engine Oil ...
Page 368 Telephone (TTY) Users ... 7-4 Customer Satisfaction Procedure ... 7-2 GM Mobility Program for Persons with Disabilities ... 7-5 Reporting Safety Defects to Saturn ... 7-9 Reporting Safety Defects to the Canadian Government ... 7-9 Reporting Safety Defects to the United States Government ...
Page 369 Driving (cont.) Drunken ... 4-2 Freeway ... 4-21 Hill and Mountain Roads ... 4-24 In Rain and on Wet Roads ... 4-17 Winter ... 4-26 Driving on Grades ... 4-44 Driving on Snow or Ice ... 4-27 Driving Through Deep Standing Water ... 4-19 Driving Through Flowing Water ...
Page 370 Filter Engine Air Cleaner ... 5-22 Finding a Category (CAT) Station ... 3-58 Finding a Station ... 3-48, 3-50, 3-56 Finish Care ... 5-90 Finish Damage ... 5-92 Five-Speed ... 2-28 Five-Speed Automatic and VTi Variable ... 2-23 Fixed Mast Antenna ... 3-71 Flash-to-Pass ...
Page 371 Hazard Warning Flashers ... 3-6 Head Restraints ... 1-5 Headlamp Aiming ... 5-47 Headlamp High/Low-Beam Changer ... 3-9 Headlamps ... 3-10, 3-15, 5-48, 5-50 Bulb Replacement ... 5-48 Front Turn Signal and Parking Lamps ... 5-53 Front Turn Signal Lamps ... 5-51 Halogen Bulbs ...
Page 372 Jump Starting ... 5-42 Keyless Entry System ... 2-4 Keys ... 2-3 Lamps Exterior ... 3-15 Fog Lamps ... 5-53 Interior ... 3-17 Lap-Shoulder Belt ... 1-14, 1-23 LATCH System Child Restraints ... 1-42 Securing a Child Restraint Designed for the LATCH System ...
Page 373 Maintenance Schedule Additional Required Services ... 6-6 At Each Fuel Fill ... 6-10 At Least Once a Month ... 6-10 At Least Once a Year ... 6-11 Introduction ... 6-2 Maintenance Footnotes ... 6-8 Maintenance Record ... 6-18 Maintenance Requirements ... 6-2 Normal Maintenance Replacement Parts ...
Page 374 New Vehicle Break-In ... 2-18 Normal Maintenance Replacement Parts ... 6-16 Odometer ... 3-29 Off-Road Recovery ... 4-12 Engine ... 5-15 Pressure Light ... 3-39 Older Children, Restraints ... 1-29 Online Owner Center ... 7-4 ® OnStar Personal Calling ... 2-44 ®...
Page 375 Power (cont.) Steering Message ... 3-44 Windows ... 2-15 Pretensioners, Safety Belt ... 1-28 Programmable Automatic Door Locks ... 2-10 Questions and Answers About Safety Belts ... 1-13 Racing or Other Competitive Driving ... 2-21 Radio Data System (RDS) ... 3-54 Radio Personalization ...
Page 376 Reporting Safety Defects Canadian Government ... 7-9 Saturn ... 7-9 United States Government ... 7-9 Restraint System Check Checking Your Restraint Systems ... 1-59 Replacing Restraint System Parts After a Crash ... 1-59 Restraint Systems Checking ... 1-59 Replacing Parts ... 1-59 Retained Accessory Power (RAP) ...
Page 377 Service ... 5-3 Adding Equipment to the Outside of Your Vehicle ... 5-4 Doing Your Own Work ... 5-4 Engine Soon Light ... 3-36 Publications Ordering Information ... 7-10 Vehicle Message ... 3-45 Service Bulletins ... 7-10 Service Engine Soon Light ... 3-36 Service Manuals ...
Page 378 Theft-Deterrent System ... 2-6 Theft-Deterrent Systems ... 2-17 ® Passlock ... 2-17 Tilt Wheel ... 3-7 Tire Inﬂation Check ... 6-10 Tire Sidewall Labeling ... 5-60 Tire Size ... 5-62 Tire Terminology and Deﬁnitions ... 5-63 Tires ... 5-58 Buying New Tires ... 5-70 Chains ...
Page 379 Understanding Radio Reception ... 3-70 Uniform Tire Quality Grading ... 5-71 Unlocking the Theft-Deterrent Feature After a Power Loss ... 3-69 Up-Shift Light ... 3-32 Used Replacement Wheels ... 5-73 Using an MP3 CD ... 3-65 Using Cleaner on Fabric ... 5-88 Vehicle Control ...
Page 380 Windows ... 2-14 Manual ... 2-15 Power ... 2-15 Windshield Washer ... 3-12 Fluid ... 5-37 Windshield Wiper Blade Replacement ... 5-57 Fuses ... 5-95 Windshield Wiper Lever ... 3-11 Winter Driving ... 4-26 XM™ Satellite Radio Antenna System ... 3-71 XM™...

Saturn 2004 Ion Owner's Manual

Table of Contents

Seats and Restraint Systems

Features and Controls

Section 3 Instrument Panel

Instrument Panel

Instrument Panel Overview

Warning Lights, Gages, and Indicators

Maintenance Schedule

Message Center

Audio System(S)

Section 4 Driving Your Vehicle

Your Driving, the Road, and Your Vehicle

Towing

Section 5 Service and Appearance Care

Service

Fuel

Service and Appearance Care

Headlamp Aiming

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

Appearance Care

Vehicle Identiﬁcation

Electrical System

Capacities and Speciﬁcations

Quick Links

Chapters

Related Manuals for Saturn 2004 Ion

Summary of Contents for Saturn 2004 Ion
