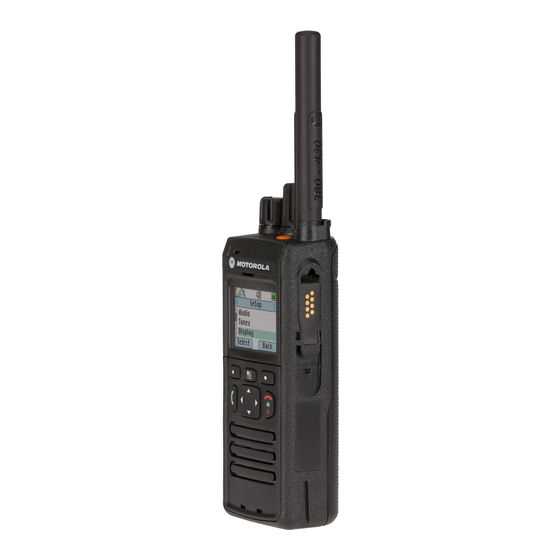

MTP3500
QUICK START GUIDE
1 Accessory Socket
LED Status Indicator
2 Talkgroup Knob
3 Volume Knob
4 LED Status Indicator
1
5 Programmable Side Button
Blinking green
6 Push-To-Talk Button (PTT)
2
7 Soft Key
10
8 Send Key
3
11
9 Bottom Microphone
4
Solid orange
12
Antenna with a color O-ring
5 10
13
Blinking orange
11 Emergency Button
14
6
No indication
15 12 Top Microphone
7
7 13 Side Connector
5
Battery Capacity Information
16
14 Display
8
17
15 Menu Key
Information
18
16 On-Off/End/Home Key
17 Four Way Navigation Key
9
18 Speaker
19 Bottom Connector
20 Battery Latch
19
20
Charging
Indicator Status
Status
Solid green In use Fully Charged
In service 90% Charged
Solid red Out of service Rapid Charge
Connecting to a network Faulty or Invalid
Blinking red
Entering DMO Battery
Transmit Inhibit in service
Channel busy in DMO
Battery is waiting
Incoming private or phone call
to charge
Switched off
Description
Full (80% – 100% capacity)
Middle (60% – 80% capacity)
Low (25% – 60% capacity)
Very low (5% – 25% capacity)
Less than 5% capacity
Installing the Battery Unlocking/Locking the Keypad
To unlock/lock the keypad, press the Menu key and then Left Navigation key.
Holding Your Radio
The radio has two microphones:
• A top microphone for simplex group, dispatcher, or private calls
Insert the battery into the compartment. • A bottom microphone for duplex, telephone-like calls
Slide towards the top of the radio until it clicks.
When making duplex calls (low audio), hold your
radio as you would a telephone. Speak into the
Attaching the Antenna
bottom microphone. Listen via the earpiece. Keep
the antenna at least 2.5 centimeters from your head
and body.
When making simplex calls (high audio), hold the
radio in a vertical position with the top microphone
5 to 10 centimetres away from your mouth. Speak
into the top microphone. Listen via the radio internal
speaker. Keep the antenna at least 2.5 centimeters
from your head and body.
Turn the radio off before attaching the antenna.
Align the bottom of the antenna and the screw-in base on the top of the
radio.
Turn clockwise until snug. Do not force.
Looking After Your Radio
Unlocking the Radio
Never leave your radio or battery in extreme temperatures
(over +85 °C), for example, behind a windscreen in direct sunlight.
Your radio may be locked at power up. To unlock the radio after powering
The radio is submersible (compliant with the IP67 standard) - but only with the
on, enter the code at the prompt using Navigation keys.
battery and the antenna attached.
The unlock code is originally set to 0000. Your service provider may change
To clean your radio, use a moistened or antistatic cloth.
this number before you receive your radio.
