IMPORTANT: RECEIVING INSTRUCTIONS
Visually inspect all components for shipping damage. If you find damage,
notify the carrier at once.
Read this owners manual thoroughly before use and save.
Trigger
Functional Buttons
Current Signal
Output Terminal
COM Terminal
Dual insulation
Grounding
Warning prompt
AC (Alternating current)
DC (Direct current)
Continuity Test
Input Selector
Input Terminal
Figure 1
Diode
Low battery
AC or DC (Alternating current or direct current)
Danger! High voltage!
Comply with EU standard

OPERATING INSTRUCTIONS

13 Function True RMS Digital Clamp Meter
DSA2009TRMS
Shipping damage is NOT covered by warranty. The carrier is responsible
for all repair or replacement costs resulting from damage in shipment.

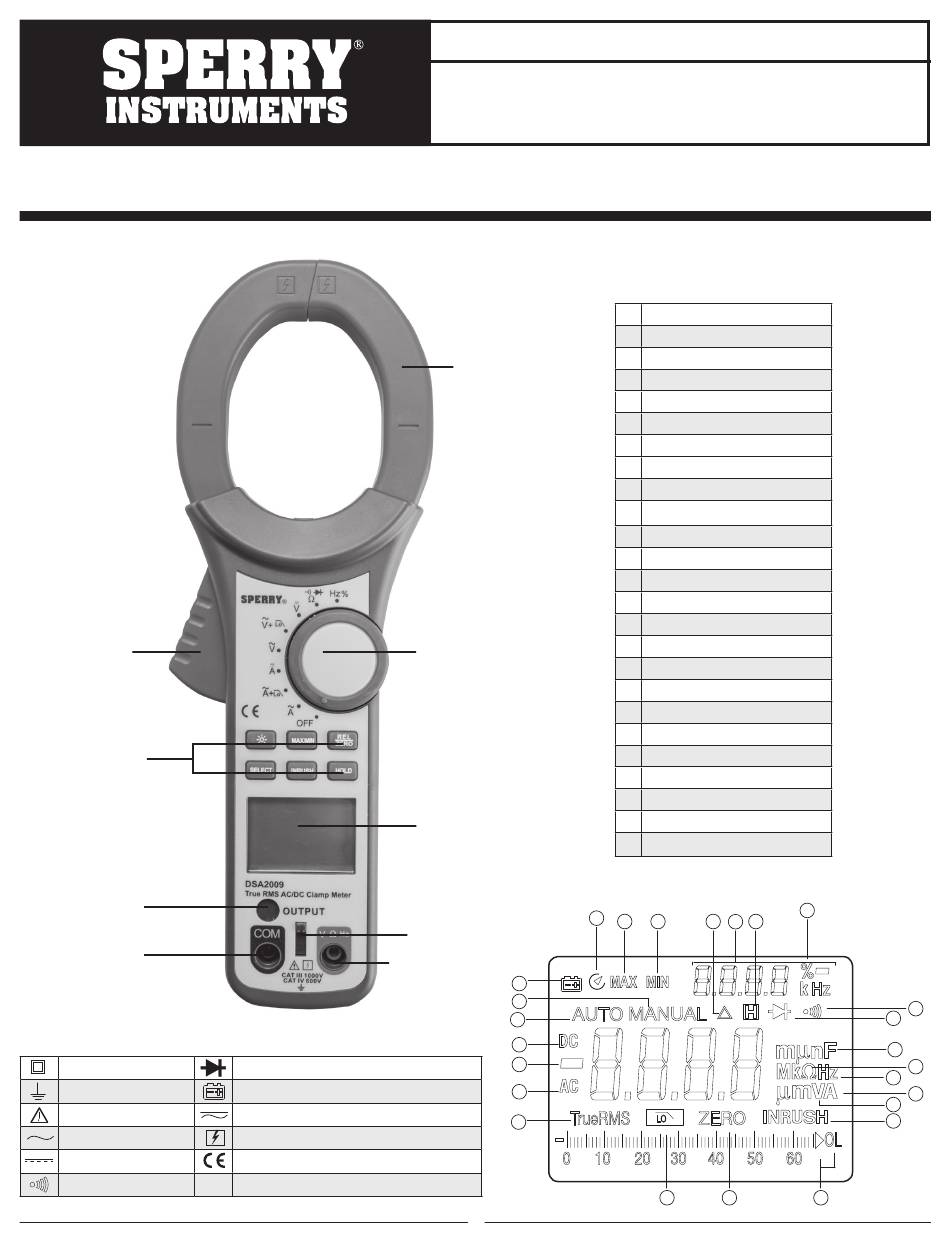

I. DISPLAY SYMBOLS (See Figure 2)
Clam Jaw
Rotary Switch
LCD Display
25
1
2
3
4
5
6
7
1
1
Low Battery
2
Manual Range
3
Auto Range
4
DC
5
Negative Polarity
6
AC
7
True RMS
8
Low Pass Filter
9
DC Current # Clearing
10
Simulation Bar & Graduated Scale
11
Inrush
12
Voltage (Volt, millivolt)
13
Current (Amp)
14
Frequency (Hertz)
15
Resistance (Ω, kΩ, MΩ)
16
Capacitance (nF, uF, mF)
17
Diode
18
Continuity
19
Duty Ratio
20
Data Hold
21
Slave Display
22
Relative Value
23
Minimum Value
24
Maximum Value
Auto Shutdown
25
24
23
22 21
20
8
9
19
18
17
16
15
14
13
12
11
Figure 2
10
