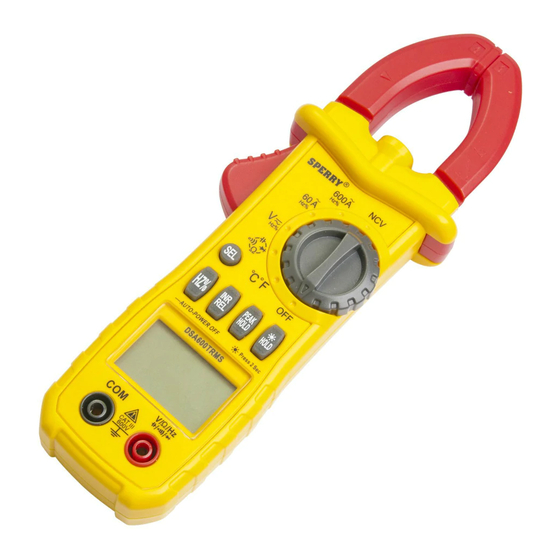

Sperry instruments DSA600TRMS Operating Instructions Manual

Digital clamp meter
Hide thumbs

Advertisement

Table of Contents

IMPORTANT: RECEIVING INSTRUCTIONS
Visually inspect all components for shipping damage. If you find damage,
notify the carrier at once.
Relative Measurement (INR/REL)
Figure 2
Data Hold
-
Negative Value
REL
Relative Measurement
AUTO
Auto Ranging
INRUSH
Inrush Current Measurement
DC
Direct Current
Clamp Jaw
Light
Trigger
Function Selection (SEL)
Frequency / Duty Cycle (Hz/%)
Inrush Current /

LCD Screen

COM Terminal
AC
Alternating Current
Diode Check
Audible Continuity Check
P MAX
Peak maximum value
P MIN
Peak minimum value
P MAX-
Peak to Peak value
MIN

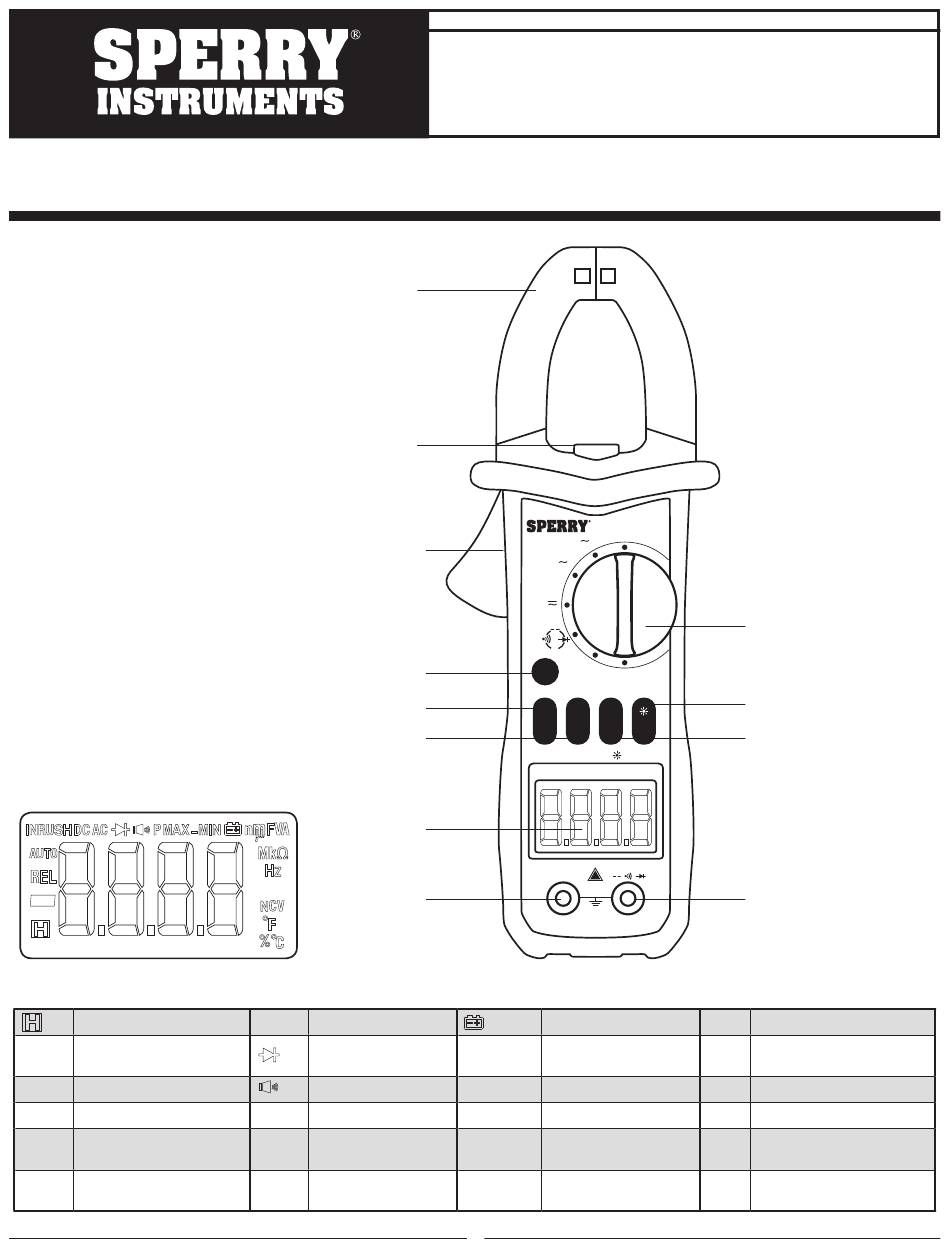

OPERATING INSTRUCTIONS

DIGITAL CLAMP METER
Model DSA600TRMS
Shipping damage is NOT covered by warranty. The carrier is responsible
for all repair or replacement costs resulting from damage in shipment.
NCV
600A
60A
V
Hz%
} }
Ω
°C°F
SEL
OFF
INR
PEAK
HZ%
HOLD
REL
HOLD
- AUTO-POWER OFF
Press 2 Sec
DSA600TRMS
V/Ω/Hz
COM
V/Ω/Hz
!
} }
CAT III
600V
Figure 1
Low Battery
Nanofarad, Microfarad,
nF, µF, mF
Millifarad (Capacitance)
mV, V
Millivolt, Volt
A
Ampere (Current)
Ohm, Kiloohm, Megaohm
Ω, kΩ, MΩ
(Resistance)
Hertz, Kilohertz,
Hz, kHz, MHz
Megahertz (Frequency)
1
Dial
HOLD / Backlight /
Clamp Light
Peak Button (PEAK HOLD)
Input Terminal
NCV
Non-contact Voltage Detection
°F
Degrees Fahrenheit
°C
Degrees Celsius
%
Duty Cycle
OL
Overload
EF
Electric Field Detection

Advertisement

Table of Contents
loading

Related Manuals for Sperry instruments DSA600TRMS

Summary of Contents for Sperry instruments DSA600TRMS

  • Page 1: Operating Instructions

    OPERATING INSTRUCTIONS DIGITAL CLAMP METER Model DSA600TRMS IMPORTANT: RECEIVING INSTRUCTIONS Shipping damage is NOT covered by warranty. The carrier is responsible Visually inspect all components for shipping damage. If you find damage, for all repair or replacement costs resulting from damage in shipment.

  • Page 2: Safety Warnings

    1. FEATURES AND MEASUREMENT FUNCTIONS • 5999 count display • Contoured body provides comfortable single handed grip • Auto ranging • Clamp illuminating LED and backlit LCD to facilitate working in dimly lit situations • Auto shut off feature to extend battery life •...
  • Page 3 WARNING • Never attempt to make any measurement if any abnormal conditions are noted, such as broken case, cracked test leads and exposed metal part. • Do not turn the function selector switch with plugged in test leads connected to the circuit under test. •...

  • Page 4: Specification

    3 . SPECIFICATION 3-1. Measuring range & accuracy (Accuracy guaranteed at 23ºC ± 5ºC, humidity <75%) AC CURRENT SURGE CURRENT RANGE RESOLUTION ACCURACY RANGE RESOLUTION ACCURACY 0.001A 0.001A <20A reference only ± (3.5% + 20) 0.01A 0.01A ± (5% + 60) ±...

  • Page 5: Preparation For Measurement

    3-2. General Specification • The maximum voltage allowed between terminal and ground: 1000 VDC or 750 VAC • Altitude: Maximum 2000m • Display: 5999 count Backlit LCD • Sampling time: ~ 3 times / sec • Automatic power off: 15 Minutes (Unless disabled) •...

  • Page 6: Diode Test

    5-2. Resistance / Continuity / Diode / Capacitance Resistance Diode test 1. Install the test leads 1. Install the test leads 2. Rotate the dial to the position 2. Rotate the dial to the position 3. Confirm “OL” is displayed on the LCD screen 3.

  • Page 7: Relative Measurement

    6. Press the trigger to open the clamp jaws and place the jaws around a single conductor. (Easily accomplished with the use of a line splitter) 7. Turn on the device being tested 8. The inrush current during the 100ms after start-up will be displayed on the LCD screen 9.

  • Page 8: Non-Contact Voltage Detection

    6-7. Non-contact Voltage Detection WARNING • Test on a known live source before use • Even if the meter does not provide indication, potentially hazardous voltage could still be present (The meter will only detect voltages above 50VAC and only when conditions are correct) •...
  • Page 9 Original proof of purchase is required to establish original ownership of product. No warranty will be honored unless an invoice or other proof of purchase date is provided to Sperry Instruments. Hand written receipts or invoices will not be honored.
